Folding Top Schematics

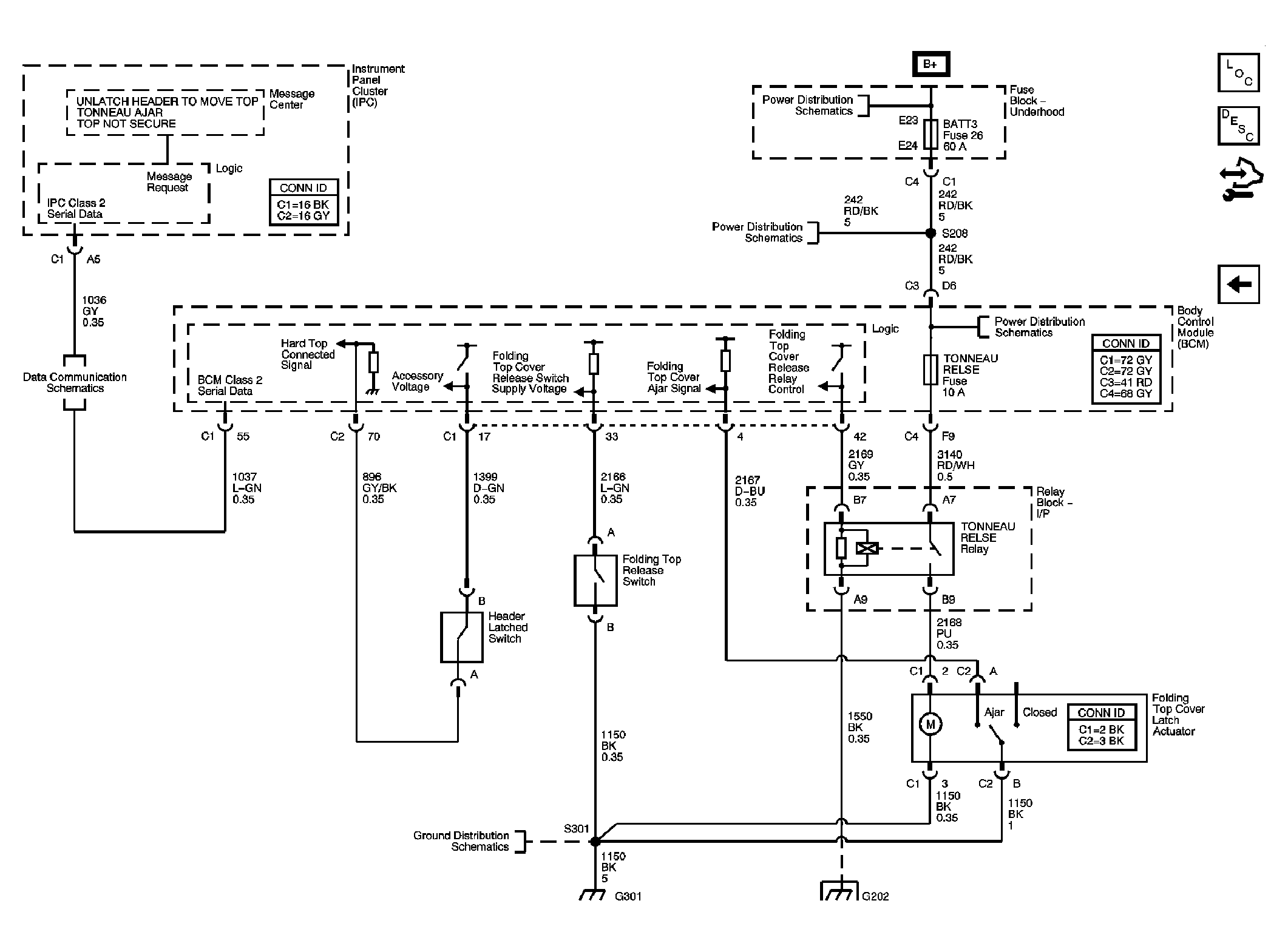

Fig 1: Manual Folding Top (Y67 w/o CM7) Schematic
GM1772381Courtesy of GENERAL MOTORS CORP.

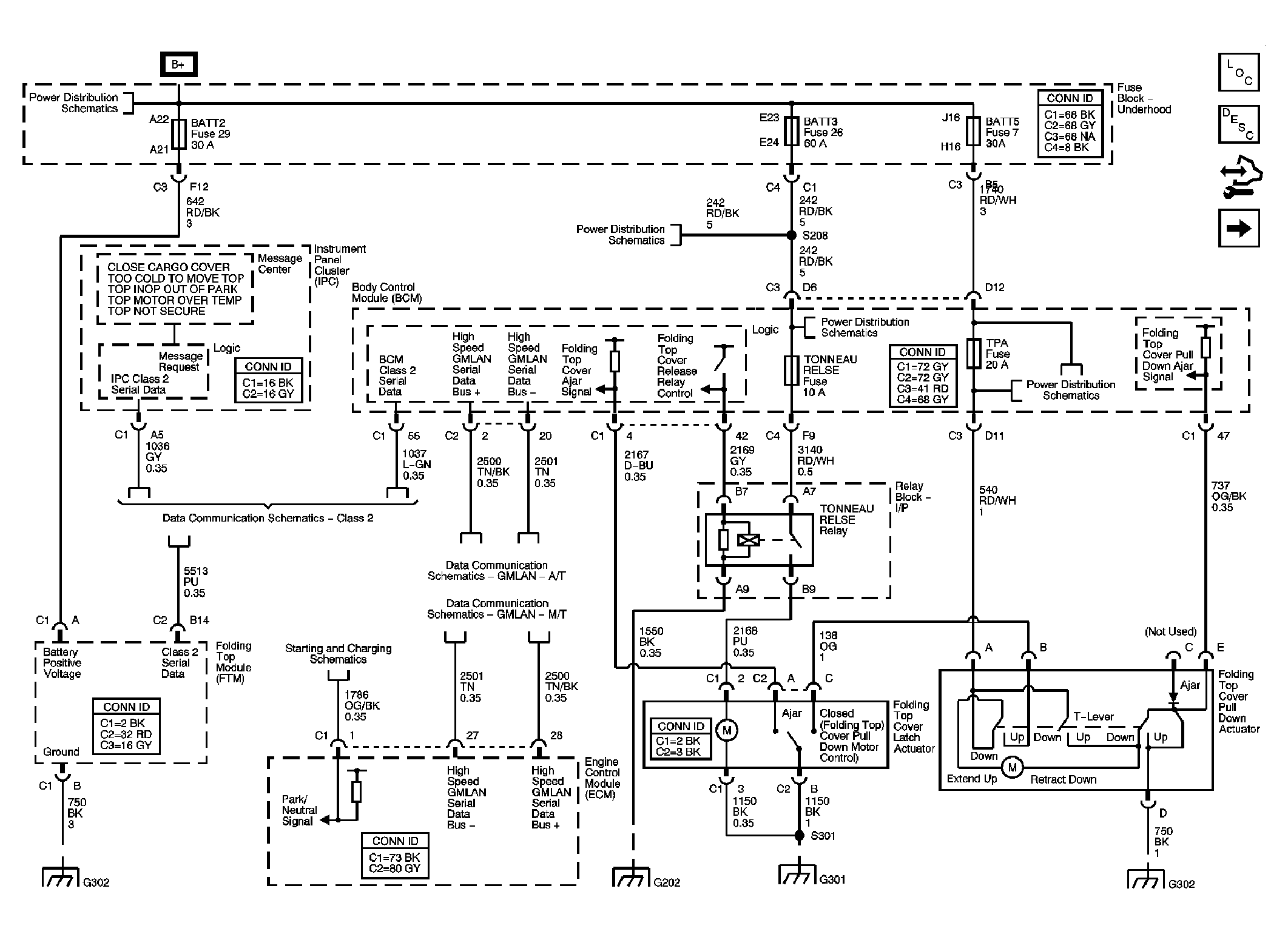

Fig 2: DLC, Folding Top Lid Controls, Ground and Power (CM7) Schematic
GM1834324Courtesy of GENERAL MOTORS CORP.

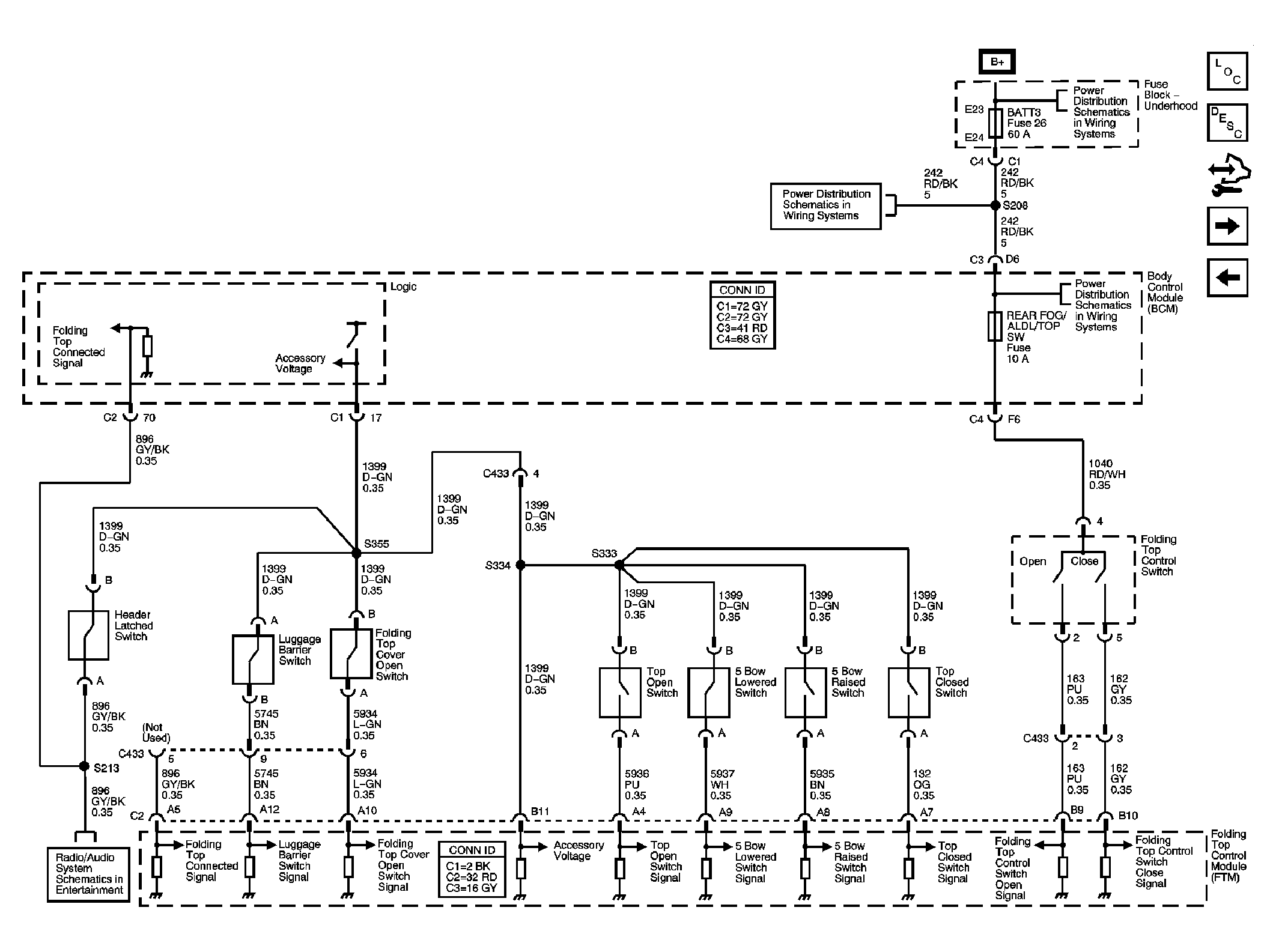

Fig 3: Switches (CM7) Schematic
GM1442896Courtesy of GENERAL MOTORS CORP.

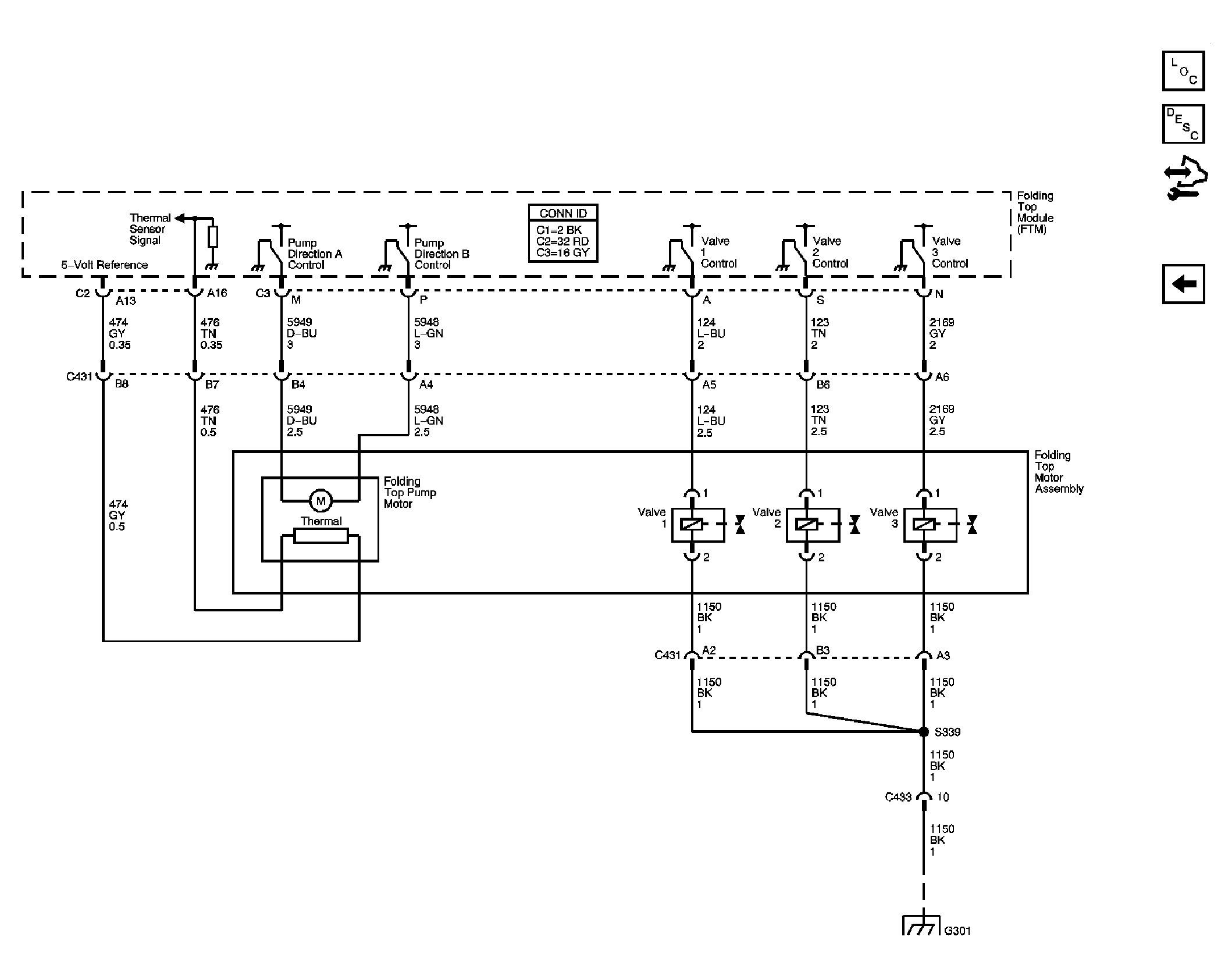

Fig 4: Pump and Valves (CM7) Schematic
GM1442901Courtesy of GENERAL MOTORS CORP.
