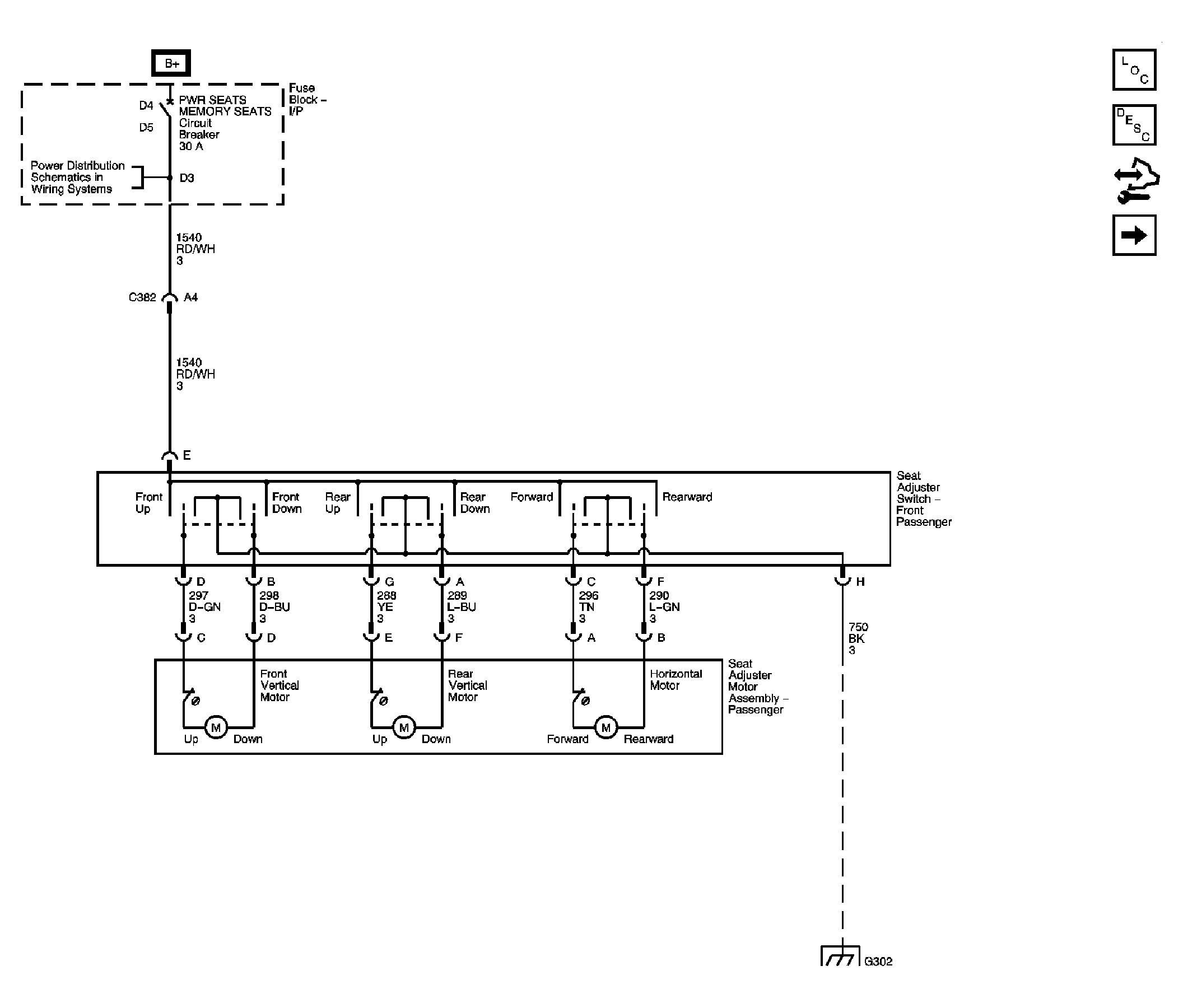

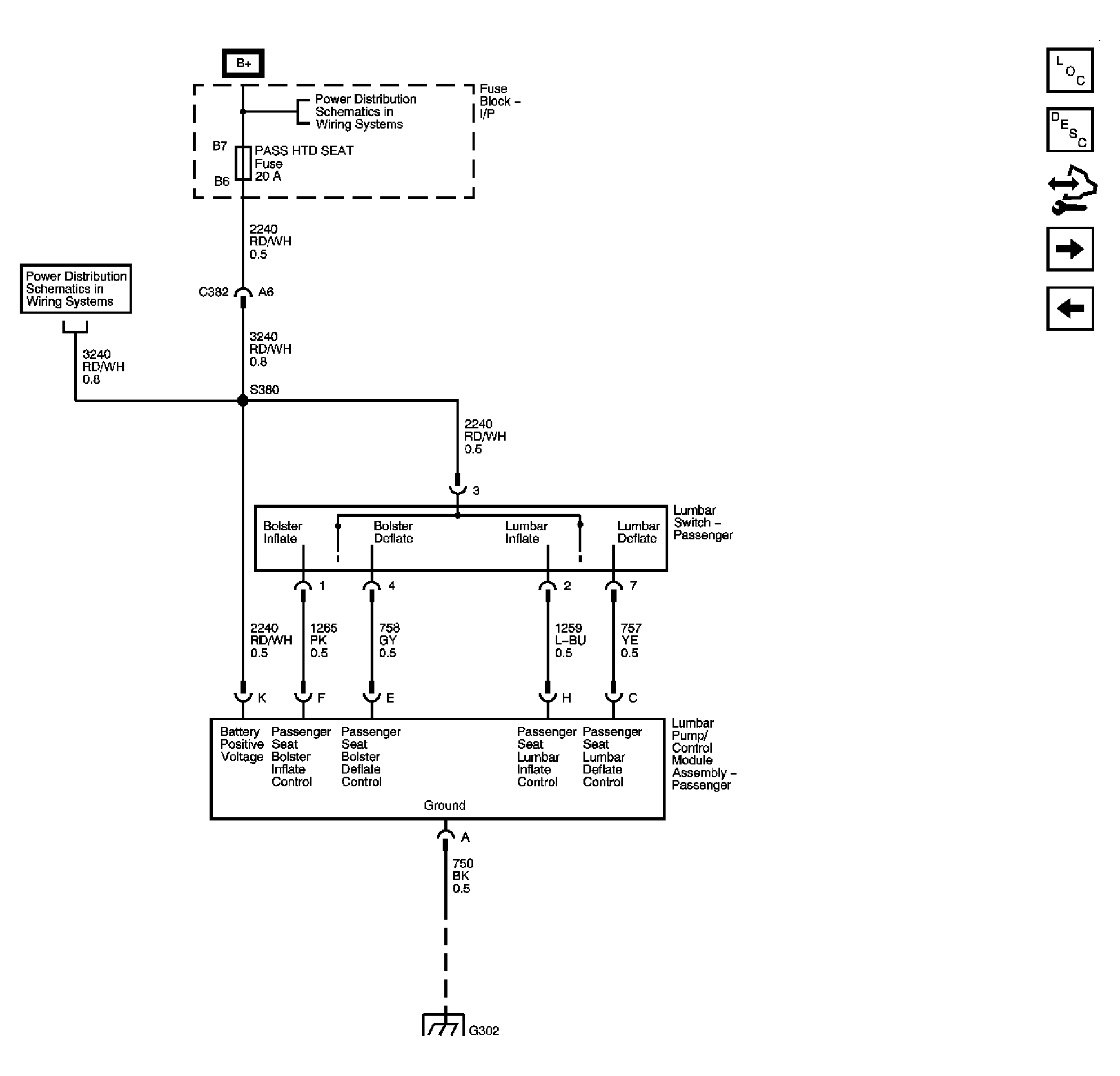

Home >> Chevrolet >> 2007 >> Corvette Base, 2D Convertible, Automatic >> Repair and Diagnosis >> Body & Frame >> Seats >> Power Seat System >> Schematic and Routing Diagrams >> Passenger Seat Schematics
