Driver Seat Schematics

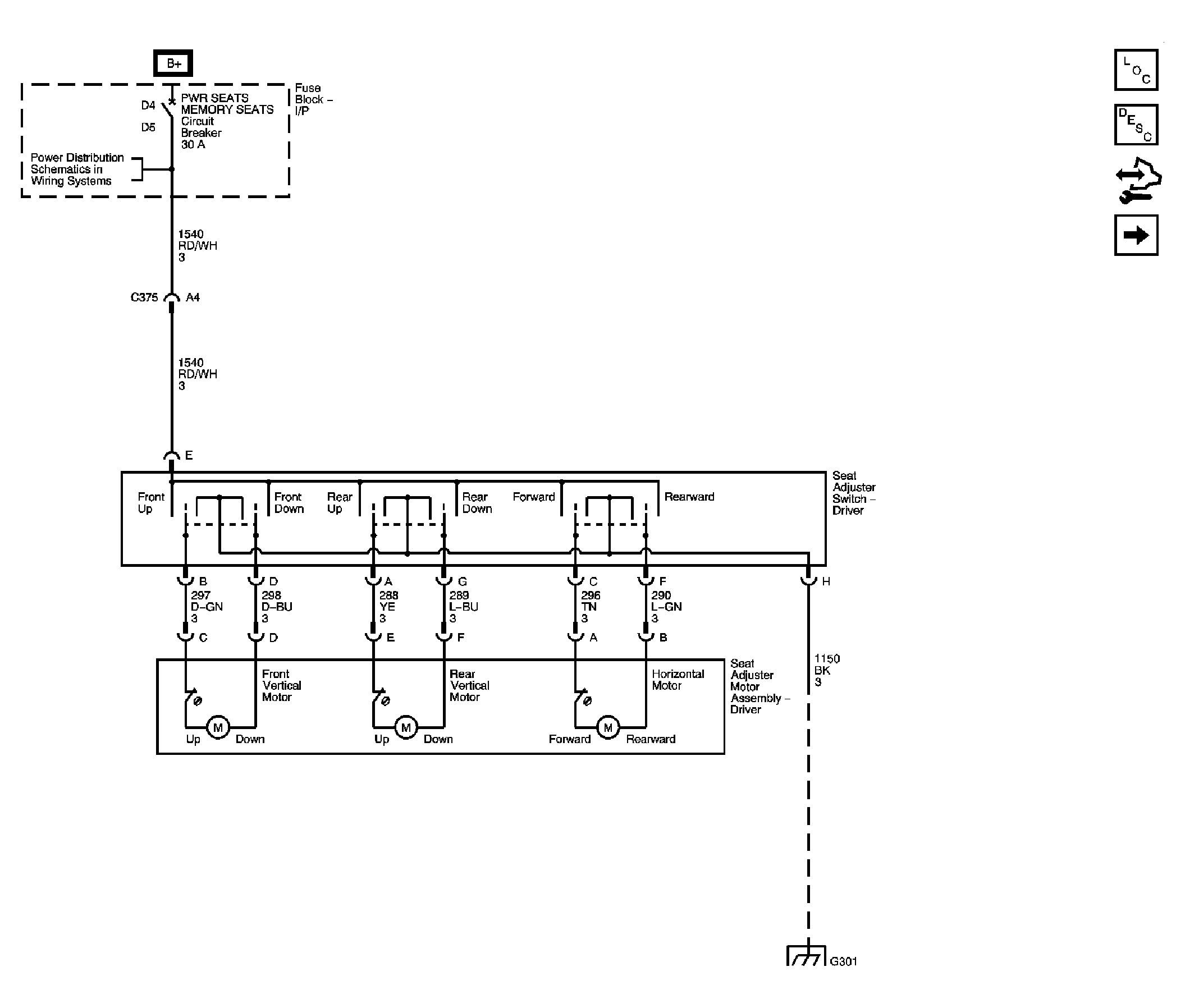

Fig 1: 6-Way Power Seat (w/o AAB) Schematic
GM1438735Courtesy of GENERAL MOTORS CORP.

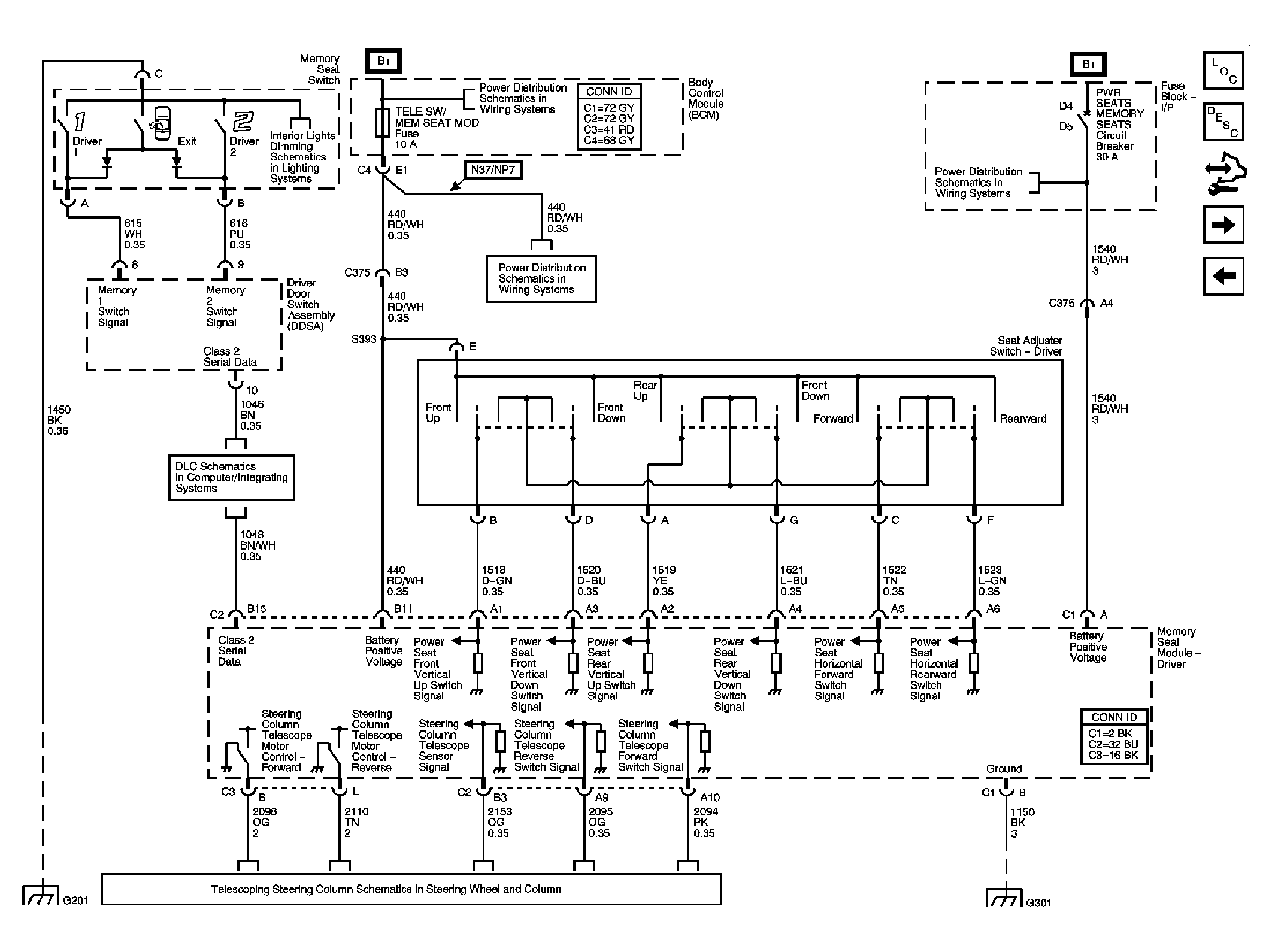

Fig 2: Memory Seat (AAB) 1 of 2 Schematic
GM1438741Courtesy of GENERAL MOTORS CORP.

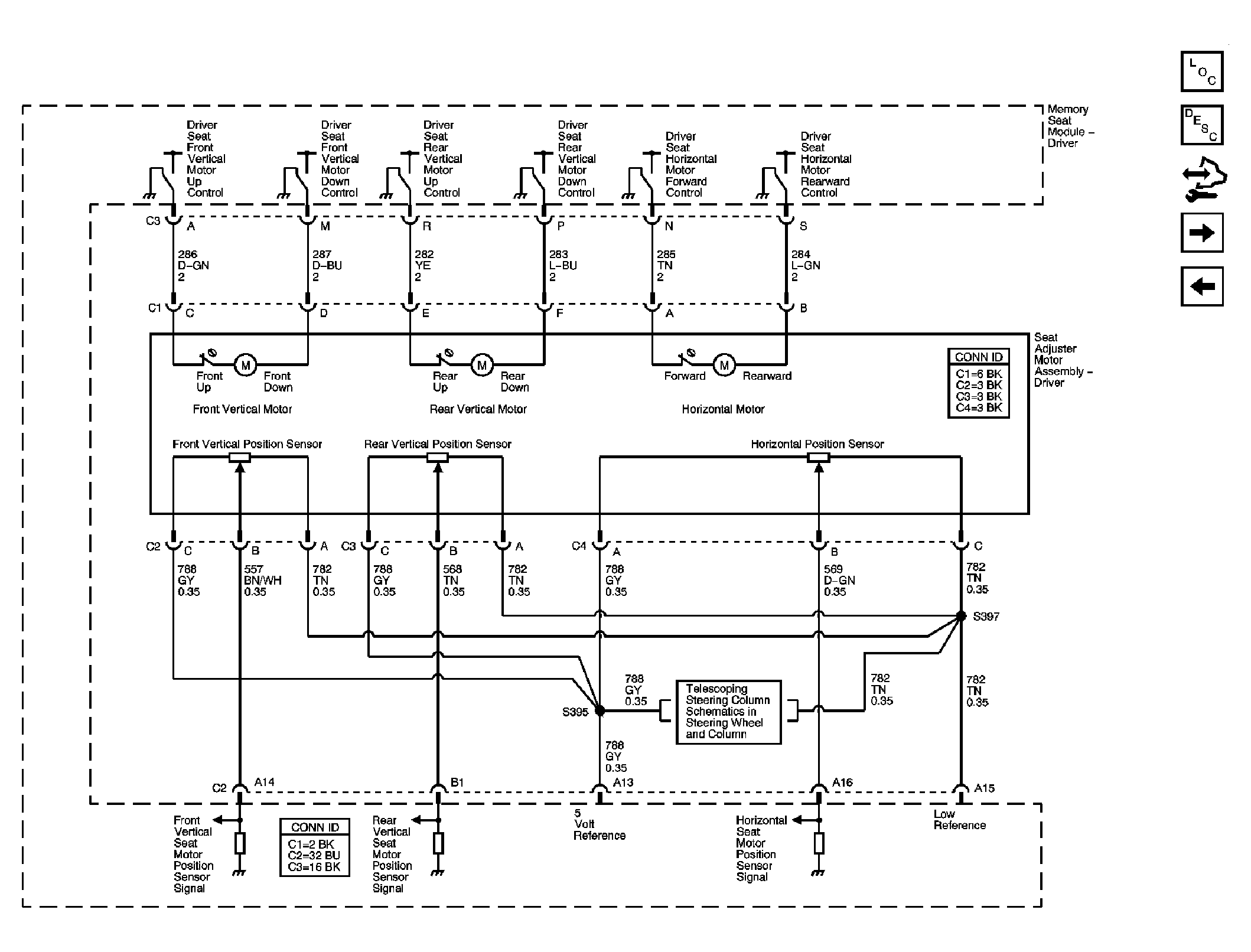

Fig 3: Memory Seat (AAB) 2 of 2 Schematic
GM1438747Courtesy of GENERAL MOTORS CORP.

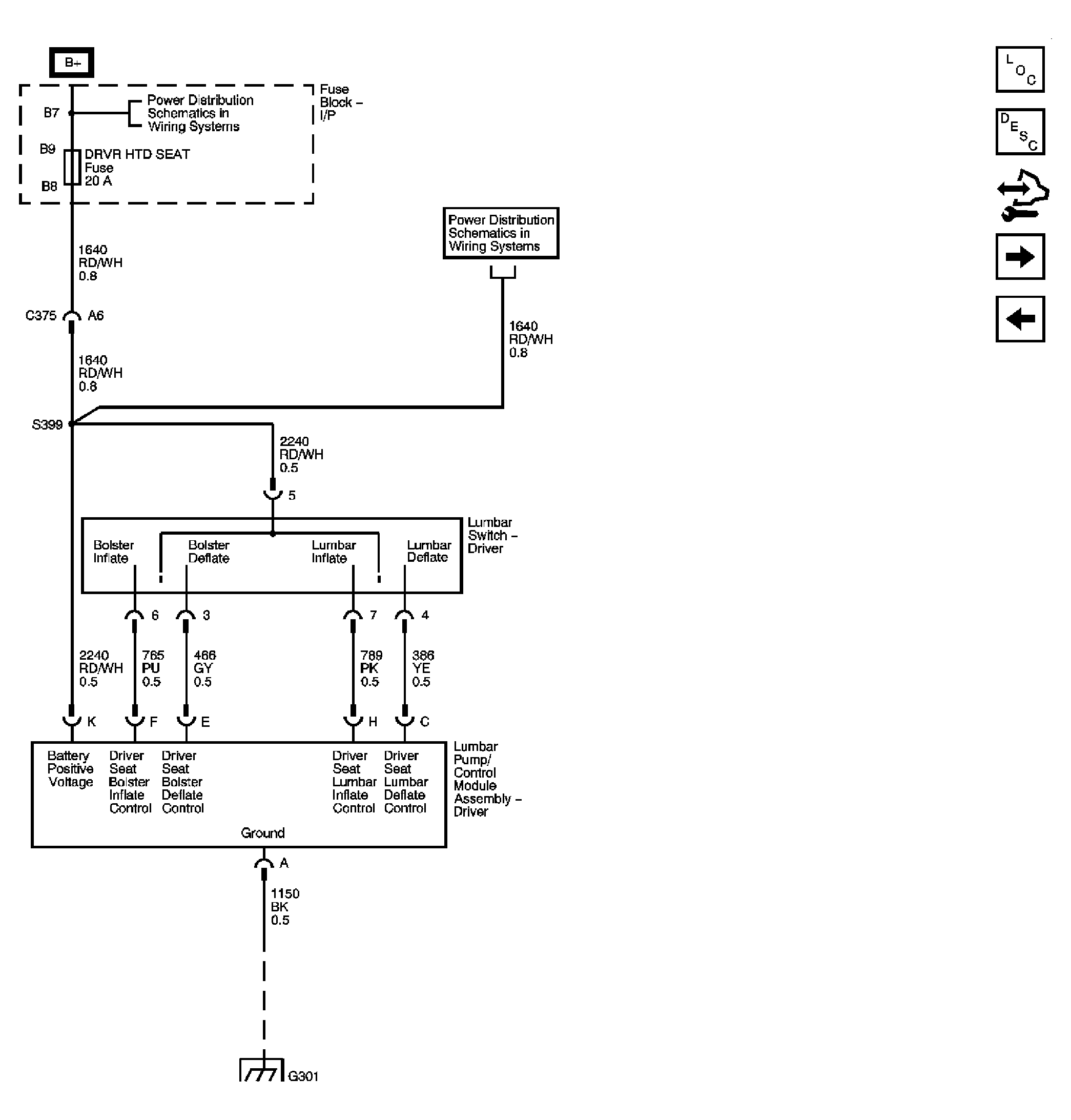

Fig 4: Lumbar Support Schematic
GM1709514Courtesy of GENERAL MOTORS CORP.
