Instrument Cluster Trim Panel Replacement

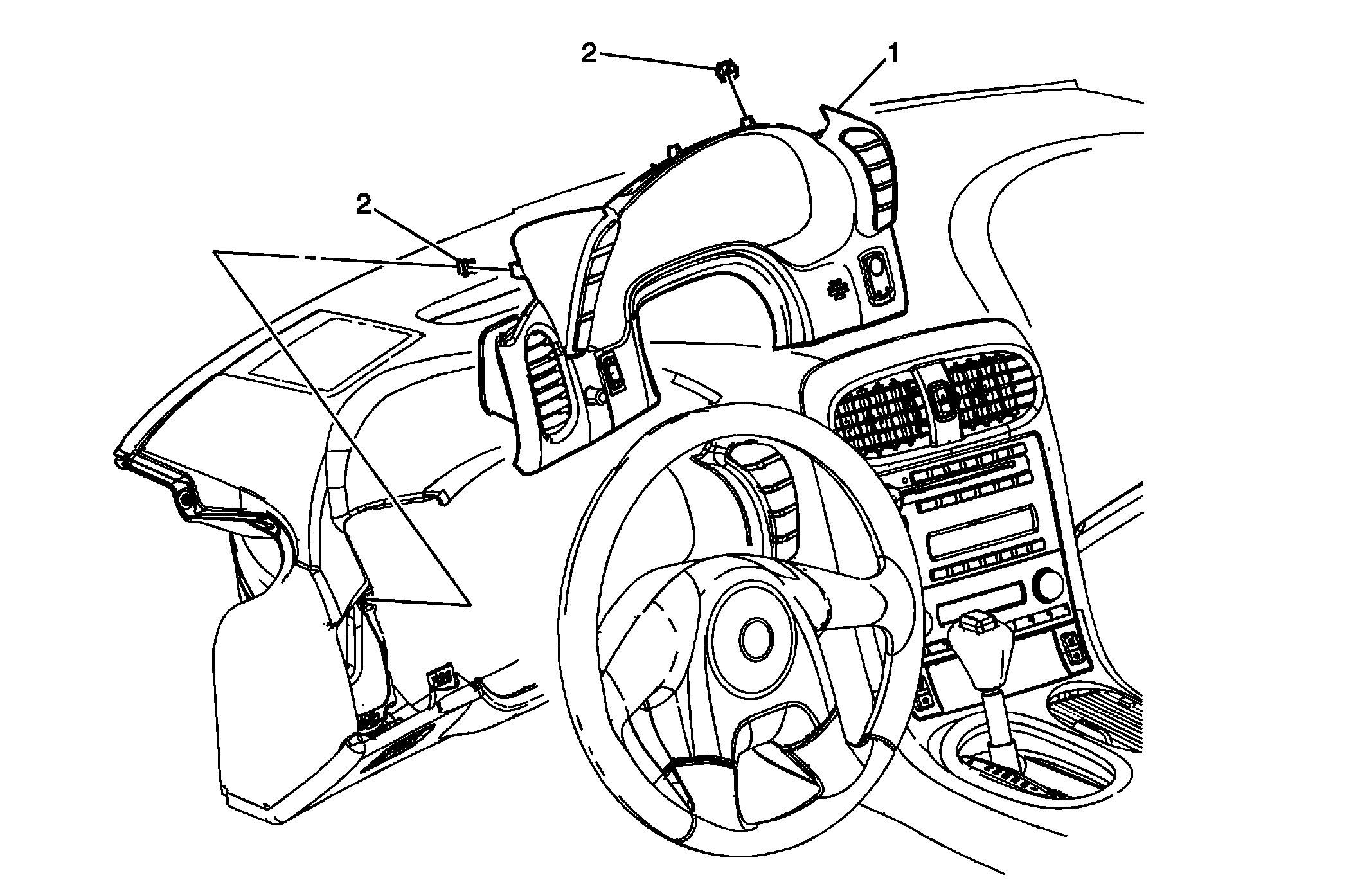

Fig 1: Trim Panel - Instrument Panel (I/P) Cluster
GM1479500Courtesy of GENERAL MOTORS CORP.
Instrument Cluster Trim Panel Replacement

Callout Component Name
1 Instrument Panel Cluster Trim Plate
Tip:
  1. Lower the steering column to its lowest position.
  2. Pull outward on the lower edge of the trim panel in order to release the lower clips.
  3. Disconnect the electrical connections.
2 Instrument Panel Cluster Trim Plate Clip (Qty: 6)
