OnStar Schematics

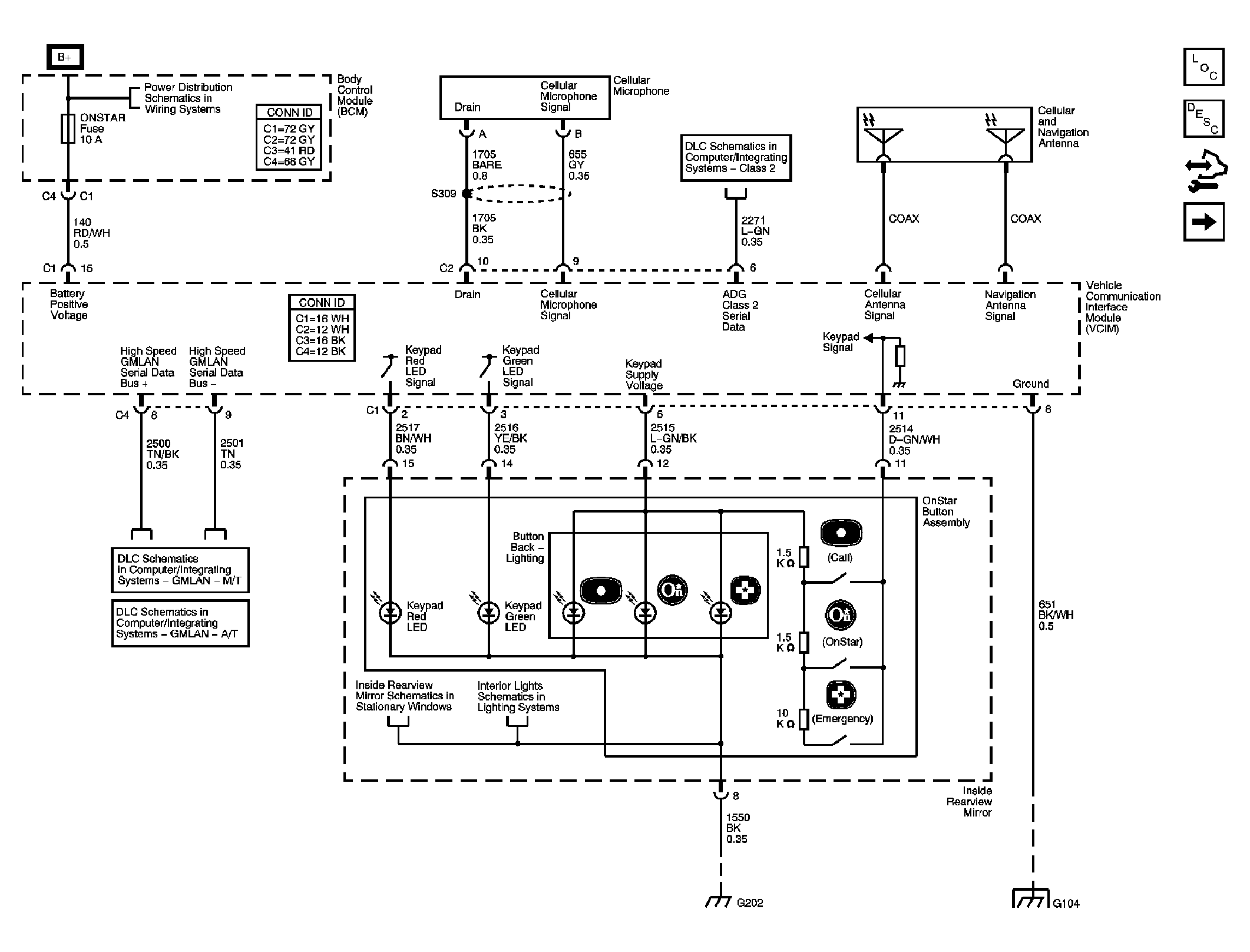

Fig 1: Antenna, DLC, Ground, Power and User Inputs Schematic

GM1410255

Courtesy of GENERAL MOTORS CORP.

Fig 2: Audio Output Schematic

GM1410258

Courtesy of GENERAL MOTORS CORP.
