Automatic Transmission Controls Schematics (6.6L)

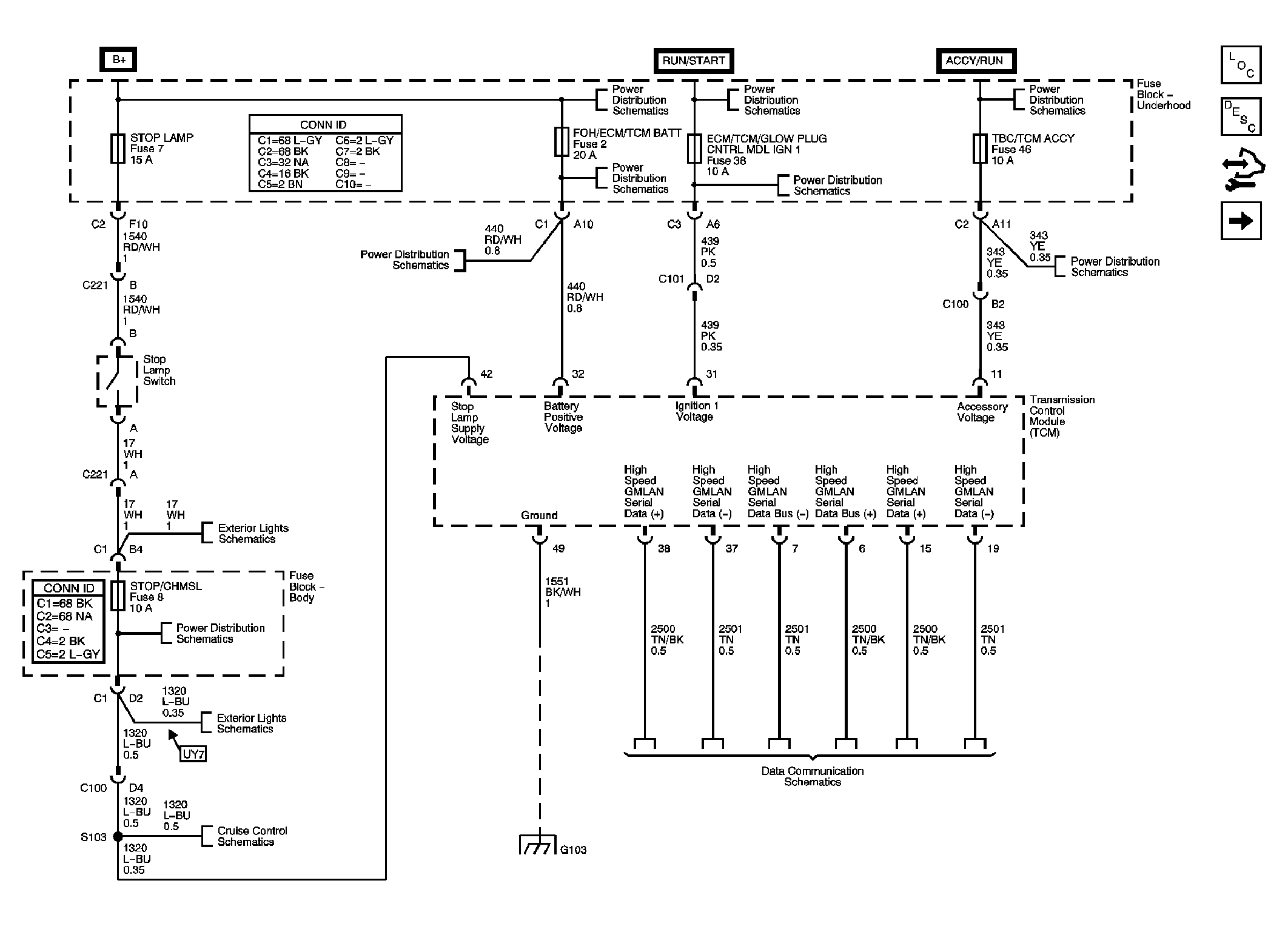

Fig 1: Module Power, Ground, Serial Data, and Stop Lamp Switch

Courtesy of GENERAL MOTORS CORP.

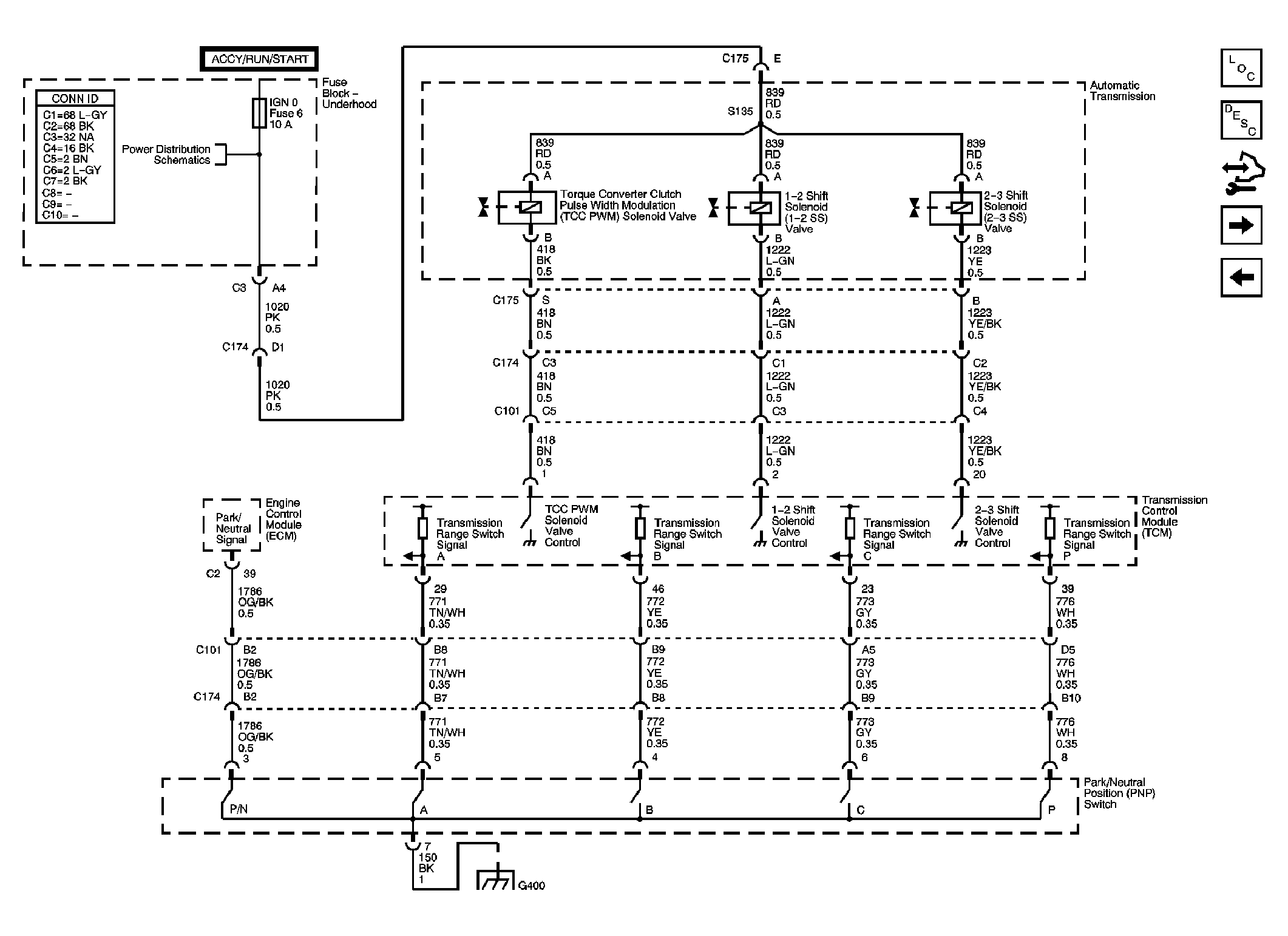

Fig 2: Shift Controls and PNP Switch

Courtesy of GENERAL MOTORS CORP.

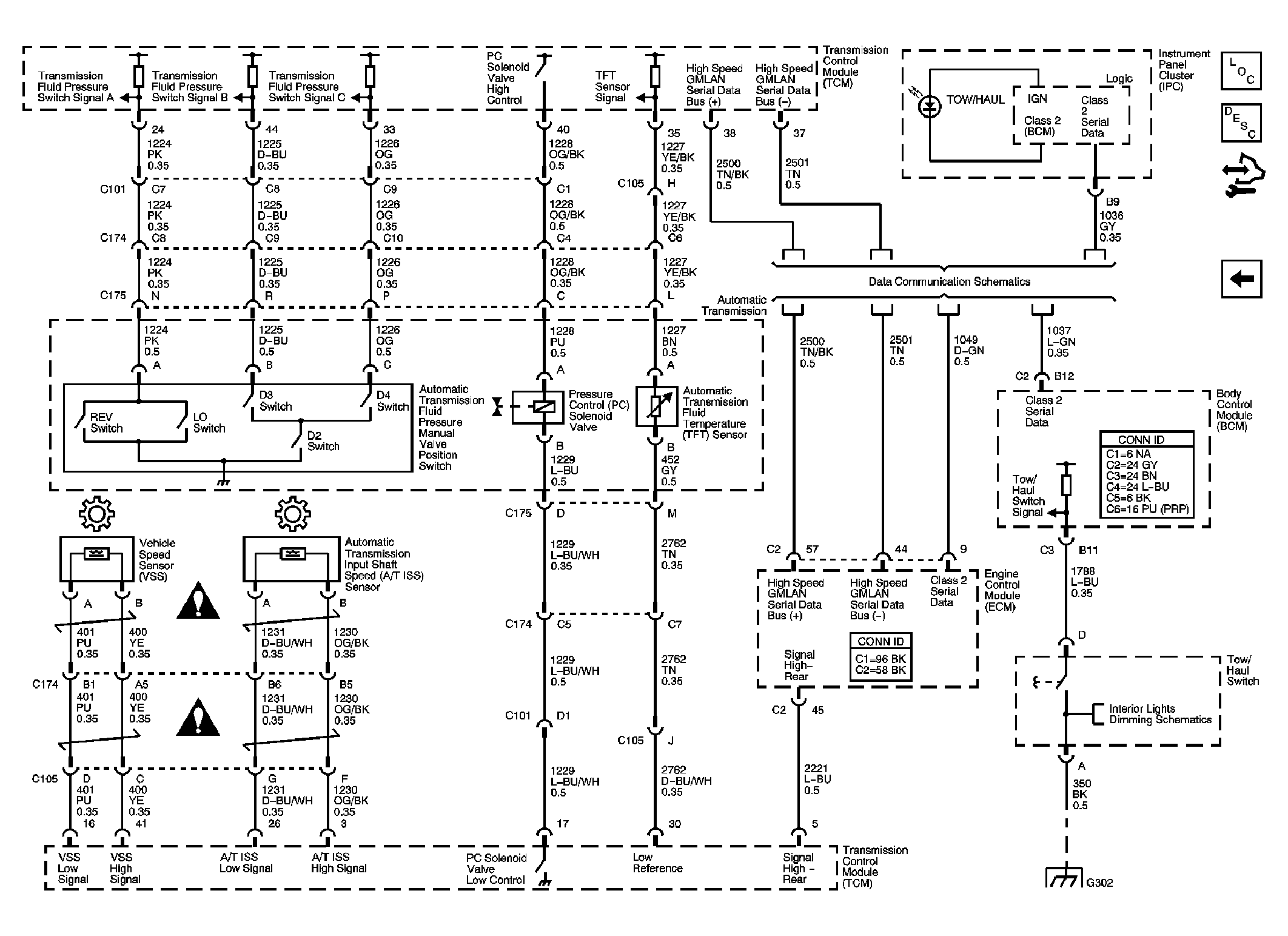

Fig 3: Pressure Controls, Tow/Haul Switch, Temperature, and Speed Sensors

Courtesy of GENERAL MOTORS CORP.
