Automatic Transmission Controls Schematics (4.8L and 6.0L)

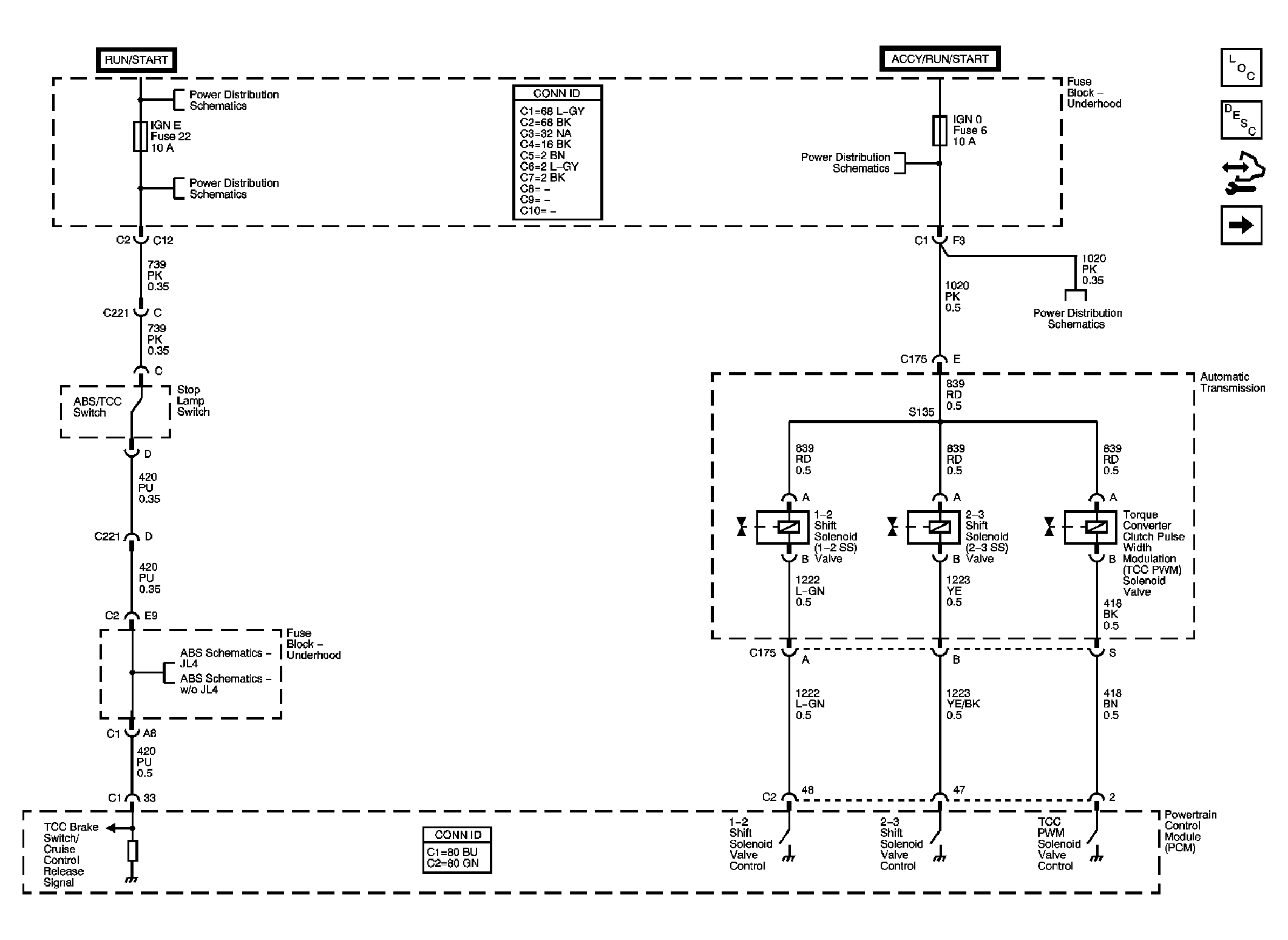

Fig 1: Shift Controls and Stop Lamp Switch

Courtesy of GENERAL MOTORS CORP.

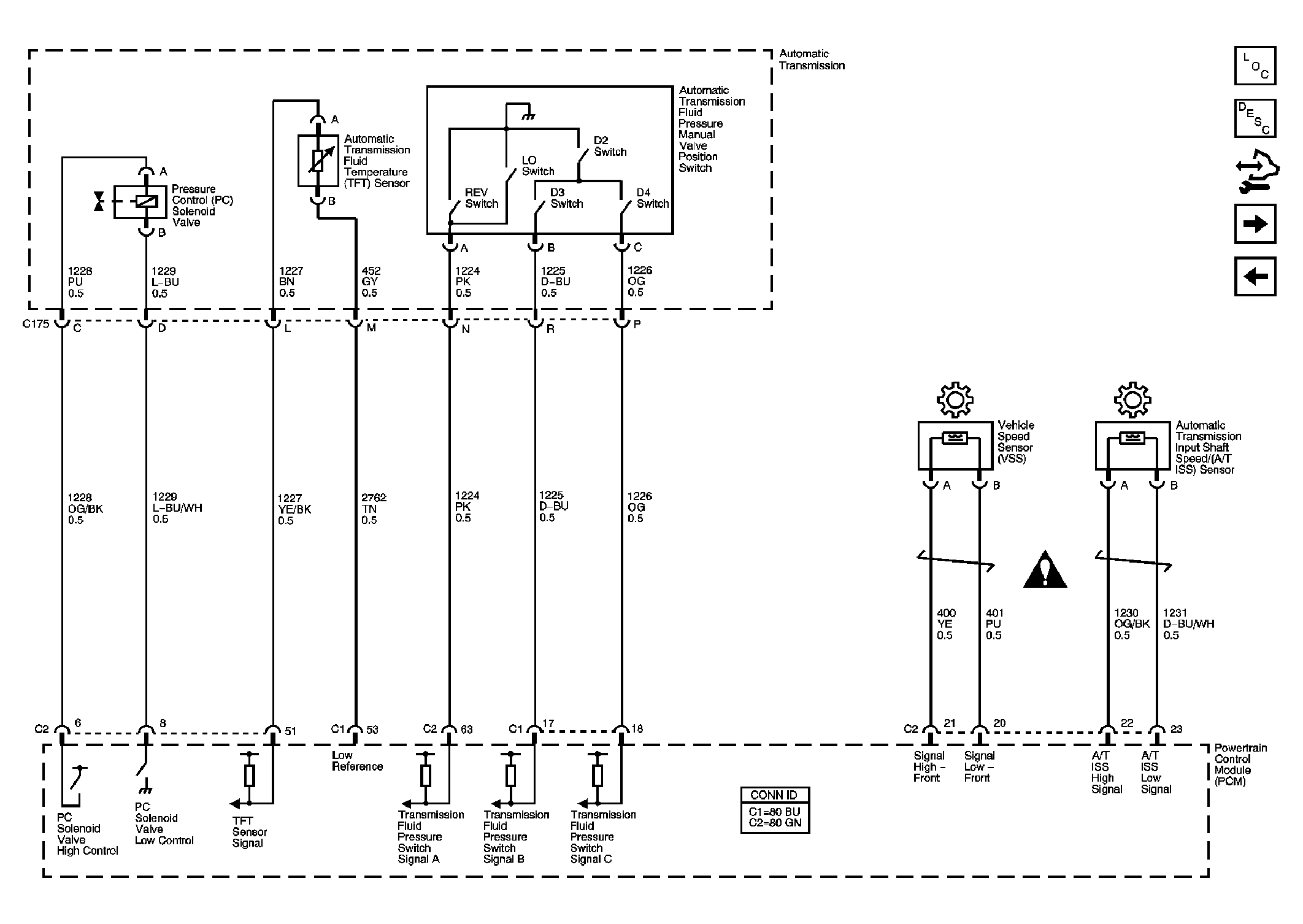

Fig 2: Pressure Controls, Temperature, and VSS

Courtesy of GENERAL MOTORS CORP.

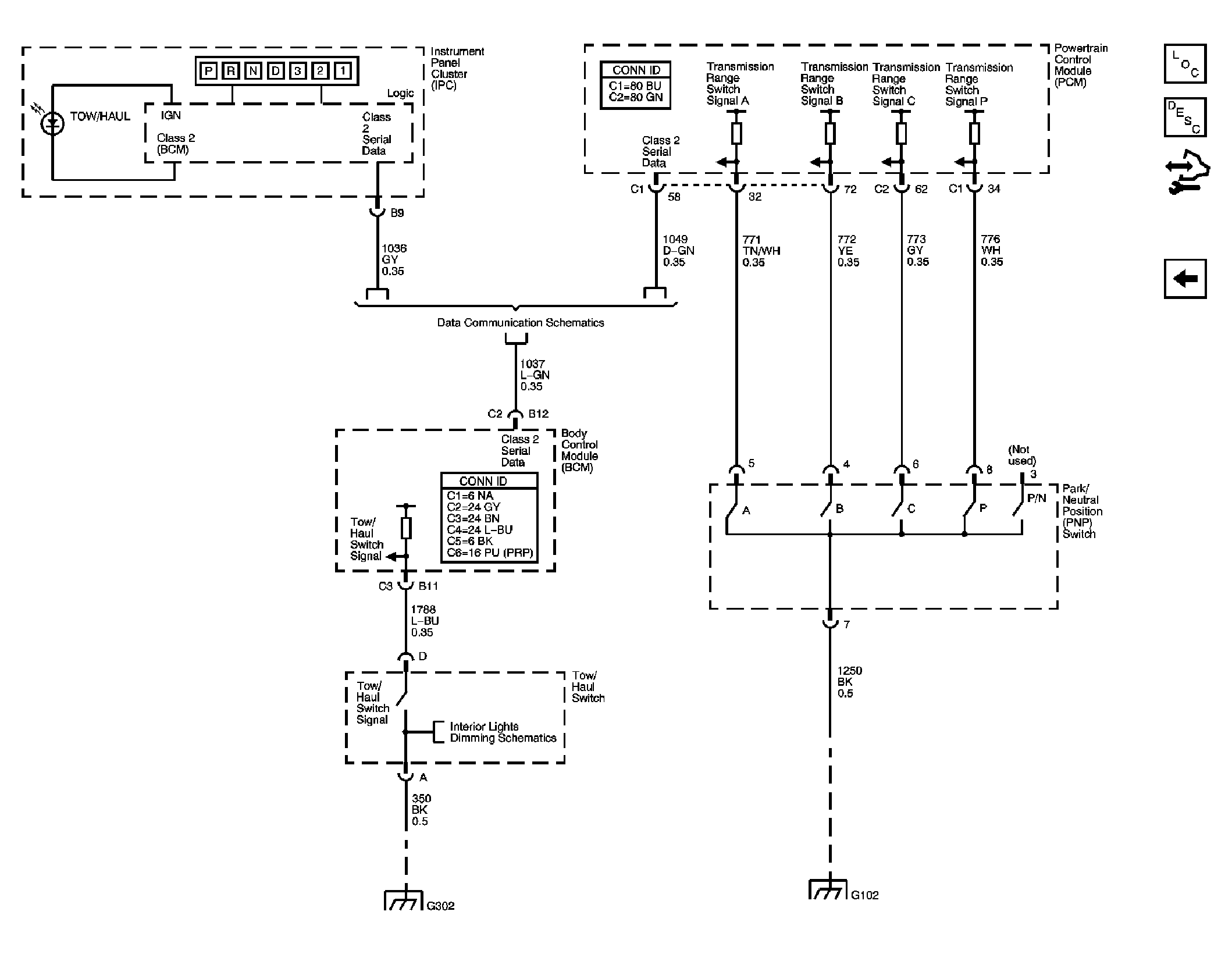

Fig 3: PNP Switch, Tow/Haul Switch, Serial Data, and Indicator

Courtesy of GENERAL MOTORS CORP.
