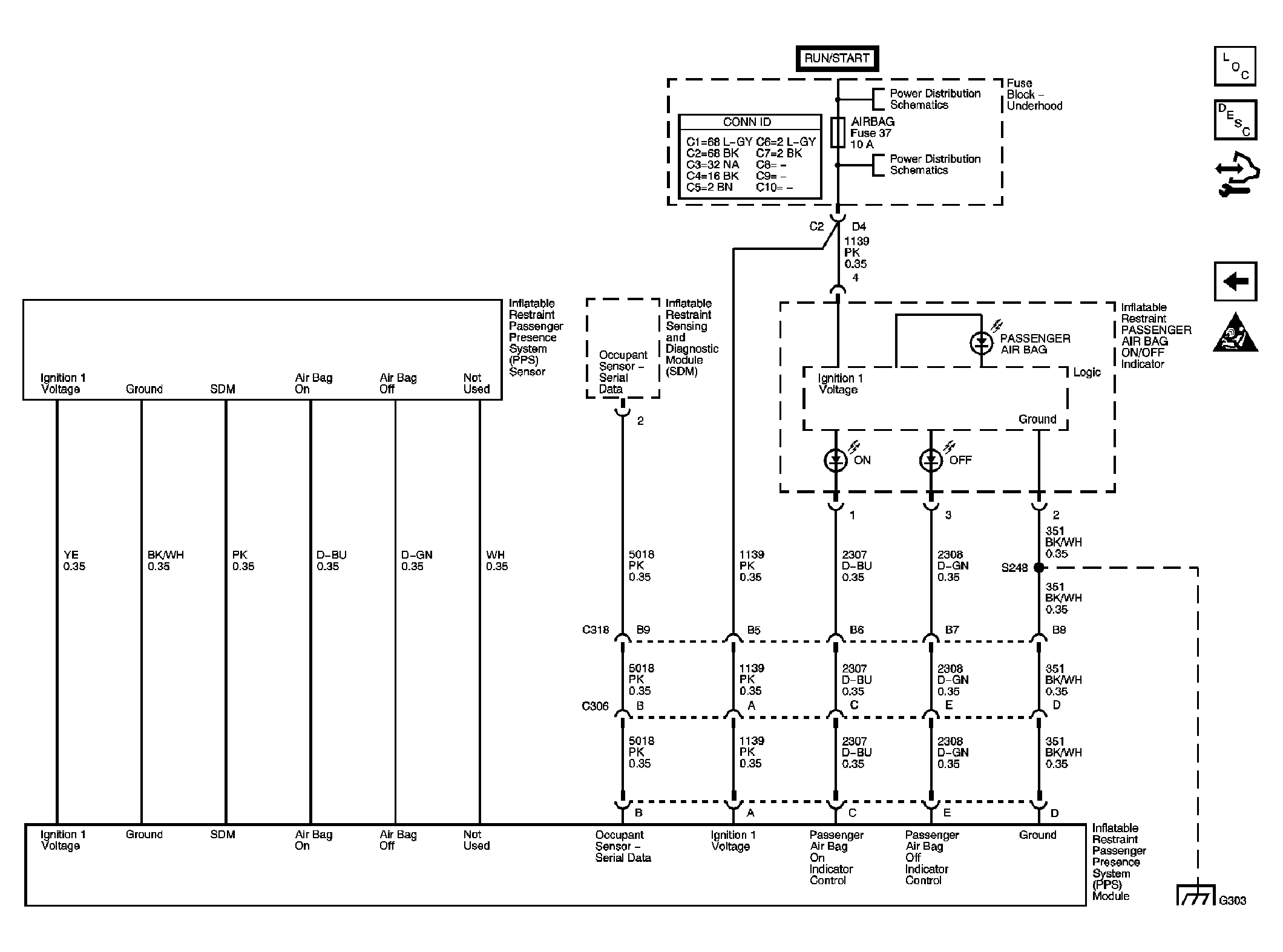

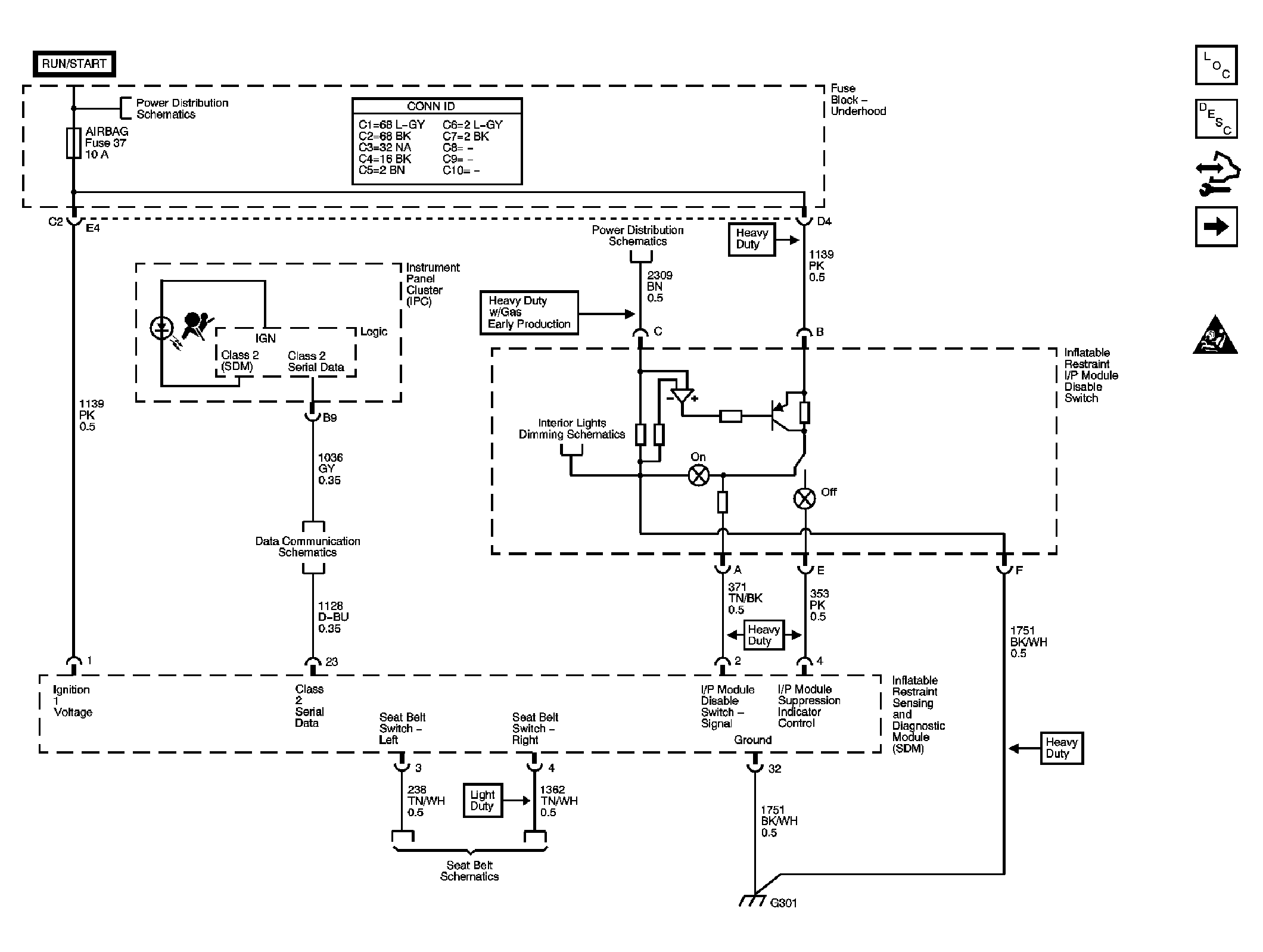

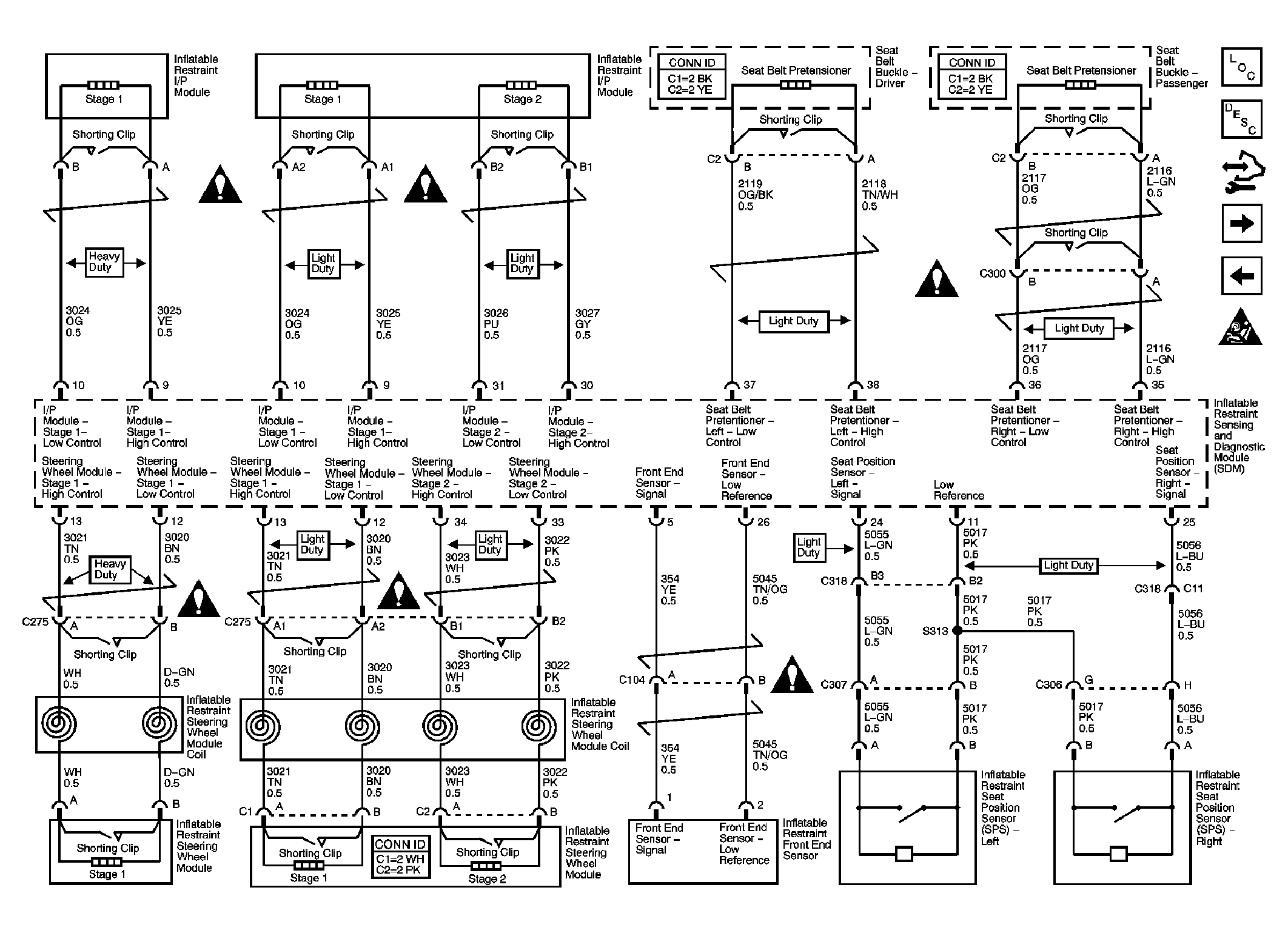

Home >> Chevrolet >> 2007 >> Chevy Express G2500, Van Cargo, 6.6 6 >> Repair and Diagnosis >> Restraints >> Air Bag, SRS >> Supplemental Inflatable Restraint System >> Schematic and Routing Diagrams >> SIR Schematics
