SIR Component Views

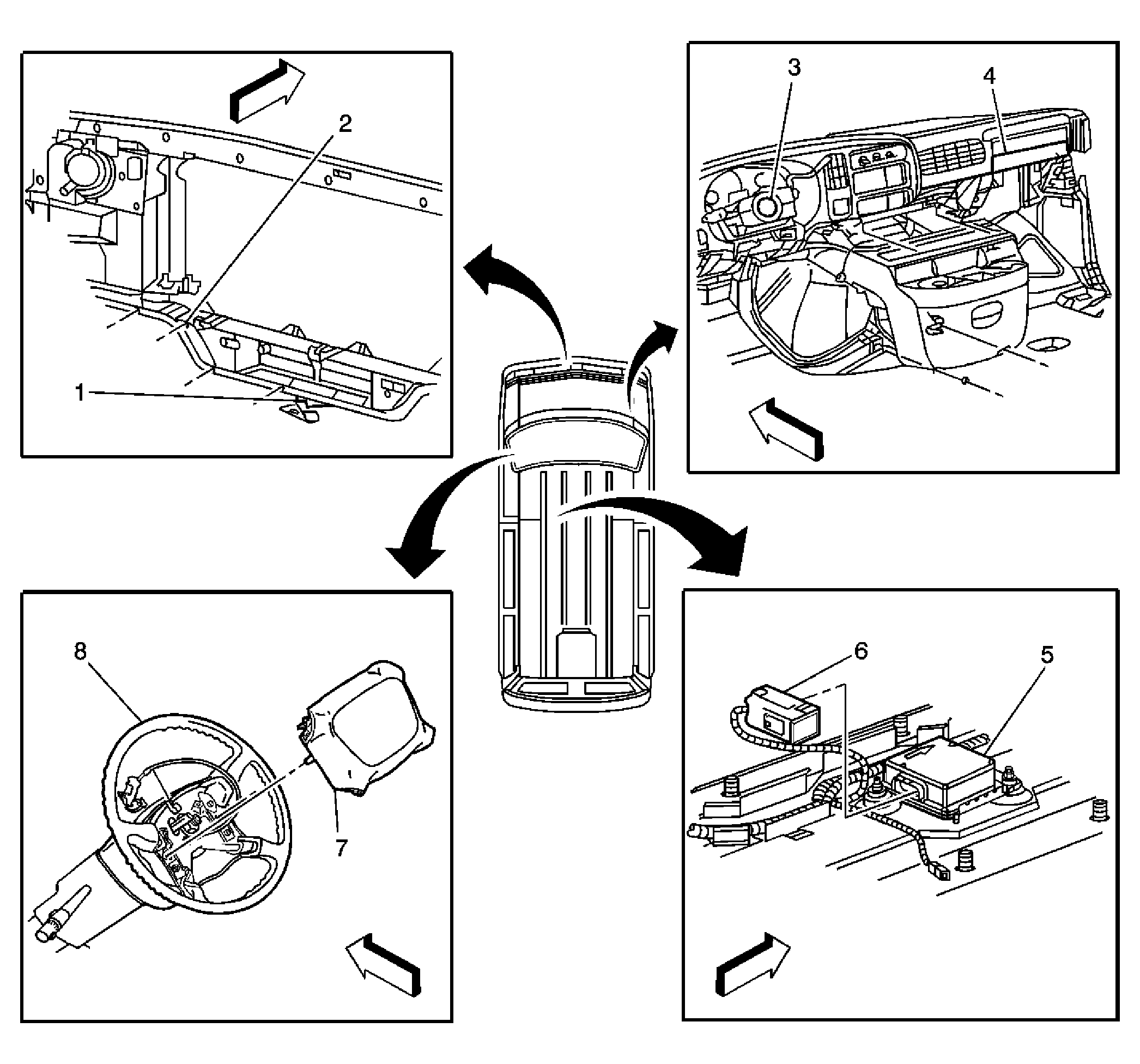

| Callout | Component Name |
|---|---|
| 1 | Inflatable Restraint Front End Sensor |
| 2 | Front End Lower Tie Bar |
| 3 | Inflatable Restraint Steering Wheel Module Coil |
| 4 | Inflatable Restraint I/P Module |
| 5 | Inflatable Restraint Sensing and Diagnostic Module (SDM) |
| 6 | Inflatable Restraint Sensing and Diagnostic Module (SDM) Connector |
| 7 | Inflatable Restraint Steering Wheel Module |
| 8 | Steering Wheel |
| Callout | Component Name |
|---|---|
| 1 | Turn Signal/Multifunction Switch |
| 2 | Instrument Panel Cluster (IPC) |
| 3 | HVAC Control Assembly |
| 4 | Radio |
| 5 | Auxiliary Power Outlet 2 |
| 6 | Traction Control Switch (JL4) |
| 7 | Inflatable Restraint PASSENGER AIR BAG ON/OFF Indicator (Light Duty w/o YF7) |
| 8 | High Idle Switch (UF3) |
| 9 | Inflatable Restraint I/P Disable Switch (Heavy Duty) |
| 10 | Cigar Lighter (DT4)/Auxiliary Power Outlet 1 (w/o DT4) |
| 11 | Blower Motor Switch - Auxiliary (C36) |
| 12 | Tow/Haul Switch |
| 13 | Headlamp and Panel Dimmer Switch |

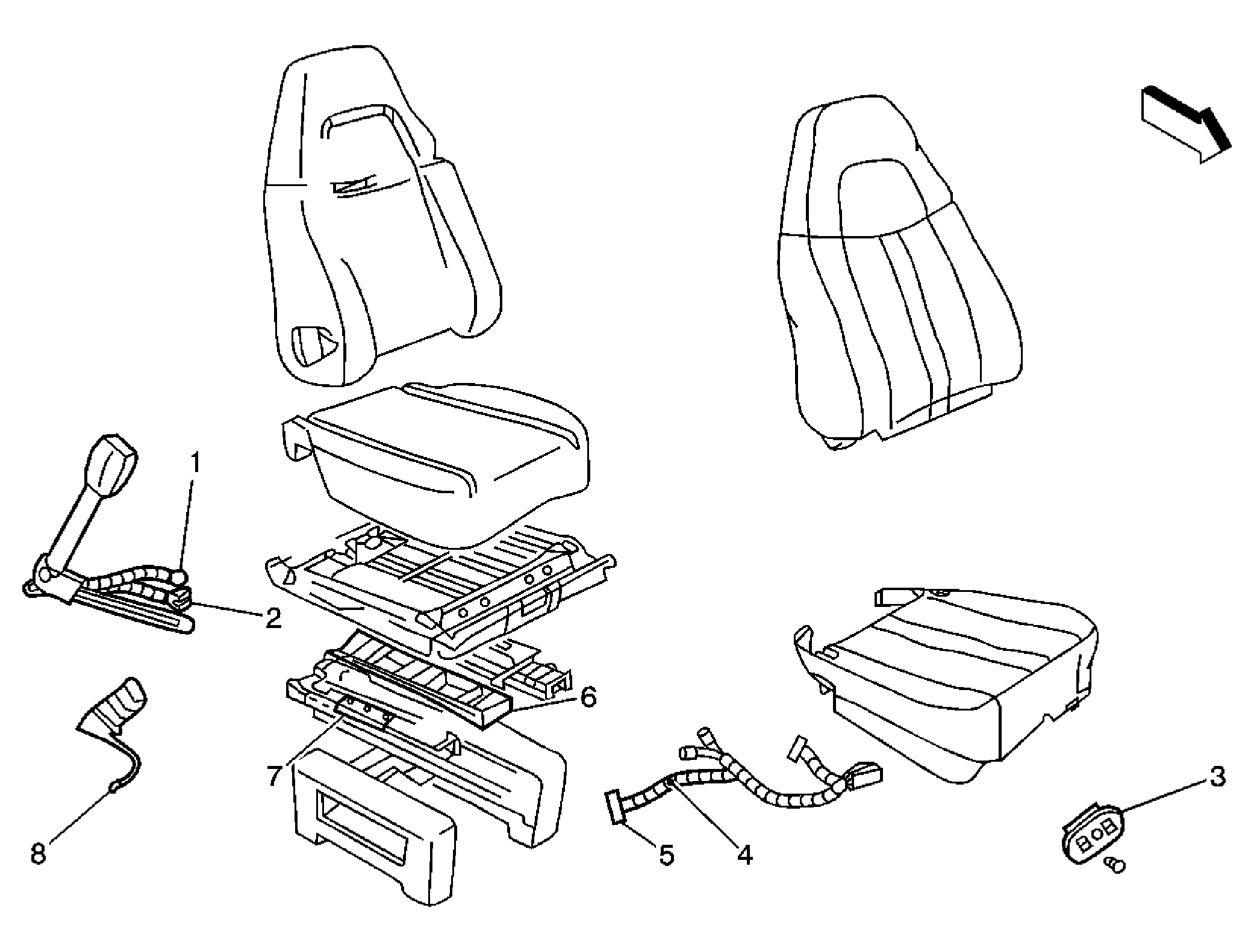

| Callout | Component Name |
|---|---|
| 1 | Seat Belt Buckle Driver - C1 (Light Duty) |
| 2 | Seat Belt Buckle Driver - C2 (Light Duty) |
| 3 | Seat Adjuster Switch - Driver (AG1) |
| 4 | S304 (AG1) |
| 5 | C307 |
| 6 | Seat Motors - Driver (AG1) |
| 7 | Inflatable Restraint Seat Position Sensor (SPS) - Left (Light Duty) |
| 8 | Seat Belt Buckle Connector - Driver (Heavy Duty) |

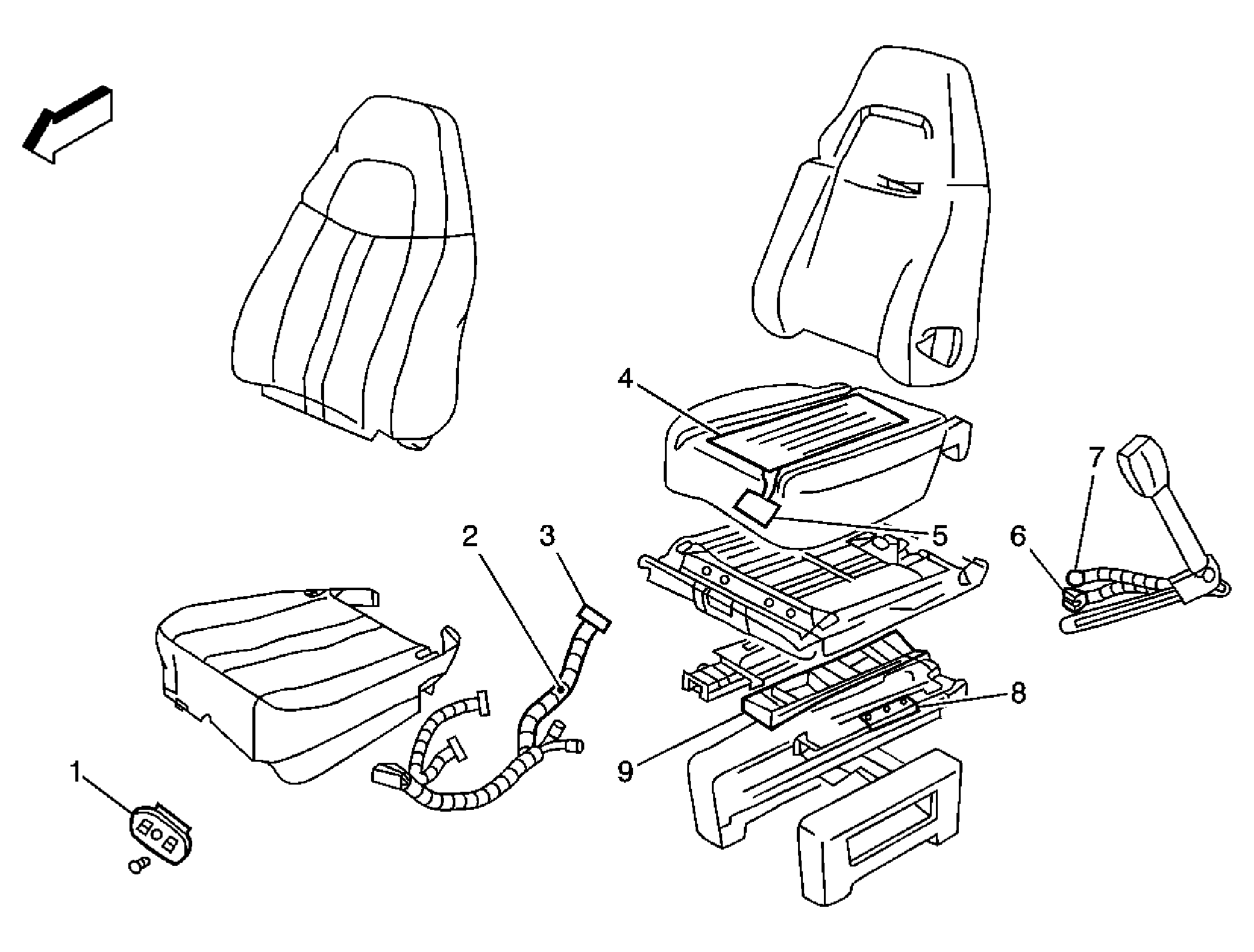

| Callout | Component Name |
|---|---|
| 1 | Seat Adjuster Switch - Passenger (AG2) |
| 2 | S317 (Light Duty w/AG2) |
| 3 | C306 |
| 4 | Inflatable Restraint Passenger Presence System (PPS) Sensor (Light Duty w/o YF7) |
| 5 | Inflatable Restraint Passenger Presence System (PPS) Module (Light Duty w/o YF7) |
| 6 | Seat Belt Buckle Passenger - C2 (Light Duty) |
| 7 | Seat Belt Buckle Passenger - C1 (Light Duty) |
| 8 | Inflatable Restraint Seat Position Sensor (SPS) - Right (Light Duty) |
| 9 | Seat Motors - Passenger (AG2) |
