Fuel Tank Draining (L59)

WARNING: This page is about a different variant/trim than selected.
    CAUTION: Refer to Gasoline/Gasoline Vapors Caution .
  1. Remove the fuel filler cap.
  2. Raise the vehicle. Refer to Lifting and Jacking the Vehicle .
  3. Clean the area around the fuel filler pipe to tank connection.
  4. Place a drain pan under the fuel filler pipe connection.

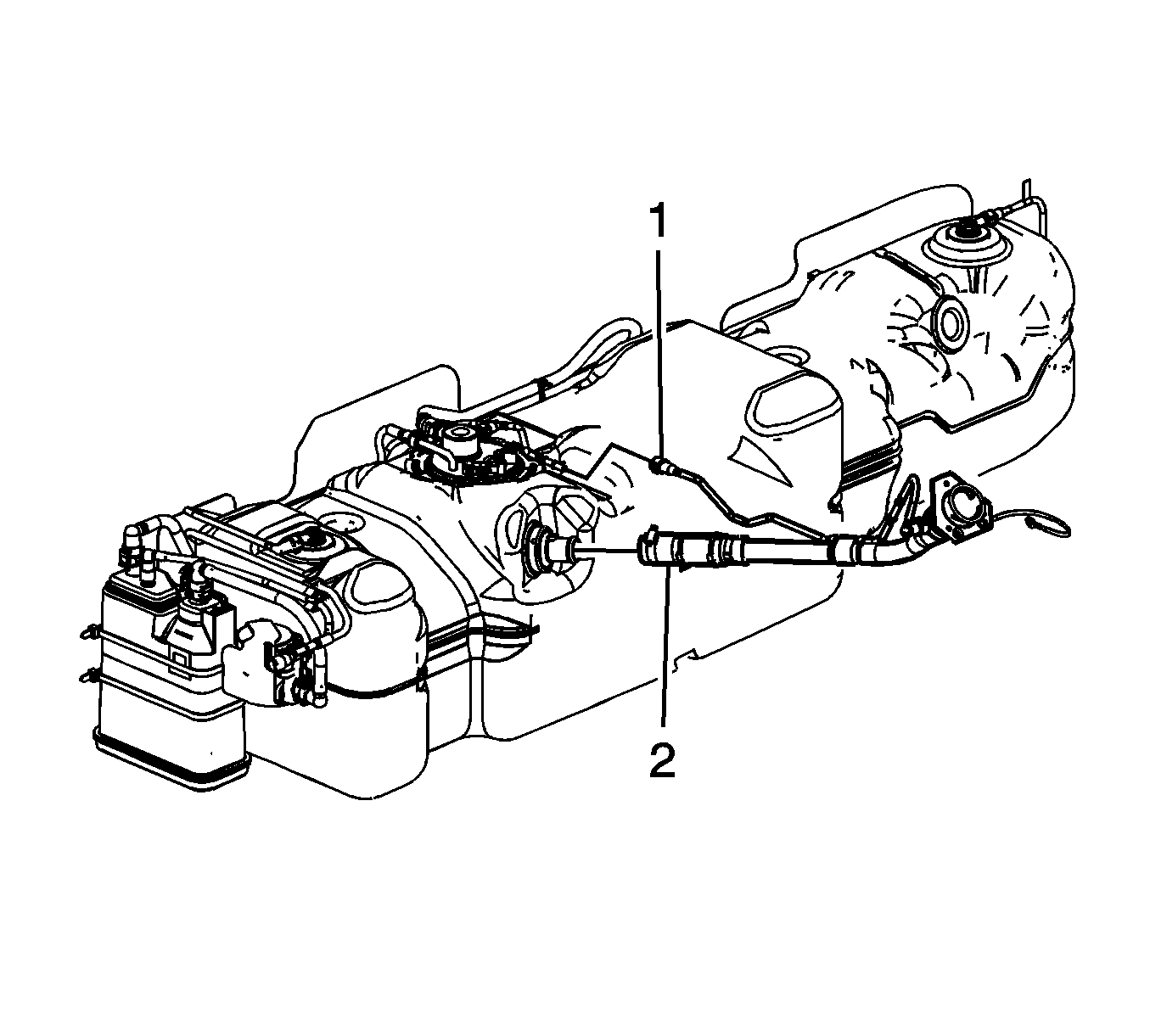

    5. Fig 1: View Of fuel fill hose
    GM1863242Courtesy of GENERAL MOTORS CORP.
  5. Disconnect the fuel fill hose (1) at the fuel tank.
  6. Use a hand or air operated pump device in order to drain as much fuel through the fuel tank filler pipe opening as possible.
    7. NOTE: Refer to Fastener Notice .
  7. If not removing the fuel tank, connect the fuel fill hose to the fuel tank.

    Tighten:  Tighten the clamp to 2.75 N.m (24 lb in).
