Installation Procedure

WARNING: This page is about a different variant/trim than selected.

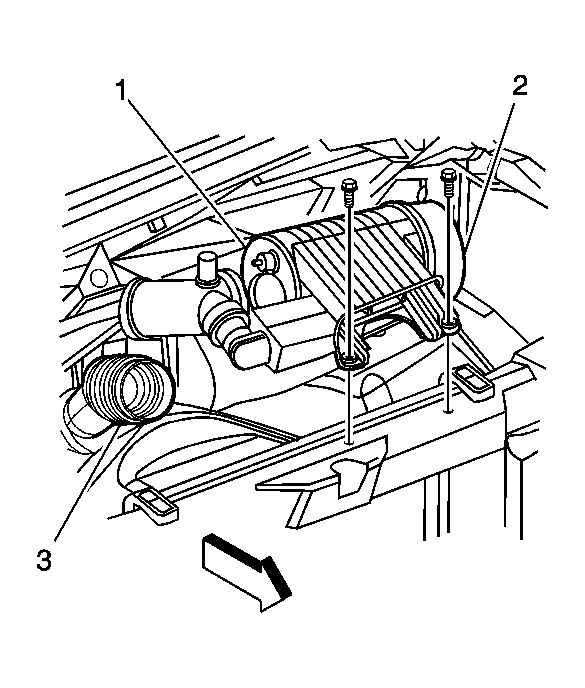

    Fig 1: View Of Air Cleaner Housing
    GM892642Courtesy of GENERAL MOTORS CORP.
  1. Install the air filter element into the air cleaner housing (1).
  2. Rotate and install the top cover (2) to the air cleaner housing (1).
