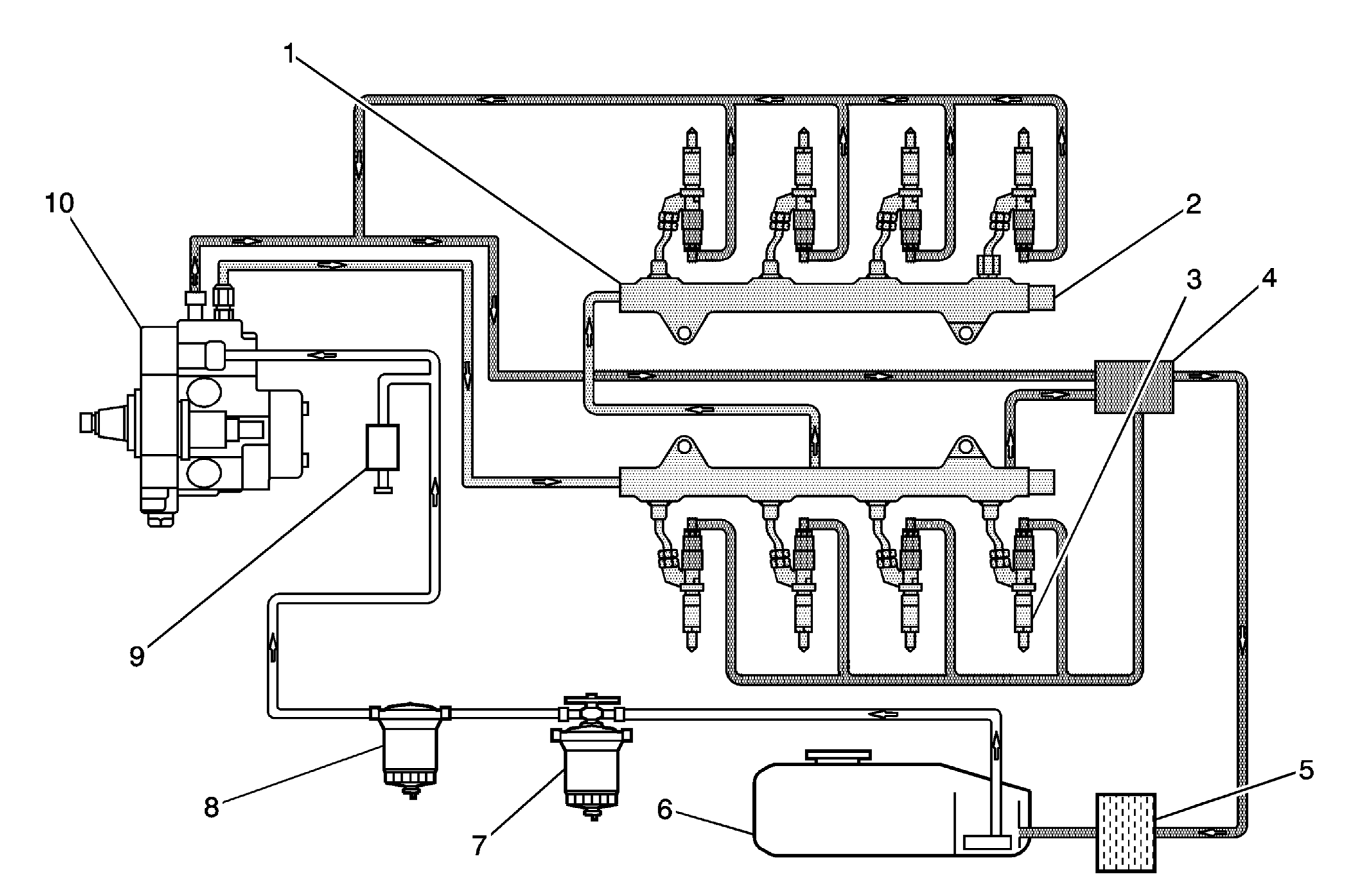

Fuel Injection Line Routing Diagram
WARNING: This page is about a different variant/trim than selected.
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Fuel Rail |
| 2 |
Fuel Pressure Sensor |
| 3 |
Fuel Injectors |
| 4 |
Fuel Return Junction Block |
| 5 |
Fuel Cooler |
| 6 |
Fuel Tank |
| 7 |
Diesel Fuel Conditioning Module |
| 8 |
Fuel Filter |
| 9 |
First Start Fuel Bleeder Valve |
| 10 |
Fuel Injection Pump |
