Installation Procedure

WARNING: This page is about a different variant/trim than selected.
    NOTE: Refer to Fastener Notice .
  1. Install the turbocharger vane position sensor to the turbocharger.

    Tighten:  Tighten the sensor to 28 N.m (21 lb ft).

  2. Install the turbocharger vane position sensor connector to the bracket located on the LH valve cover.

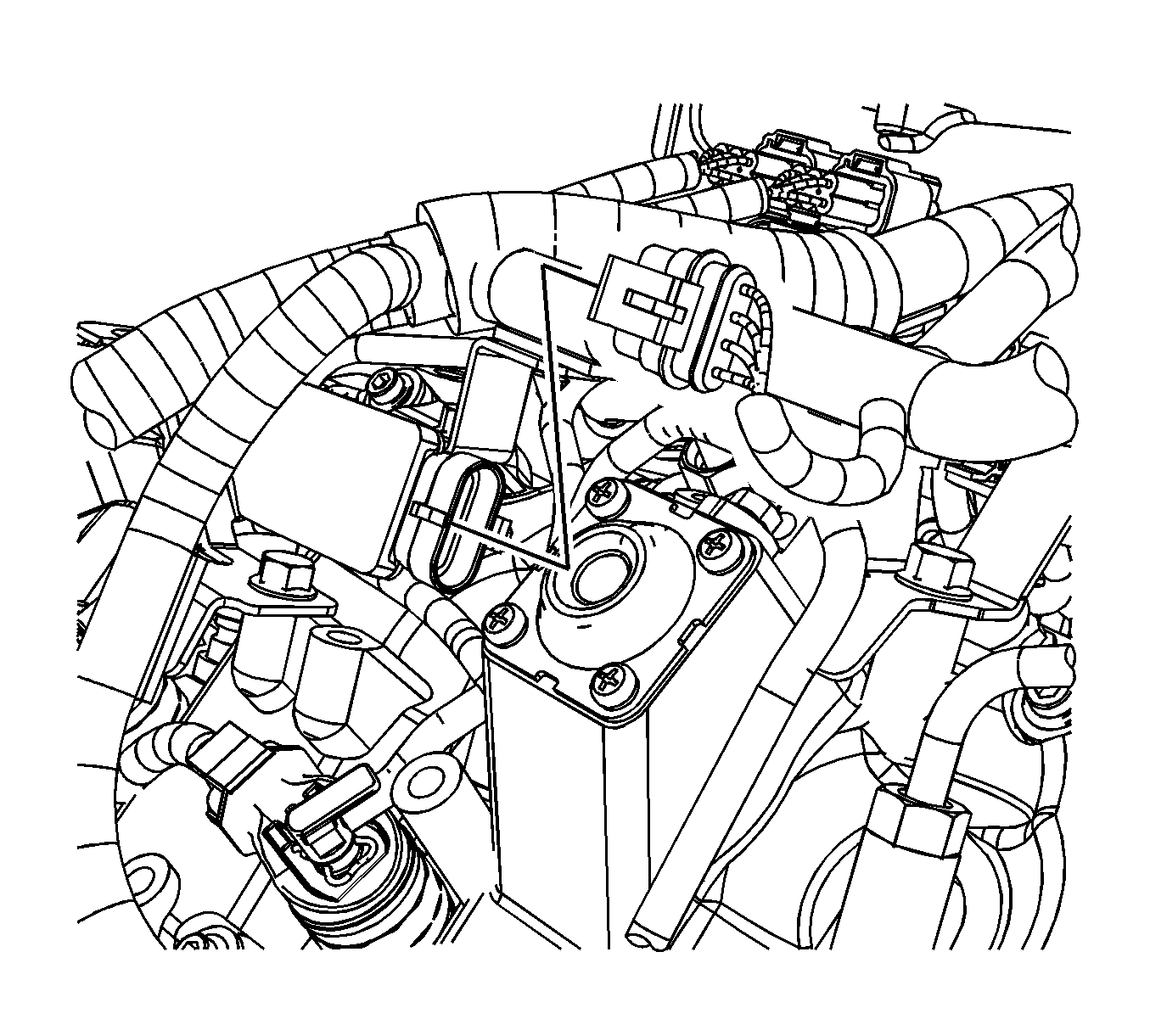

    3. Fig 1: Identifying engine wiring harness electrical connector
    GM1731857Courtesy of GENERAL MOTORS CORP.
  3. Connect the turbocharger vane position sensor electrical connector.

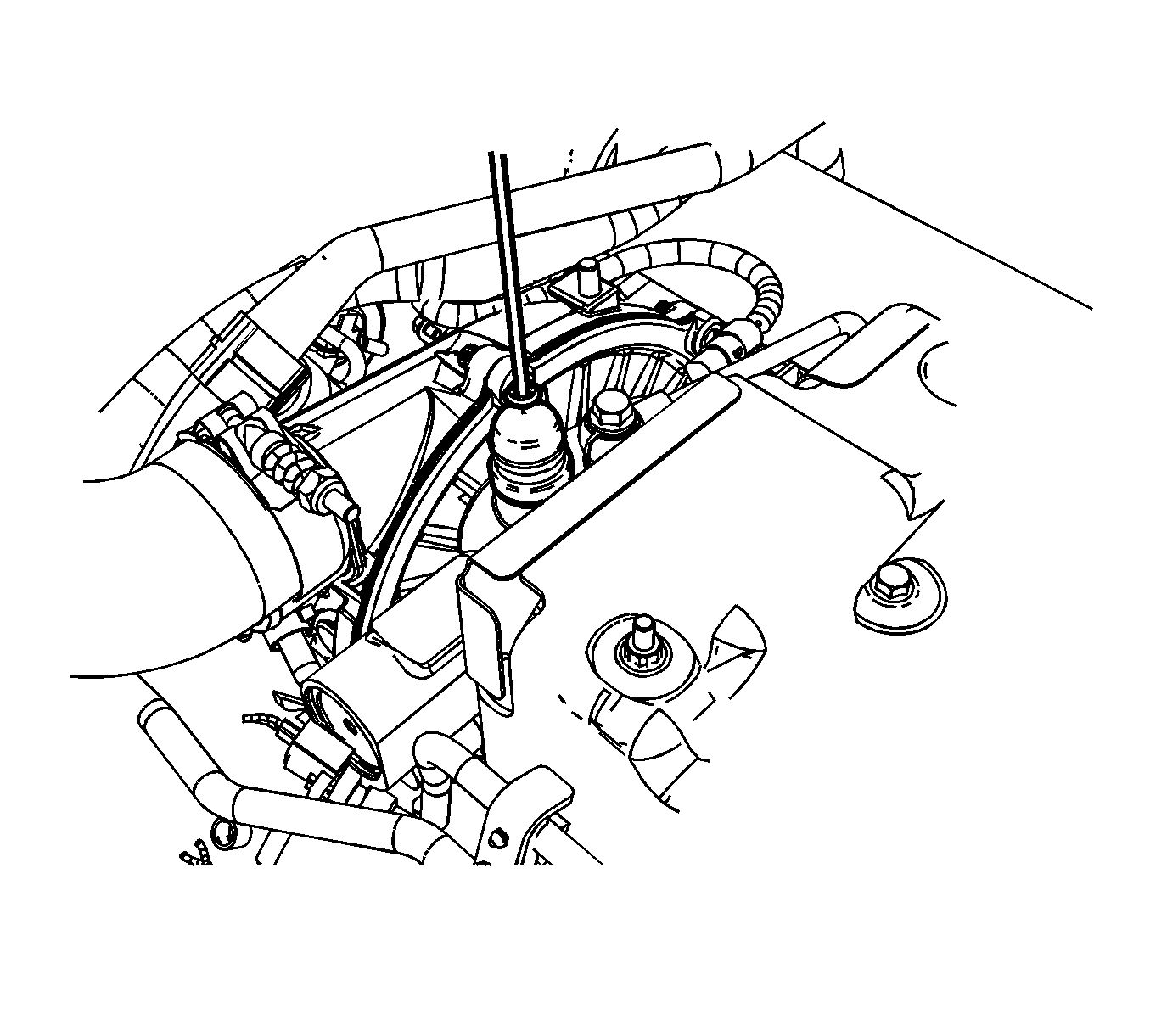

    4. Fig 2: Turbocharger Vane Position Sensor
    GM1731868Courtesy of GENERAL MOTORS CORP.
  4. Install the thermal reflective shield/tape, refer to the following procedure.
