Removal Procedure

WARNING: This page is about a different variant/trim than selected.

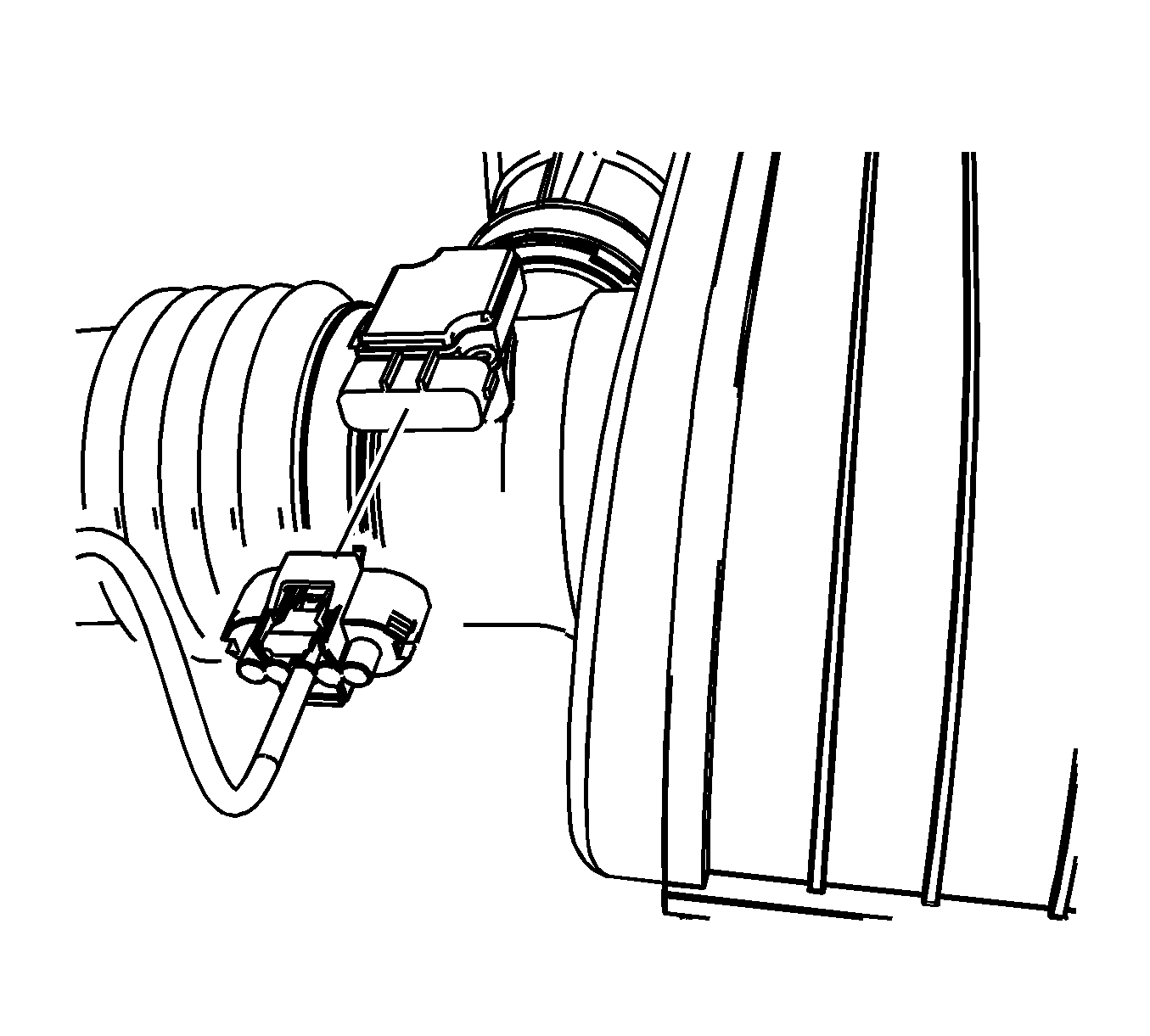

    Fig 1: Identifying MAF/IAT Sensor Electrical Connector
    GM1655957Courtesy of GENERAL MOTORS CORP.
  1. Disconnect the mass air flow (MAF)/intake air temperature (IAT) sensor electrical connector.

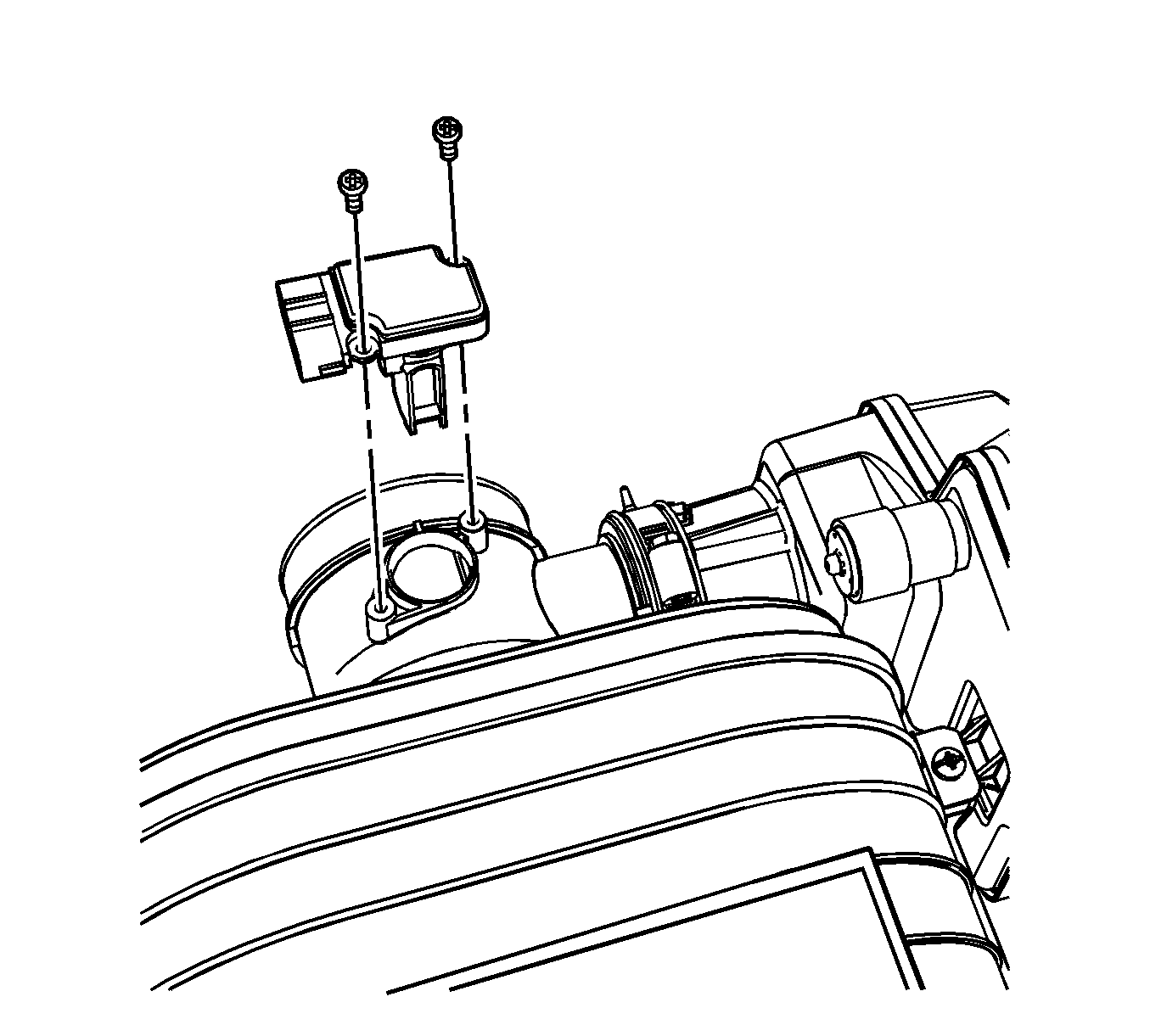

    2. Fig 2: Identifying MAF/IAT Sensor TORX® Screws
    GM1731292Courtesy of GENERAL MOTORS CORP.
  2. Remove the MAF/IAT sensor TORX® screws.
  3. Remove the MAF/IAT sensor.
