Removal Procedure

WARNING: This page is about a different variant/trim than selected.

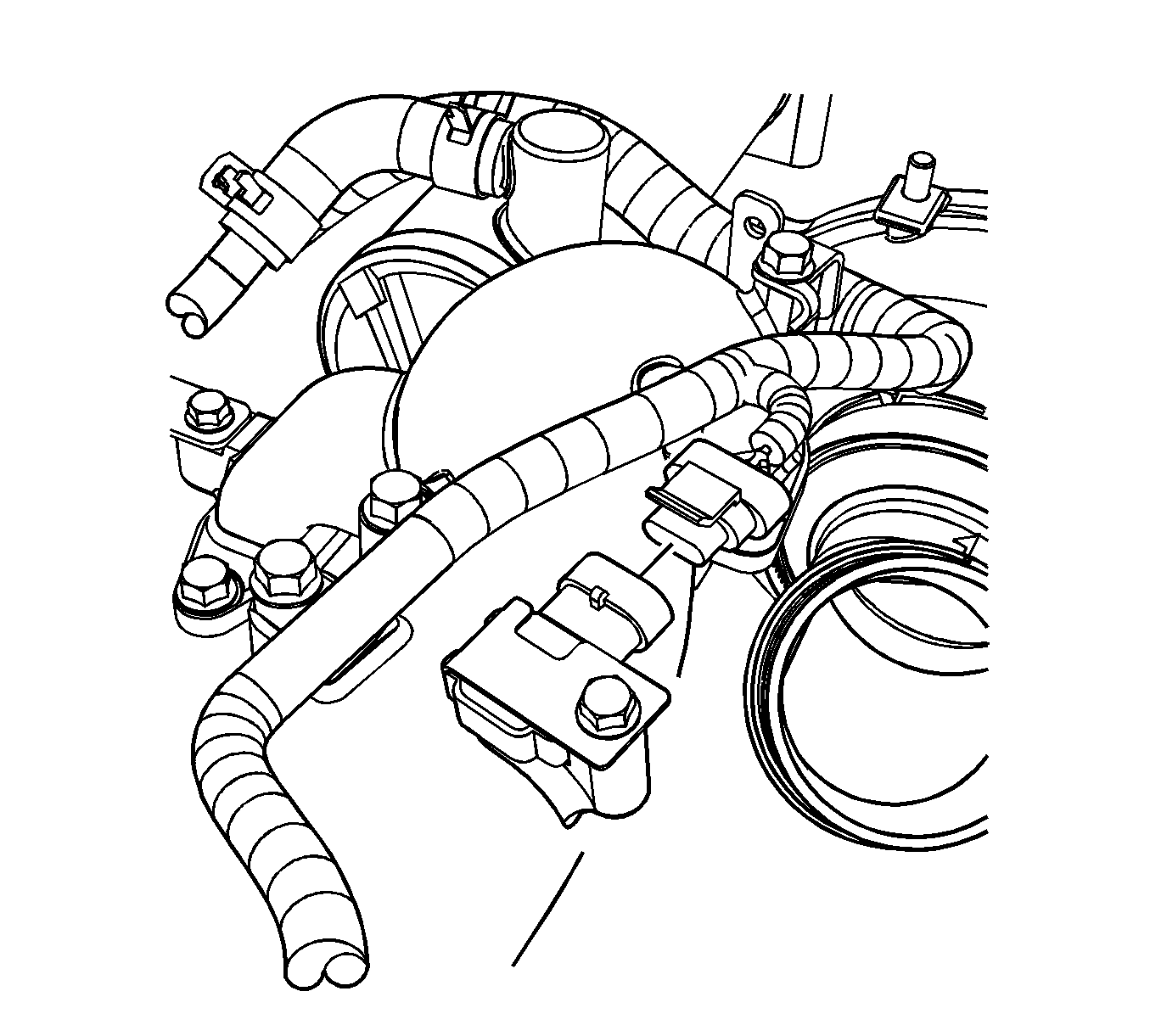

    Fig 1: Identifying engine harness electrical connector
    GM1731205Courtesy of GENERAL MOTORS CORP.
  1. Remove the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement .
  2. Disconnect the manifold absolute pressure (MAP) sensor electrical connector.

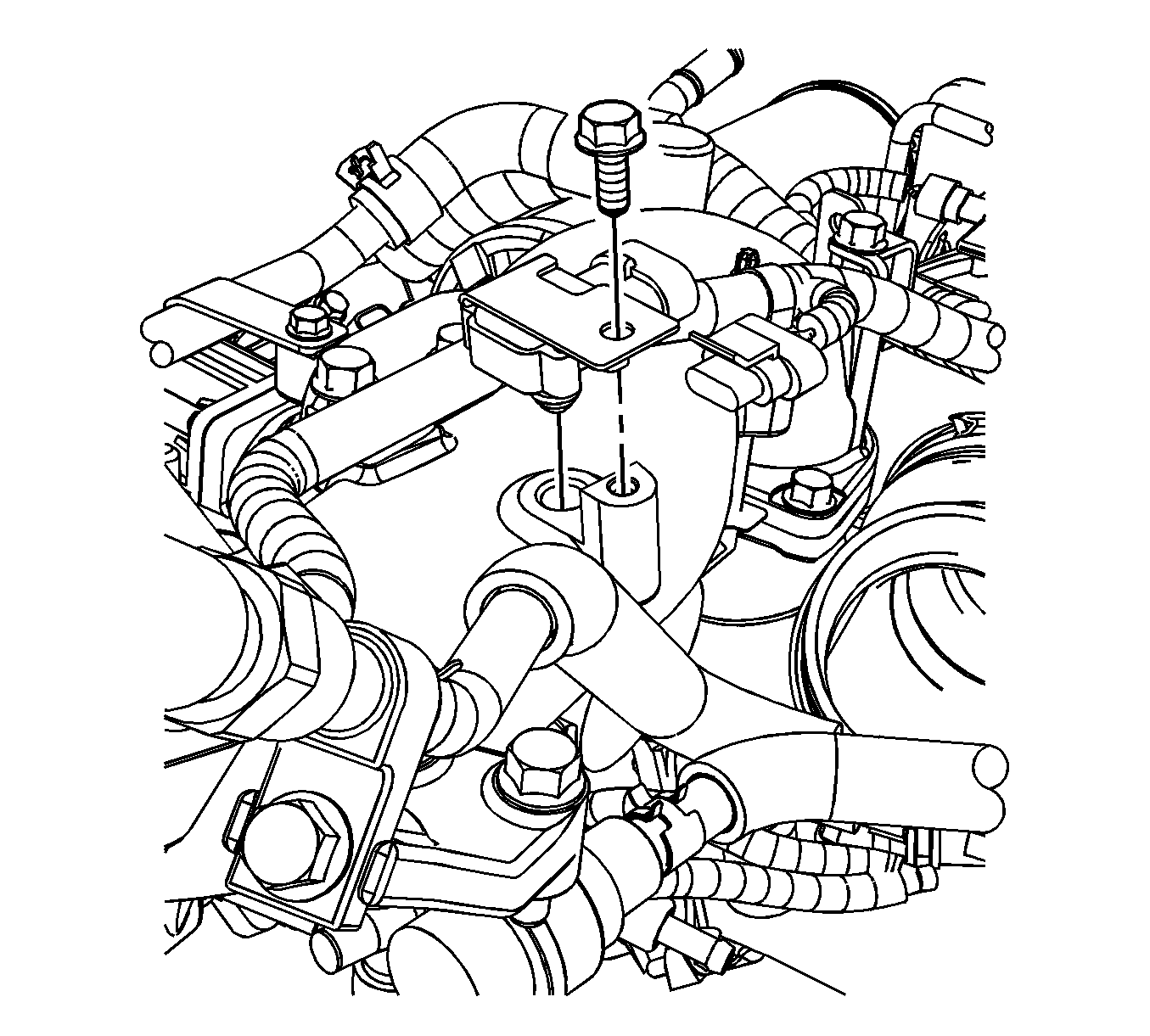

    3. Fig 2: Identifying MAP Sensor Bolt
    GM1731224Courtesy of GENERAL MOTORS CORP.
  3. Remove the MAP sensor bolt.
  4. Remove the MAP sensor bracket and sensor.
