Installation Procedure

WARNING: This page is about a different variant/trim than selected.

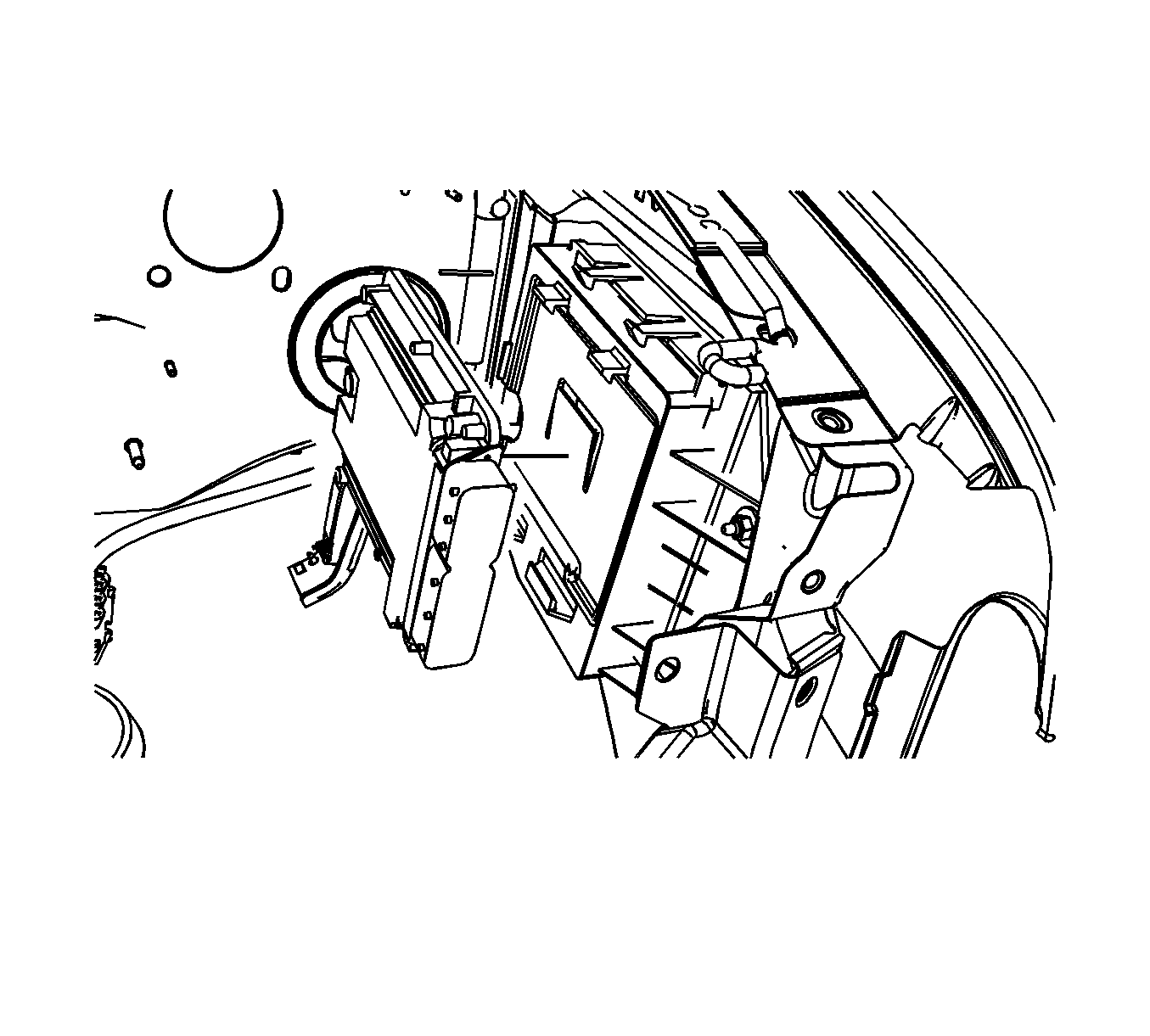

    Fig 1: Identifying ECM Upper Retaining Tabs
    GM1655954Courtesy of GENERAL MOTORS CORP.
  1. Place the bottom edge of the ECM into the bracket lower retainers.
  2. Push the ECM towards the bracket until the upper edge of the ECM snaps into place.

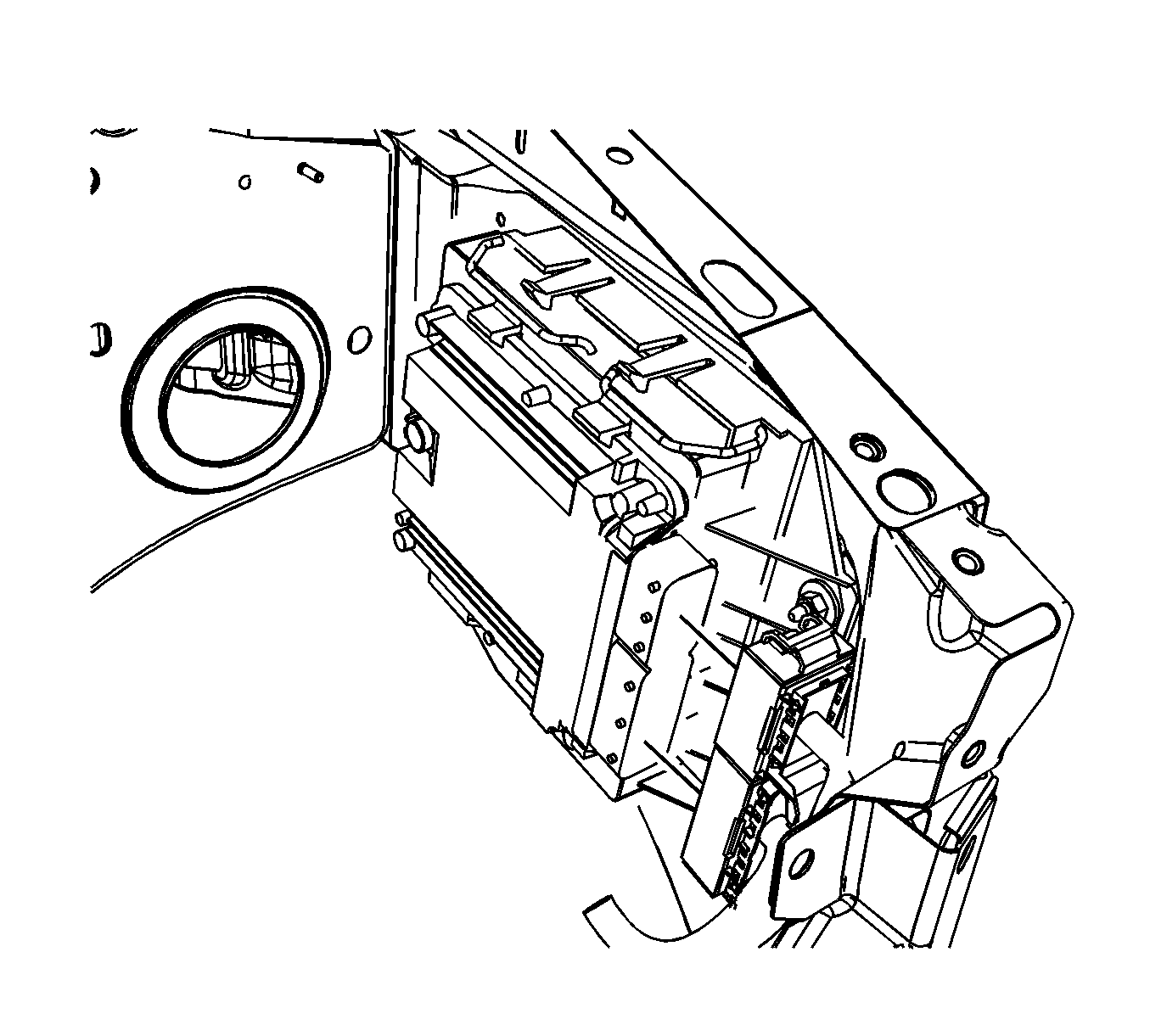

    3. Fig 2: Identifying ECM Electrical Connector
    GM1655955Courtesy of GENERAL MOTORS CORP.
  3. Connect the ECM electrical connectors.
  4. Install the washer solvent container. Refer to Washer Solvent Container Replacement .
  5. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
  6. If a NEW ECM was installed, program the ECM. Refer to Control Module References .
  7. Perform the turbocharger learn procedure. Refer to Turbocharger Learn .
