Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Remove the air cleaner assembly. Refer to Air Cleaner Assembly Replacement .

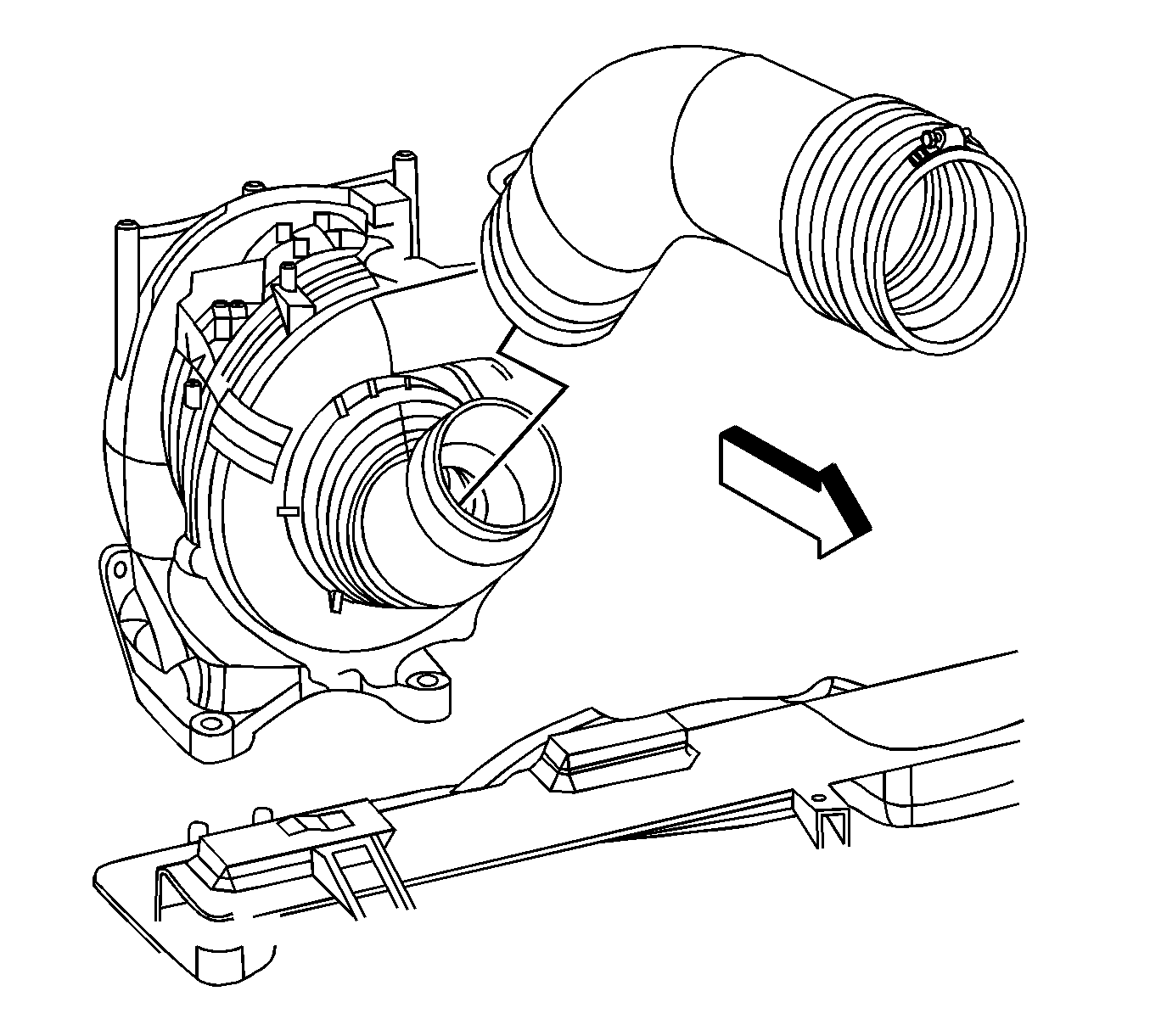

    2. Fig 1: View Of Air Intake Duct
    GM1662673Courtesy of GENERAL MOTORS CORP.
  2. Loosen the air intake duct to turbo clamp.
  3. Remove the intake air duct.
