Installation Procedure

WARNING: This page is about a different variant/trim than selected.

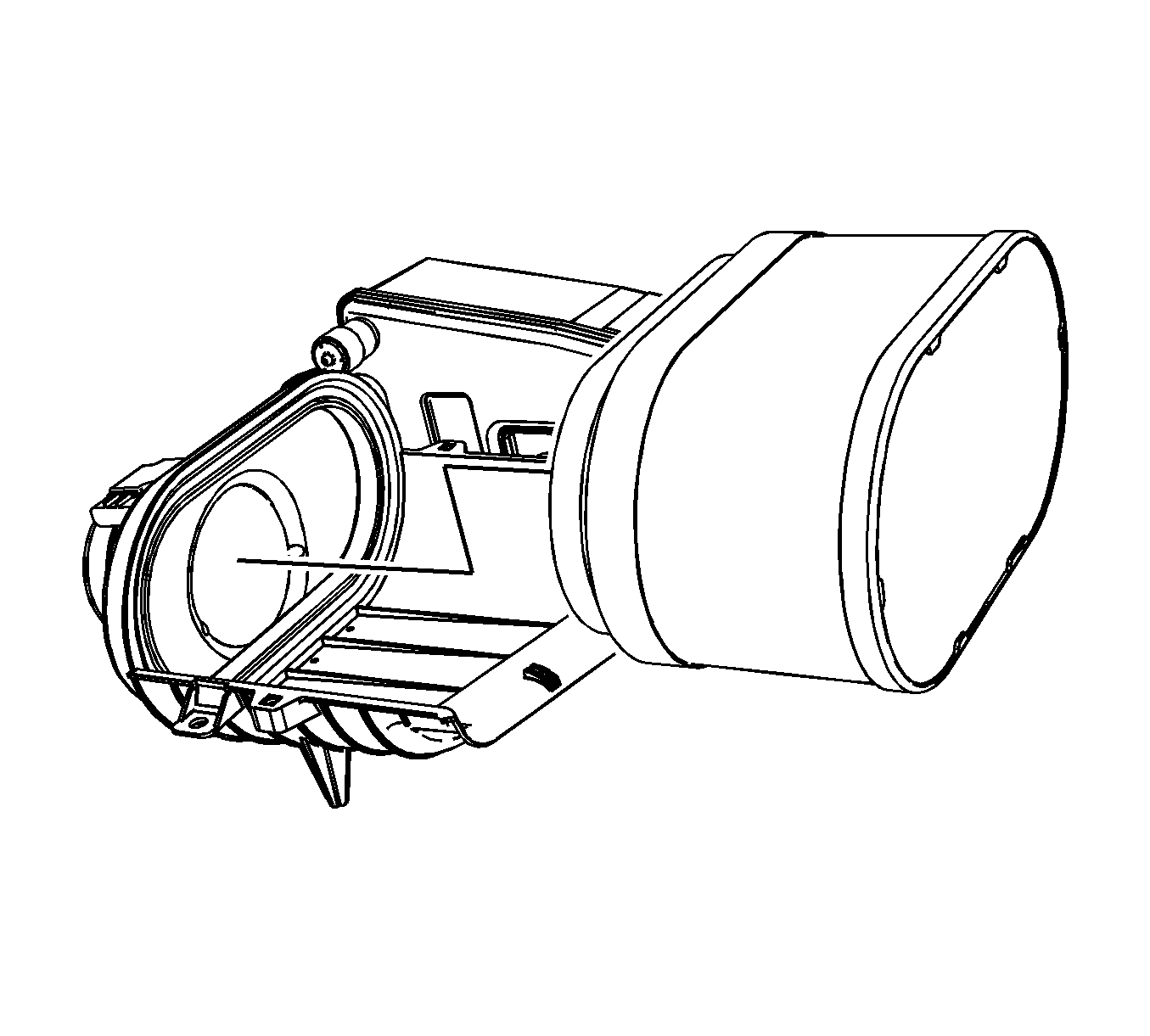

    Fig 1: View Of Air Cleaner Element
    GM1661288Courtesy of GENERAL MOTORS CORP.
  1. Install the air cleaner element.
  2. Install the air cleaner cover.

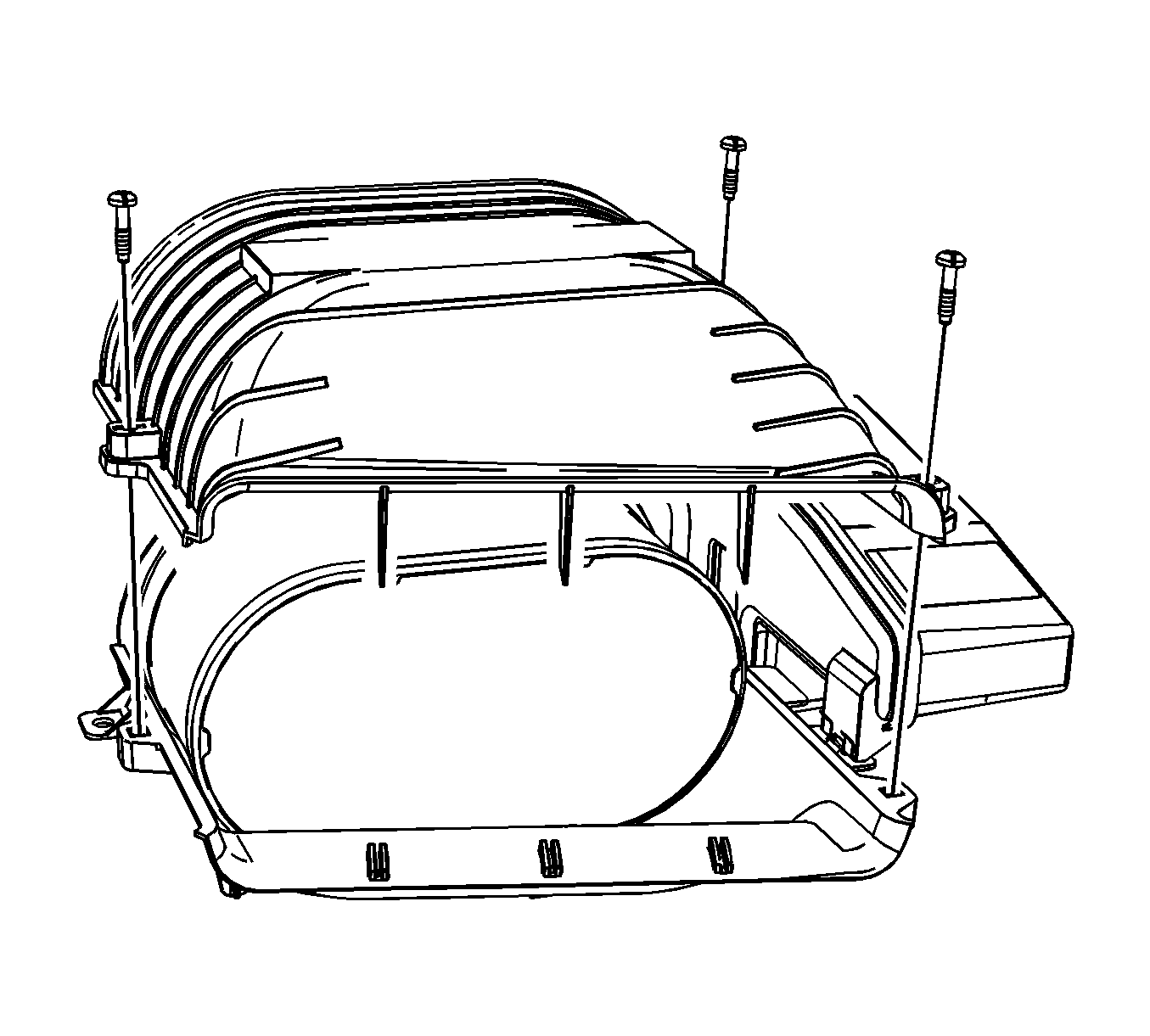

    3. Fig 2: Identifying Air Cleaner Cover Bolts
    GM1661286Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice .
  3. Install the air cleaner cover bolts.

    Tighten:  Tighten the bolts to 4 N.m (35 lb in).
