Installation Procedure

WARNING: This page is about a different variant/trim than selected.

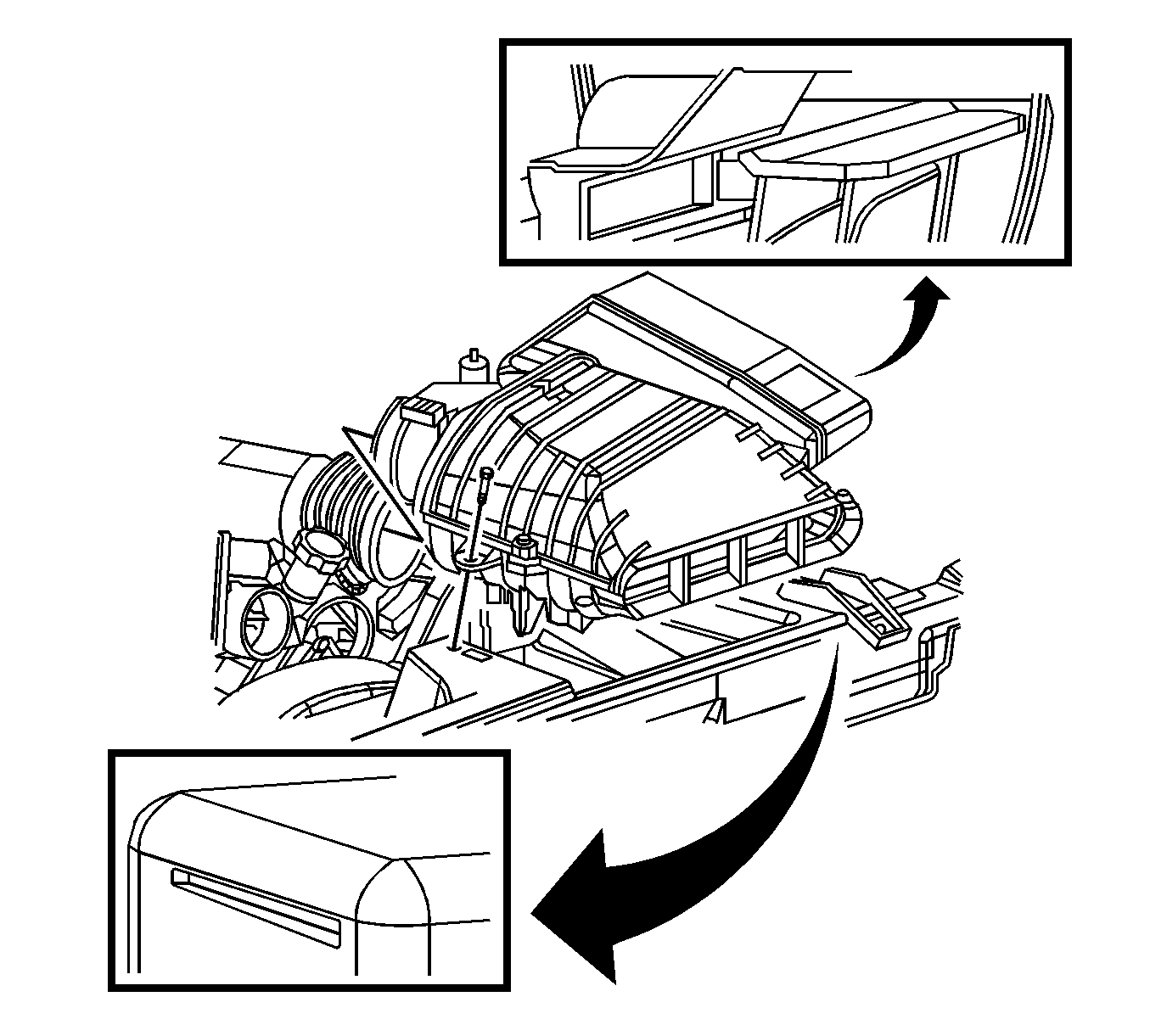

    Fig 1: View Of Air Cleaner Assembly
    GM1662672Courtesy of GENERAL MOTORS CORP.
  1. Install the air cleaner assembly.
    2. NOTE: Refer to Fastener Notice .
  2. Tighten the air cleaner outlet duct hose clamp.

    Tighten:  Tighten the air cleaner outlet duct hose clamp to 4 N.m (35 lb in).

  3. Install the air cleaner assembly hold down screw.
