Oil Level Indicator and Tube Removal

WARNING: This page is about a different variant/trim than selected.

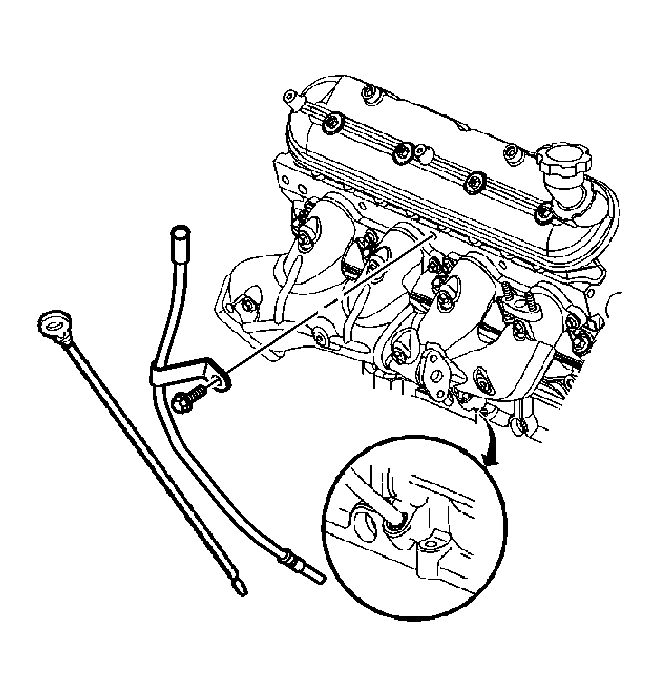

    Fig 1: Identifying Oil Level Indicator Tube Bolt
    GM824412Courtesy of GENERAL MOTORS CORP.
  1. Remove the oil level indicator from the tube.
  2. Remove the oil level indicator tube bolt.
  3. Remove the oil level indicator tube from the engine block.
    4. IMPORTANT: Inspect the O-ring seal for cuts or damage. The O-ring seal may be used again if not cut or damaged.
  4. Remove the O-ring seal from the tube, if required.
