Installation Procedure

WARNING: This page is about a different variant/trim than selected.

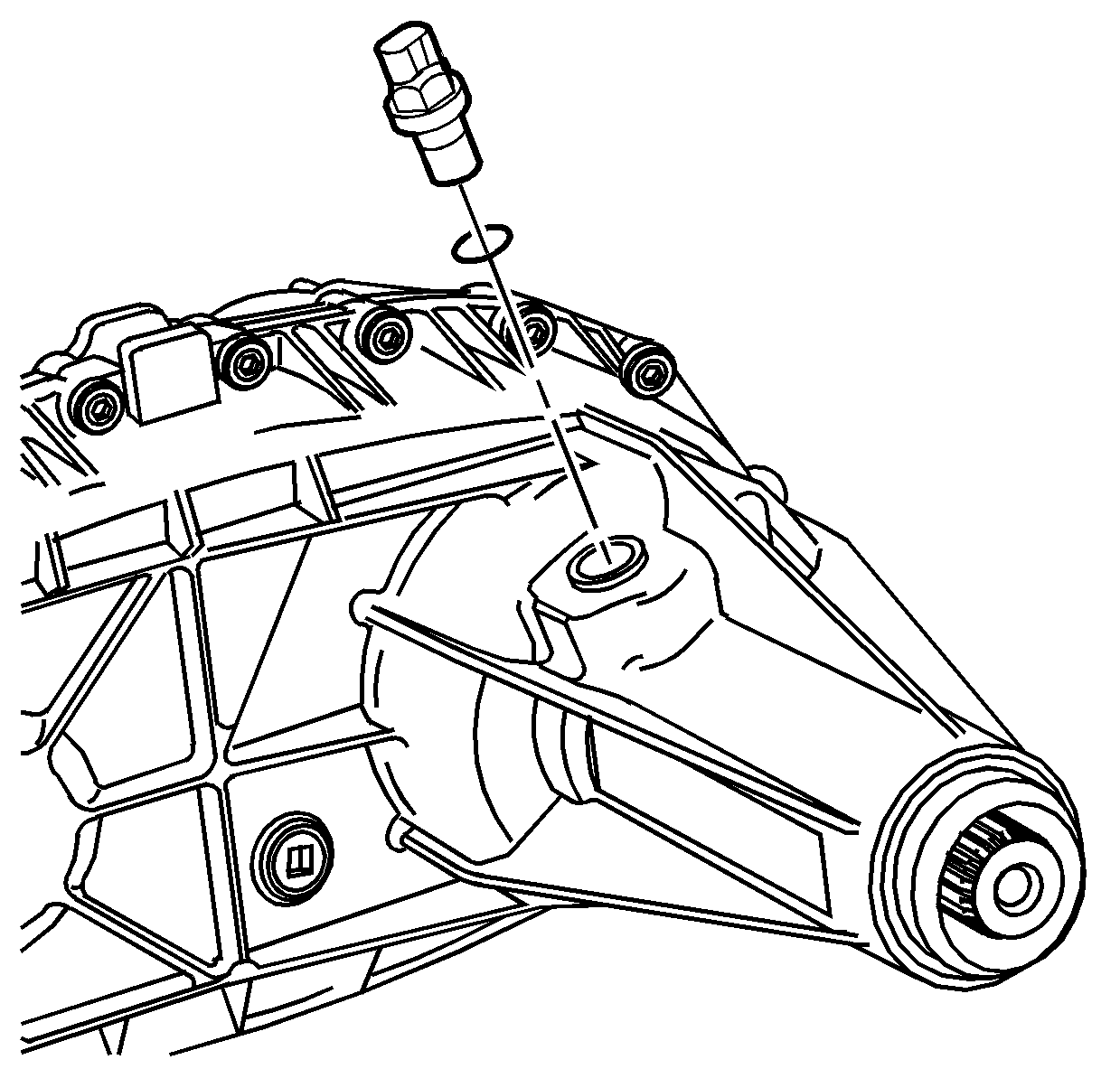

    Fig 1: View Of Vehicle Speed Sensor (VSS) With O-Ring Seal
    GM823198Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice .
  1. Install the new speed sensor into the transfer case with a new O-ring seal.

    Tighten:  Tighten the right rear speed sensor to 17 N.m (13 lb ft).

    2. Fig 2: Speed Sensor Electrical Connector
    GM860433Courtesy of GENERAL MOTORS CORP.
  2. Install the electrical connector to the speed sensor.
  3. Lower the vehicle. Refer to Lifting and Jacking the Vehicle .
