Viscous Coupling

WARNING: This page is about a different variant/trim than selected.

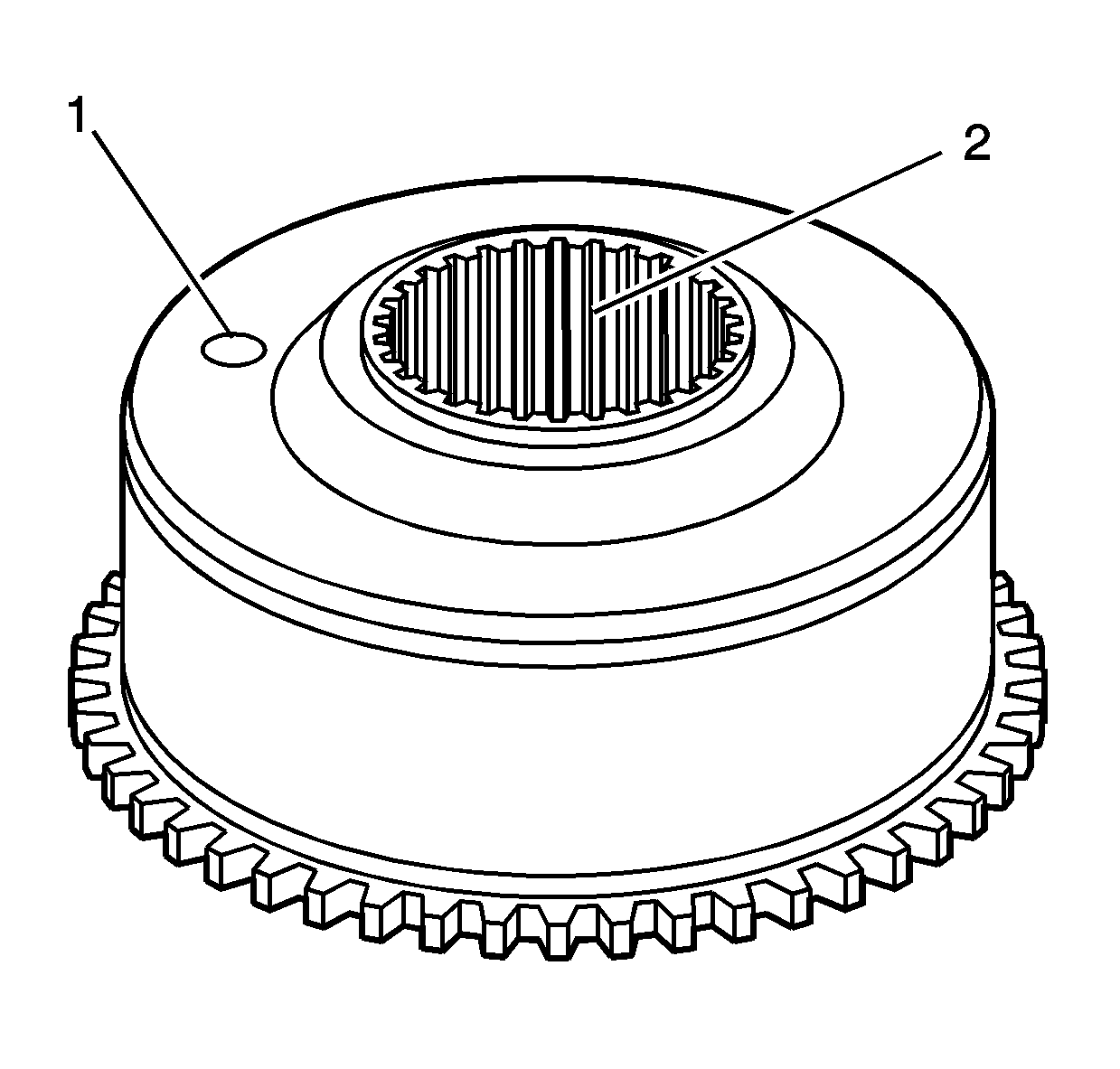

    Fig 1: Inspection Areas On Viscous Coupling
    GM823251Courtesy of GENERAL MOTORS CORP.
  1. Inspect the viscous coupling for leaking at the ball (1) in the housing. A black liquid would be visible if it is leaking.
  2. Replace the viscous coupling if it is leaking.
  3. Inspect for excessive worn splines (2).
  4. Replace the viscous coupling if the splines are faulty.
