Rear Output Shaft
WARNING: This page is about a different variant/trim than selected.
- Clean the rear output shaft with the input shaft rear support bearing and the rear output shaft bearing in cleaning solvent.
- Air dry and ensure all solvent is removed from the bearings.

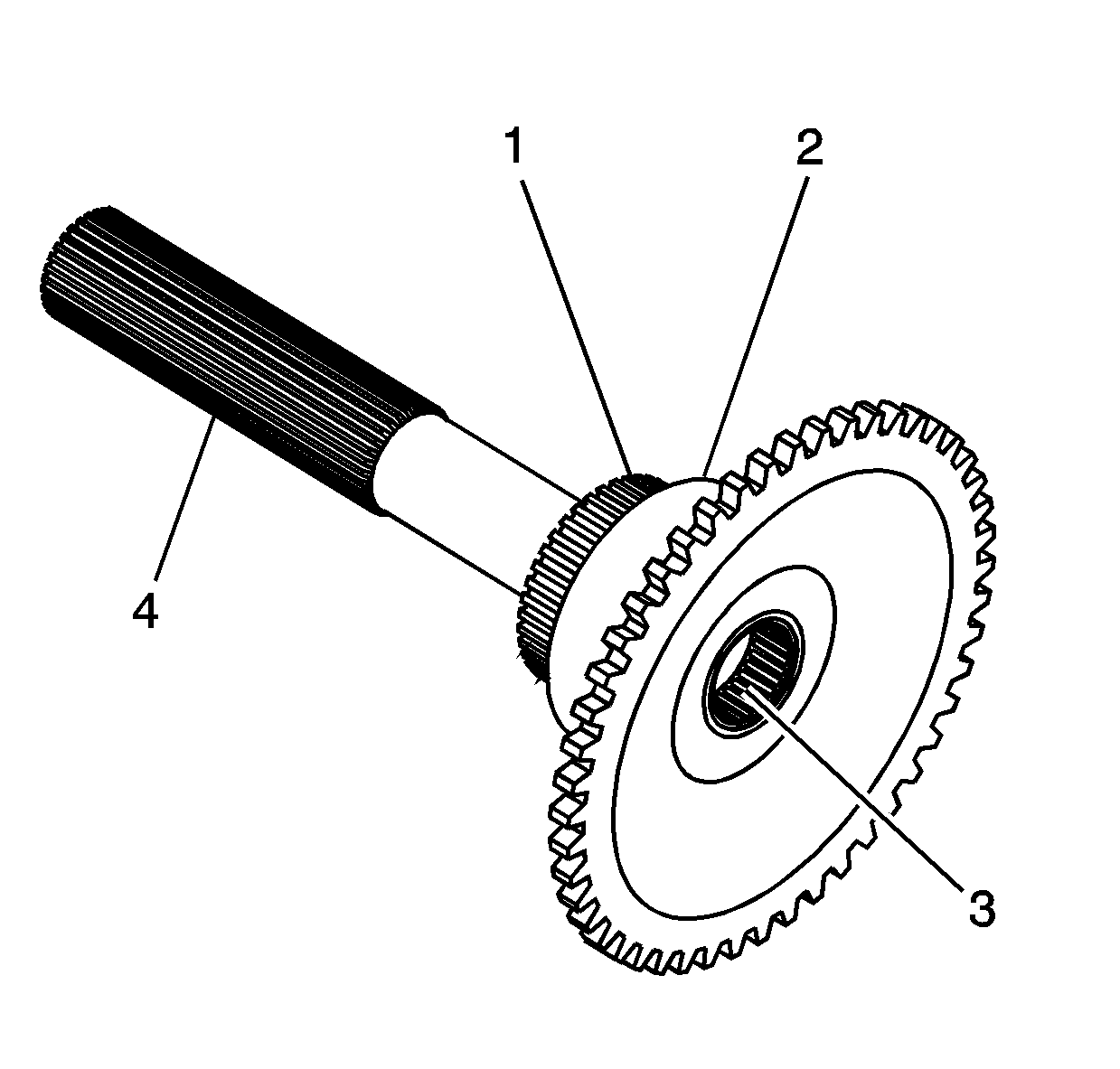

- Inspect the speed reluctor wheel (1) for damage.
- Replace the speed reluctor wheel if faulty. Refer to Transfer Case Disassemble and Transfer Case Assemble .
- Inspect the rear output shaft bearing (2) for the following conditions:
- Scoring
- Pitting
- Brinelling
- Excessive wear
- Replace the rear output shaft bearing (2) if it is faulty. Refer to Transfer Case Disassemble and Transfer Case Assemble .
- Inspect the input shaft rear support bearing (3) for the following conditions:
- Scoring
- Pitting
- Brinelling
- Excessive wear
- Replace the input shaft rear support bearing (3) if any of the above conditions are found. Refer to Transfer Case Disassemble and Transfer Case Assemble .
- Inspect the rear output shaft splines (4) for wear or damage.
- Inspect the rear output shaft bearing area for a spun bearing.
- Replace the rear output shaft if any of the above conditions are found.
