Drive Chain and Sprockets
WARNING: This page is about a different variant/trim than selected.

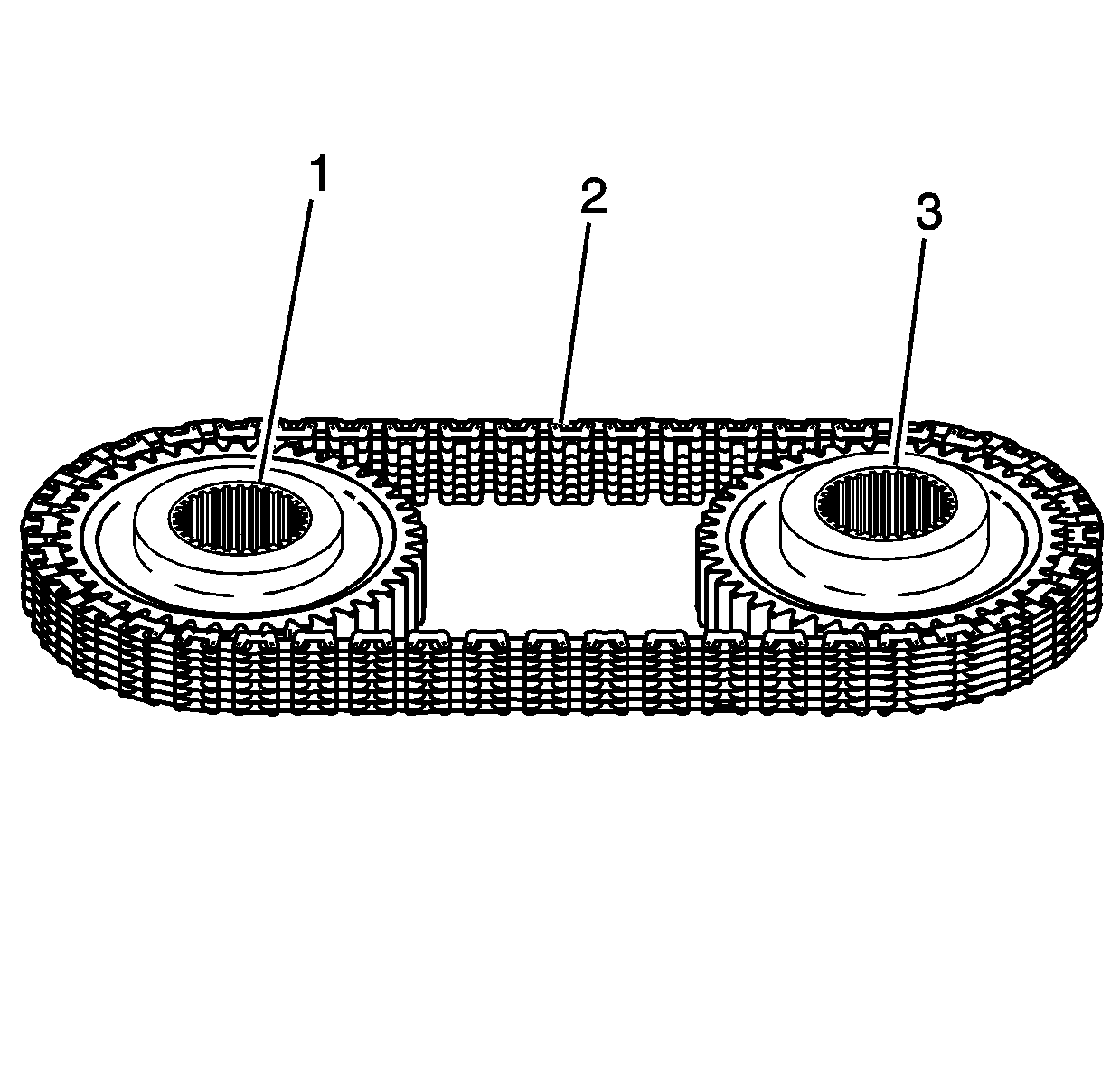

- Clean the drive chain (2), drive sprocket (3), and driven sprocket (1) in cleaning solvent and air dry.
- Inspect the drive chain (2) for the following conditions:
- Loose link pins
- Binding or stiff links
- Debris embedded in the links
- Worn teeth surfaces
- Replace the chain if any of the above conditions are found.
- Inspect the driven sprocket (1) and the drive sprocket (3) for the following conditions:
- Chipped teeth
- Excessive worn gear surfaces
Slight wear marks are normal.
- Debris embedded in the root of the teeth
- Replace the sprockets if any of the above conditions are found. The chain and sprockets may be replaced separately.
