Power Flow - Front Wheel Slip
WARNING: This page is about a different variant/trim than selected.

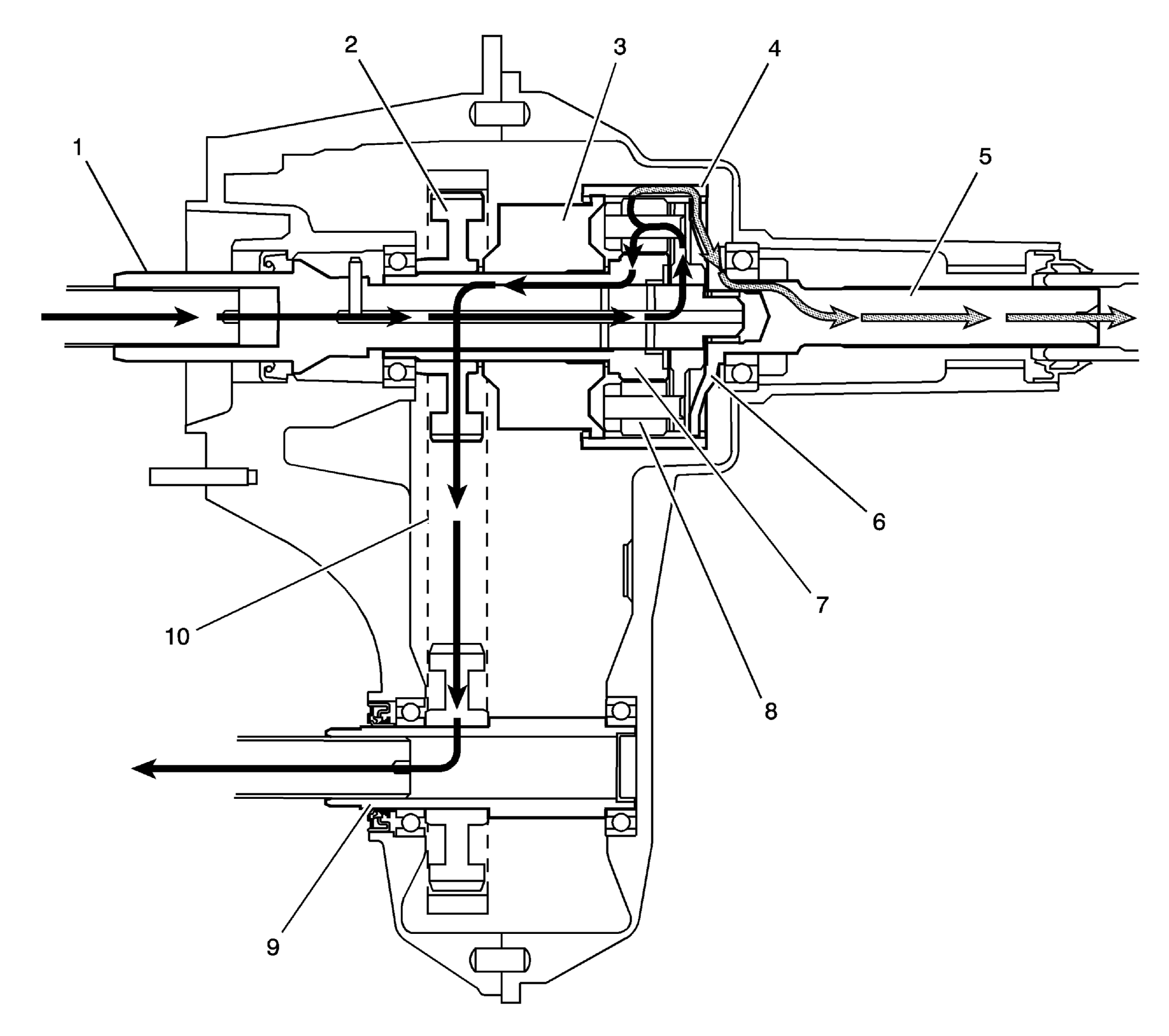

When traction is lost at the front wheels, the viscous coupling (3) works in conjunction with the planetary differential (4) to bias the torque more to the rear wheels. The rear torque goes higher than 65 percent, up to 100 percent torque to the rear output shaft (5). The torque at the front output shaft (9) is lowered from 35 percent, to as low as 0 percent torque.
