Low and Reverse Clutch Piston Removal

Tools Required

• J 23327-1  Forward Clutch Spring Compressor (Bridge). See Special Tools .
• J 34627  Snap Ring Remover and Installer. See Special Tools .
• J-42628  Plate

Fig 1: Installing J 23327-1 & J 42628
Courtesy of GENERAL MOTORS CORP.
1. Install the J 23327-1  and the J-42628  . See Special Tools .
Fig 2: View Of Low And Reverse Clutch Spring Assembly & Retainer Ring
Courtesy of GENERAL MOTORS CORP.
2. Tighten the J 23327-1  . See Special Tools .
3. Remove the low and reverse clutch retainer ring (693) using the J 34627  . See Special Tools .
4. Remove the low and reverse clutch spring assembly (694).

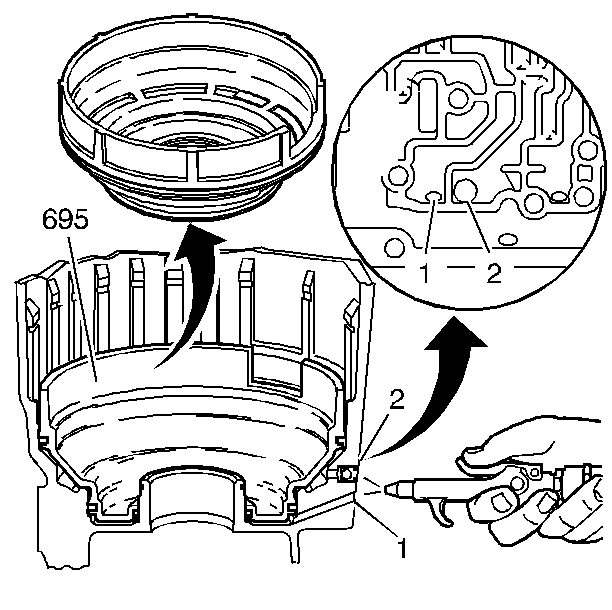

Fig 3: Blowing Air Into Case Passage
Courtesy of GENERAL MOTORS CORP.
5. Blow compressed air into the case passage to remove the low and reverse clutch piston (695).
   • (1) LO Feed Passage
   • (2) REV Feed Passage
