Removal Procedure

WARNING: This page is about a different variant/trim than selected.

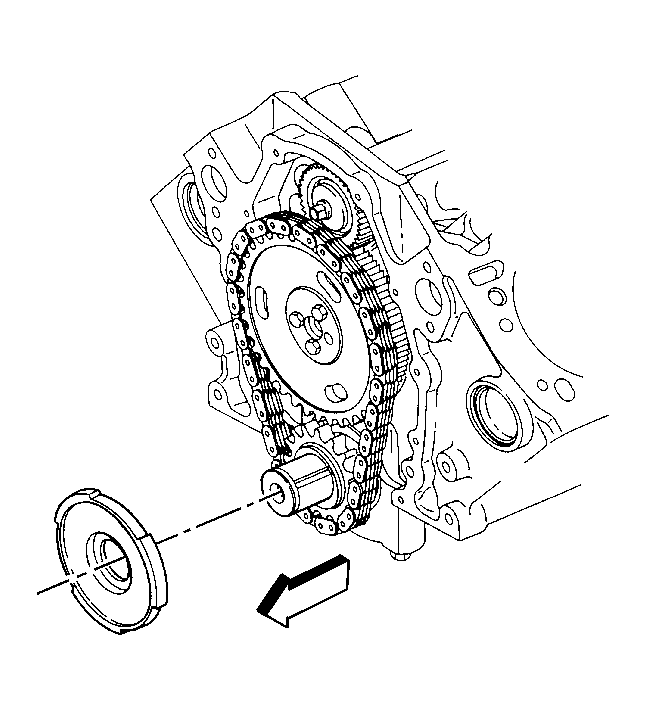

    Fig 1: View Of Crankshaft Position Sensor Reluctor Ring
    GM45986Courtesy of GENERAL MOTORS CORP.
  1. Remove the engine front cover. Refer to Engine Front Cover Replacement .
  2. Remove the crankshaft position sensor reluctor ring.
