Section 14 (Automatic Transmission - 4L60-E/4L65-E/4L70-E - DTC P0218 To DTC P2761)
>>
DTC P1810
>>
Notes
DTC P1810: Notes
WARNING:
This page is about a different variant/trim than selected.

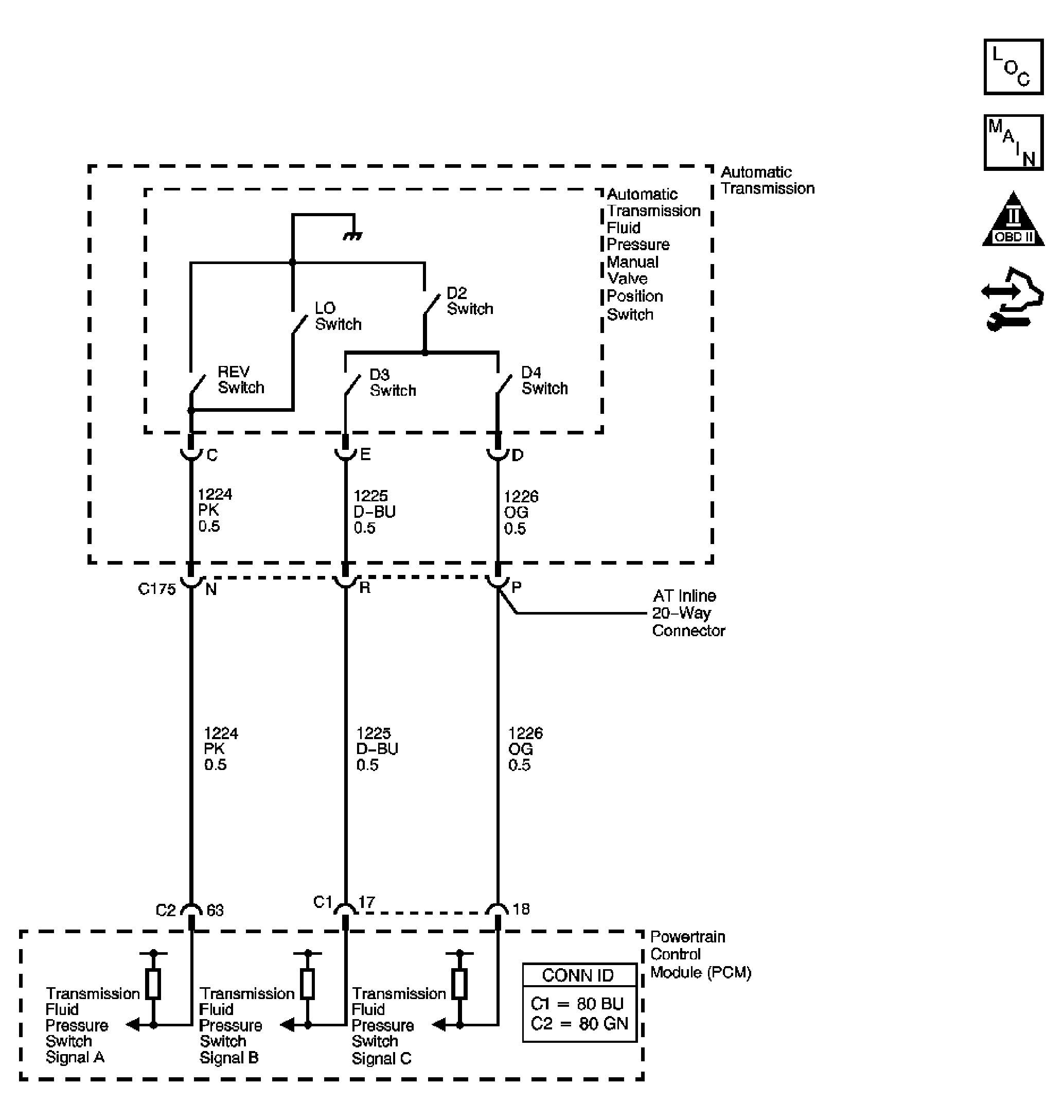

Fig 1: Automatic Transmission Fluid Pressure (TFP) Schematic
Courtesy of GENERAL MOTORS CORP.
