Engine Controls Schematics

WARNING: This page is about a different variant/trim than selected.

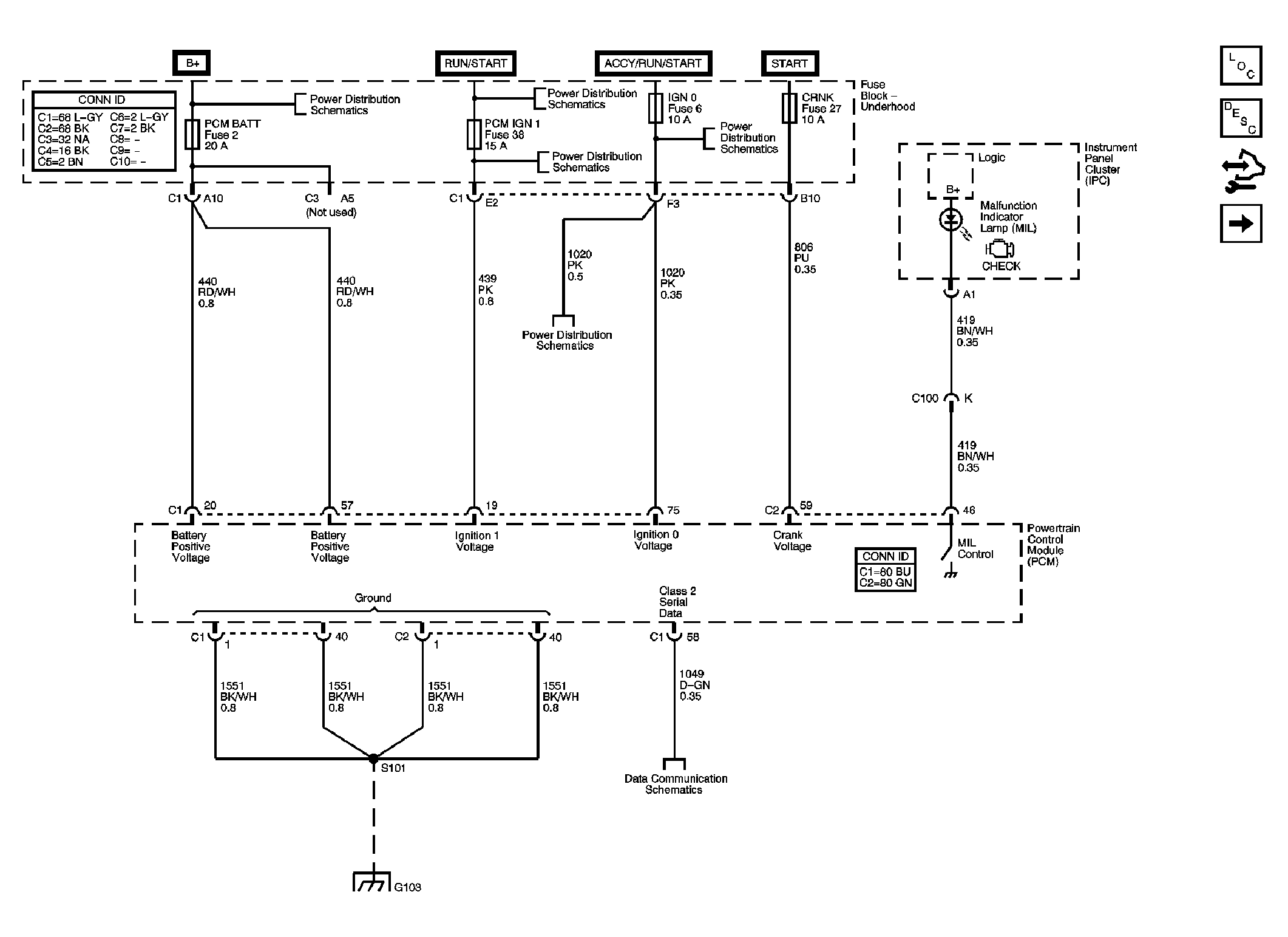

Fig 1: Module Power, Ground, Serial Data, and MIL

Courtesy of GENERAL MOTORS CORP.

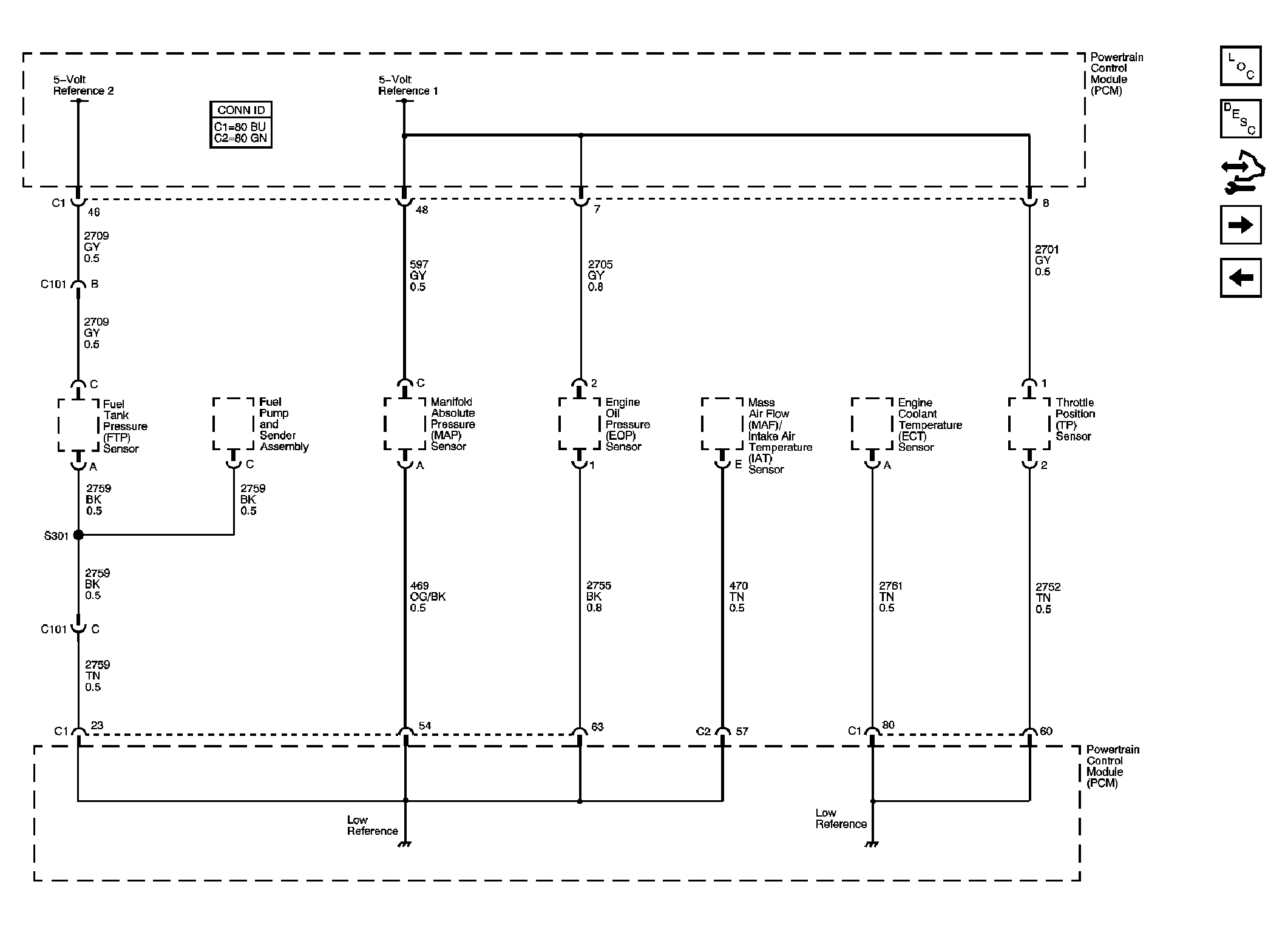

Fig 2: Engine Data Sensors - 5-Volt and Low Reference

Courtesy of GENERAL MOTORS CORP.

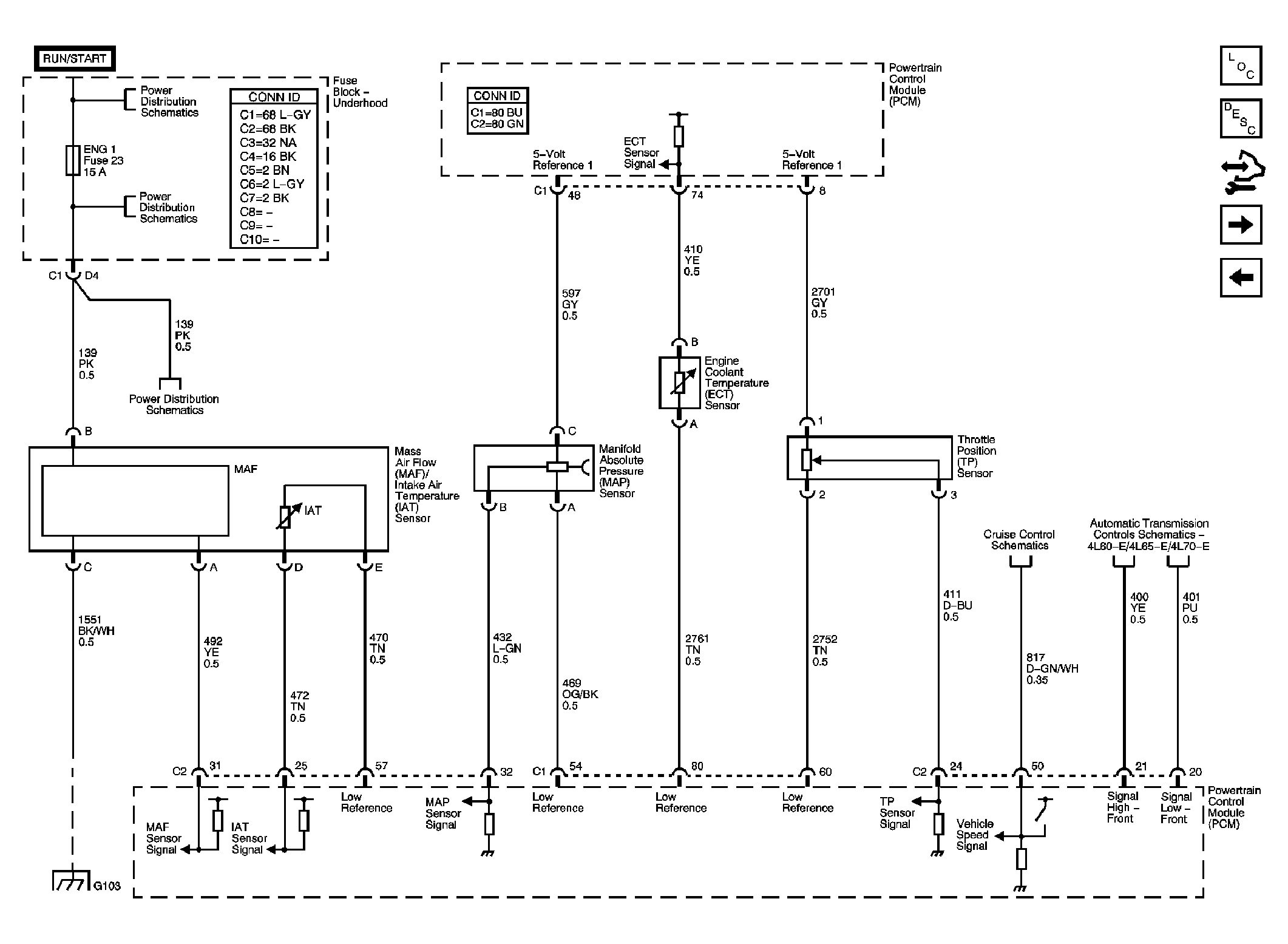

Fig 3: Engine Data Sensors - Pressure, Temperature, and Position

Courtesy of GENERAL MOTORS CORP.

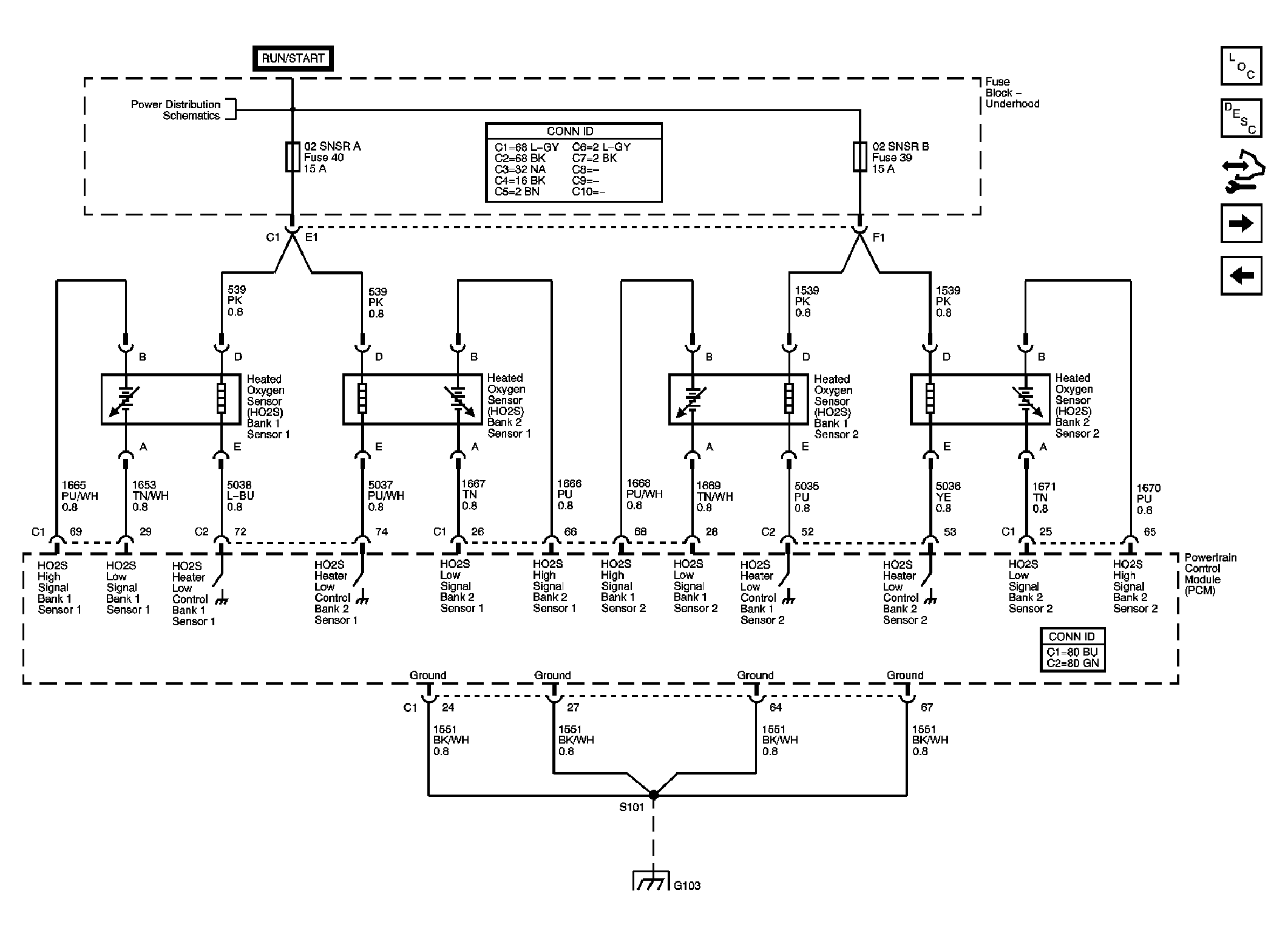

Fig 4: Engine Data Sensors - Oxygen Sensors

Courtesy of GENERAL MOTORS CORP.

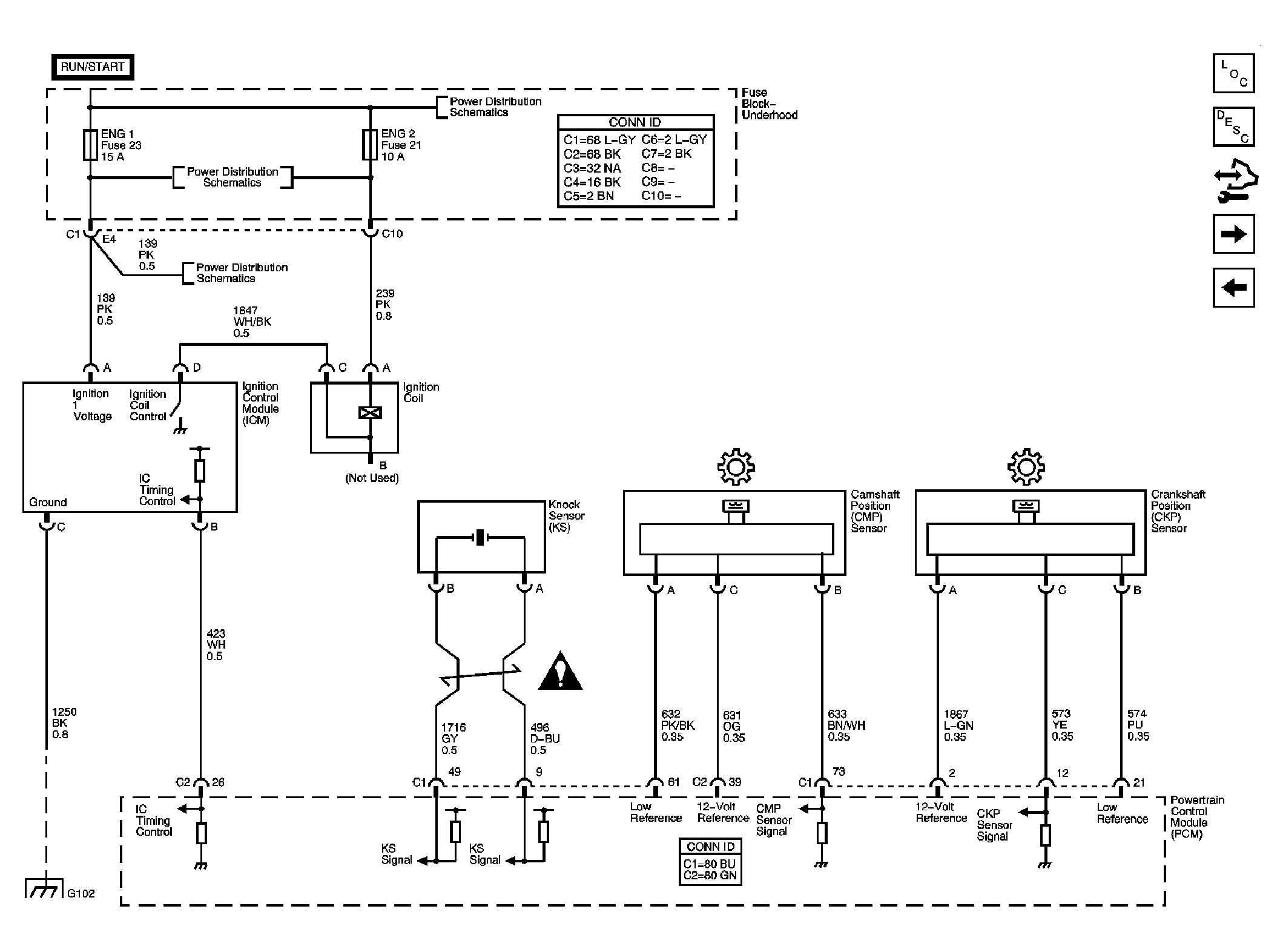

Fig 5: Ignition Controls

Courtesy of GENERAL MOTORS CORP.

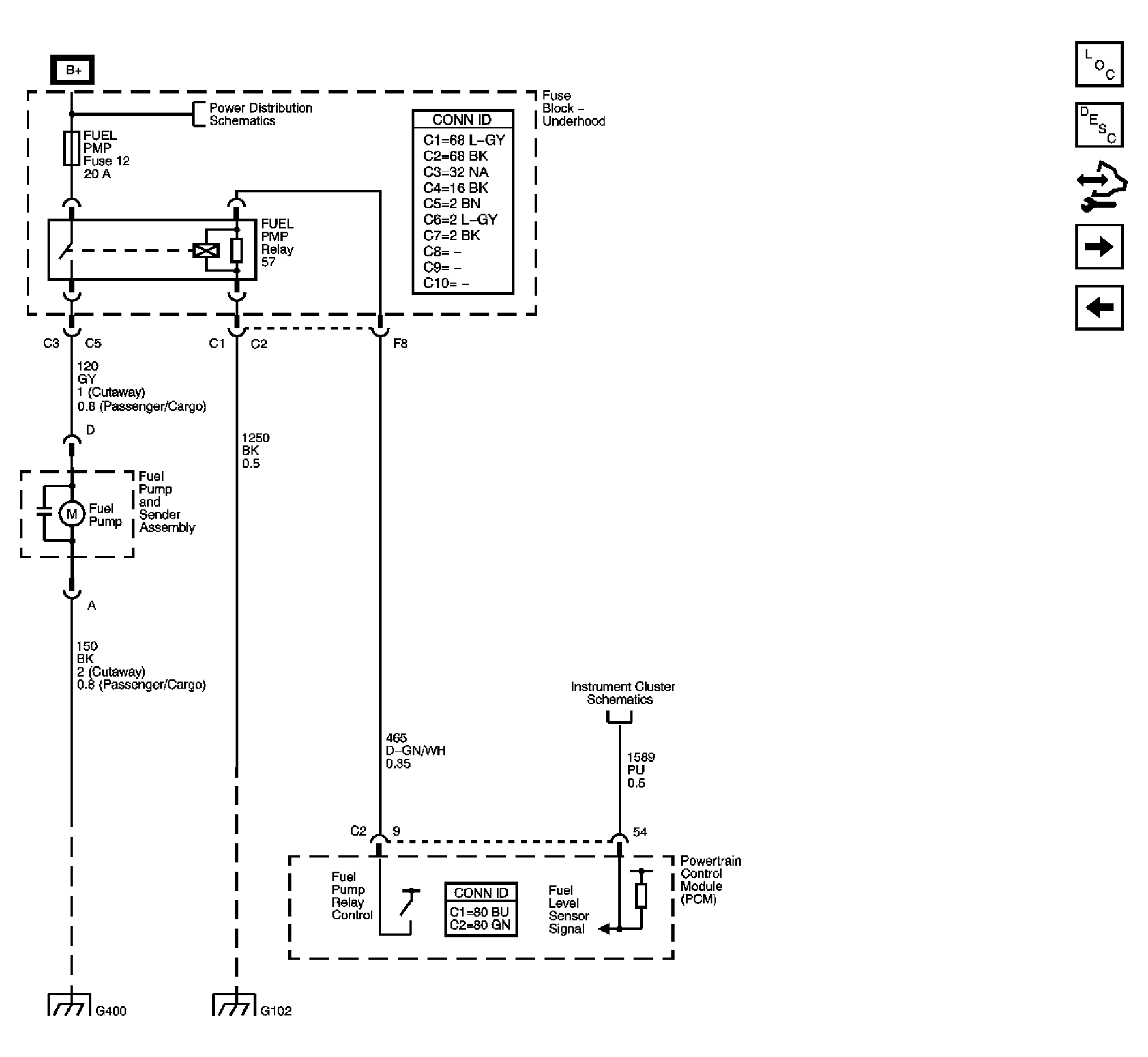

Fig 6: Fuel Controls - Fuel Pump Controls

Courtesy of GENERAL MOTORS CORP.

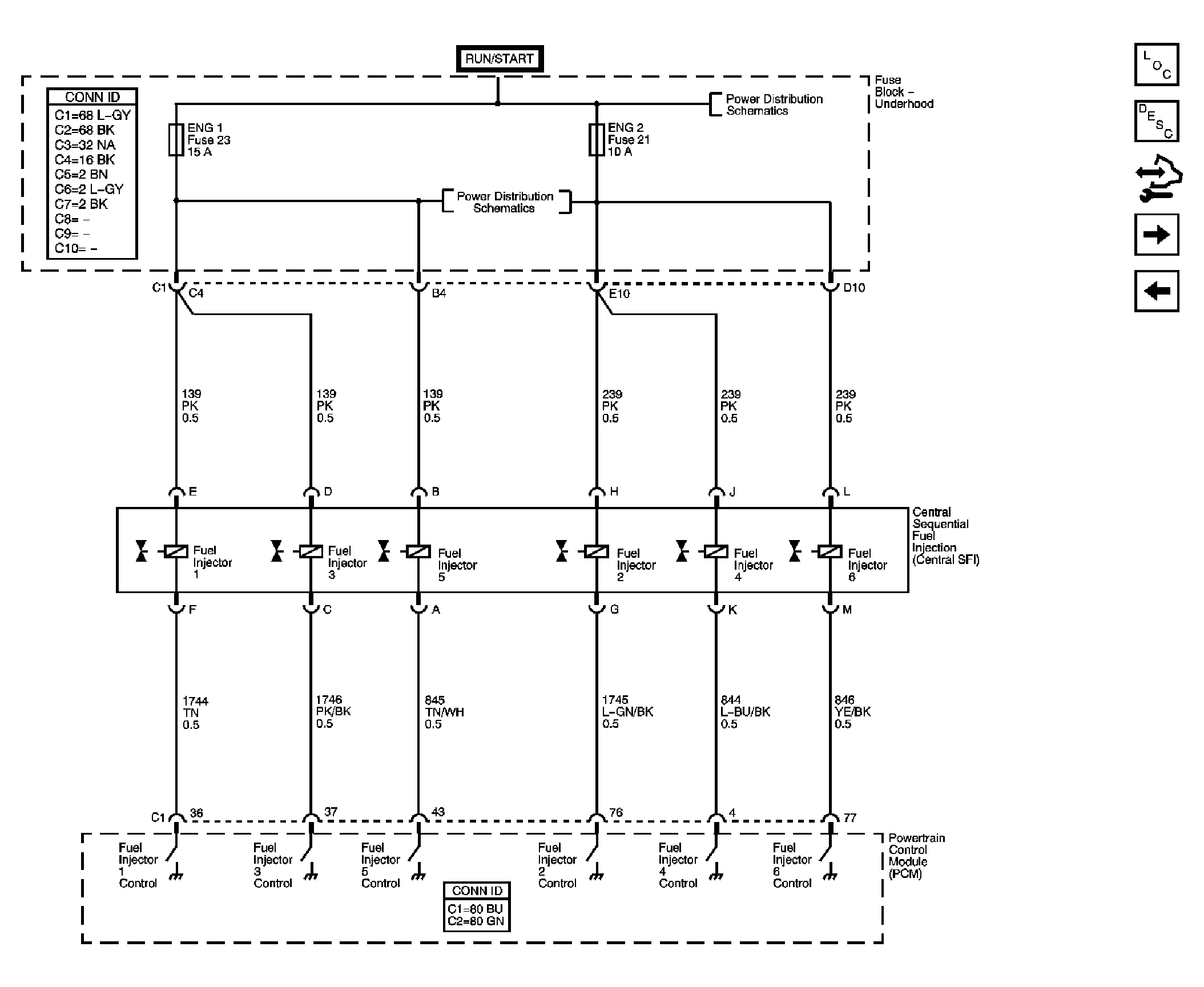

Fig 7: Fuel Controls - Fuel Injectors

Courtesy of GENERAL MOTORS CORP.

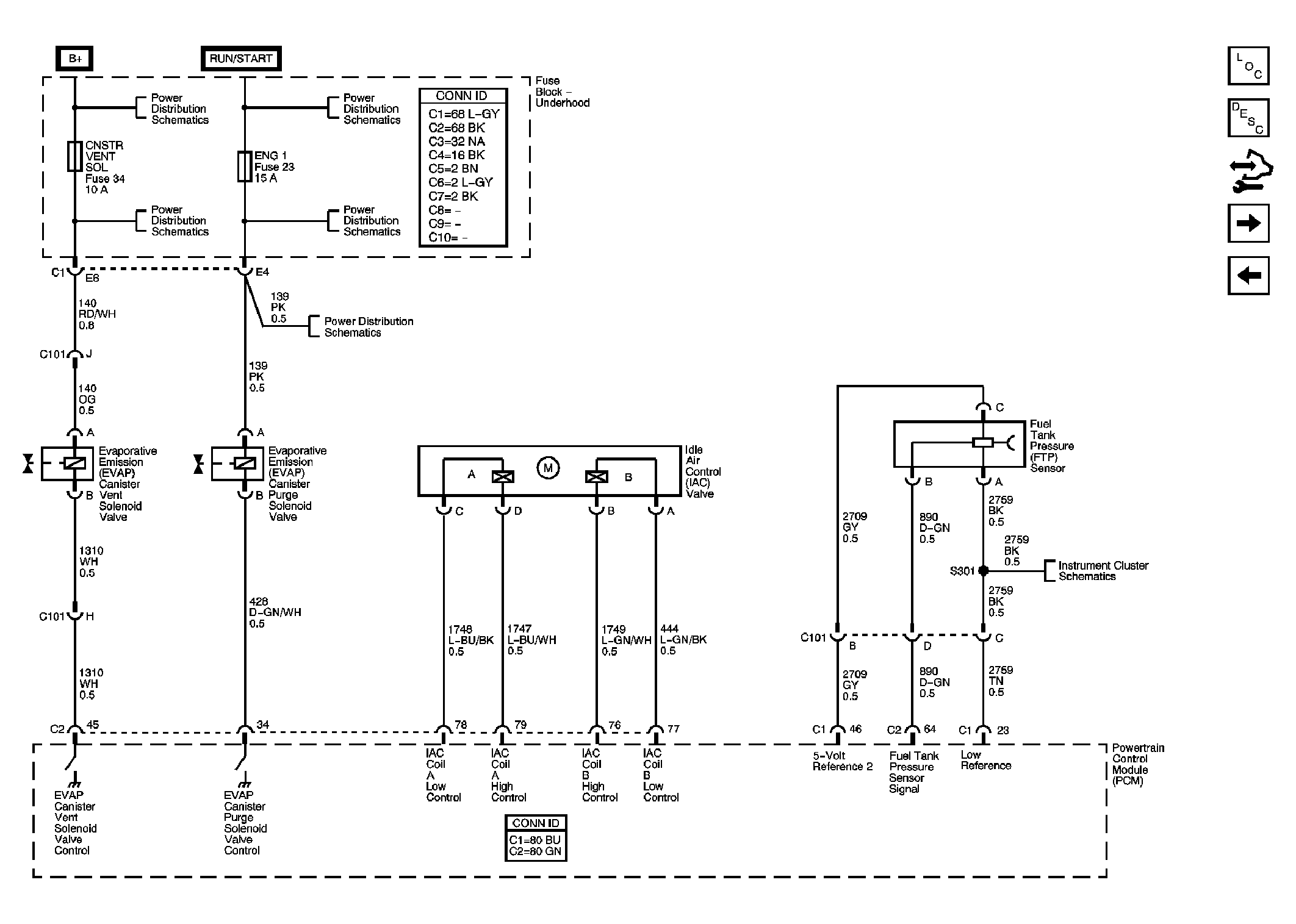

Fig 8: Fuel Controls - EVAP and Device Controls

Courtesy of GENERAL MOTORS CORP.

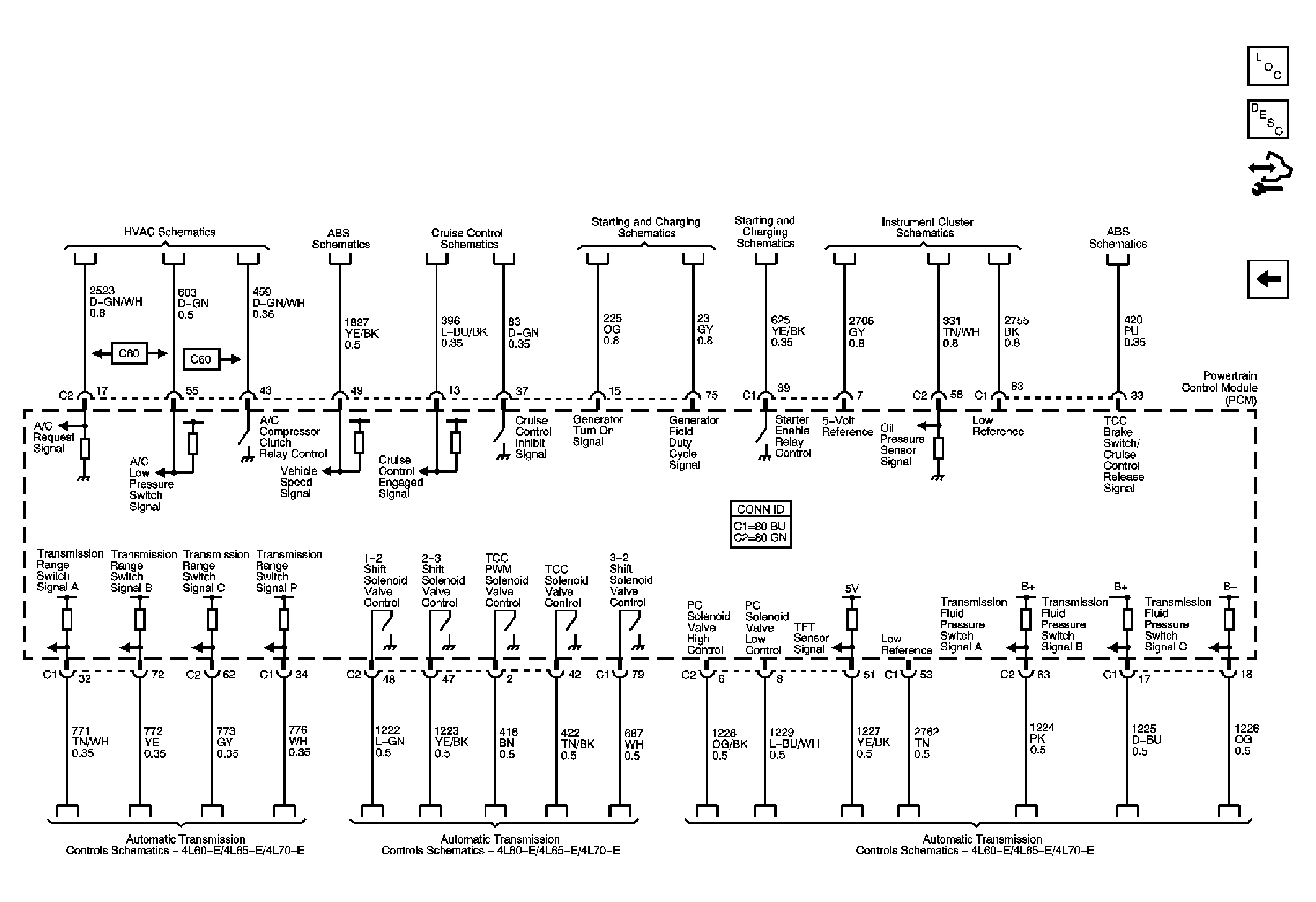

Fig 9: Controlled/Monitored Subsystem and Transmission References

Courtesy of GENERAL MOTORS CORP.
