Exhaust Manifold Replacement - Left Side (6.6L)

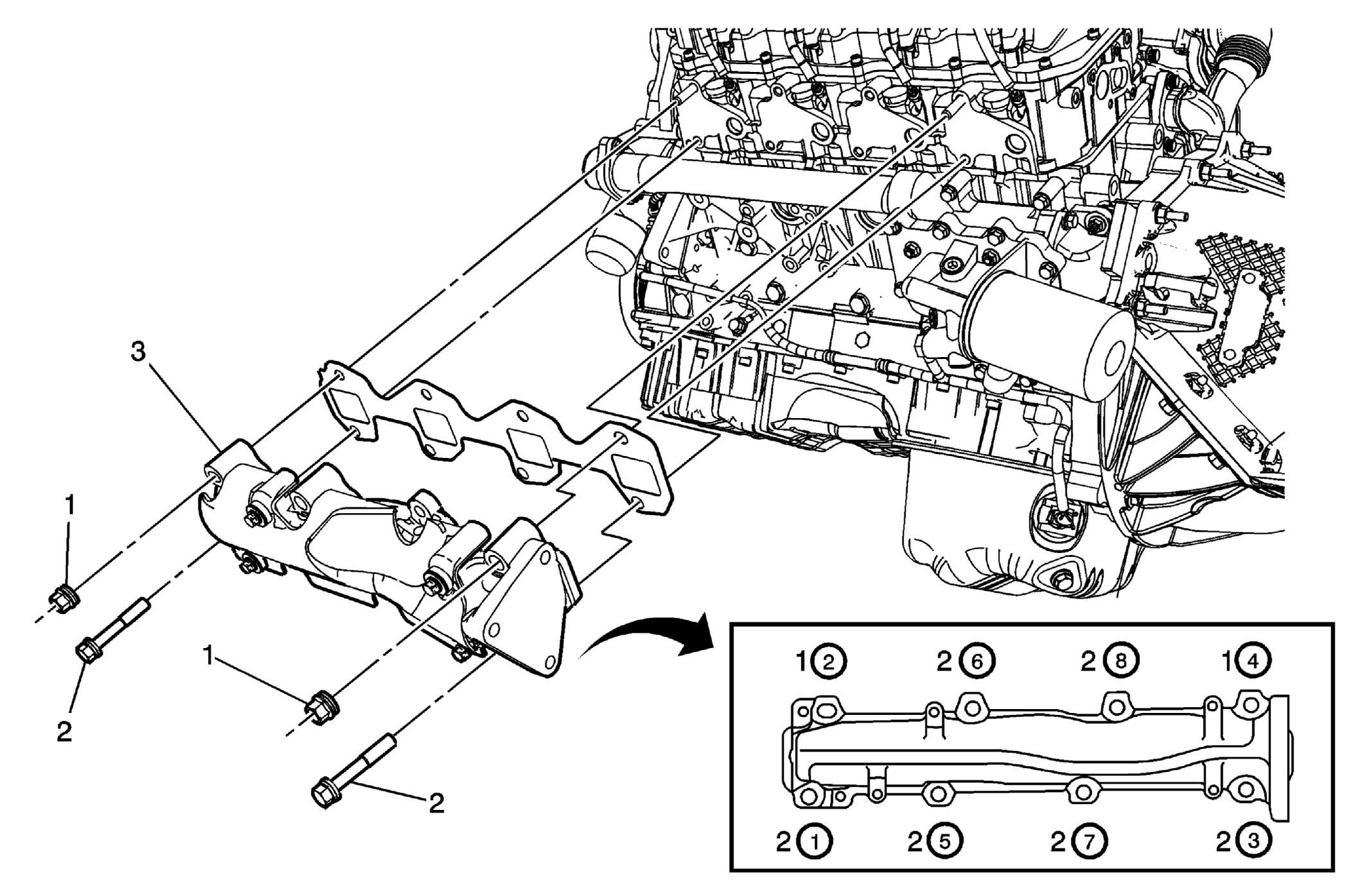

Fig 1: View Of Exhaust Manifold

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the engine cover. Refer to Engine Cover Replacement . Remove the left exhaust pipe. Refer to Exhaust Pipe Replacement - Left Side (6.6L (LBZ/LLY)) or Exhaust Pipe Replacement - Left Side (6.6L (LMM)) . Raise and suitably support the vehicle. Refer to Lifting and Jacking the Vehicle .
1	Exhaust Manifold Nut (Qty: 2) NOTE: Refer to Fastener Notice . Tip: Torque the bolts/nuts to the sequence shown. Tighten: 38 N.m (28 lb ft)
2	Exhaust Manifold Bolt (Qty: 6) Tip: Torque the bolts/nuts to the sequence shown. Tighten: 38 N.m (28 lb ft)
3	Left Exhaust Manifold
4	Exhaust Manifold Gasket
