Exhaust Gas Recirculation Coolant Hoses/Pipes Replacement (LMM)

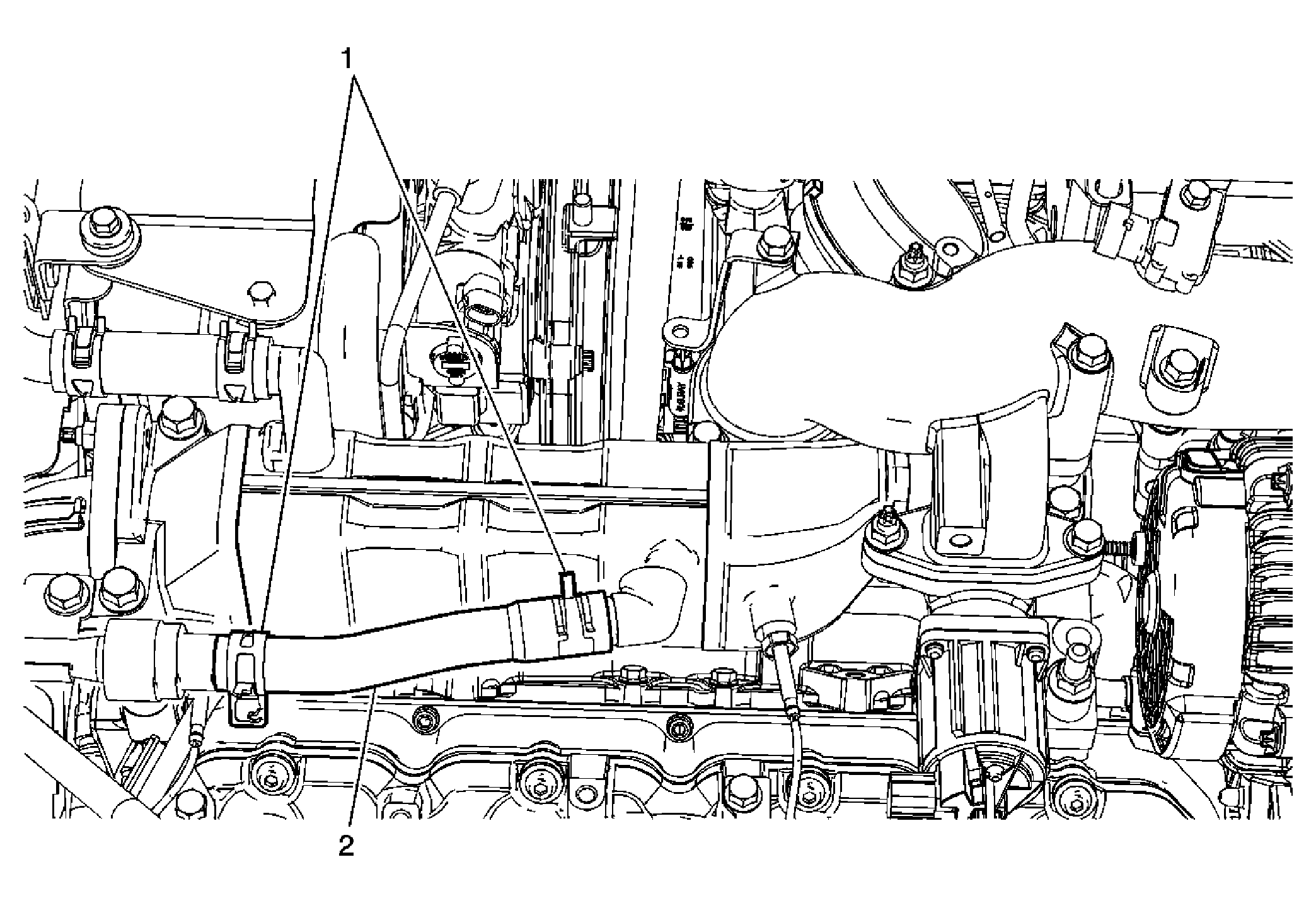

Fig 1: View Of Exhaust Gas Recirculation Coolant Hoses

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Drain the cooling system. Refer to Draining and Filling Cooling System (Static Fill) or Draining and Filling Cooling System (Vac N Fill) . Remove the engine cover. Refer to Engine Cover Replacement .
1	EGR Coolant Pipe Tip: Compress the clamps (1) and disconnect the EGR coolant pipe from the EGR cooler tube.

Callout

Component Name

Preliminary Procedures

EGR Coolant Pipe
Tip: Compress the clamps (1) and disconnect the EGR coolant pipe from the EGR cooler tube.
