Cooling System Component Views

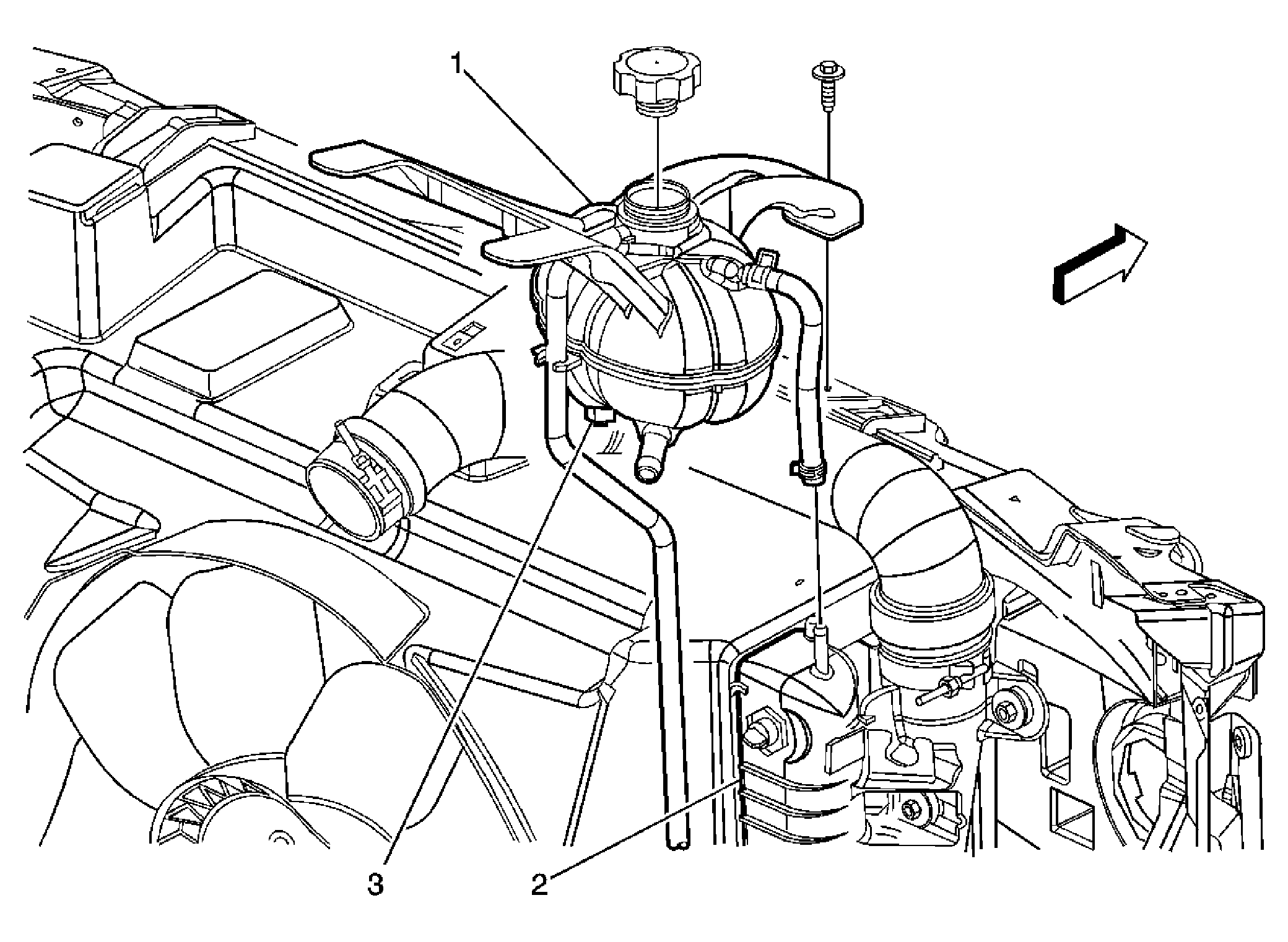

Fig 1: RF of the Engine Compartment
GM1613293Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Surge Tank
2 Radiator
3 Coolant Level Switch

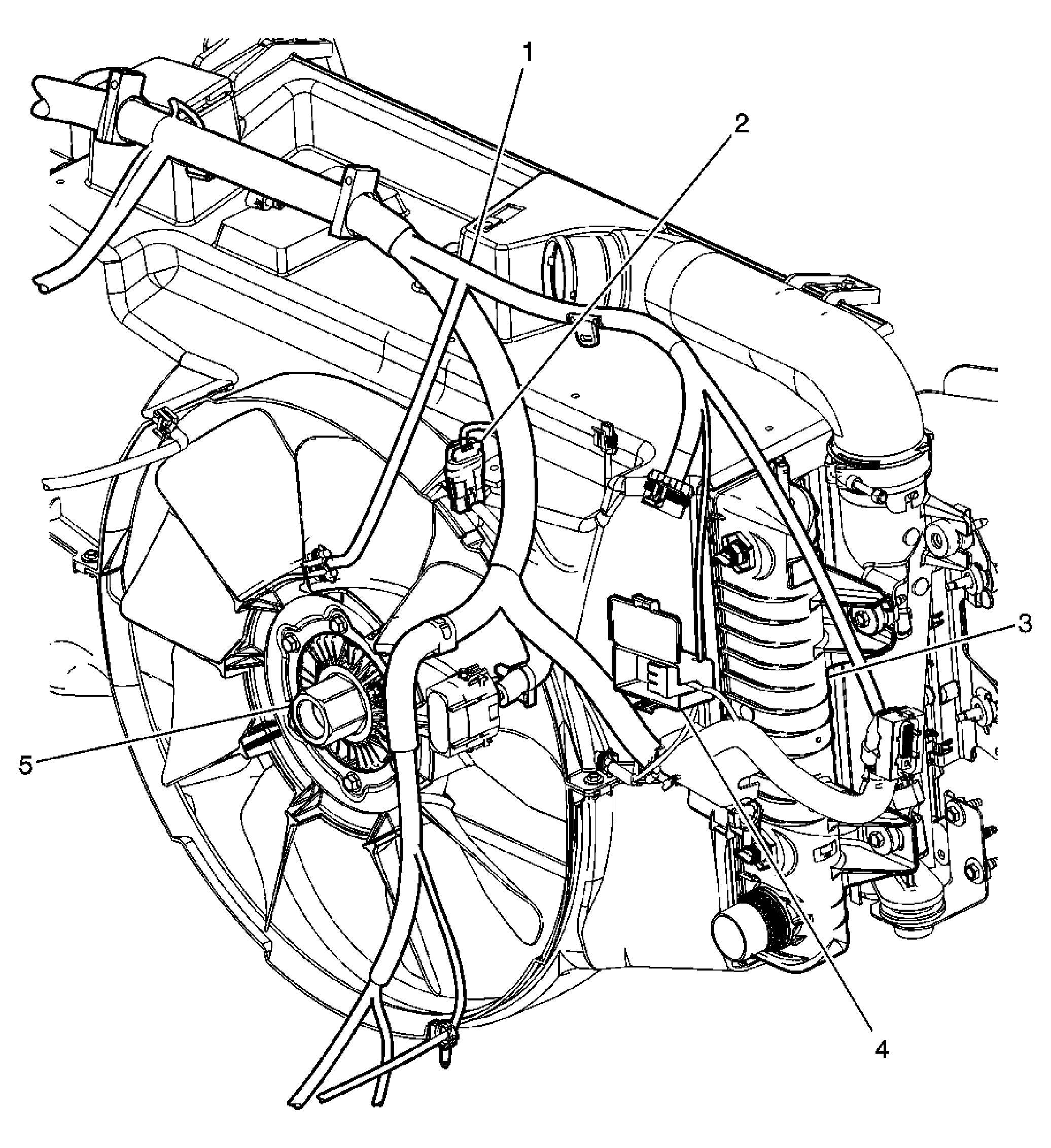

Fig 2: Front of the Engine Compartment (LMM)
GM1831358Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Engine Chassis Harness
2 Cooling Fan Connector
3 Radiator
4 Cooling Fan Relay
5 Cooling Fan Assembly
