Ground Distribution Schematics

Fig 1: G100 and G101

Courtesy of GENERAL MOTORS CORP.

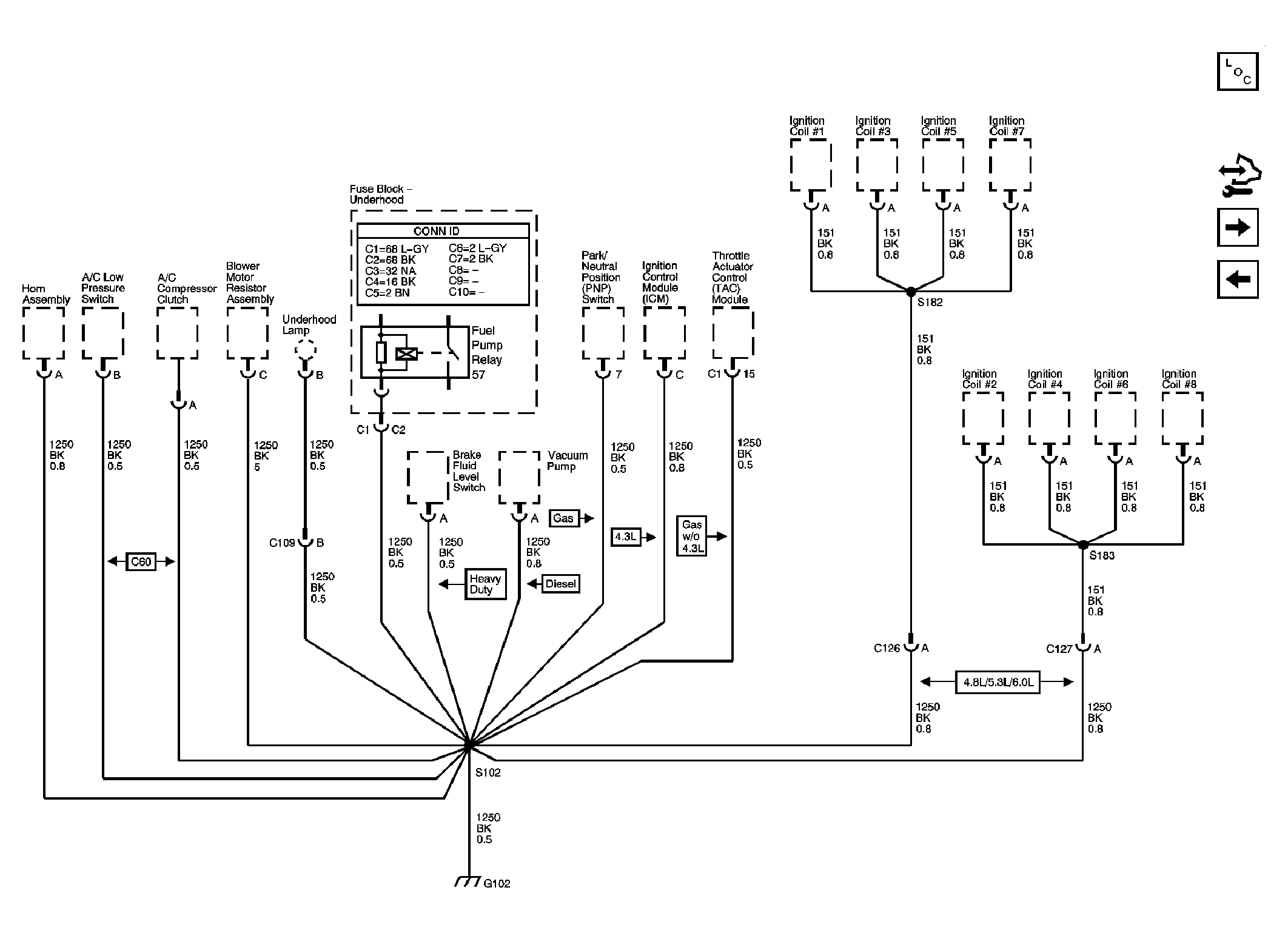

Fig 2: G102

Courtesy of GENERAL MOTORS CORP.

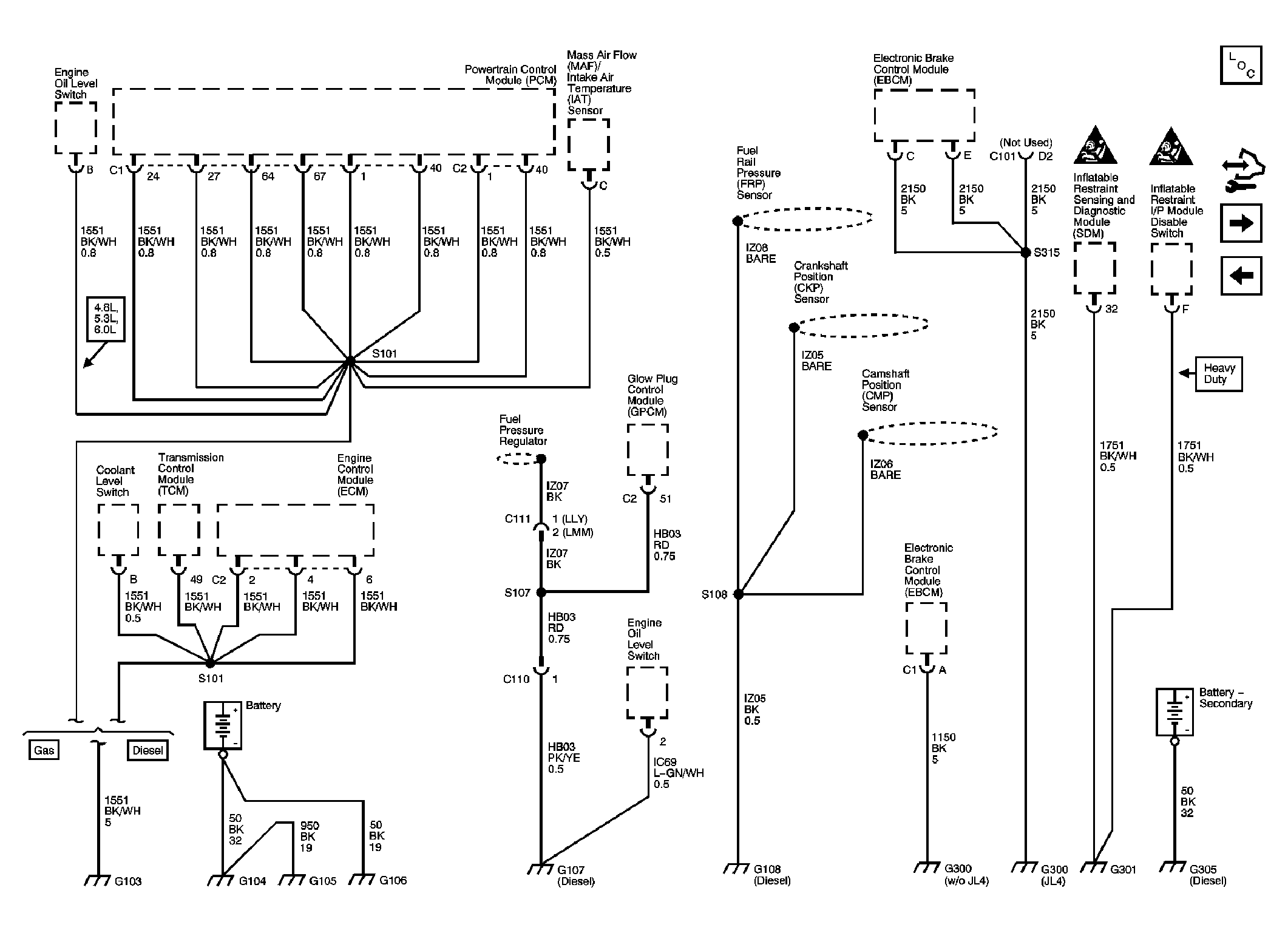

Fig 3: G103, G104, G105, G106, G107, G108, G300, G301, and G305

Courtesy of GENERAL MOTORS CORP.

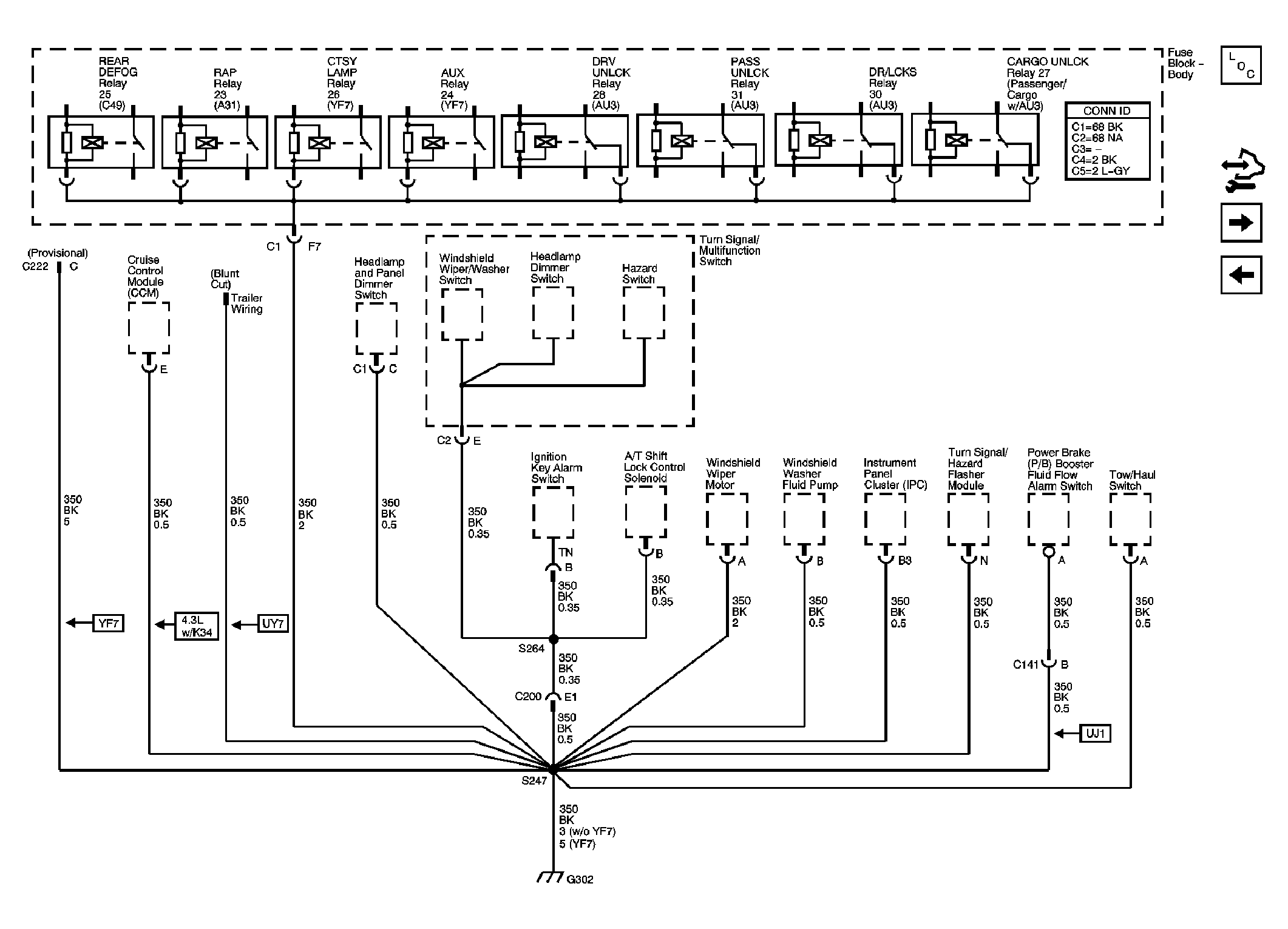

Fig 4: G302

Courtesy of GENERAL MOTORS CORP.

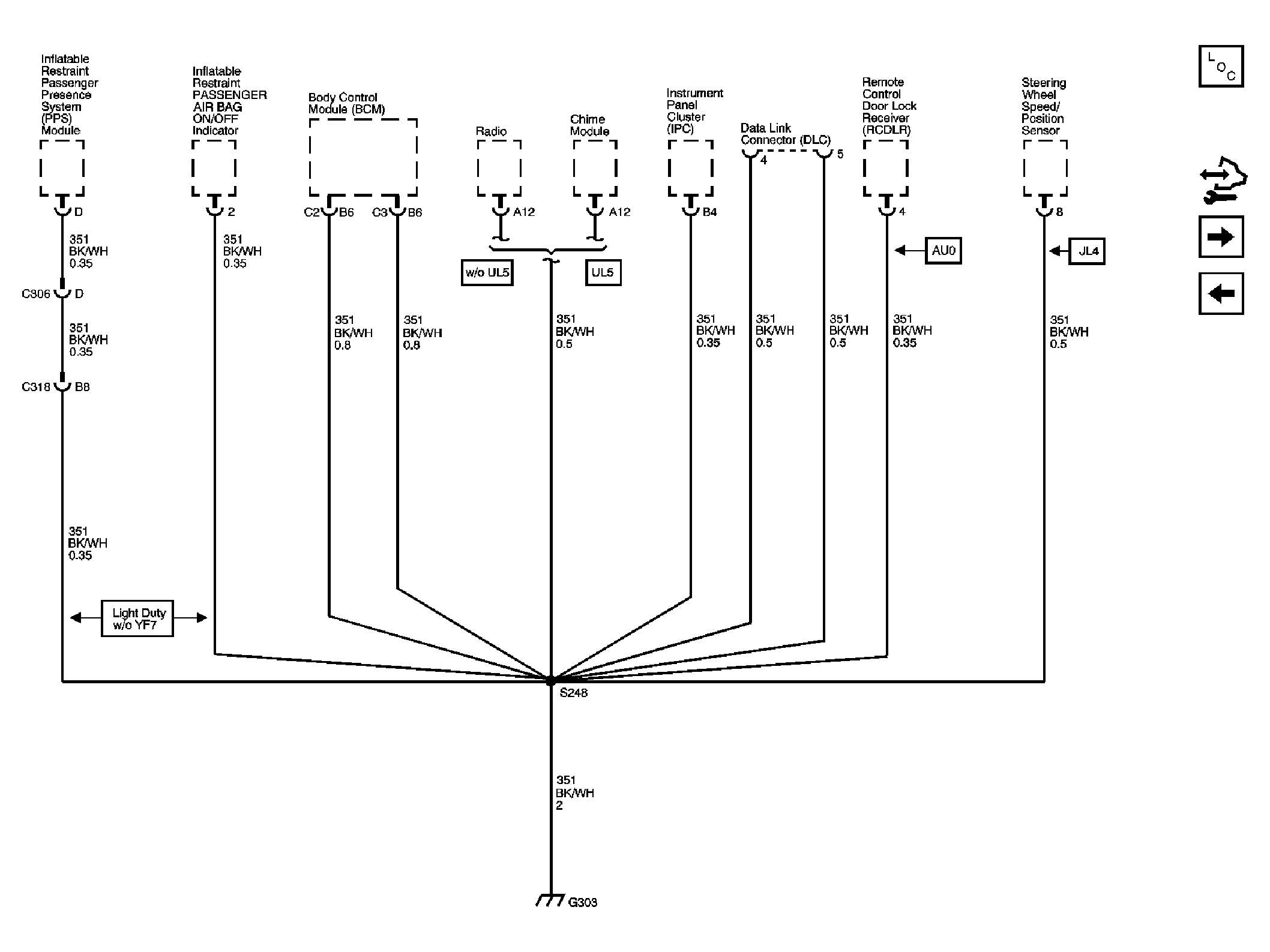

Fig 5: G303

Courtesy of GENERAL MOTORS CORP.

Fig 6: G304

Courtesy of GENERAL MOTORS CORP.

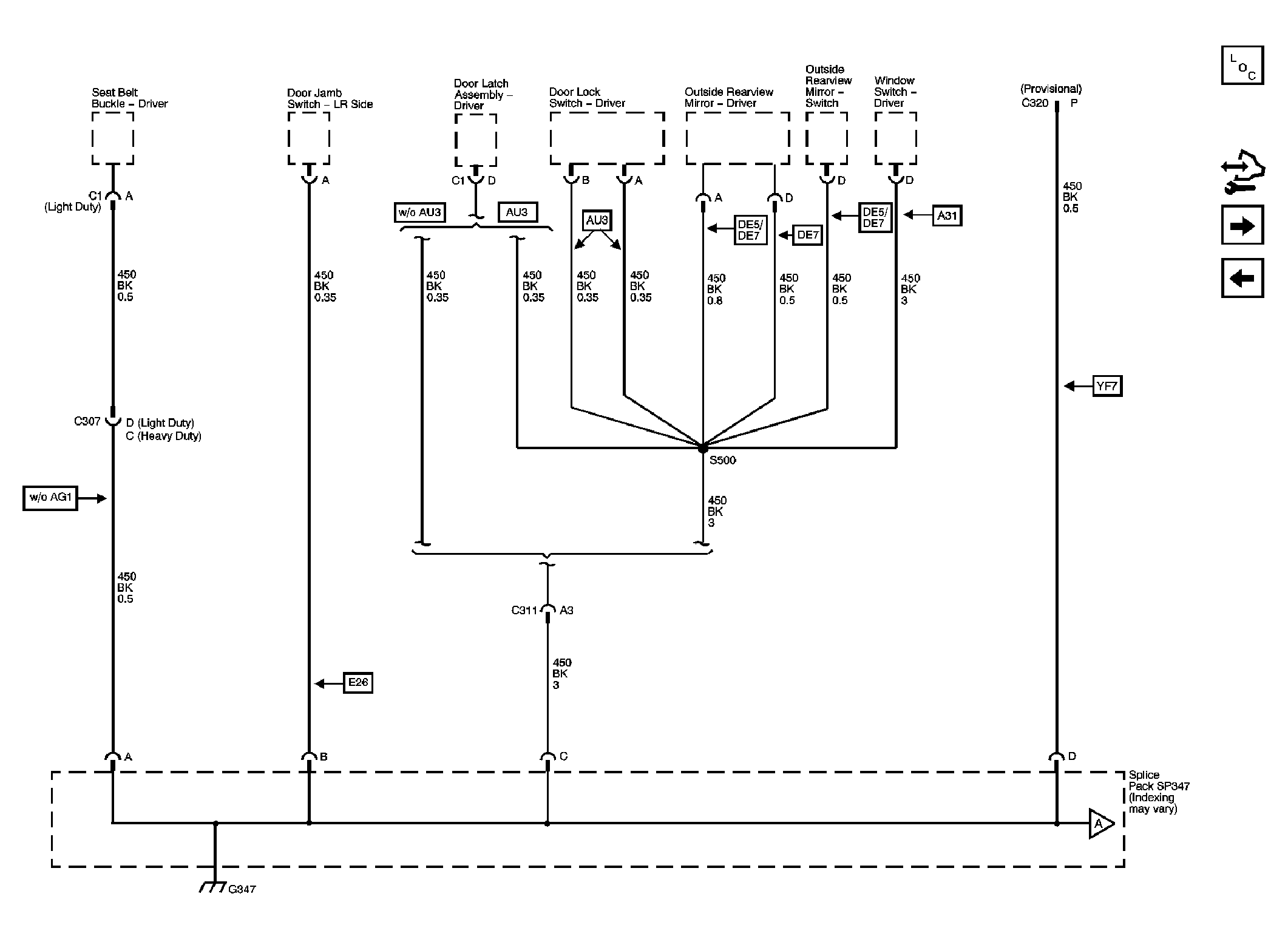

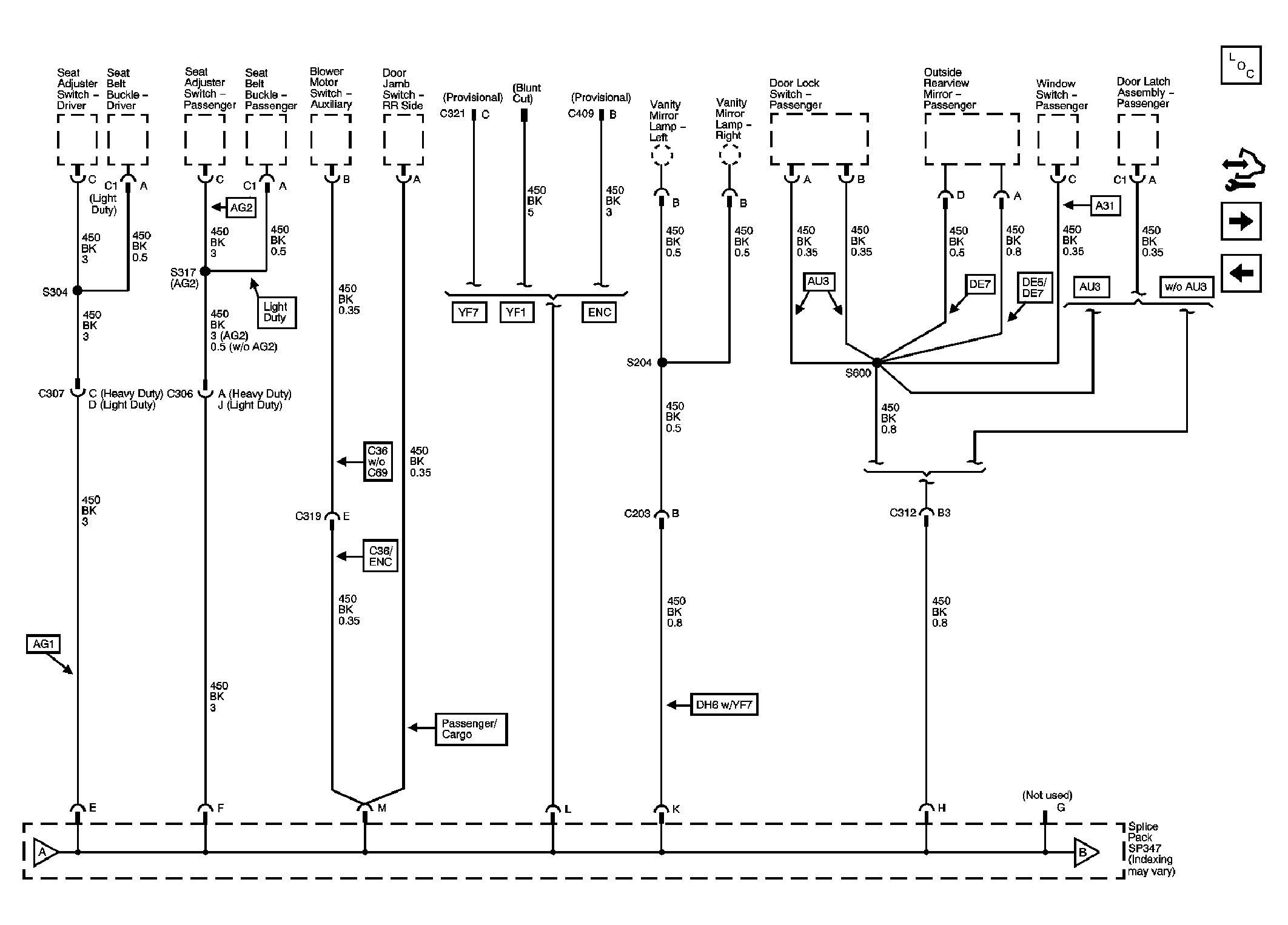

Fig 7: G347 - 1 of 3

Courtesy of GENERAL MOTORS CORP.

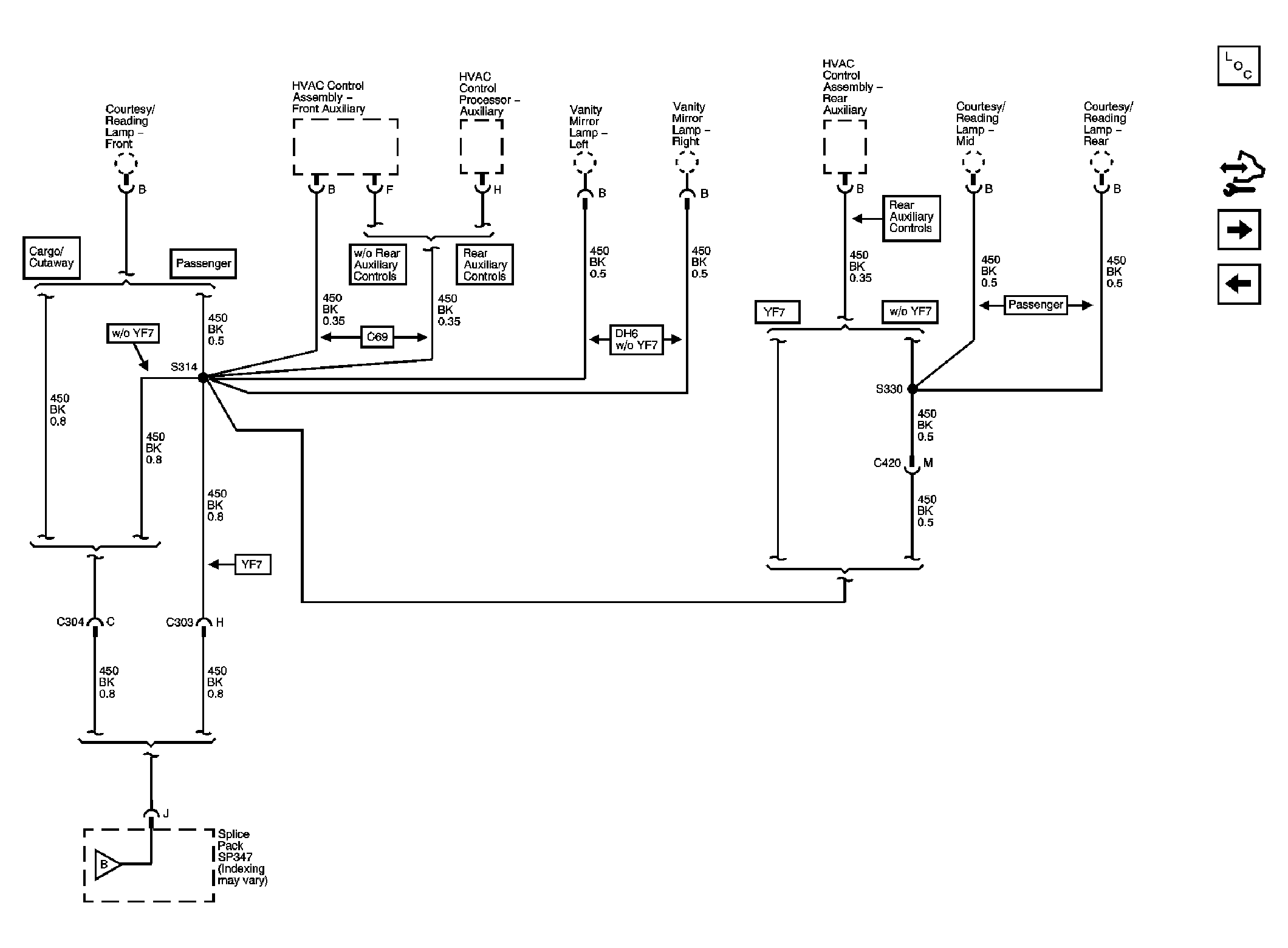

Fig 8: G347 - 2 of 3

Courtesy of GENERAL MOTORS CORP.

Fig 9: G347 - 3 of 3

Courtesy of GENERAL MOTORS CORP.

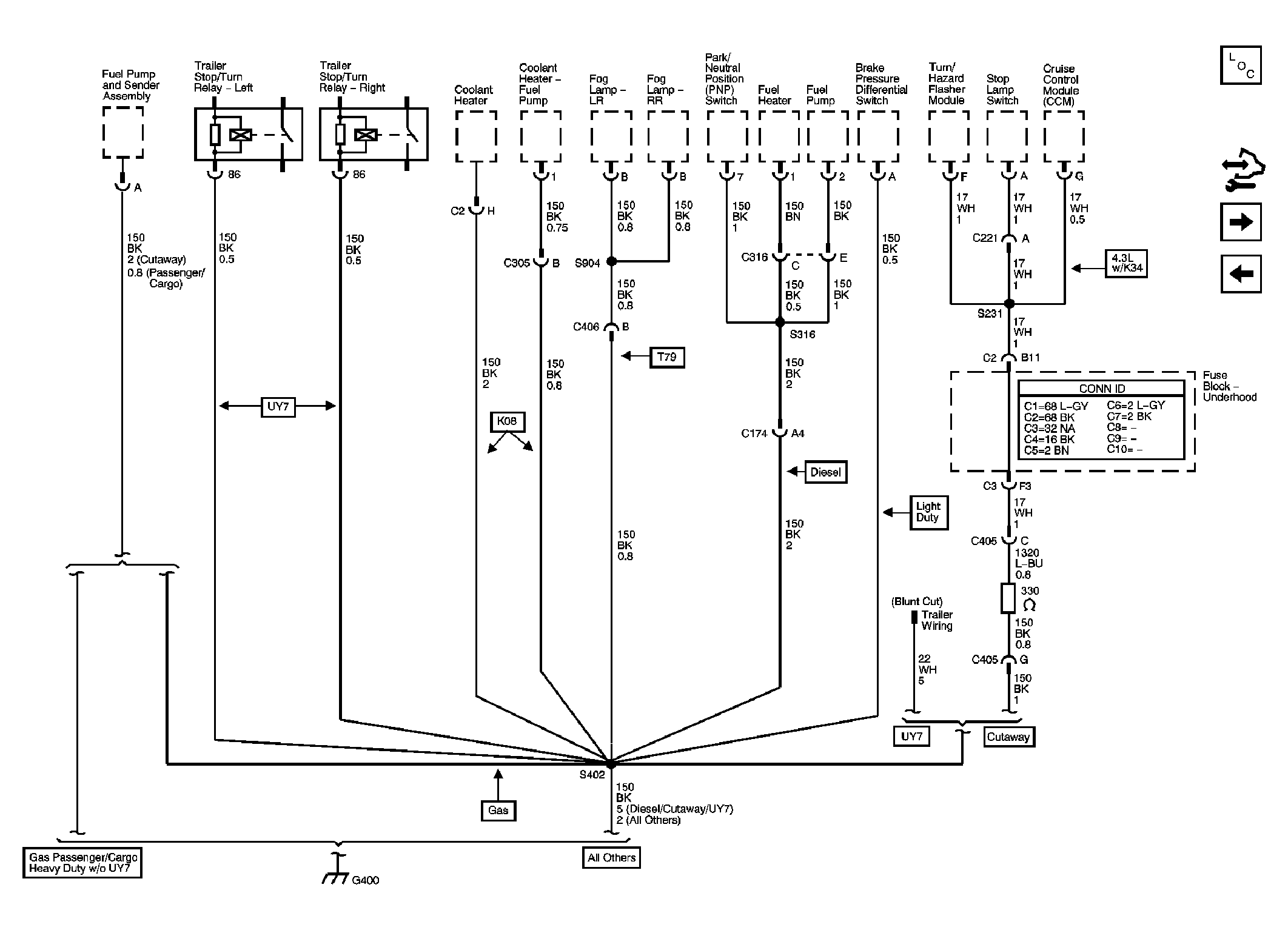

Fig 10: G400

Courtesy of GENERAL MOTORS CORP.

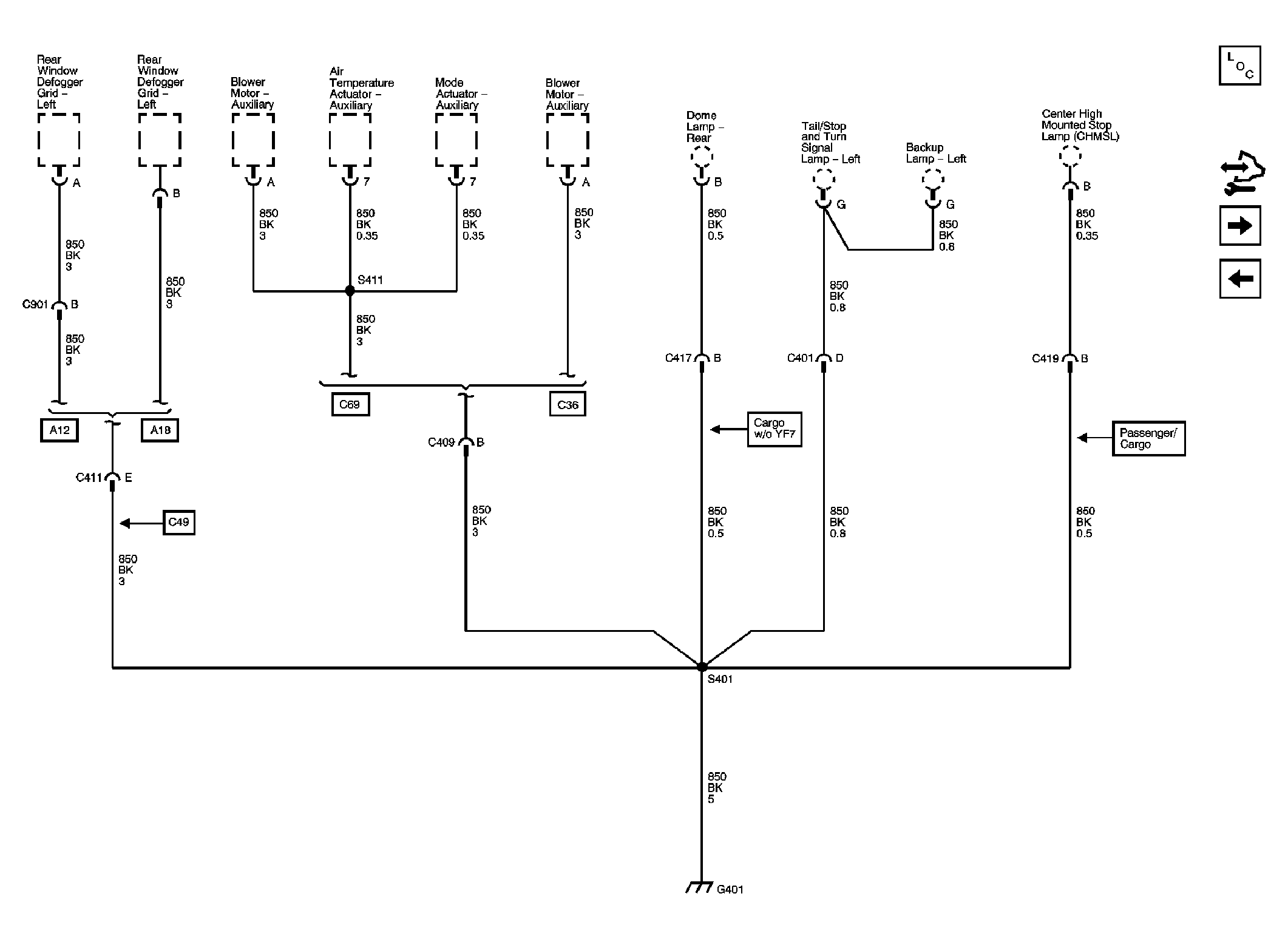

Fig 11: G401 - Passenger/Cargo

Courtesy of GENERAL MOTORS CORP.

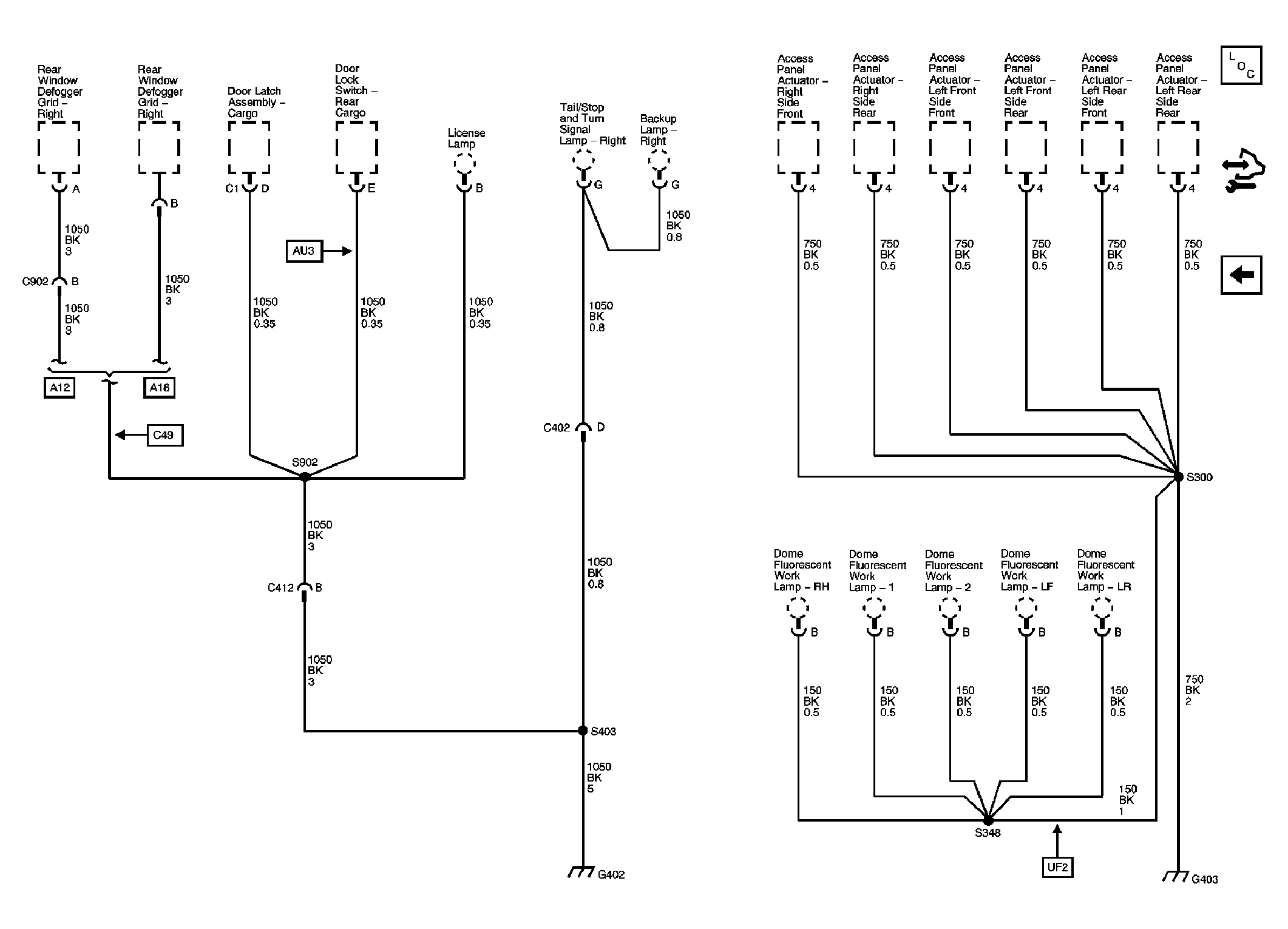

Fig 12: G402 - Passenger/Cargo and G403 - PRP

Courtesy of GENERAL MOTORS CORP.
