Instrument Cluster Schematics

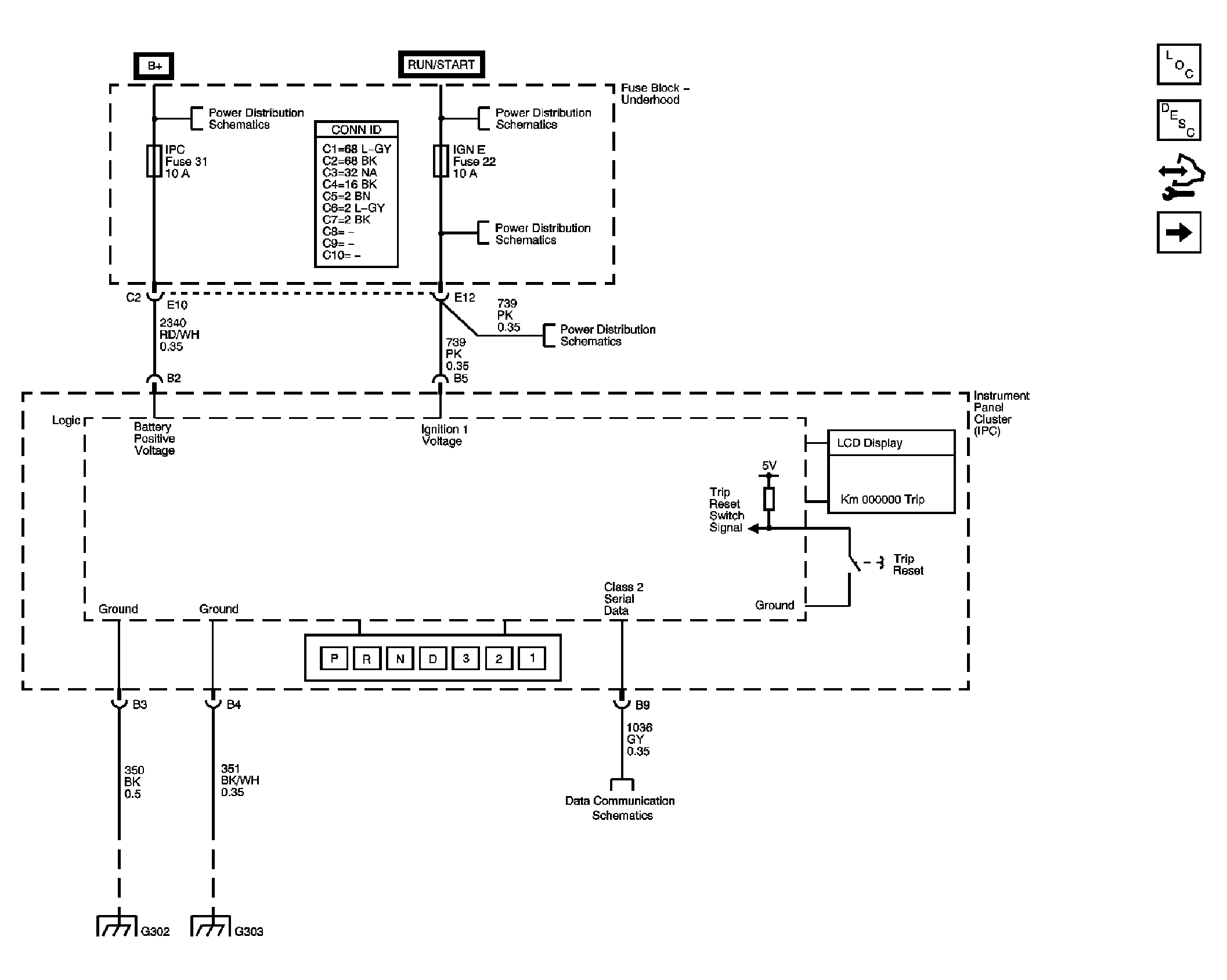

Fig 1: Power, Ground, and Serial Data
GM1754527Courtesy of GENERAL MOTORS CORP.

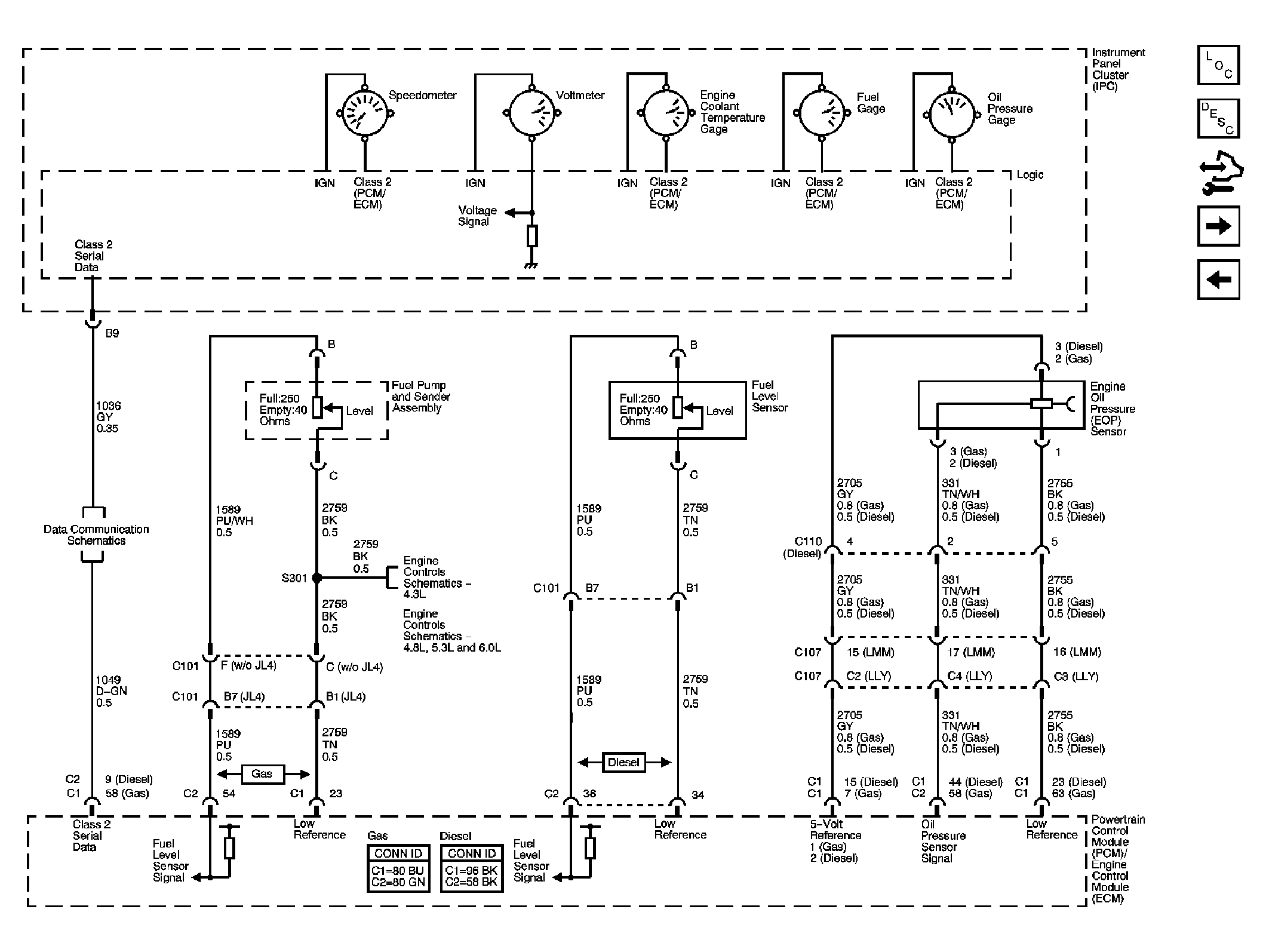

Fig 2: Gages Schematics
GM1754537Courtesy of GENERAL MOTORS CORP.

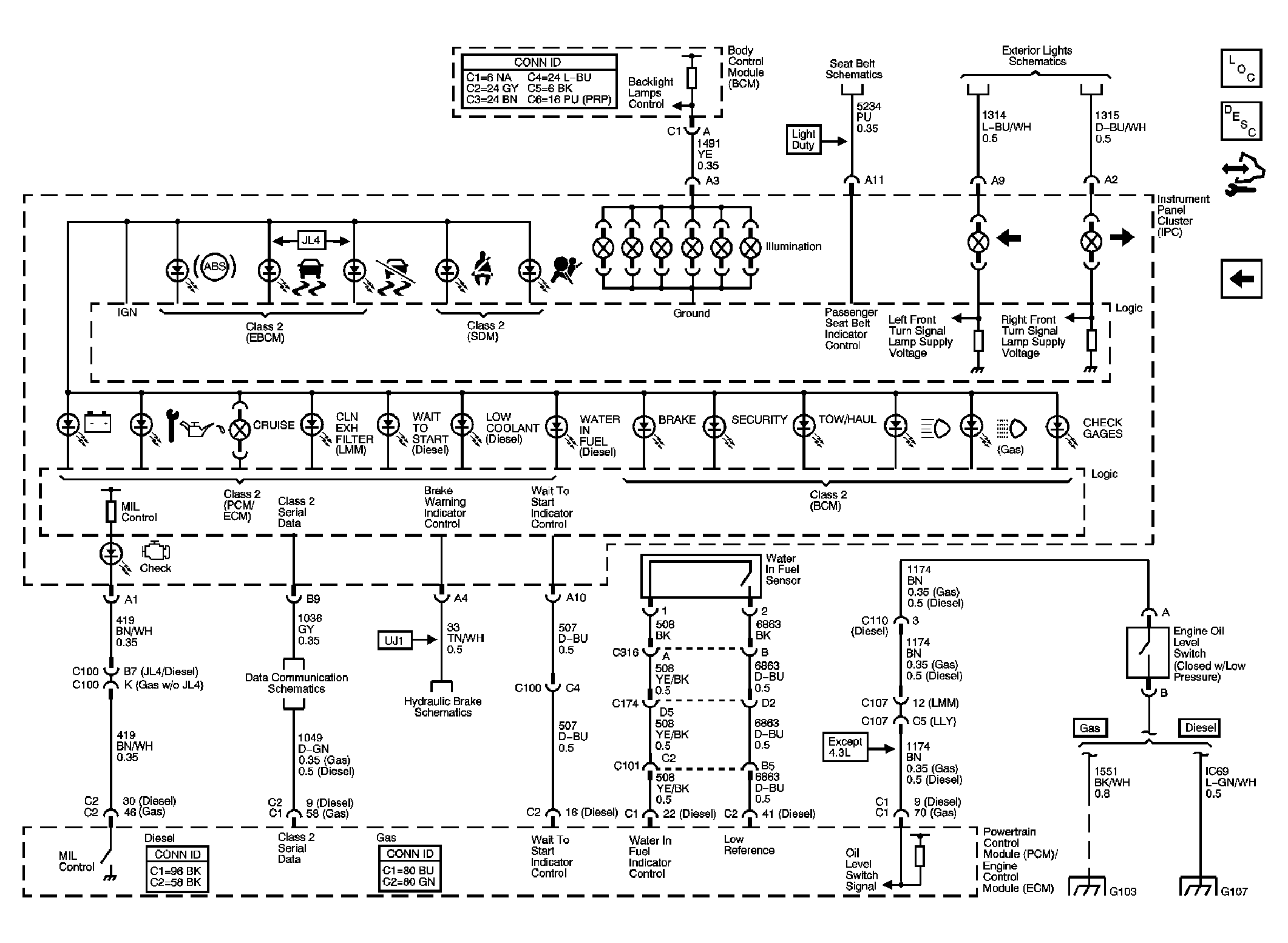

Fig 3: Indicators Schematics
GM1754538Courtesy of GENERAL MOTORS CORP.
