Hydraulic Brake Component Views

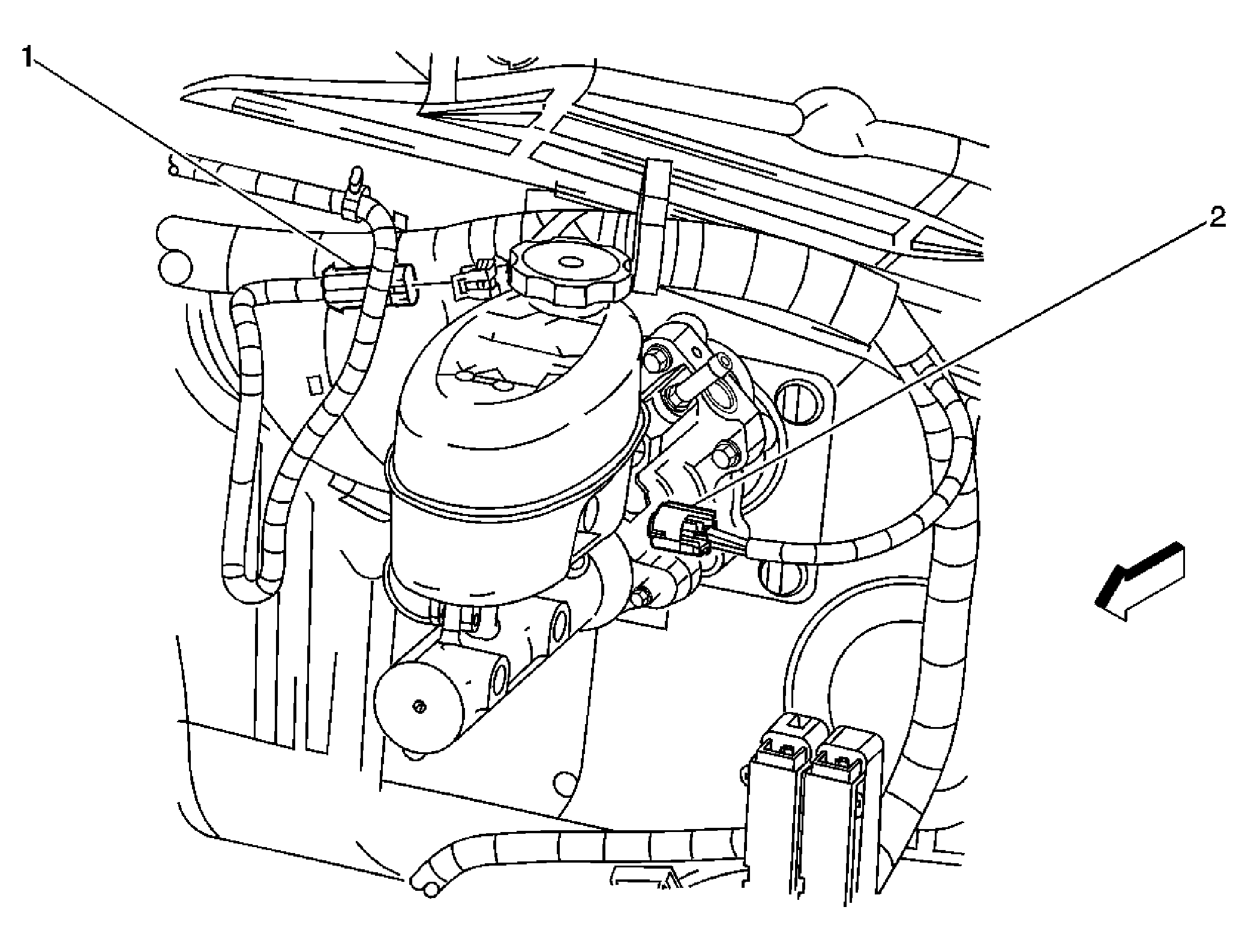

Fig 1: Component View - Left Rear Of Engine Compartment (Heavy Duty)
GM886073Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C109
2 Brake Fluid Level Switch Connector
Fig 2: Power Brake (PB) Booster Fluid Alarm Switches Harness Routing (UJ1)
GM883605Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Power Brake (PB) Booster Fluid Pressure Alarm Switch Connector
2 C141
3 Power Brake (PB) Booster Fluid Flow Alarm Switch - C1, C2
Fig 3: I/P Harness Routing - Left Side Of Passenger Compartment
GM883611Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Park Brake Switch
2 Park Brake Switch Connector
3 C220
4 C311
5 C318
Fig 4: Frame and Underbody
GM1651182Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Wheel Speed Sensor (WSS) - LR (JL4)
2 Rotor - LR
3 Rotor - LF
4 Wheel Speed Sensor (WSS) Connector - LF
5 Electronic Brake Control Module (EBCM)
6 Brake Pressure Differential Switch (Light Duty)
7 Floor Panel - RF
8 Yaw and Lateral Acceleration Sensor (JL4)
9 Wheel Speed Sensor (WSS) Connector - RF
10 Rotor - RF
11 Rotor - RR
12 Wheel Speed Sensor (WSS) - RR (JL4)
