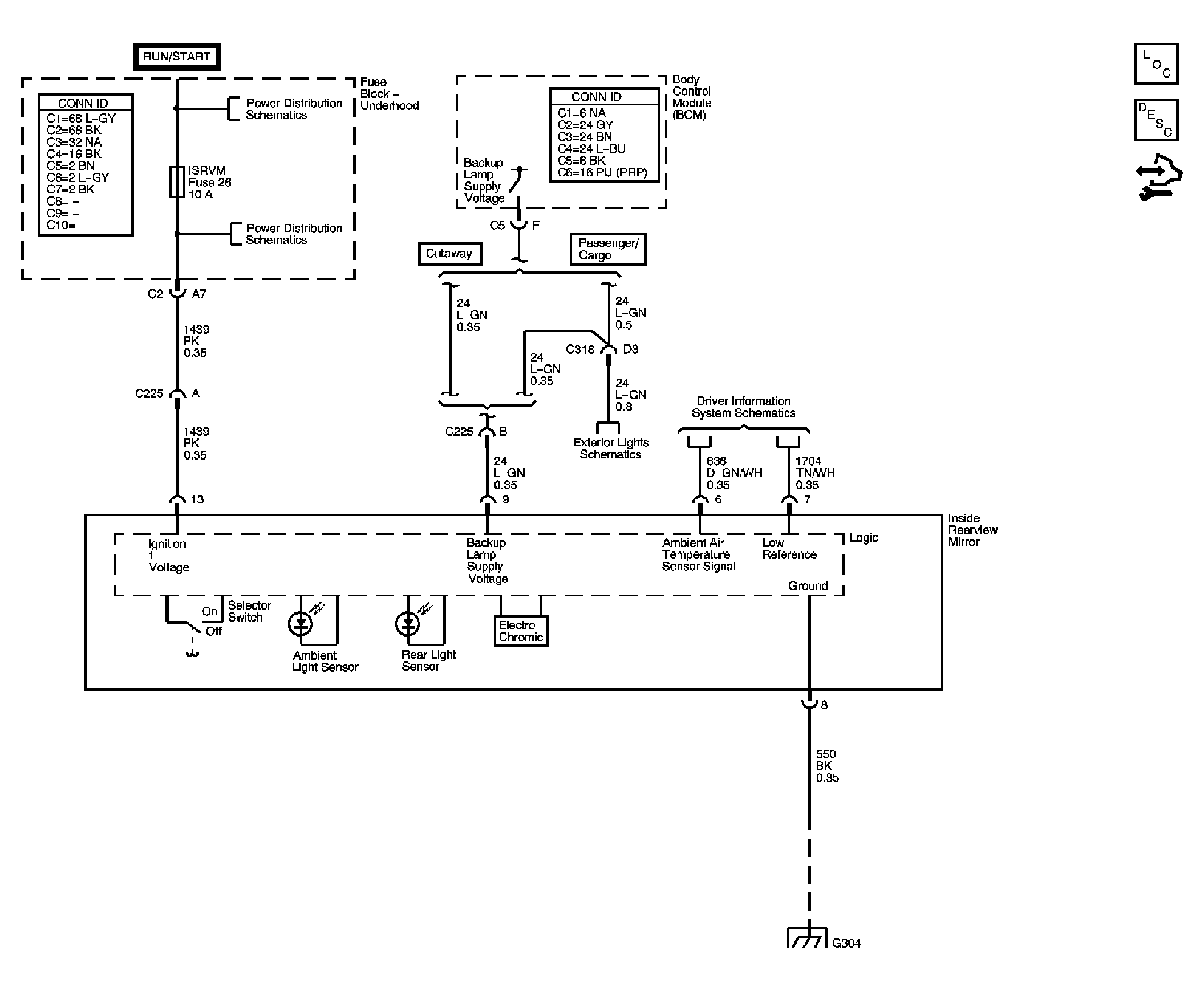

Home >> Chevrolet >> 2007 >> Chevy Express G2500, Van Cargo, 6.6 6 >> Repair and Diagnosis >> Body & Frame >> Mirrors >> Mirror System >> Schematic and Routing Diagrams >> Inside Rearview Mirror Schematics
