Vehicle Access Component Views

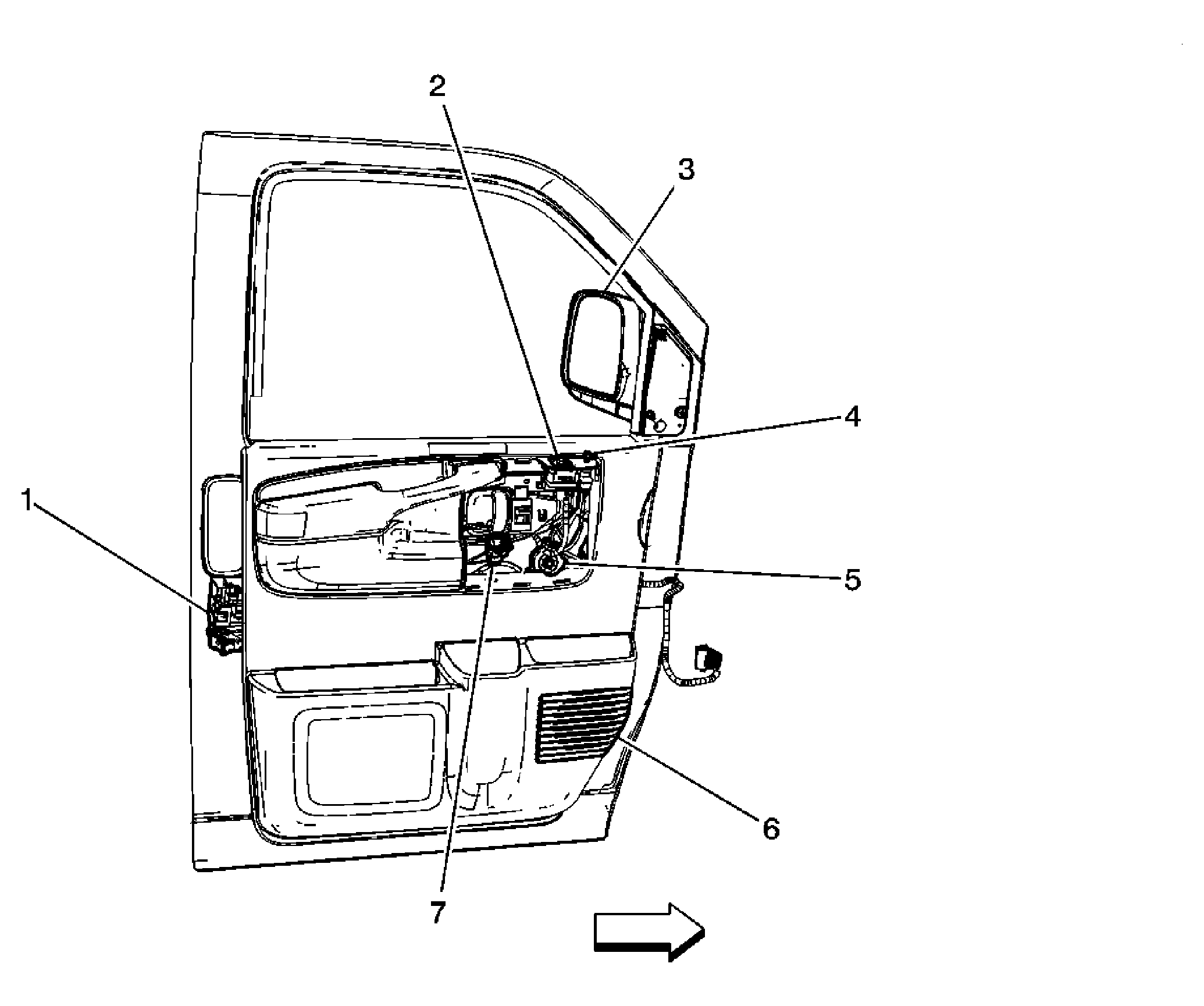

Fig 1: Driver Door

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Latch Assembly - Driver
2	Window Switch - Driver (A31)
3	Outside Rearview Mirror - Driver
4	Outside Rearview Mirror Switch (DE5/DE7)
5	Window Motor - Driver (A31)
6	Speaker - LF Door
7	Door Lock Switch - Driver (AU3)

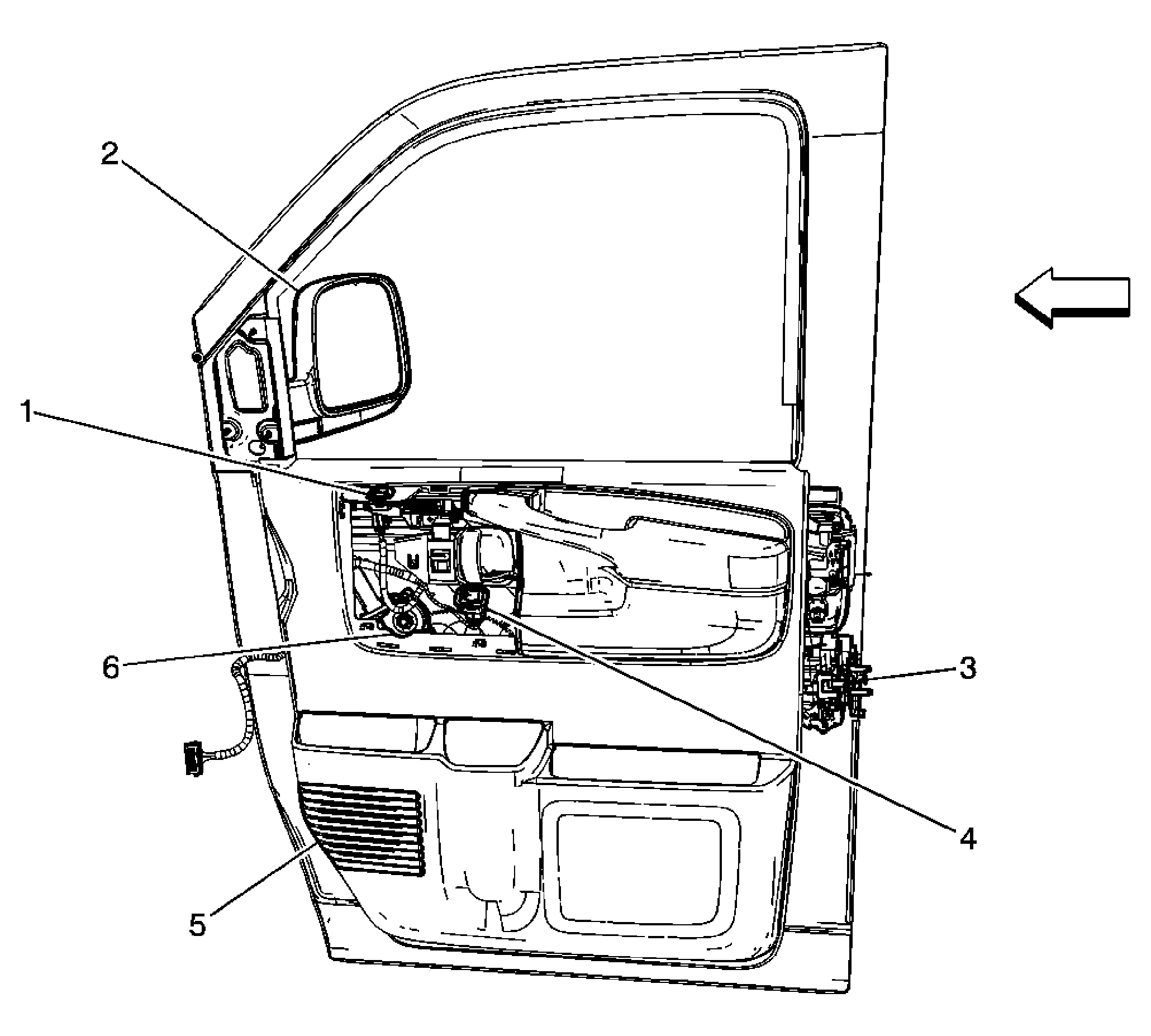

Fig 2: Front Passenger Door

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Window Switch - Front Passenger (A31)
2	Outside Rearview Mirror - Passenger
3	Door Latch Assembly - Passenger
4	Door Lock Switch - Front Passenger (AU3)
5	Speaker - RF Door
6	Window Motor - Passenger (A31)

Fig 3: Left Side Door (E26)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Lock Actuator - LR Side (AU3)
2	Door Contact Plate - Left Side (AU3)
3	Door Jamb Switch - LR Side

Fig 4: Right Side Door (E24)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Jamb Switch - RR Side
2	Door Contact Plate - Right Side (AU3)
3	Door Lock Actuator - RR Side (AU3)

Fig 5: Right Sliding Door (YA2)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Jamb Switch - RR Side
2	Door Contact Plate - Right Side (AU3)
3	Door Lock Actuator - RR Side (AU3)

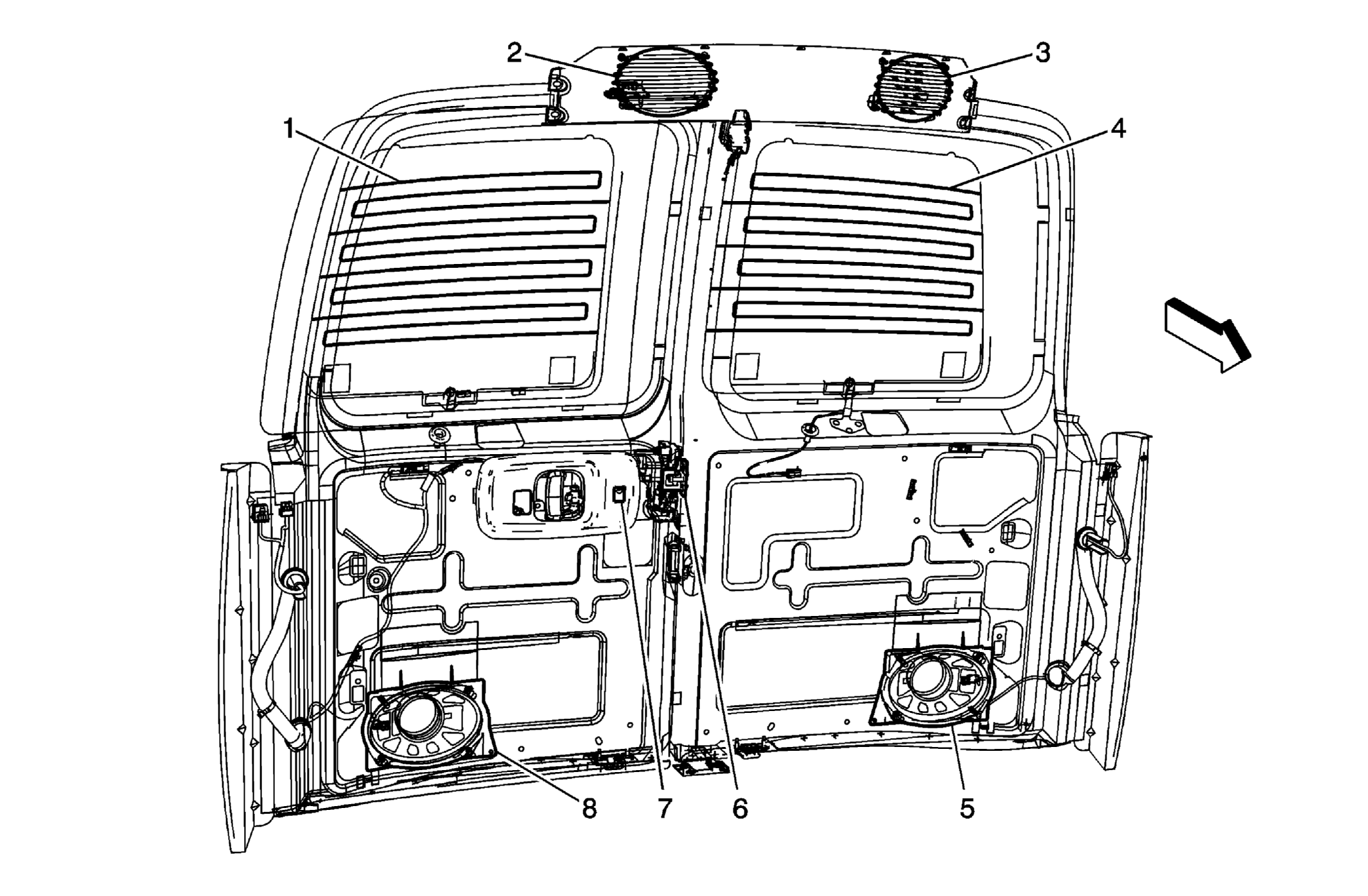

Fig 6: Rear Doors (Passenger/Cargo)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Window Defogger Grid - Right (C49)
2	Speaker - RR
3	Speaker - LR
4	Rear Window Defogger Grid - Left (C49)
5	Speaker - LR Door (UB1/UC6)
6	Door Latch Assembly - Cargo
7	Door Lock Switch - Rear Cargo (AU3)
8	Speaker - RR Door (UB1/UC6)

Fig 7: Component View - Pro Harness & Components (PRP)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Dome Fluorescent Work Lamp - LR (UF2)
2	Dome Fluorescent Work Lamp - LF (UF2)
3	S350 (UF2)
4	S348 (UF2)
5	Dome Fluorescent Work Lamp - 2 (UF2)
6	Dome Fluorescent Work Lamp - 1 (UF2)
7	Dome Fluorescent Work Lamp - RH (UF2)
8	Access Panel Actuator - Right Side Front
9	Access Panel Actuator - Right Side Rear
10	S409
11	Access/Pro Wiring Harness
12	Body Control Module (BCM)
13	Fuse Block - Body
14	S302 (UF2)
15	S303
16	Dome Fluorescent Work Lamps Relay (UF2)
17	Fuse Block - Rear
18	S309
19	S300
20	S408
21	G403
22	Access Panel Actuator - Left Rear Side Rear
23	Access Panel Actuator - Left Rear Side Front
24	Access Panel Actuator - Left Front Side Rear
25	Access Panel Actuator - Left Front Side Front
