Wiper/Washer Component Views

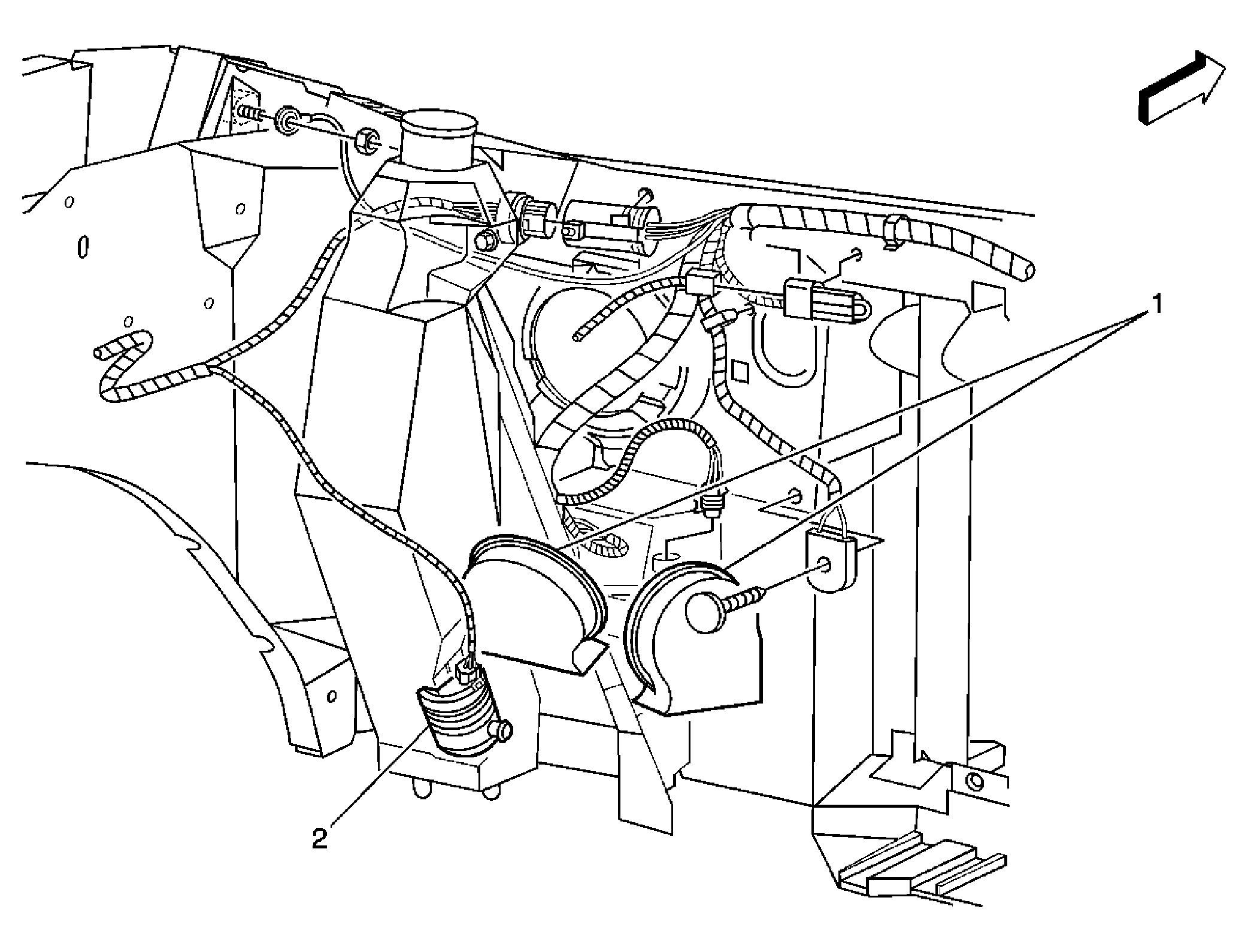

Fig 1: Component View - LF Of Engine Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Horn Assembly
2	Windshield Washer Fluid Pump

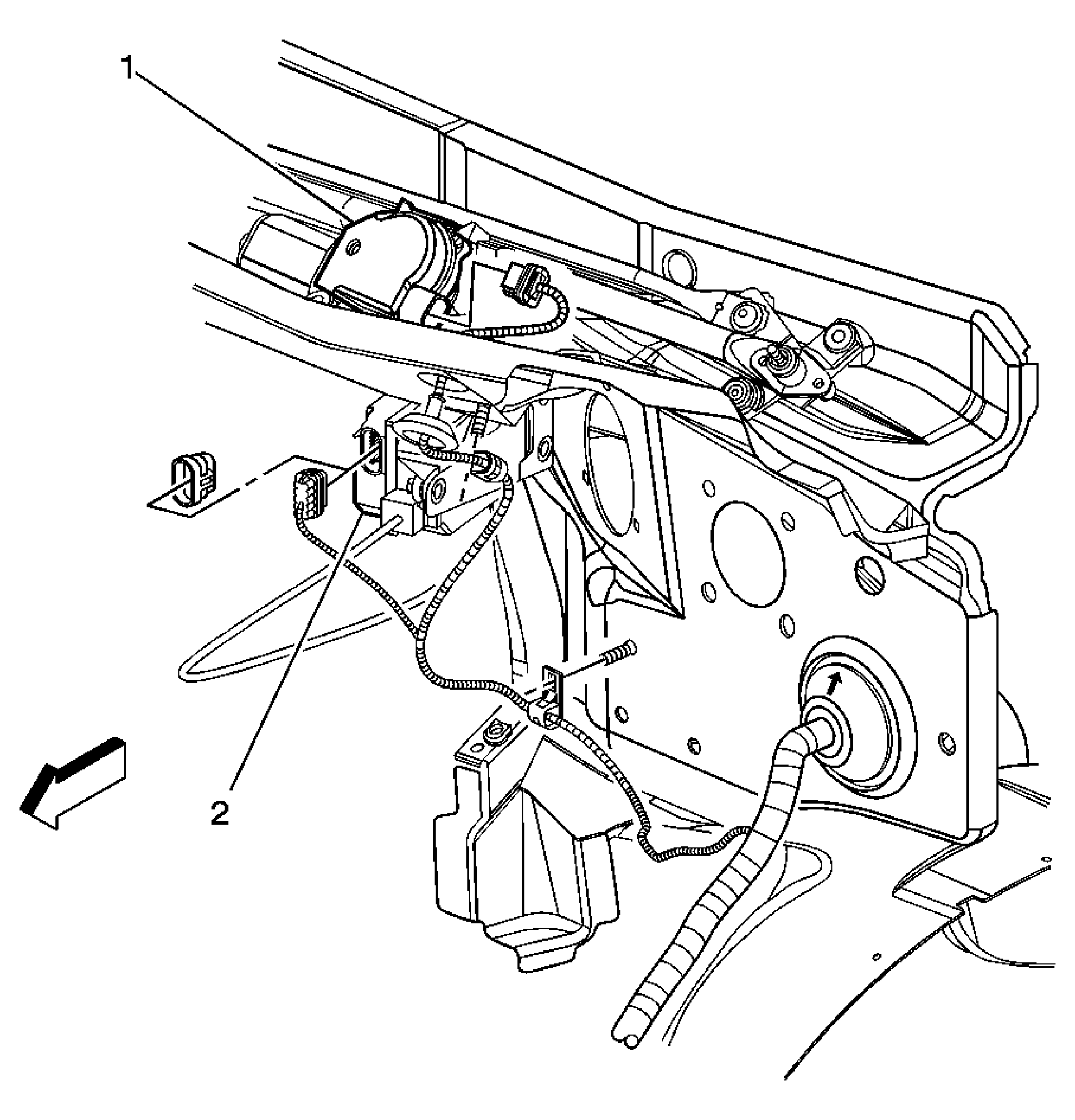

Fig 2: Component Views - LR Of Engine Compartment (w/o JL4)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Windshield Wiper Motor
2	Cruise Control Module (CCM) (4.3L w/K34)

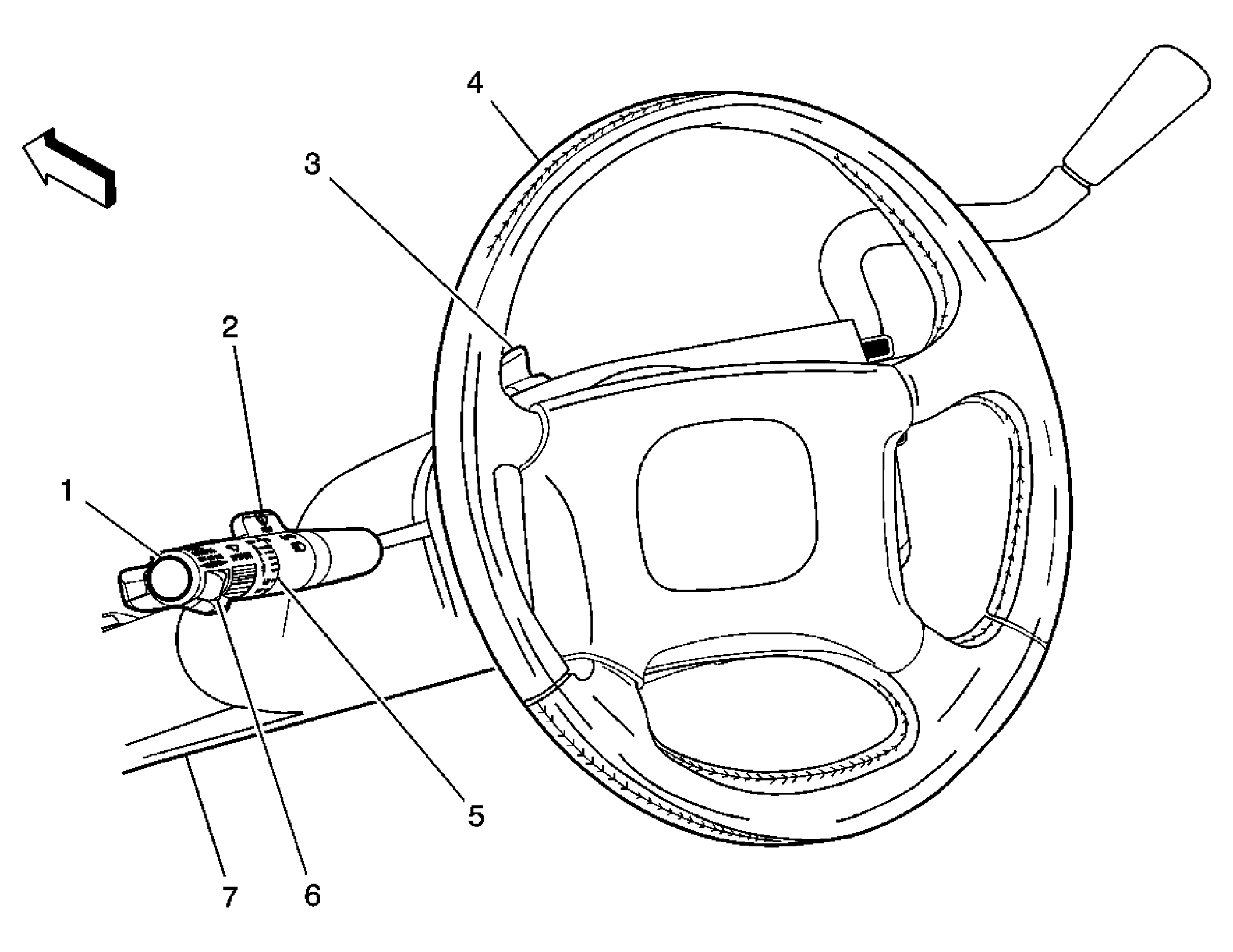

Fig 3: Upper Steering Column

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Cruise Control Set Switch (K34)
2	Windshield Washer Switch
3	Hazard Switch
4	Steering Wheel
5	Windshield Wiper Switch
6	Cruise Control ON/OFF/RESUME Switch (K34)
7	Steering Column
