Interior Lights Schematics

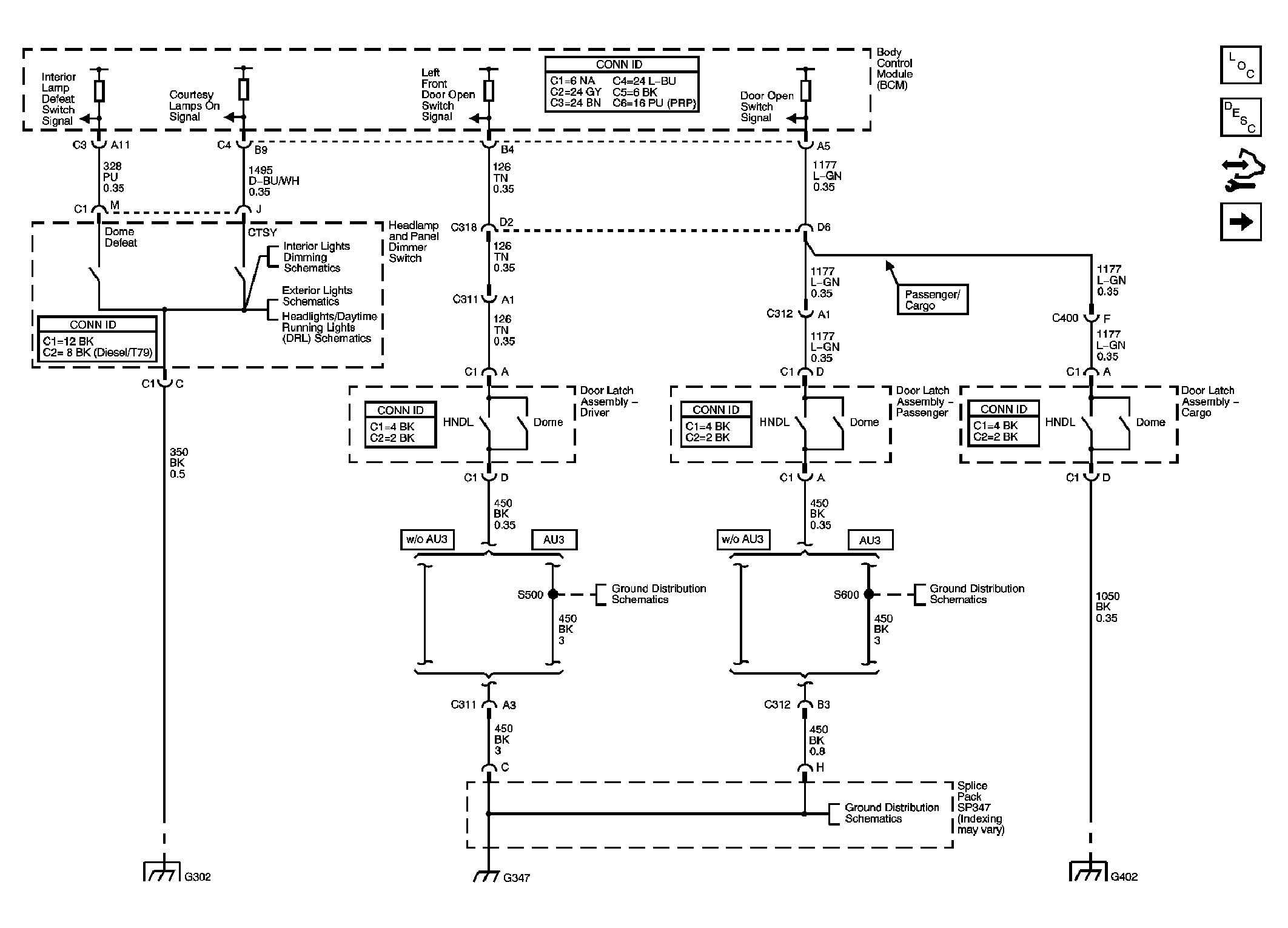

Fig 1: Dome and Courtesy Lamp Switch Signals and Door Latch Assemblies Schematics

Courtesy of GENERAL MOTORS CORP.

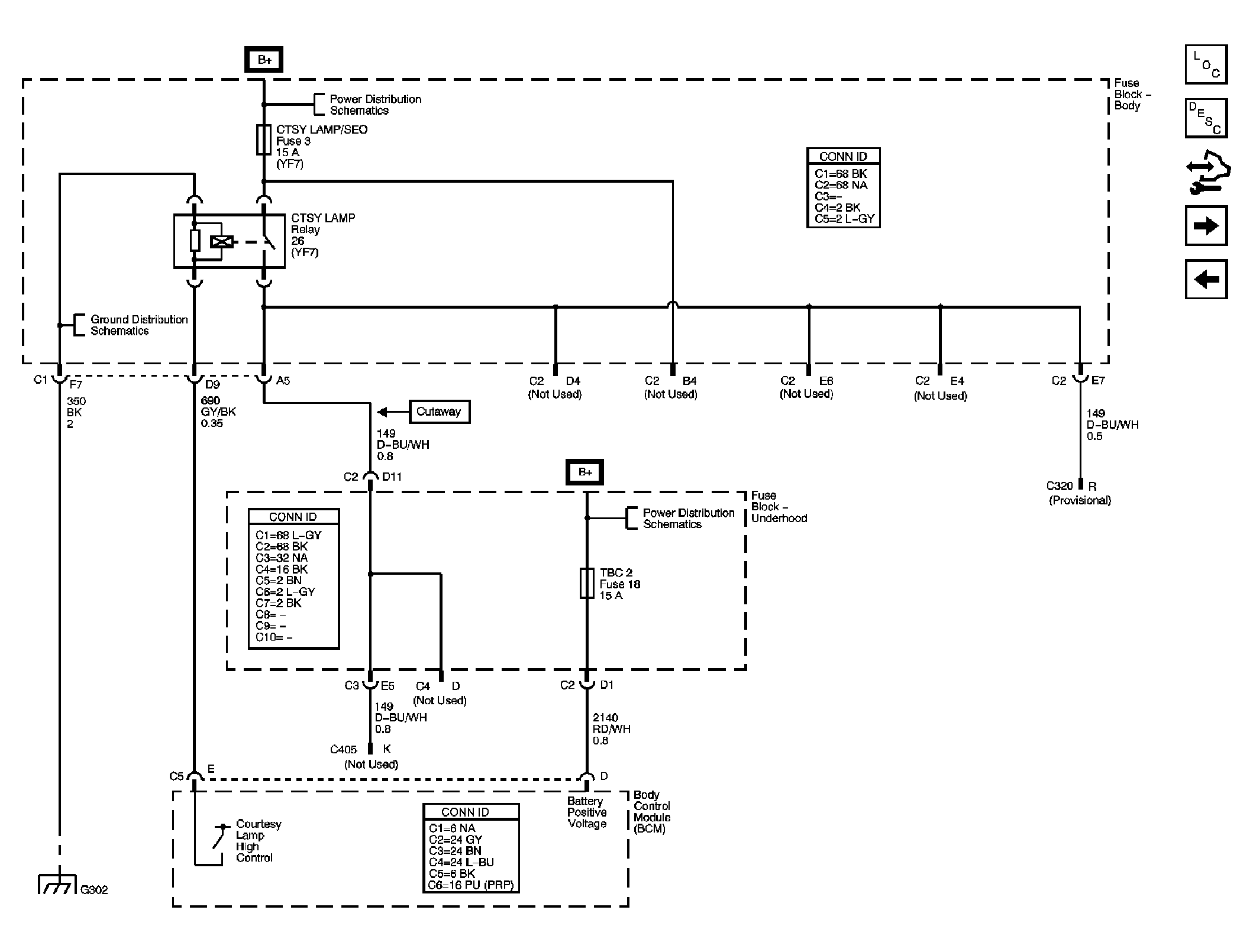

Fig 2: Courtesy Lamps (YF7) Schematics

Courtesy of GENERAL MOTORS CORP.

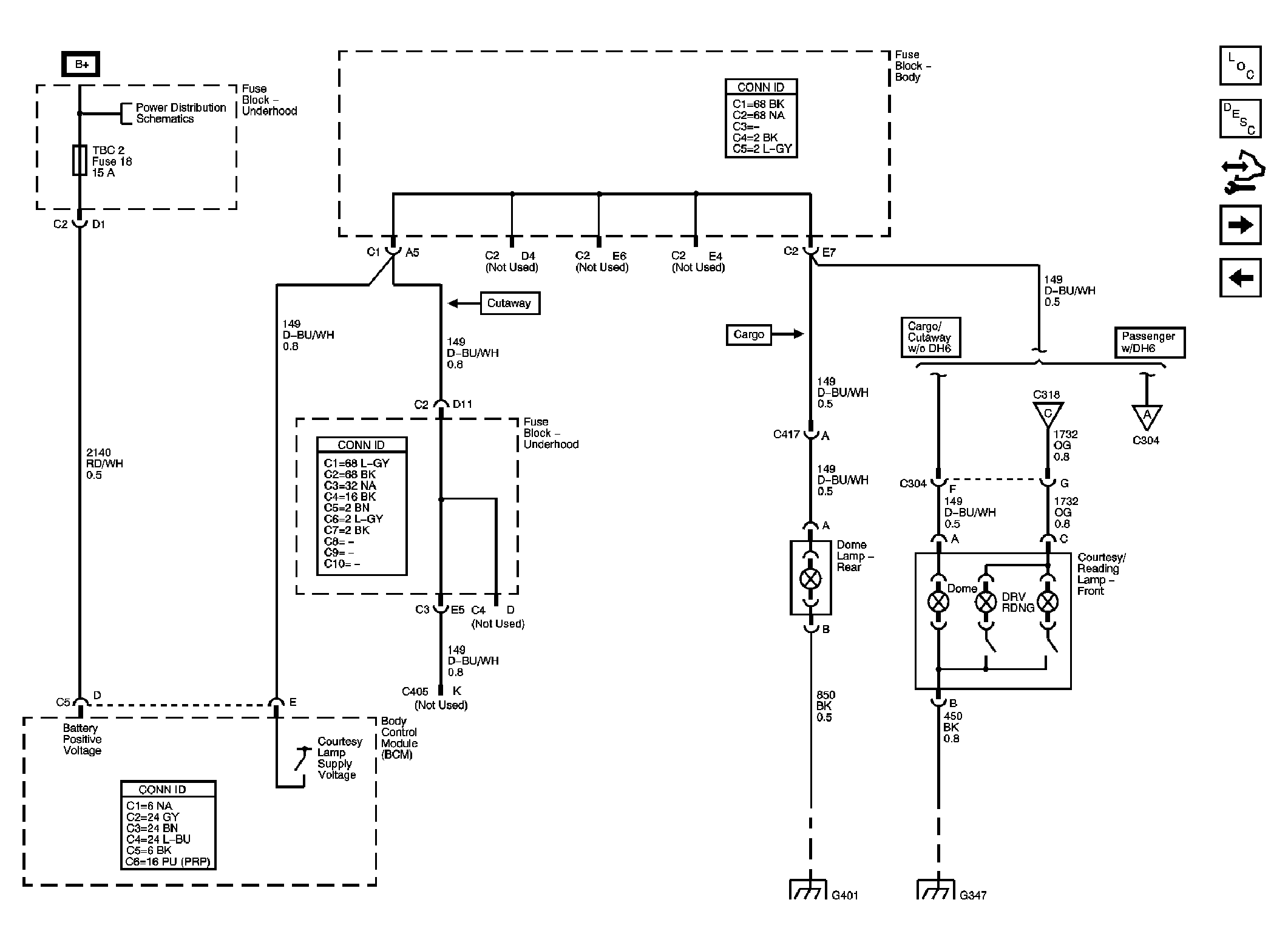

Fig 3: Courtesy Lamps (w/o YF7) 1 of 2 Schematics

Courtesy of GENERAL MOTORS CORP.

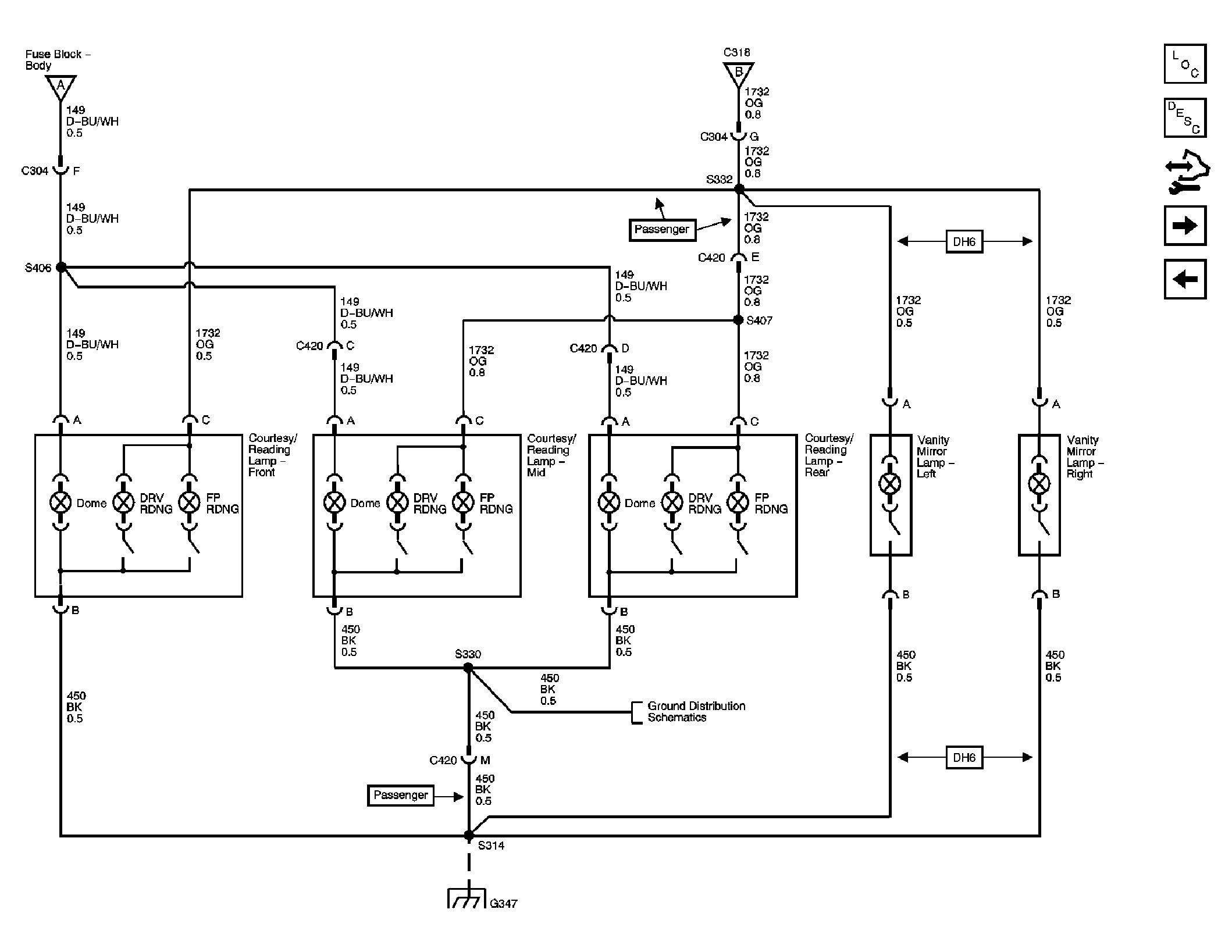

Fig 4: Courtesy Lamps (w/o YF7) 2 of 2 Schematics

Courtesy of GENERAL MOTORS CORP.

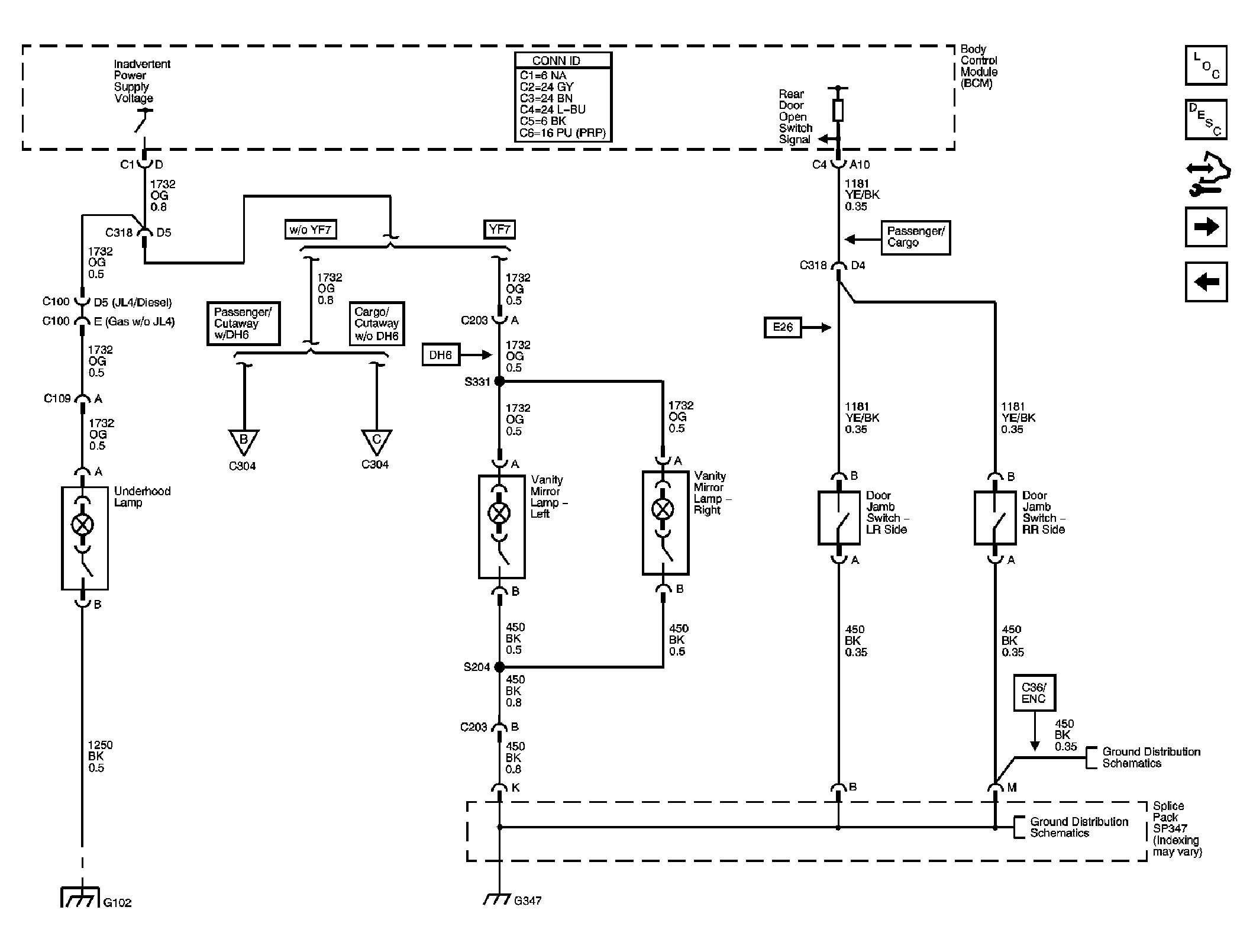

Fig 5: Underhood/Vanity Lamps and Door Jamb Switches Schematics

Courtesy of GENERAL MOTORS CORP.

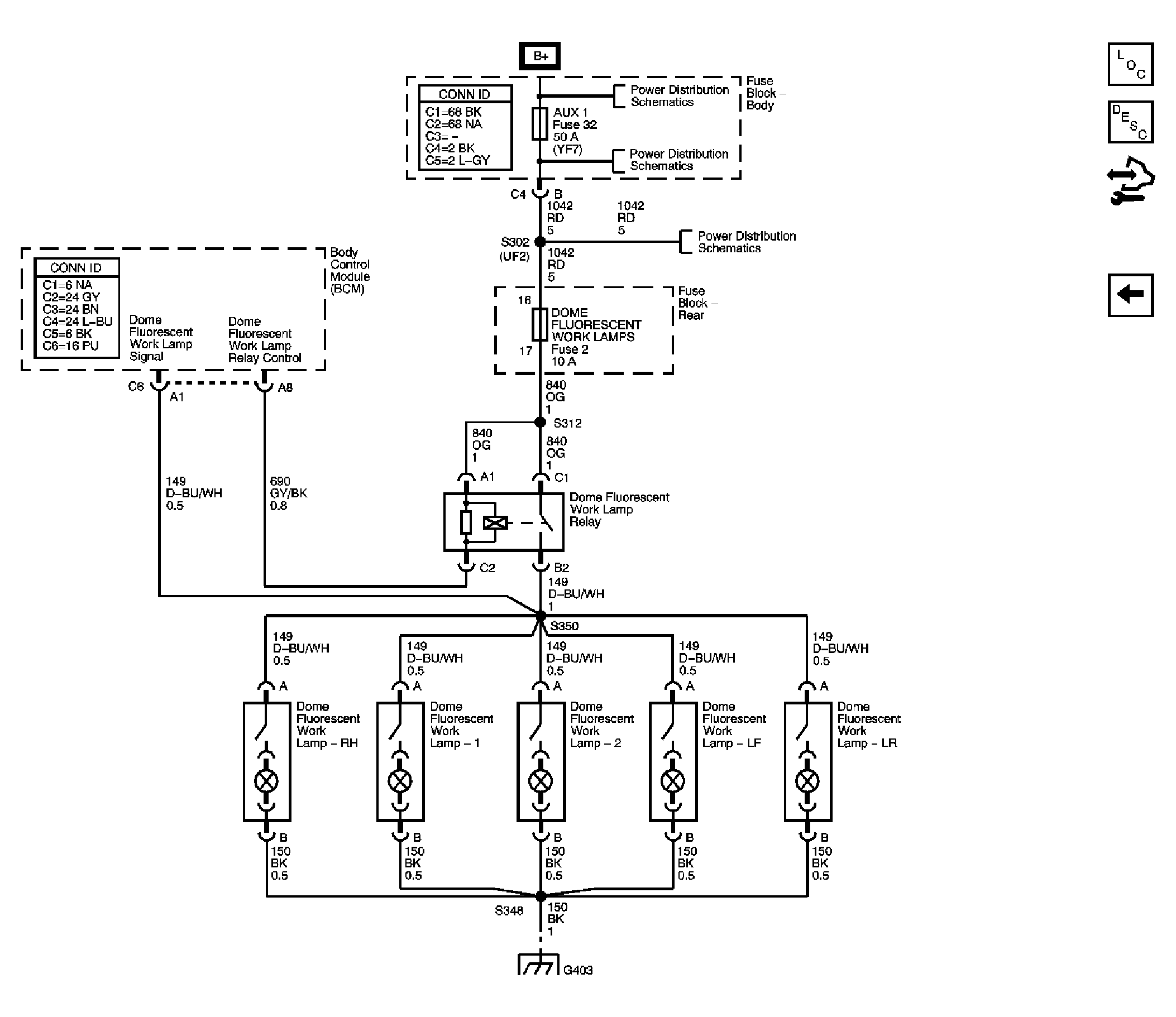

Fig 6: Dome Fluorescent Work Lamps - PRP (UF2) Schematics

Courtesy of GENERAL MOTORS CORP.
