Headlights/Daytime Running Lights (DRL) Schematics

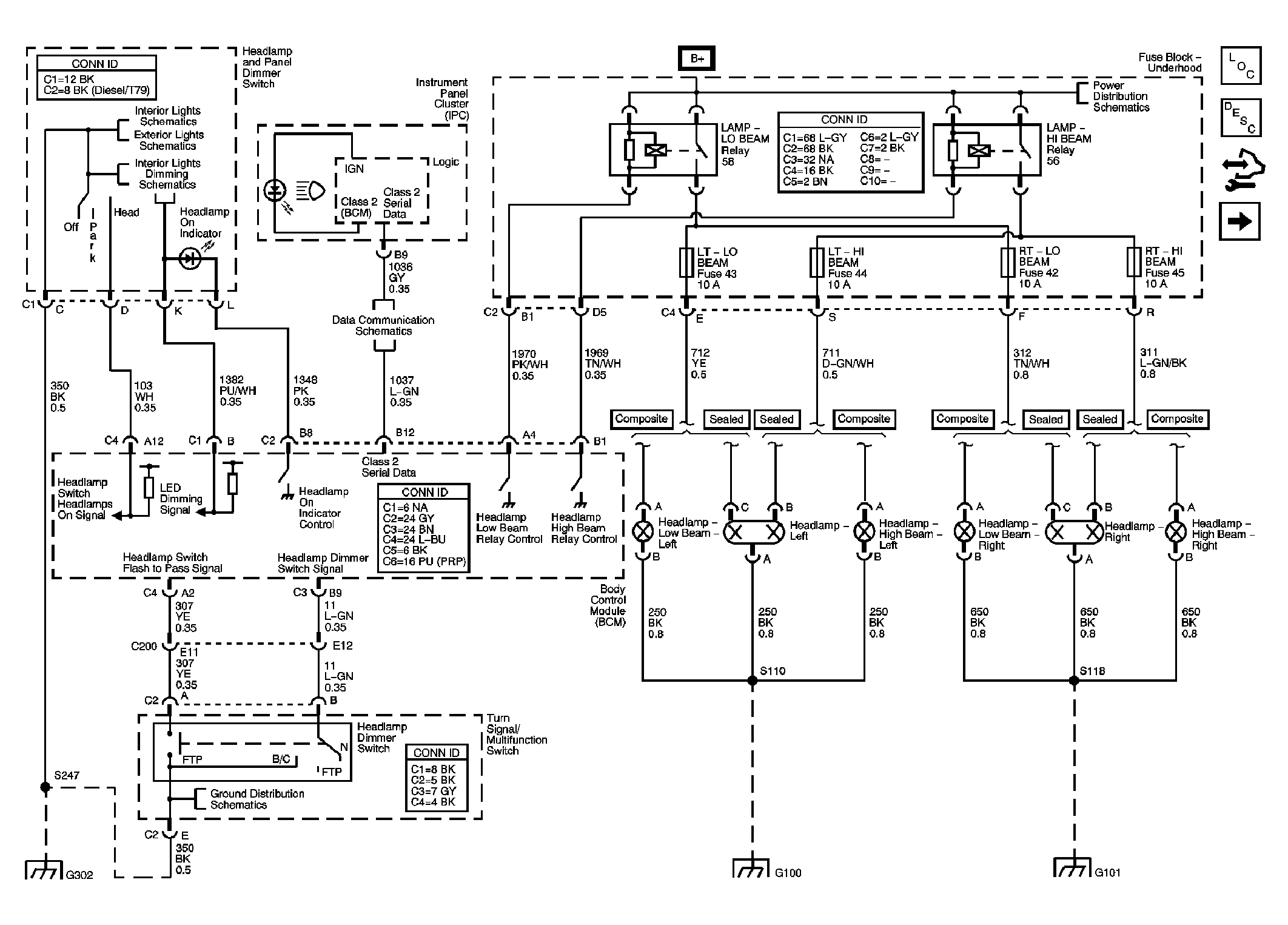

Fig 1: Headlamps Schematics

GM1754302

Courtesy of GENERAL MOTORS CORP.

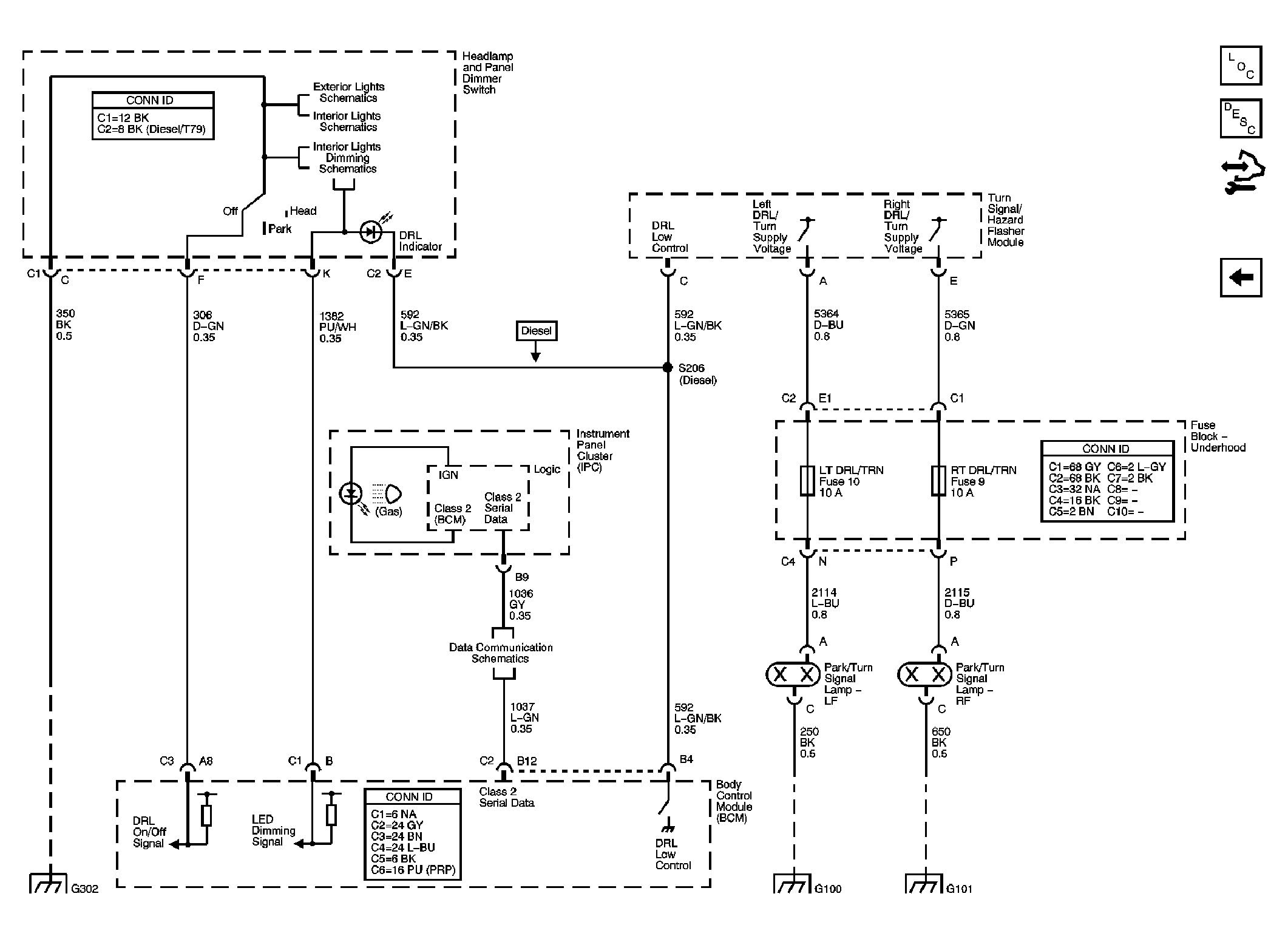

Fig 2: Daytime Running Lamps (DRL) Schematics

GM1754316

Courtesy of GENERAL MOTORS CORP.
