Exterior Lights Schematics

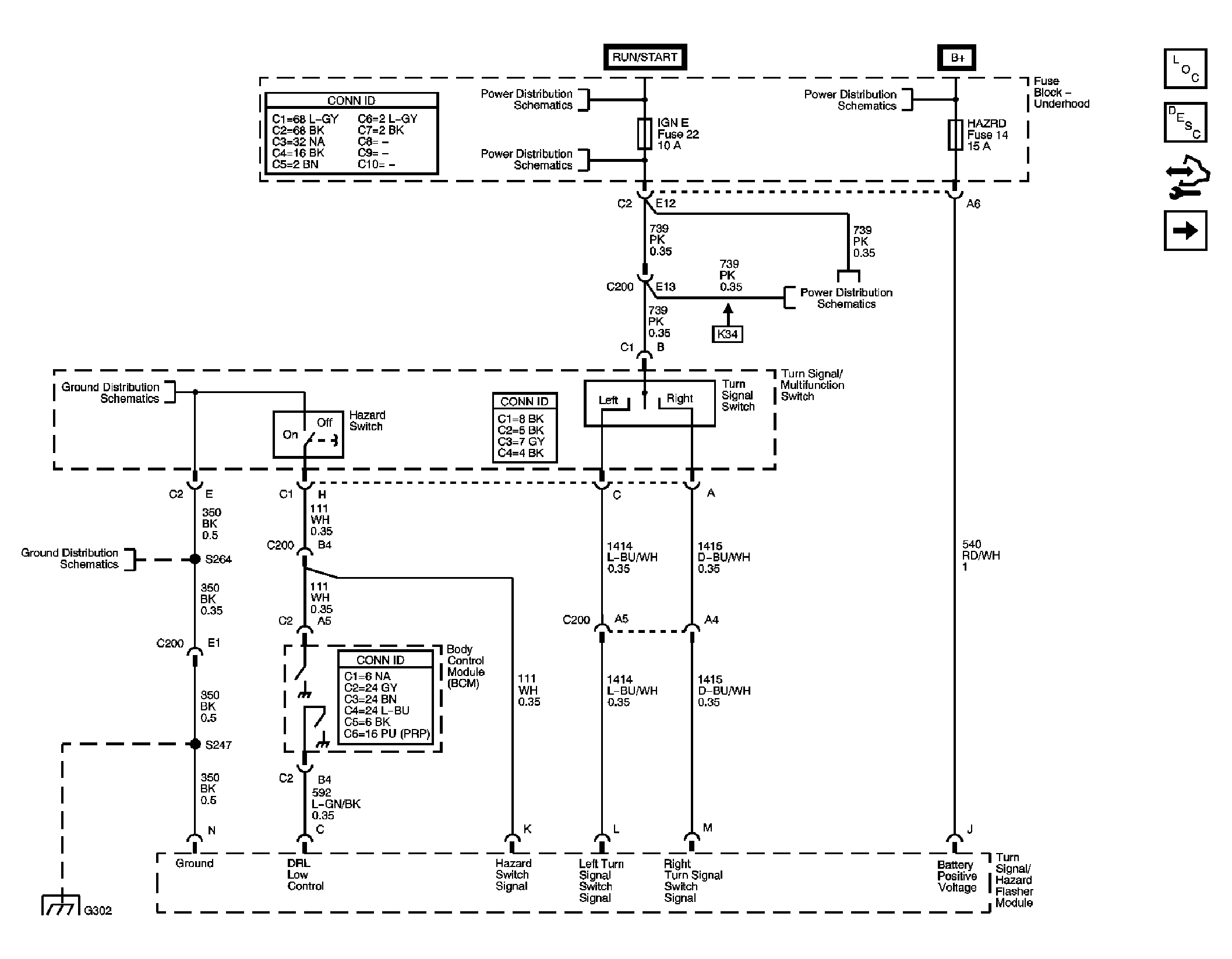

Fig 1: Hazard and Turn Signal Switches Schematics

Courtesy of GENERAL MOTORS CORP.

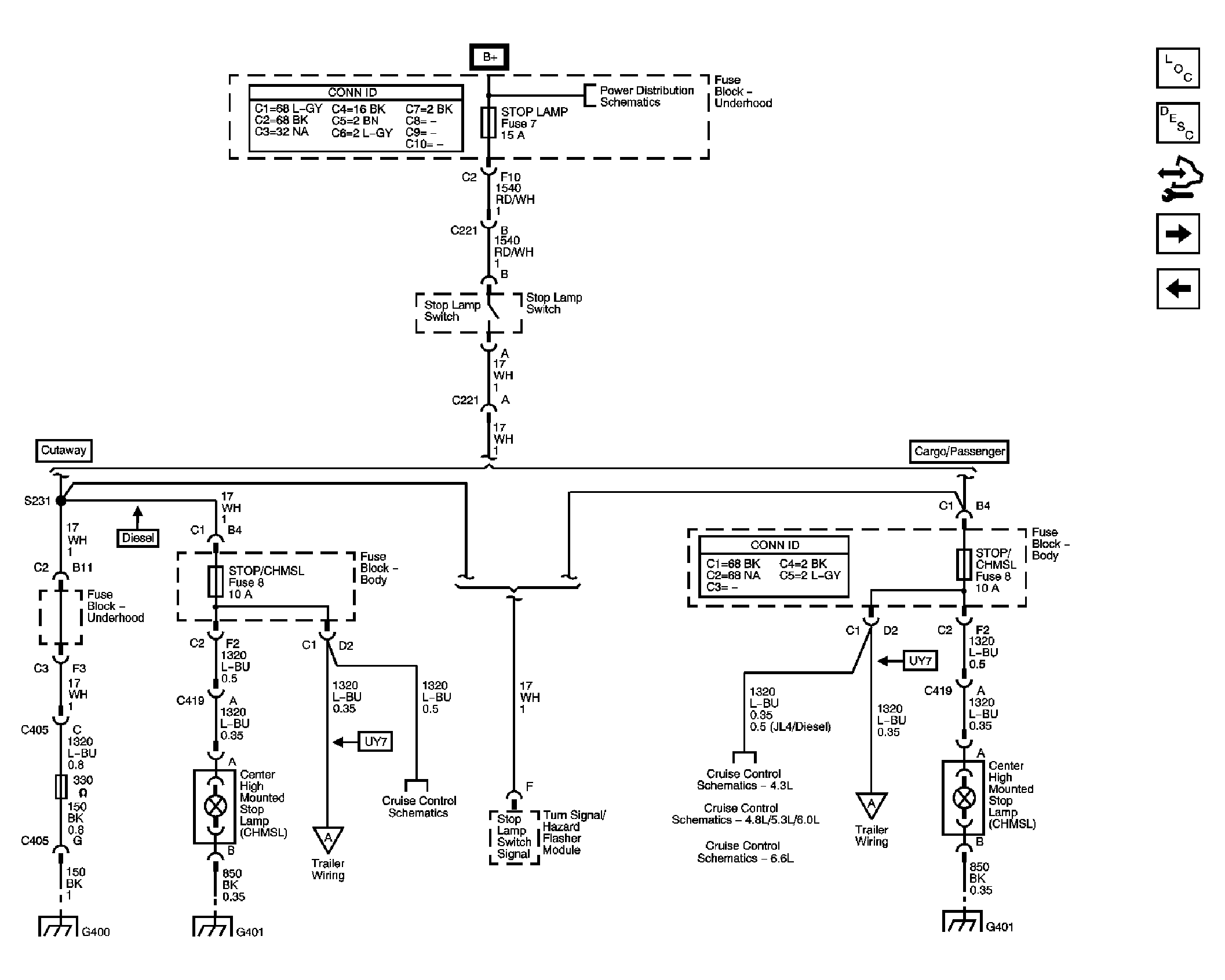

Fig 2: Stop Lamp Switch Schematics

Courtesy of GENERAL MOTORS CORP.

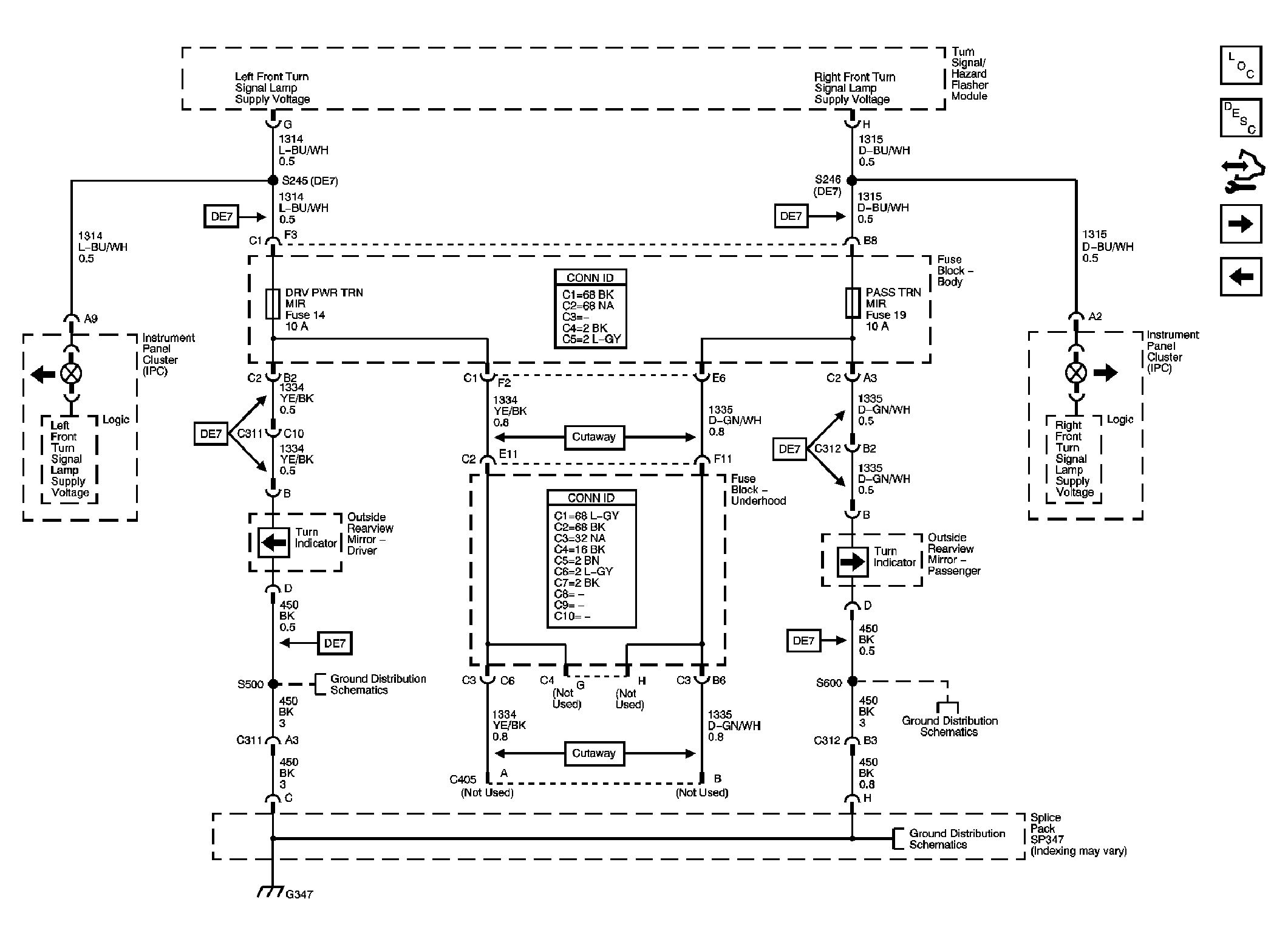

Fig 3: Turn Signals Schematics

Courtesy of GENERAL MOTORS CORP.

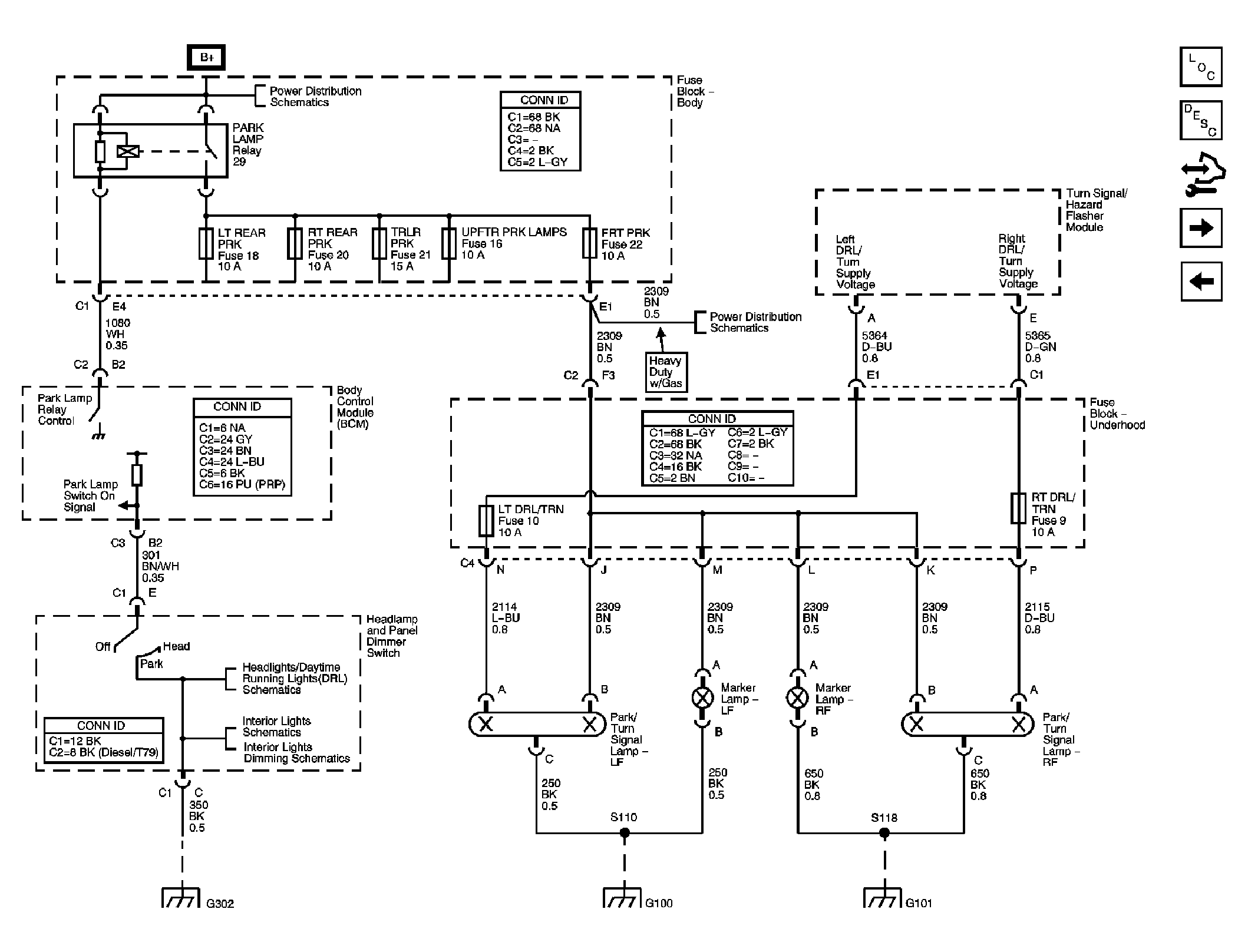

Fig 4: Park Lamp Relay Control and Front Park Lamps Schematics

Courtesy of GENERAL MOTORS CORP.

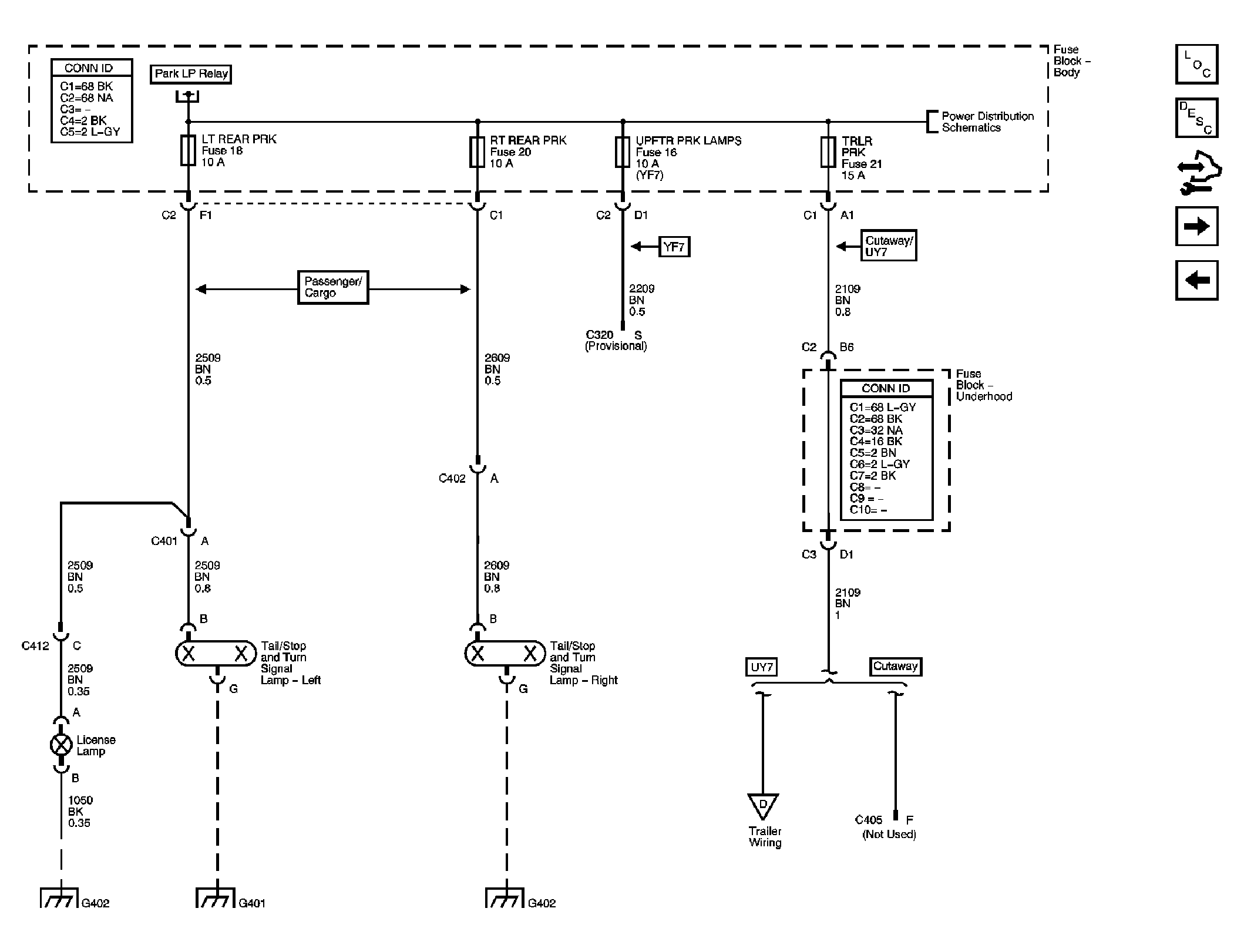

Fig 5: License and Rear Park Lamps Schematics

Courtesy of GENERAL MOTORS CORP.

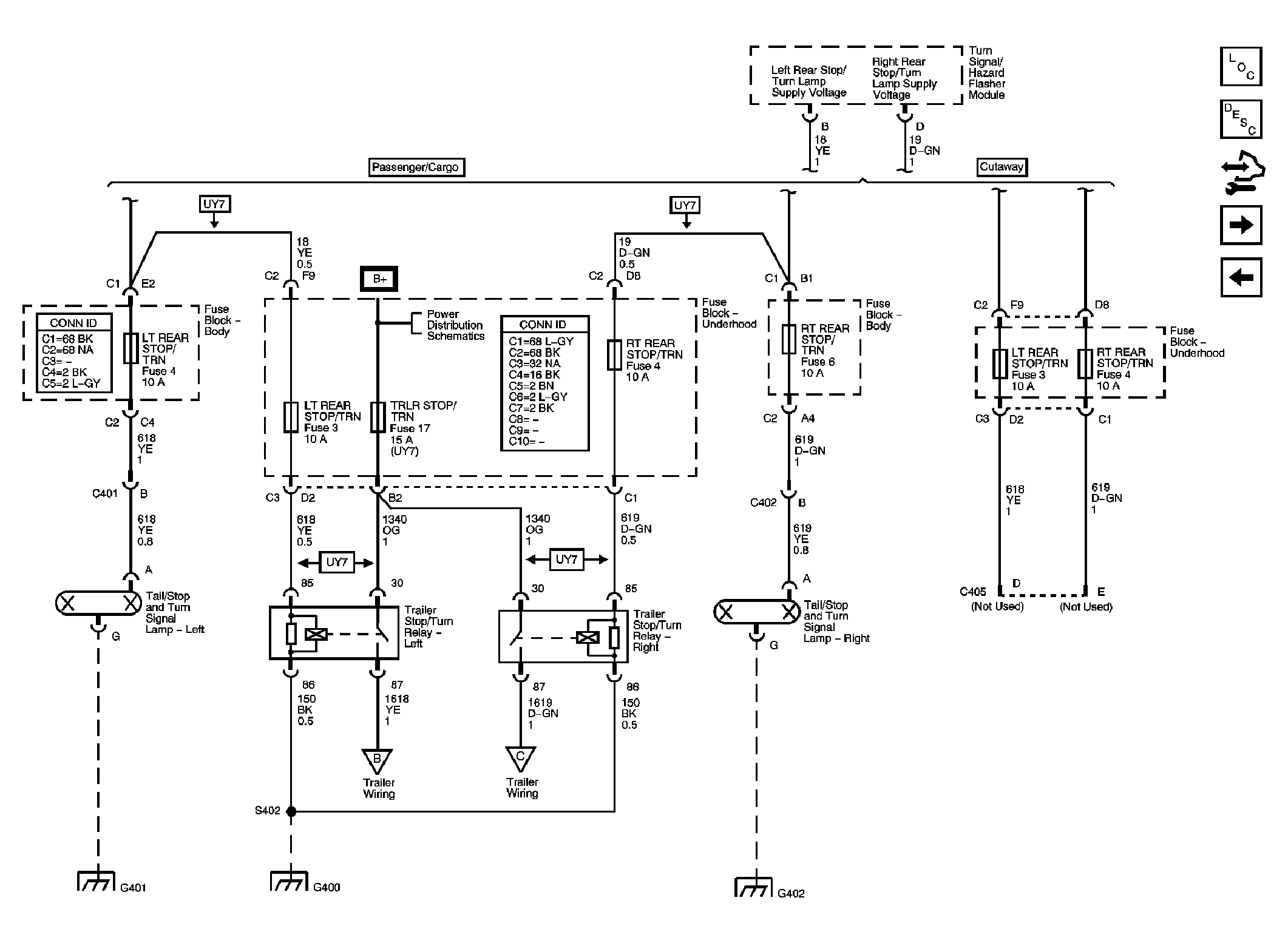

Fig 6: Stop Lamps Schematics

Courtesy of GENERAL MOTORS CORP.

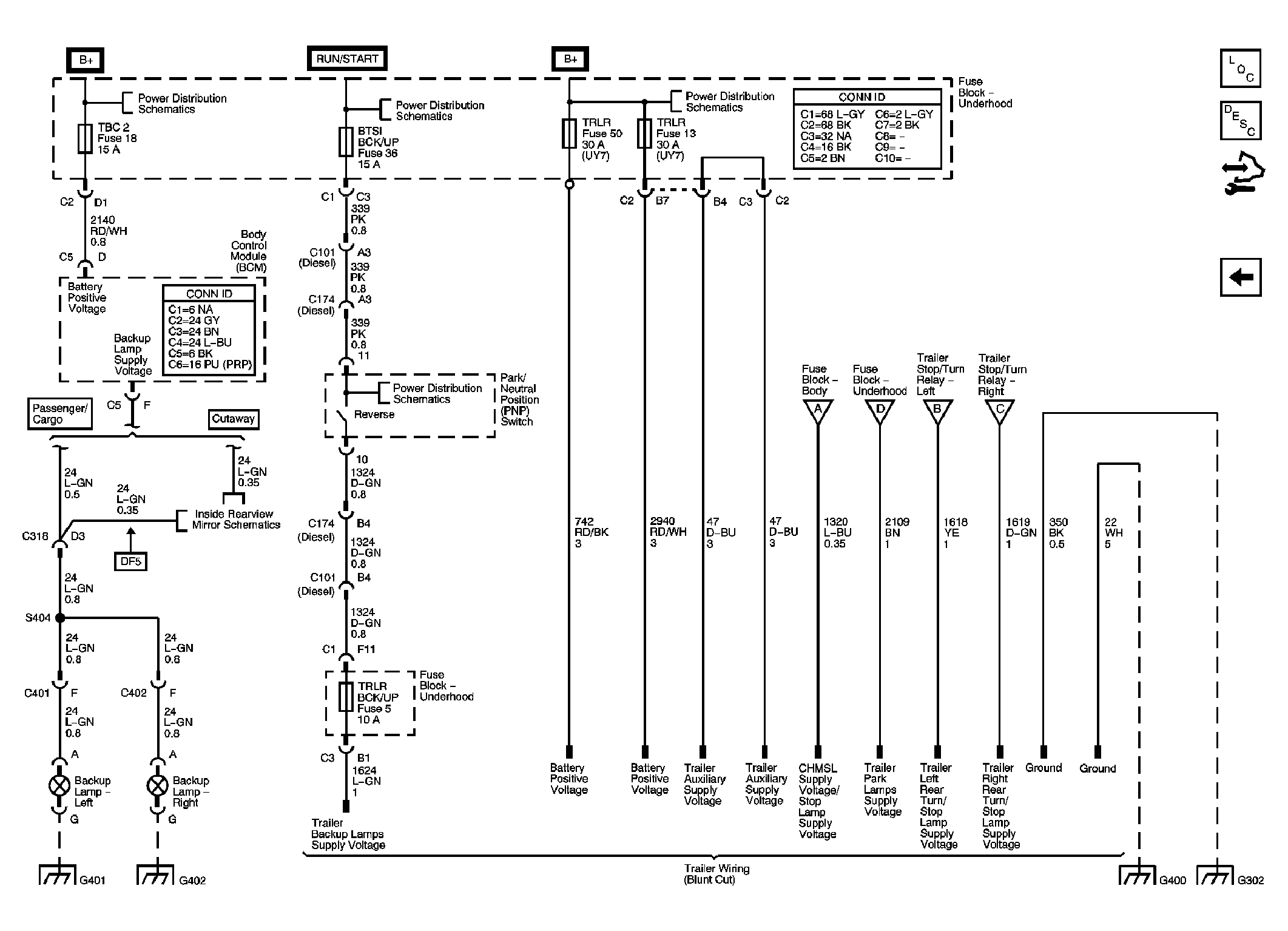

Fig 7: Backup Lamps and Trailer Wiring Schematics

Courtesy of GENERAL MOTORS CORP.
