Lighting Systems Component Views

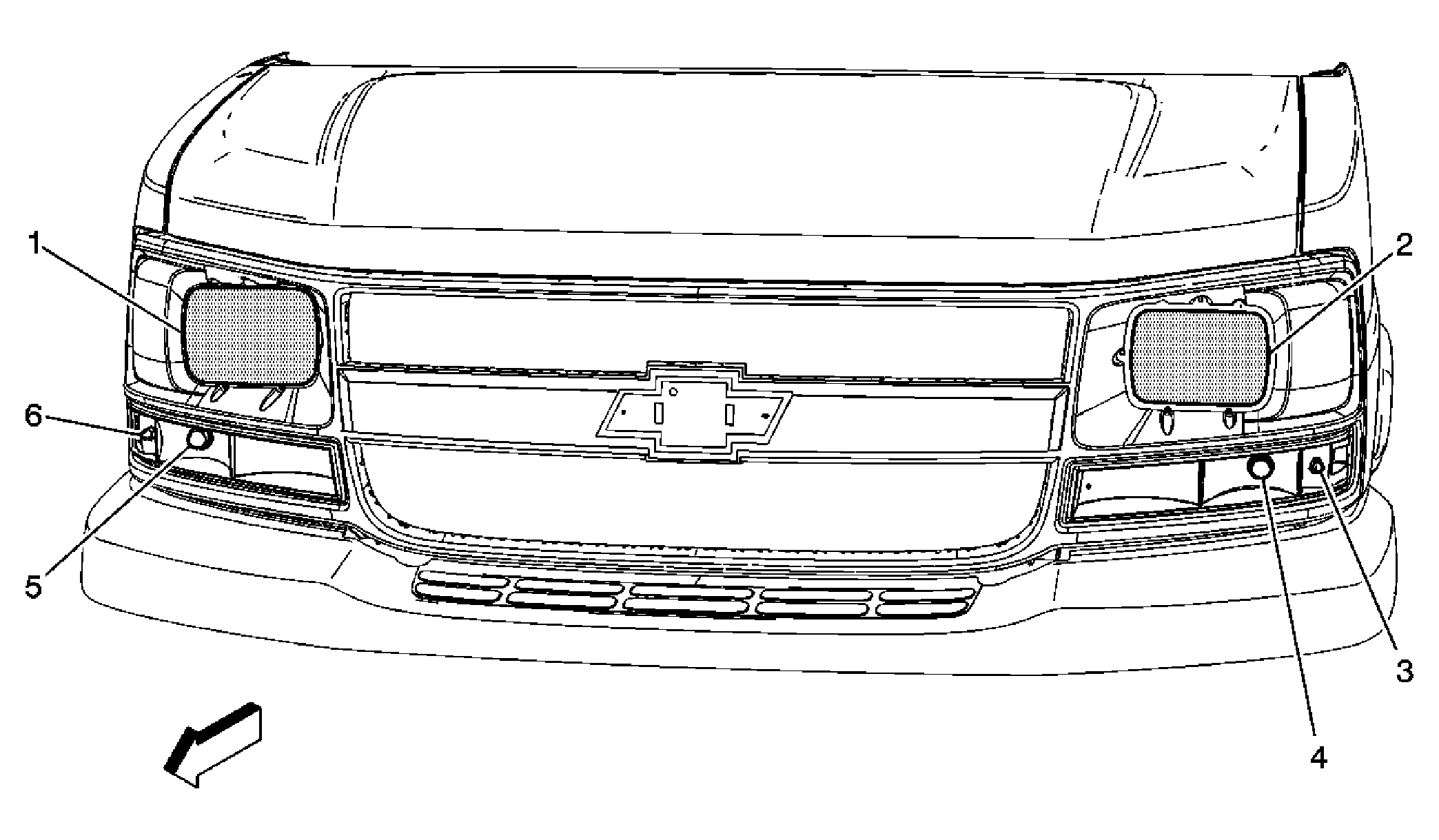

Fig 1: Front Lamps - w/o V22
GM1690833Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Headlamp - Right (Sealed)
2 Headlamp - Left (Sealed)
3 Marker Lamp - LF
4 Park/Turn Signal Lamp - LF
5 Park/Turn Signal Lamp - RF
6 Marker Lamp - RF

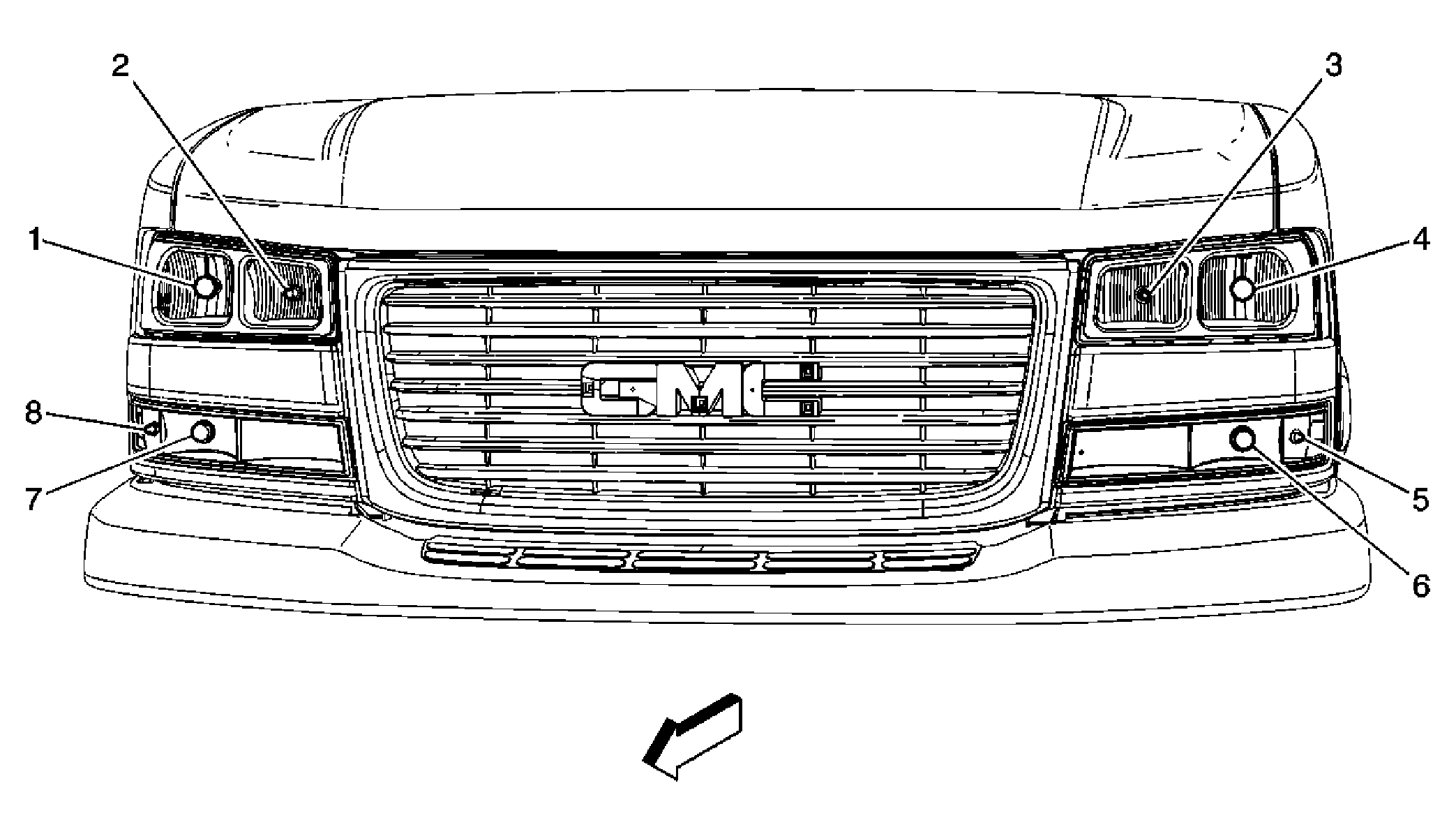

Fig 2: Front Lamps - V22
GM1690834Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Headlamp - Low Beam - Right (Composite)
2 Headlamp - High Beam - Right (Composite)
3 Headlamp - High Beam - Left (Composite)
4 Headlamp - Low Beam - Left (Composite)
5 Marker Lamp - LF
6 Park/Turn Signal Lamp - LF
7 Park/Turn Signal Lamp - RF
8 Marker Lamp - RF

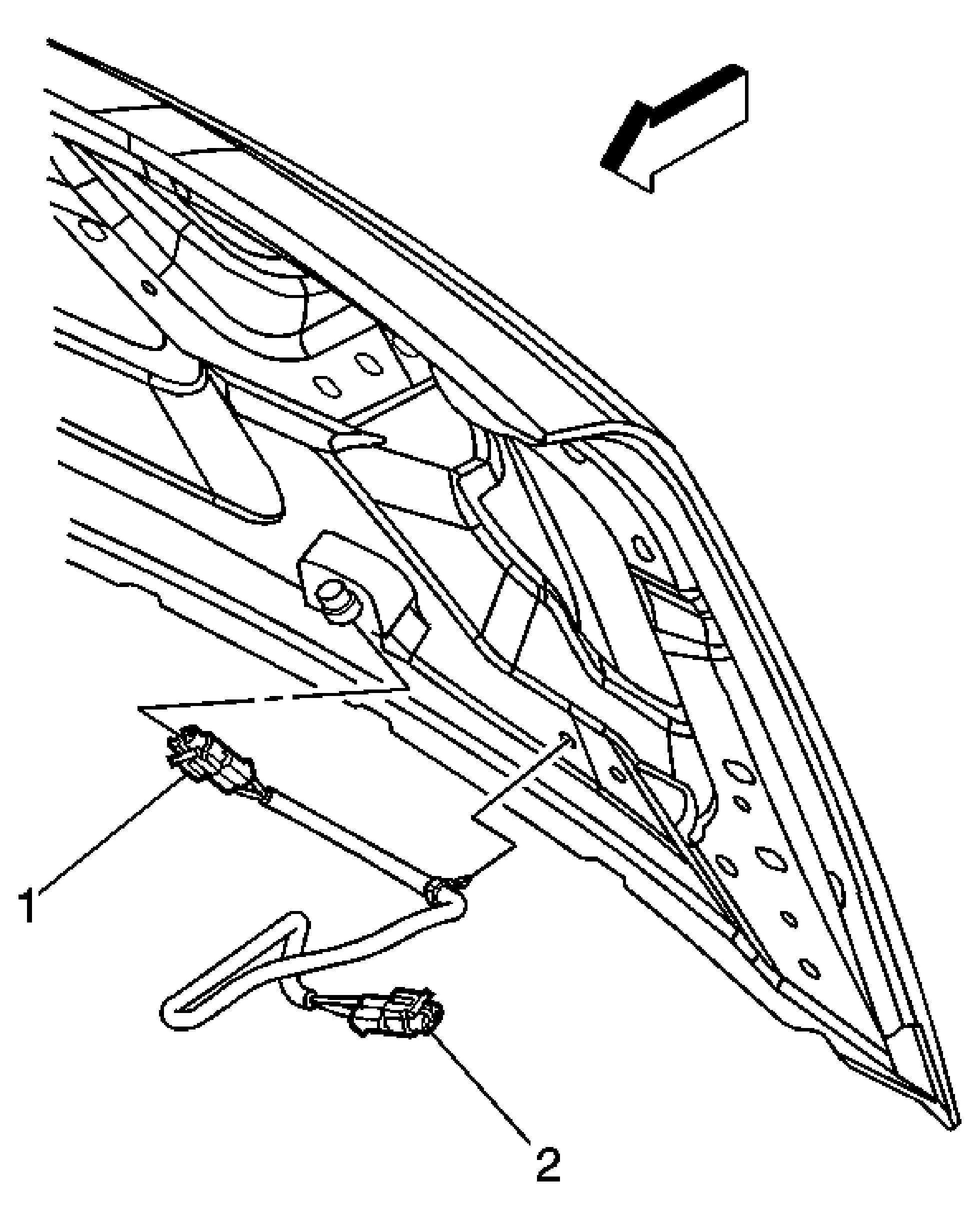

Fig 3: Component View - Underhood Lamp Harness
GM882757Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Underhood Lamp Connector
2 C109

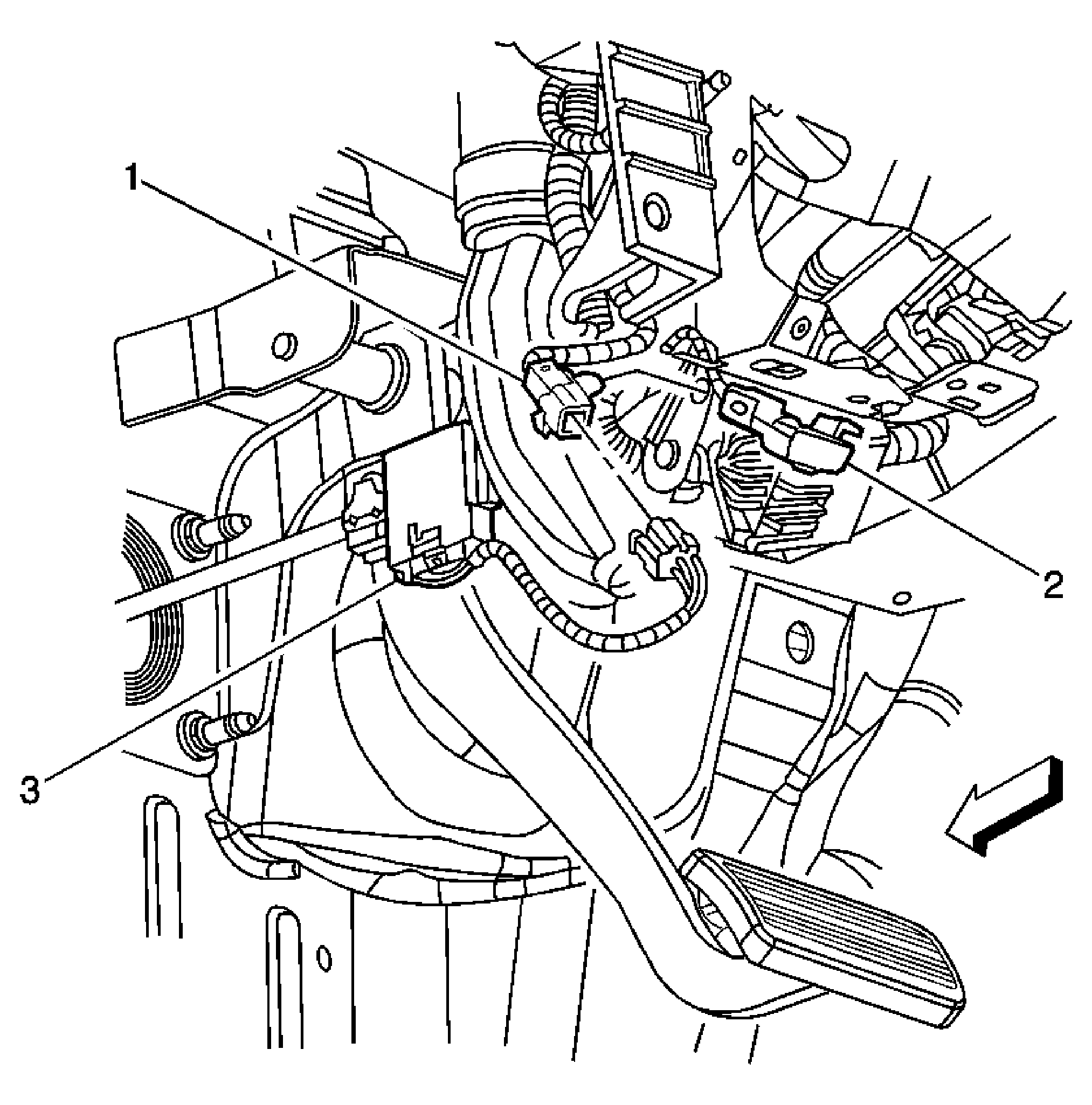

Fig 4: Component View Of I/P Harness Routing - Left Side Of I/P
GM883616Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C221
2 Data Link Connector (DLC)
3 Stop Lamp Switch Connector

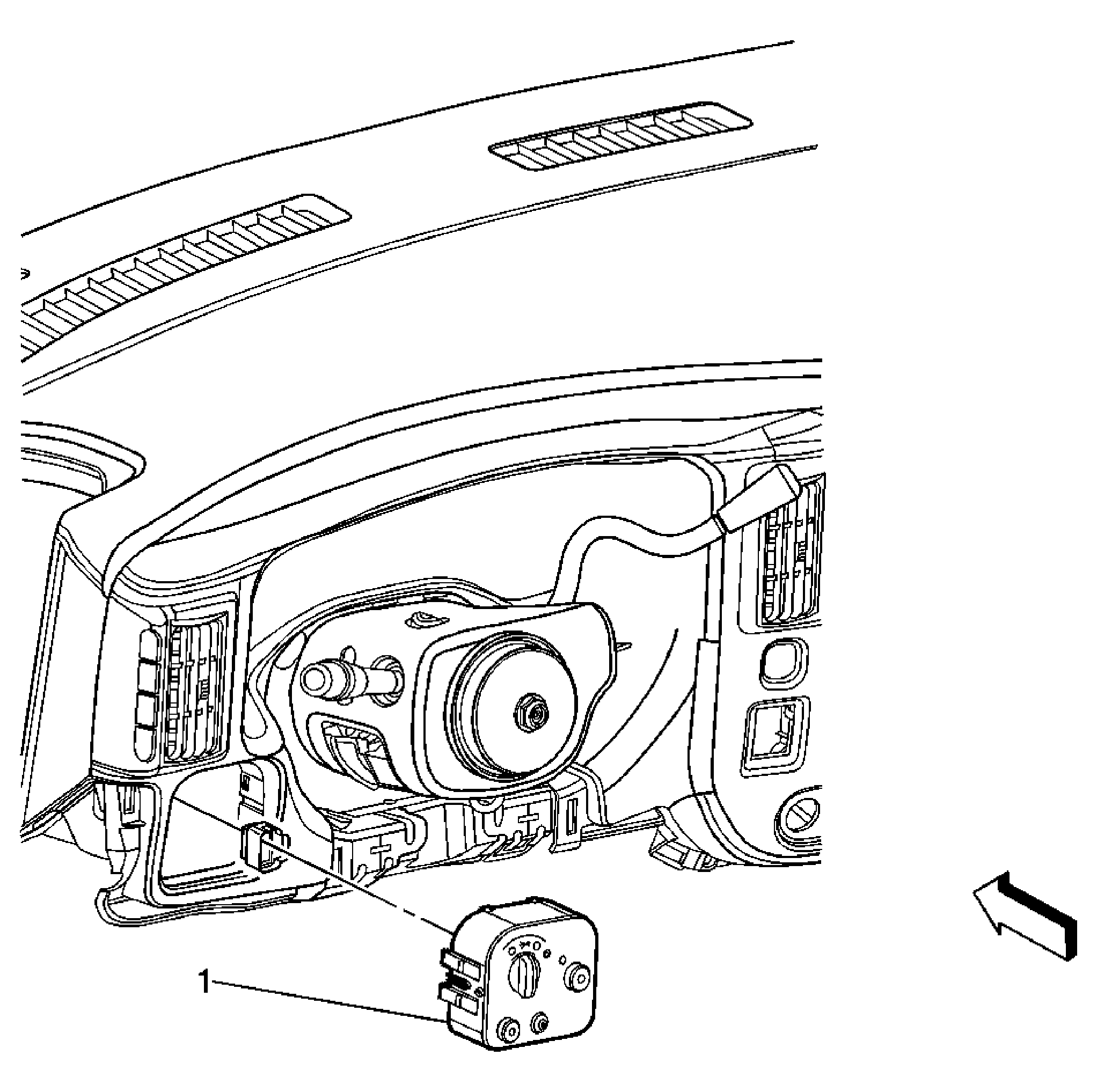

Fig 5: Component View - Left Side Of The I/P
GM903101Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Headlamp and Panel Dimmer Switch
Fig 6: Component Views - Upper Steering Column
GM1195907Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Passlock Sensor
2 Ignition Key Alarm Switch
3 Ignition Lock Cylinder Control Actuator
4 Ignition Switch
5 Ignition Key Cylinder
6 Horn Switch
7 Inflatable Restraint Steering Wheel Module
8 Turn Signal/Multifunction Switch
9 Hazard Switch
Fig 7: Component View - Center Of I/P
GM1364551Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 I/P Carrier
2 Chime Module (UL5)
3 Turn Signal/Hazard Flasher Module

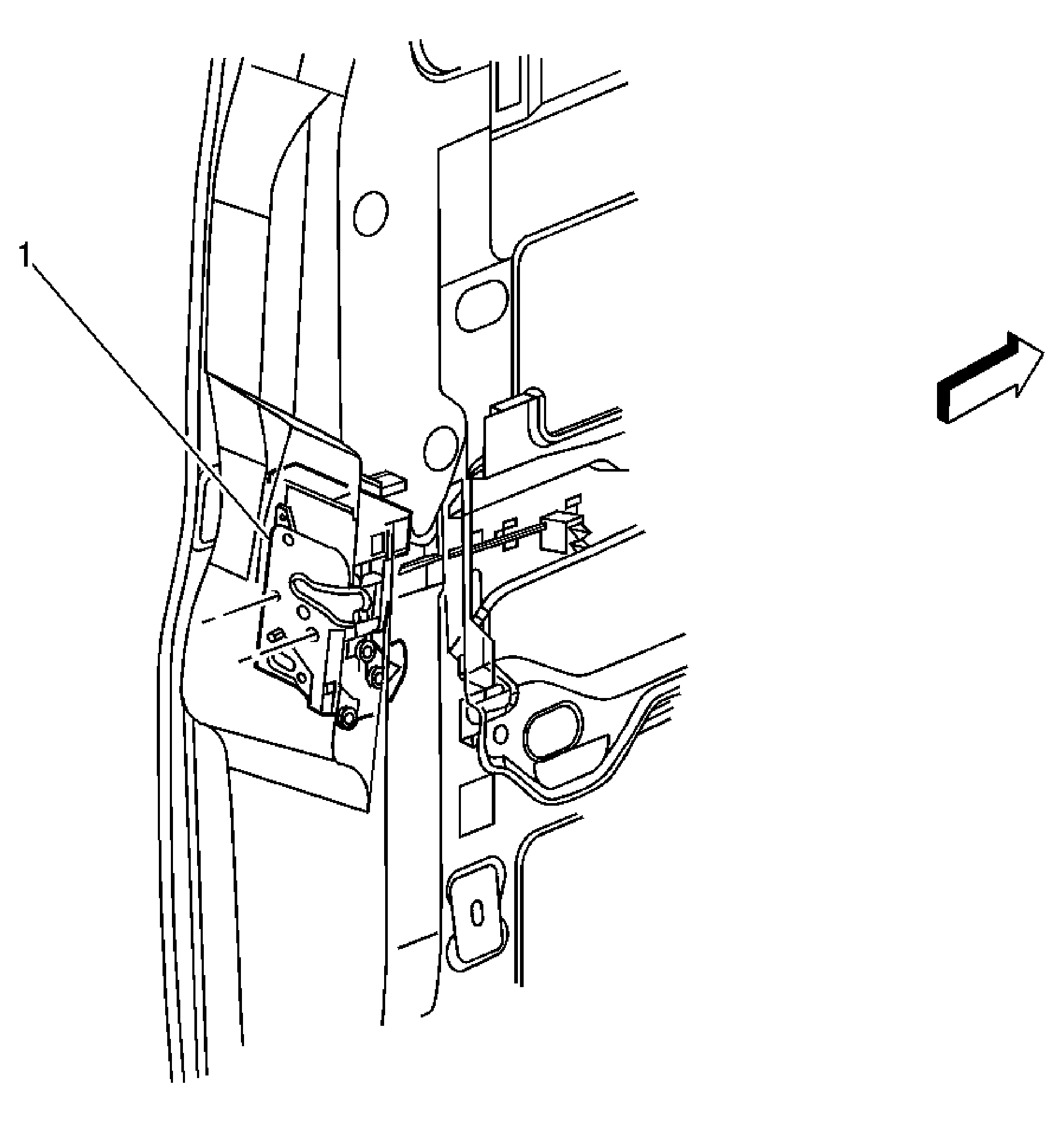

Fig 8: Component View Of Driver Door
GM886092Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Door Latch Assembly - Driver

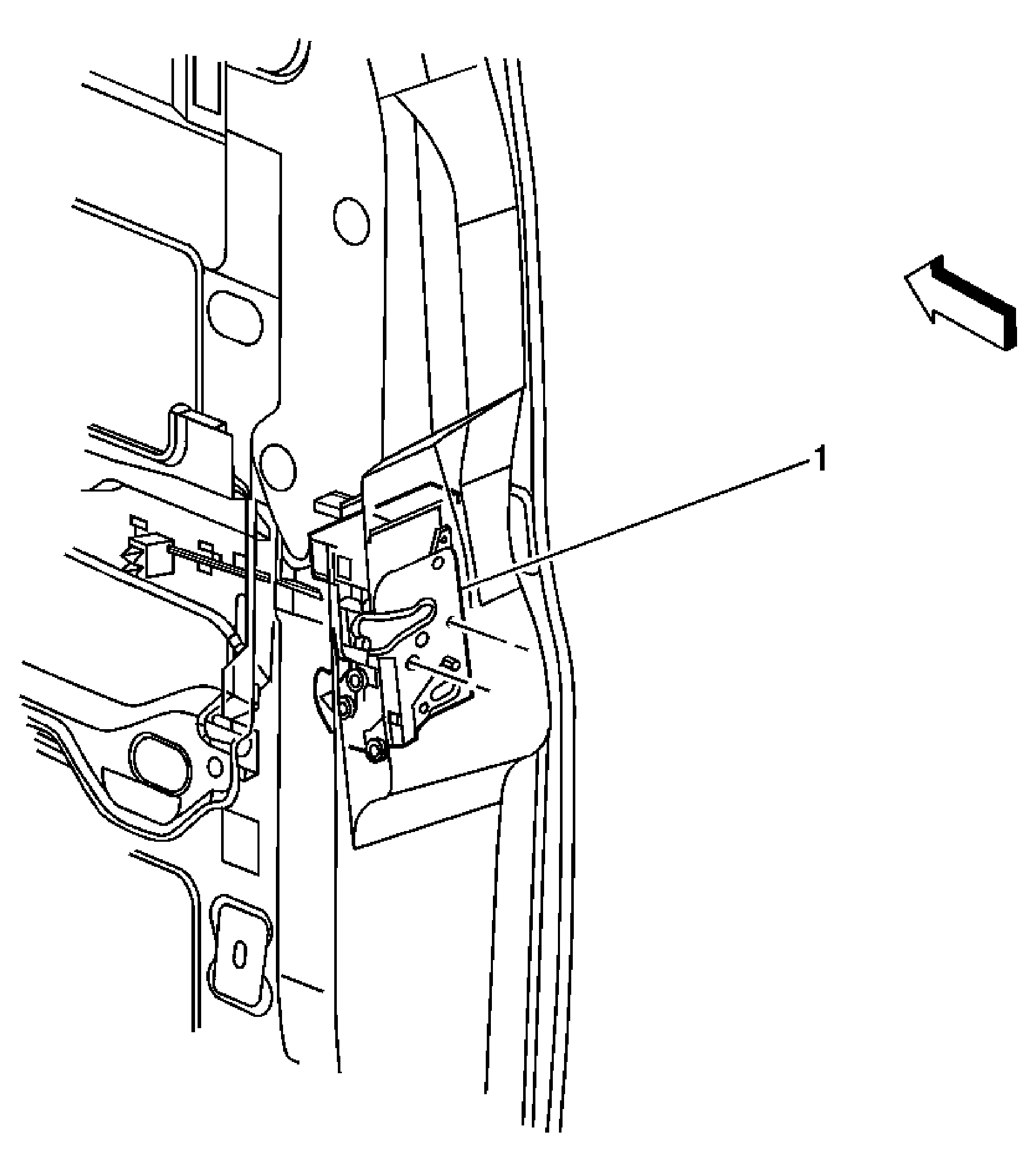

Fig 9: Component View Of Passenger Door
GM886094Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Door Latch Assembly - Passenger

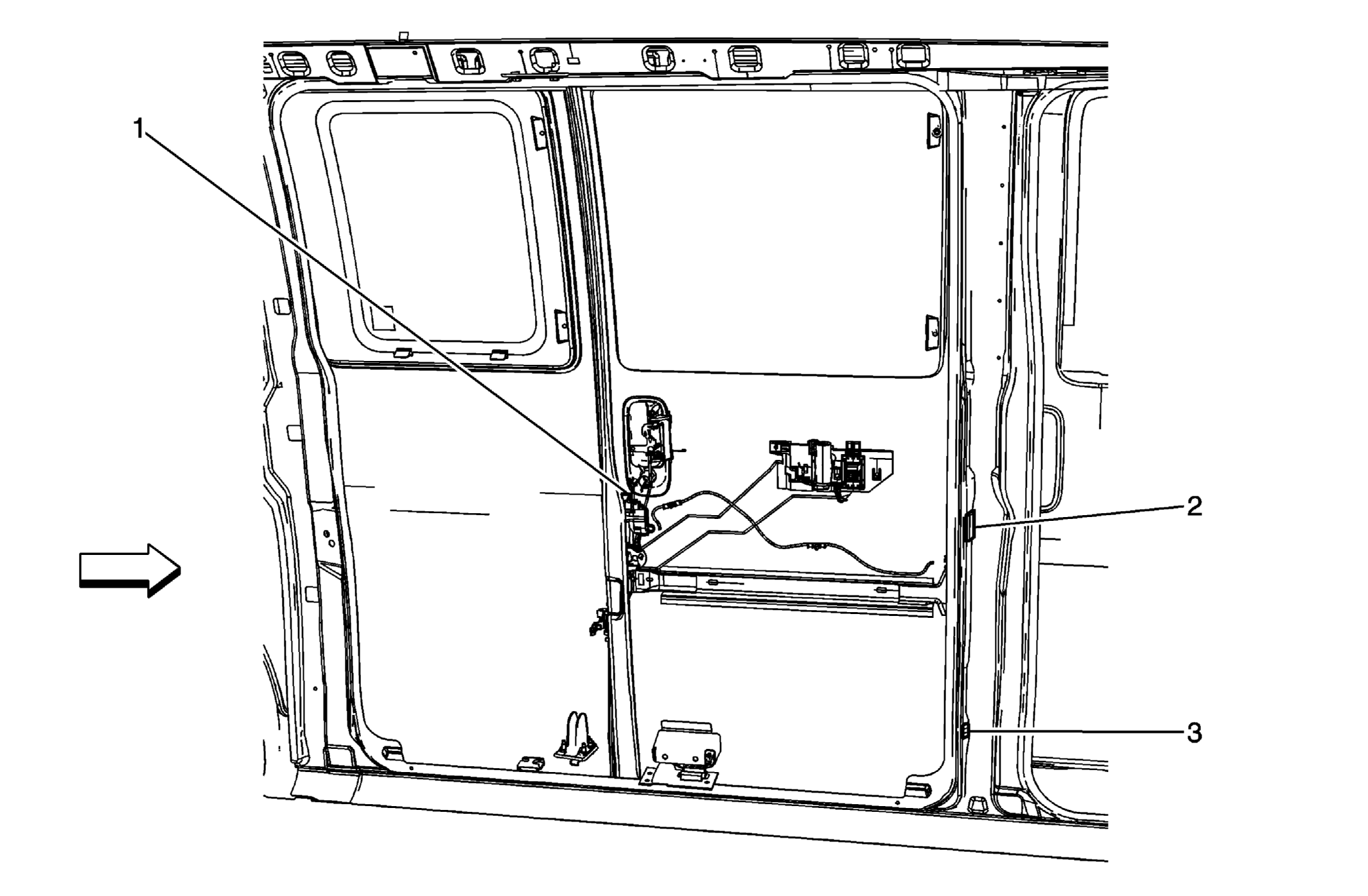

Fig 10: Left Side Door (E26)
GM1696887Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Door Lock Actuator - LR Side (AU3)
2 Door Contact Plate - Left Side (AU3)
3 Door Jamb Switch - LR Side

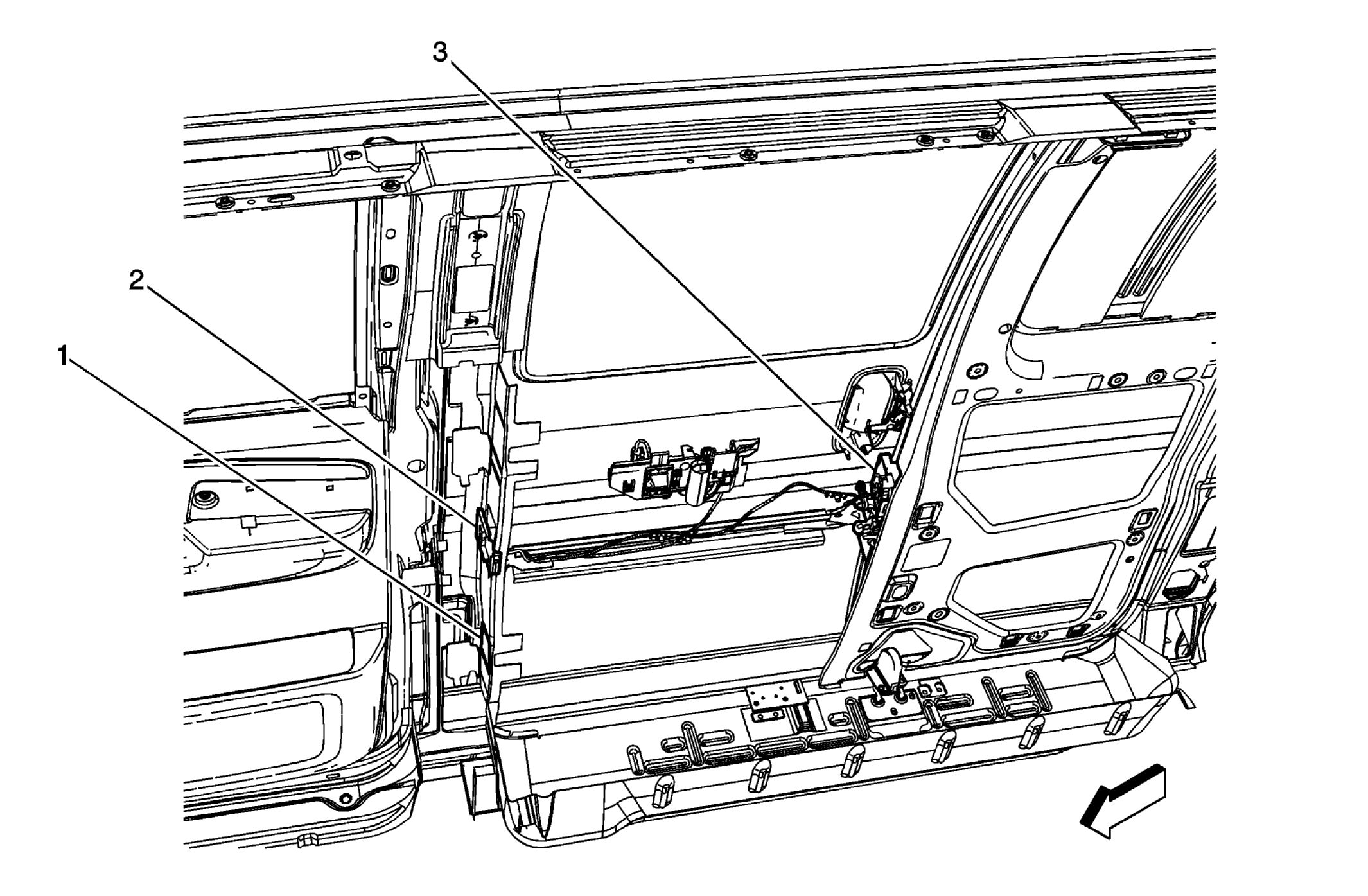

Fig 11: Right Side Door (E24)
GM1696888Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Door Jamb Switch - RR Side
2 Door Contact Plate - Right Side (AU3)
3 Door Lock Actuator - RR Side (AU3)

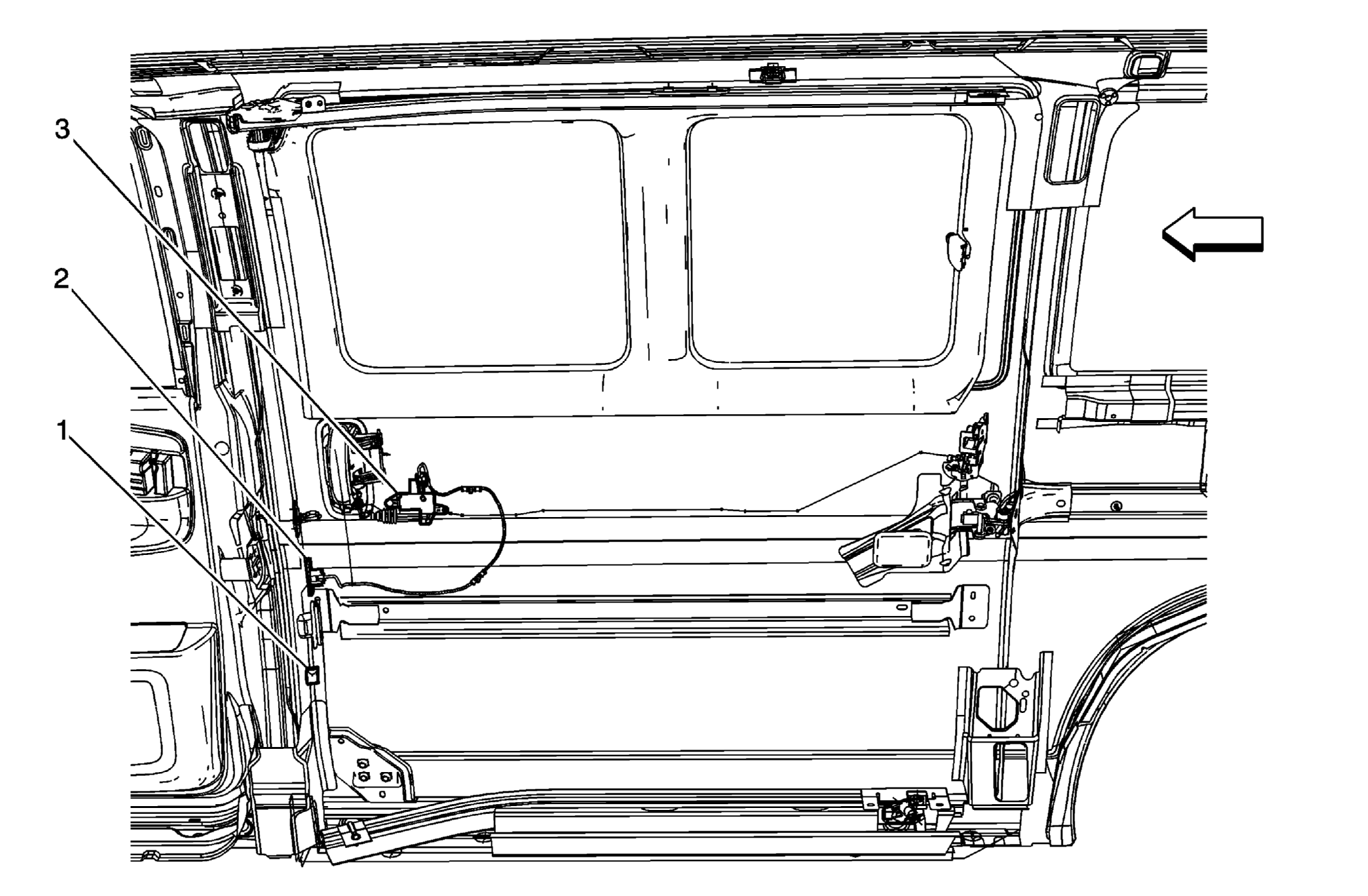

Fig 12: Right Sliding Door (YA2)
GM1696889Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Door Jamb Switch - RR Side
2 Door Contact Plate - Right Side (AU3)
3 Door Lock Actuator - RR Side (AU3)
Fig 13: Component View - Chassis Harness Routing (Passenger/Cargo)
GM1371219Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Fuse Block Underhood - C3
2 Fuse Block Underhood - C7
3 Fuse Block Underhood - C8 (UY7)
4 Wheel Speed Sensor (WSS) Connector - RF
5 Brake Pressure Differential Switch Connector (Light Duty)
6 Evaporative Emission (EVAP) Canister Vent Solenoid Connector (Gas)
7 S301
8 Electronic Brake Control Module (EBCM) Connector (JL4)/Electronic Brake Control Module (EBCM) - C2 (w/o JL4)
9 Electronic Brake Control Module (EBCM) - C1 (w/o JL4)
10 Trailer Right Stop/Turn Relay (UY7)
11 Trailer Left Stop/Turn Relay (UY7)
12 S315 (JL4)
13 G300
14 Wheel Speed Sensor (WSS) Connector - LF
15 C101

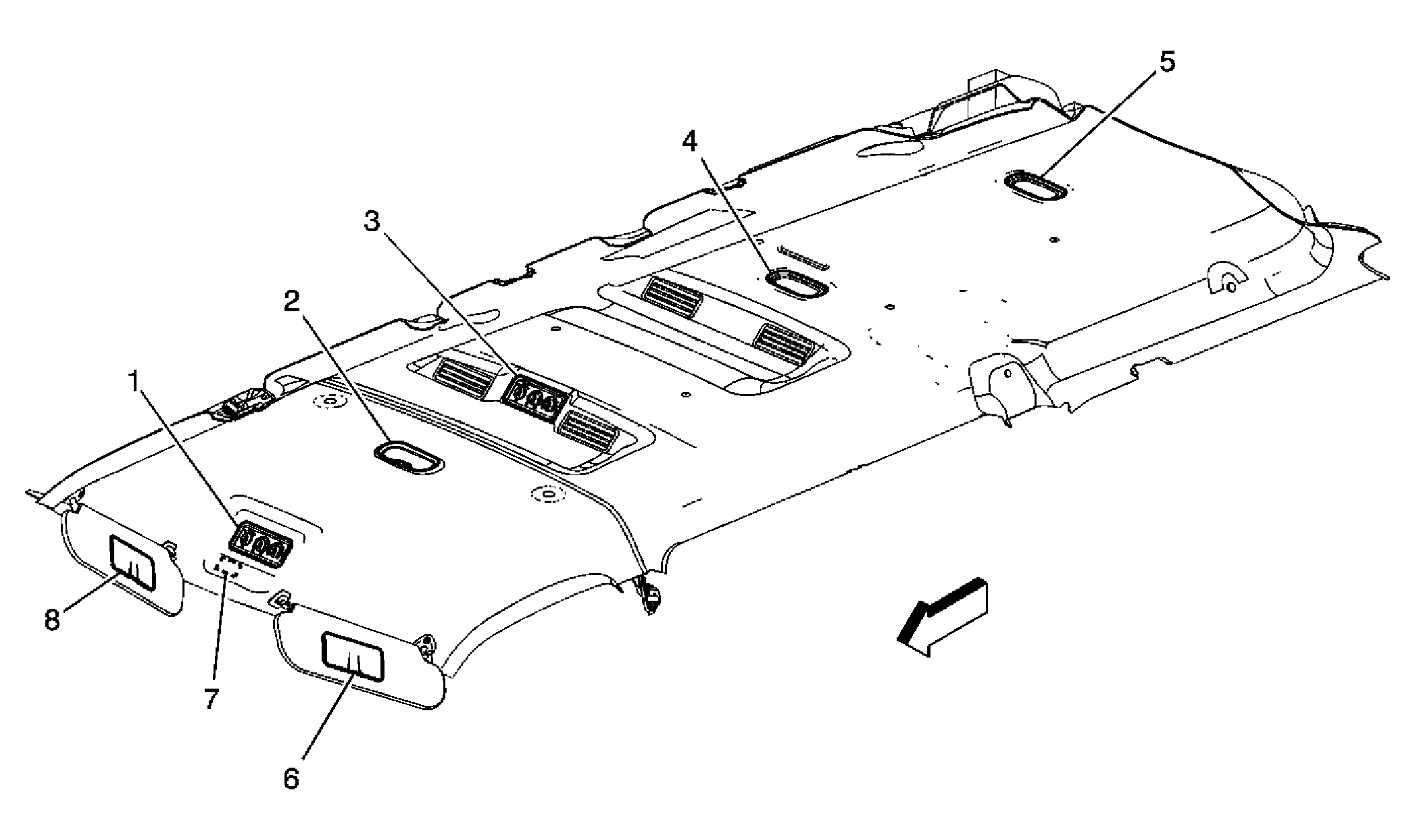

Fig 14: Headliner
GM1662592Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 HVAC Control Assembly - Front Auxiliary (C69)
2 Courtesy/Reading Lamp - Front
3 HVAC Control Assembly - Rear Auxiliary (C69 w/Rear Auxiliary Controls)
4 Courtesy/Reading Lamp - Mid (Passenger)
5 Courtesy/Reading Lamp - Rear (Passenger)/Dome Lamp - Rear (Cargo)
6 Vanity Mirror - Right (DH6)
7 HVAC Control Processor - Auxiliary (C69 w/Rear Auxiliary Controls)
8 Vanity Mirror - Left (DH6)
Fig 15: Component View - Pro Harness & Components (PRP)
GM1226742Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Dome Fluorescent Work Lamp - LR (UF2)
2 Dome Fluorescent Work Lamp - LF (UF2)
3 S350 (UF2)
4 S348 (UF2)
5 Dome Fluorescent Work Lamp - 2 (UF2)
6 Dome Fluorescent Work Lamp - 1 (UF2)
7 Dome Fluorescent Work Lamp - RH (UF2)
8 Access Panel Actuator - Right Side Front
9 Access Panel Actuator - Right Side Rear
10 S409
11 Access/Pro Wiring Harness
12 Body Control Module (BCM)
13 Fuse Block - Body
14 S302 (UF2)
15 S303
16 Dome Fluorescent Work Lamps Relay (UF2)
17 Fuse Block - Rear
18 S309
19 S300
20 S408
21 G403
22 Access Panel Actuator - Left Rear Side Rear
23 Access Panel Actuator - Left Rear Side Front
24 Access Panel Actuator - Left Front Side Rear
25 Access Panel Actuator - Left Front Side Front

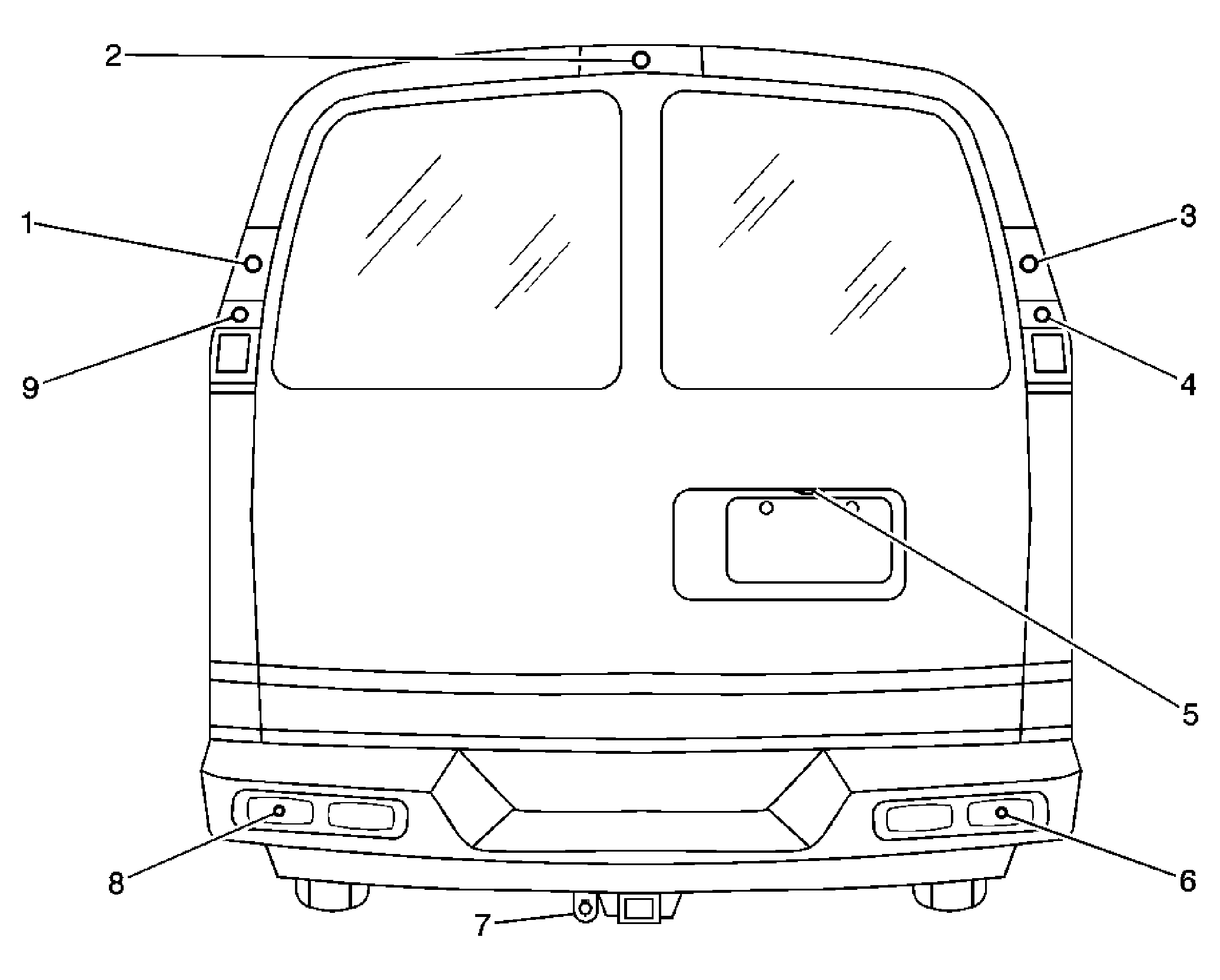

Fig 16: Rear of the Vehicle (Passenger/Cargo)
GM1827010Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Tail/Stop and Turn Signal Lamp - Left
2 Center High Mounted Stop Lamp (CHMSL)
3 Tail/Stop and Turn Signal Lamp - Right
4 Backup Lamp - Right
5 License Lamp
6 Fog Lamp - RR (T79)
7 Trailer Connector (Late Production w/Z82)
8 Fog Lamp - LR (T79)
9 Backup Lamp - Left
