Displays and Gages Component Views

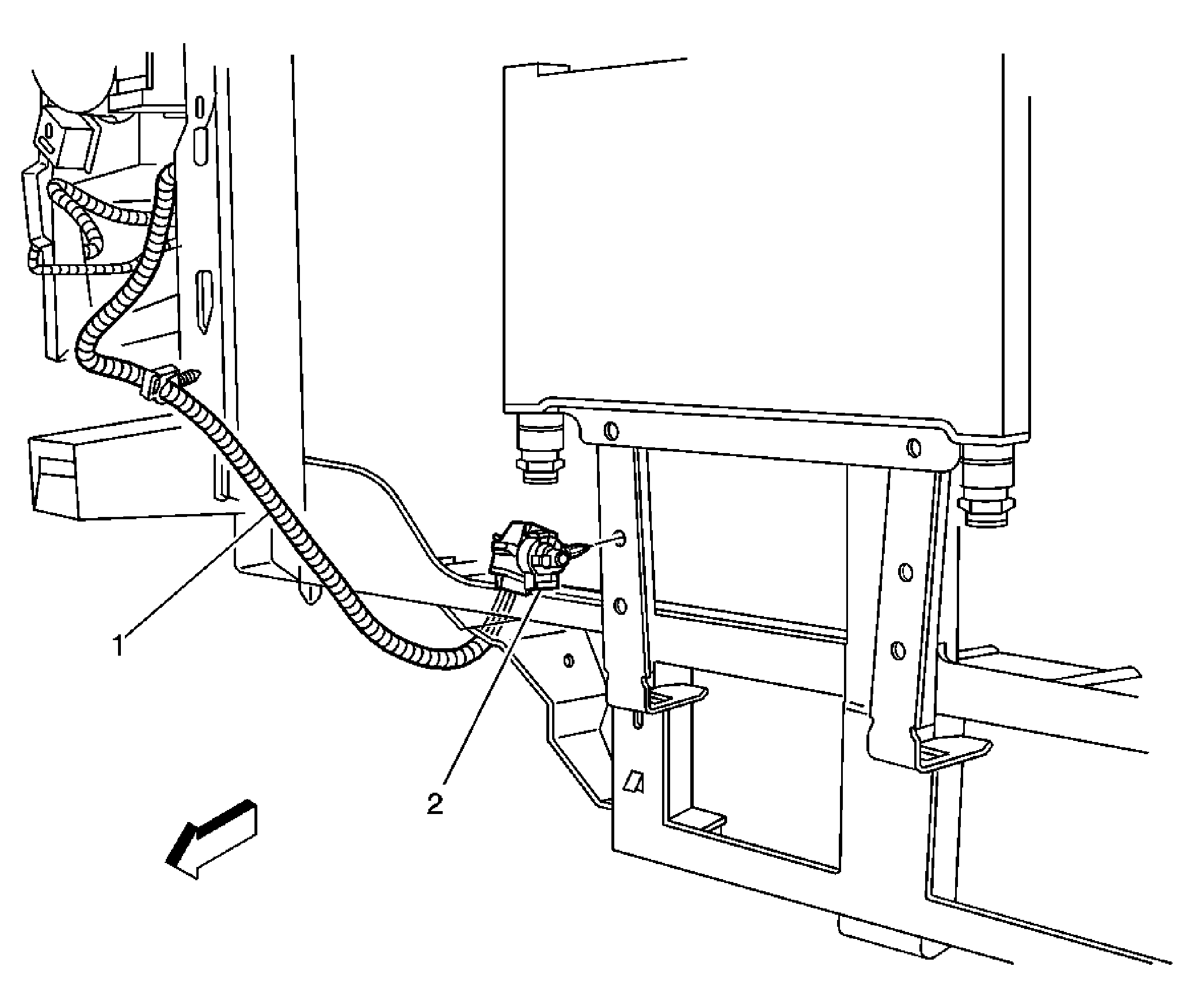

Fig 1: Component View - Front Of Vehicle (DF5)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Forward Lamp Harness
2	Ambient Air Temperature Sensor

Fig 2: Component View - Right Side Of Engine

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Starter Motor
2	Engine Oil Level Switch Connector (4.8L/5.3L/6.0L)

Fig 3: Component View - Engine Harness - Back Of Engine (4.3L)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G102
2	Camshaft Position (CMP) Sensor Connector
3	G103
4	Engine Oil Pressure (EOP) Sensor Connector
5	Knock Sensor (KS) Connector
6	Heated Oxygen Sensor (HO2S) Bank 1 Sensor 1 Connector

Fig 4: Component View - Engine Harness - Back Of Engine (4.8L/5.3L/6.0L)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G103
2	Engine Oil Pressure (EOP) Sensor Connector
3	G102
4	Camshaft Position (CMP) Sensor Connector

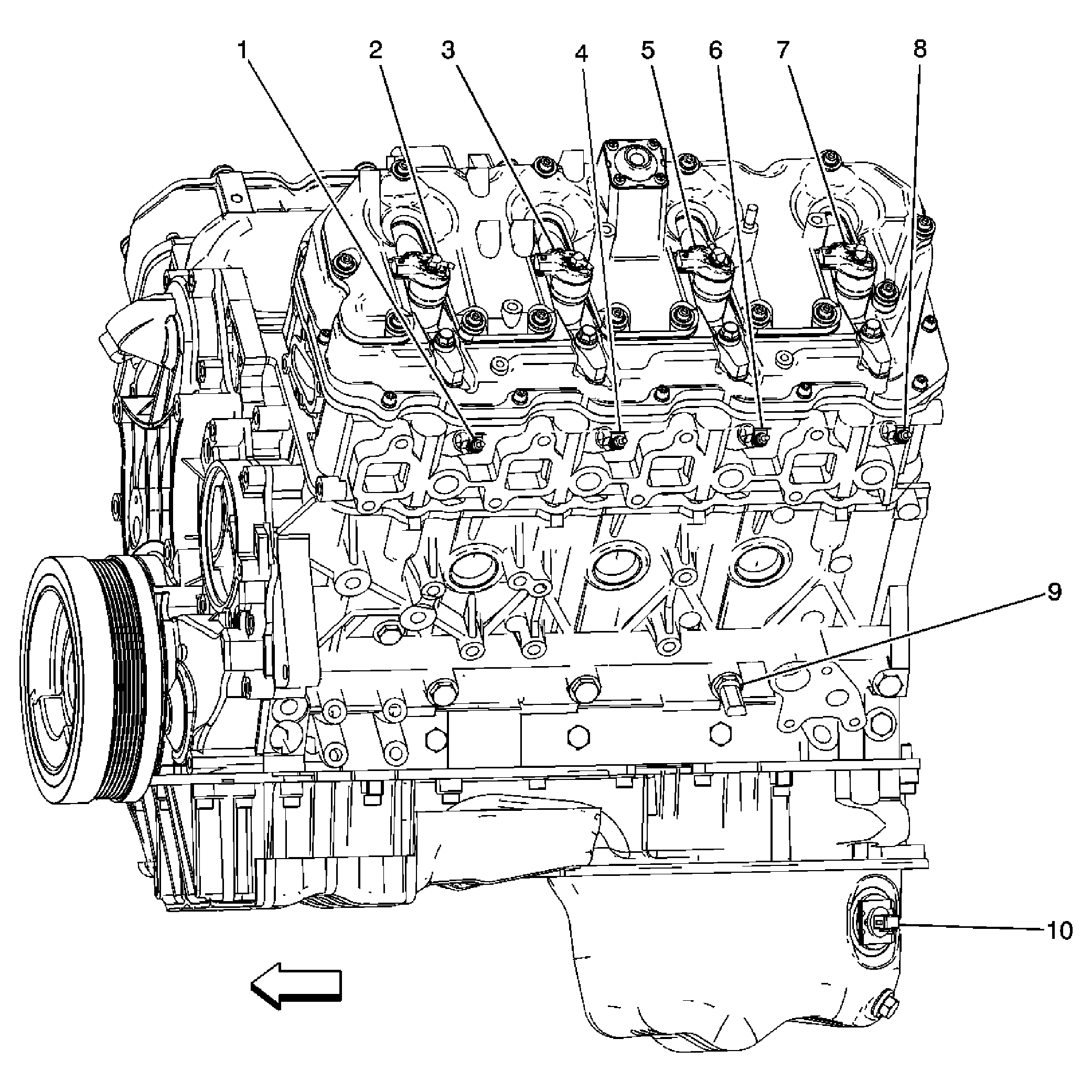

Fig 5: Left Side of the Engine (6.6L)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Glow Plug 2
2	Fuel Injector 2
3	Fuel Injector 4
4	Glow Plug 4
5	Fuel Injector 6
6	Glow Plug 6
7	Fuel Injector 8
8	Glow Plug 8
9	Engine Oil Pressure (EOP) Sensor
10	Engine Oil Level Switch

Fig 6: Inside Rearview Mirror

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inside Rearview Mirror Connector (DF5/UE1)
2	Inside Rearview Mirror

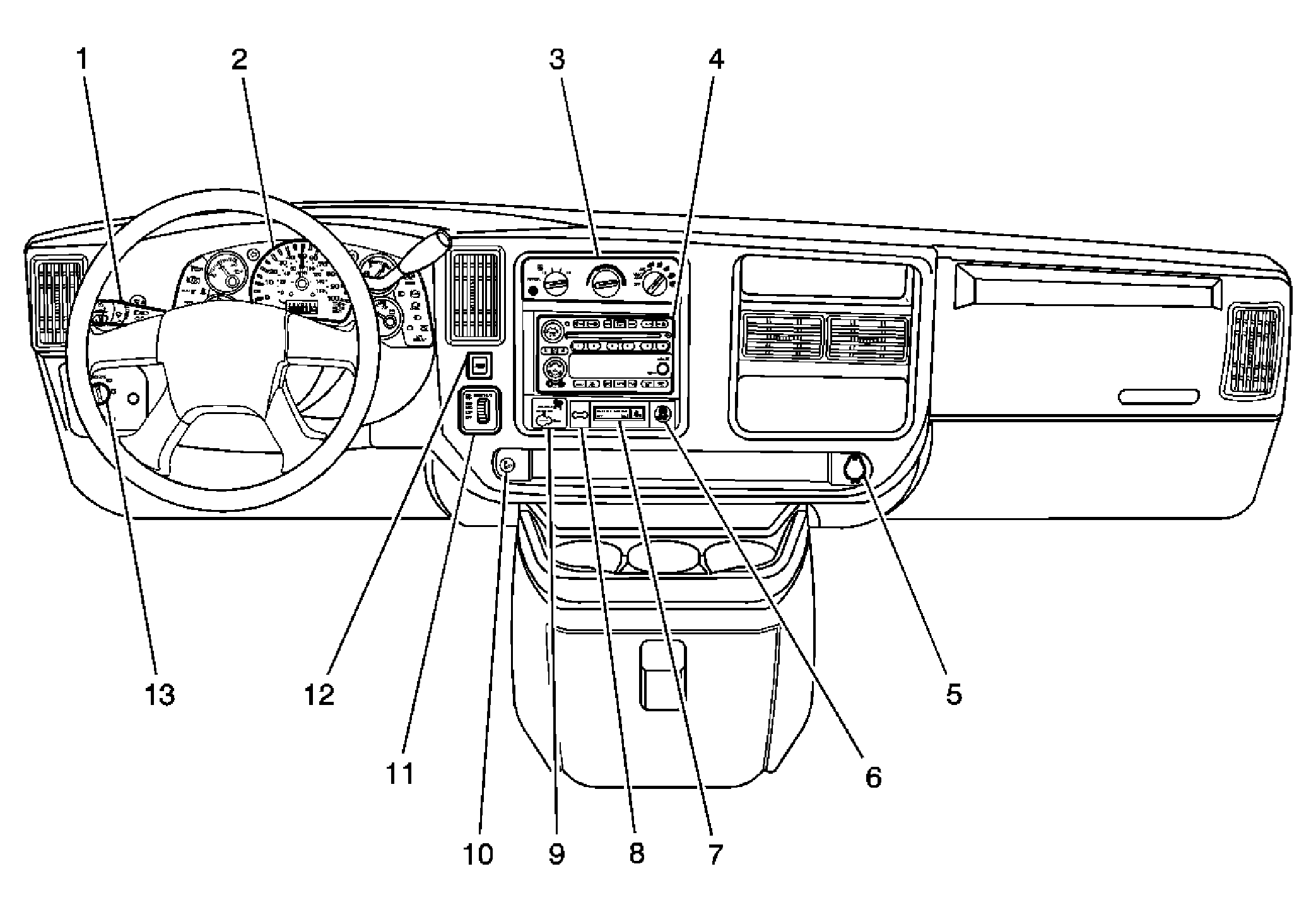

Fig 7: Instrument Panel

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Turn Signal/Multifunction Switch
2	Instrument Panel Cluster (IPC)
3	HVAC Control Assembly
4	Radio
5	Auxiliary Power Outlet 2
6	Traction Control Switch (JL4)
7	Inflatable Restraint PASSENGER AIR BAG ON/OFF Indicator (Light Duty w/o YF7)
8	High Idle Switch (UF3)
9	Inflatable Restraint I/P Disable Switch (Heavy Duty)
10	Cigar Lighter (DT4)/Auxiliary Power Outlet 1 (w/o DT4)
11	Blower Motor Switch - Auxiliary (C36)
12	Tow/Haul Switch
13	Headlamp and Panel Dimmer Switch

Fig 8: Component View - Center Of I/P

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	I/P Carrier
2	Chime Module (UL5)
3	Turn Signal/Hazard Flasher Module

Fig 9: Component Views - Upper Steering Column

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Passlock Sensor
2	Ignition Key Alarm Switch
3	Ignition Lock Cylinder Control Actuator
4	Ignition Switch
5	Ignition Key Cylinder
6	Horn Switch
7	Inflatable Restraint Steering Wheel Module
8	Turn Signal/Multifunction Switch
9	Hazard Switch

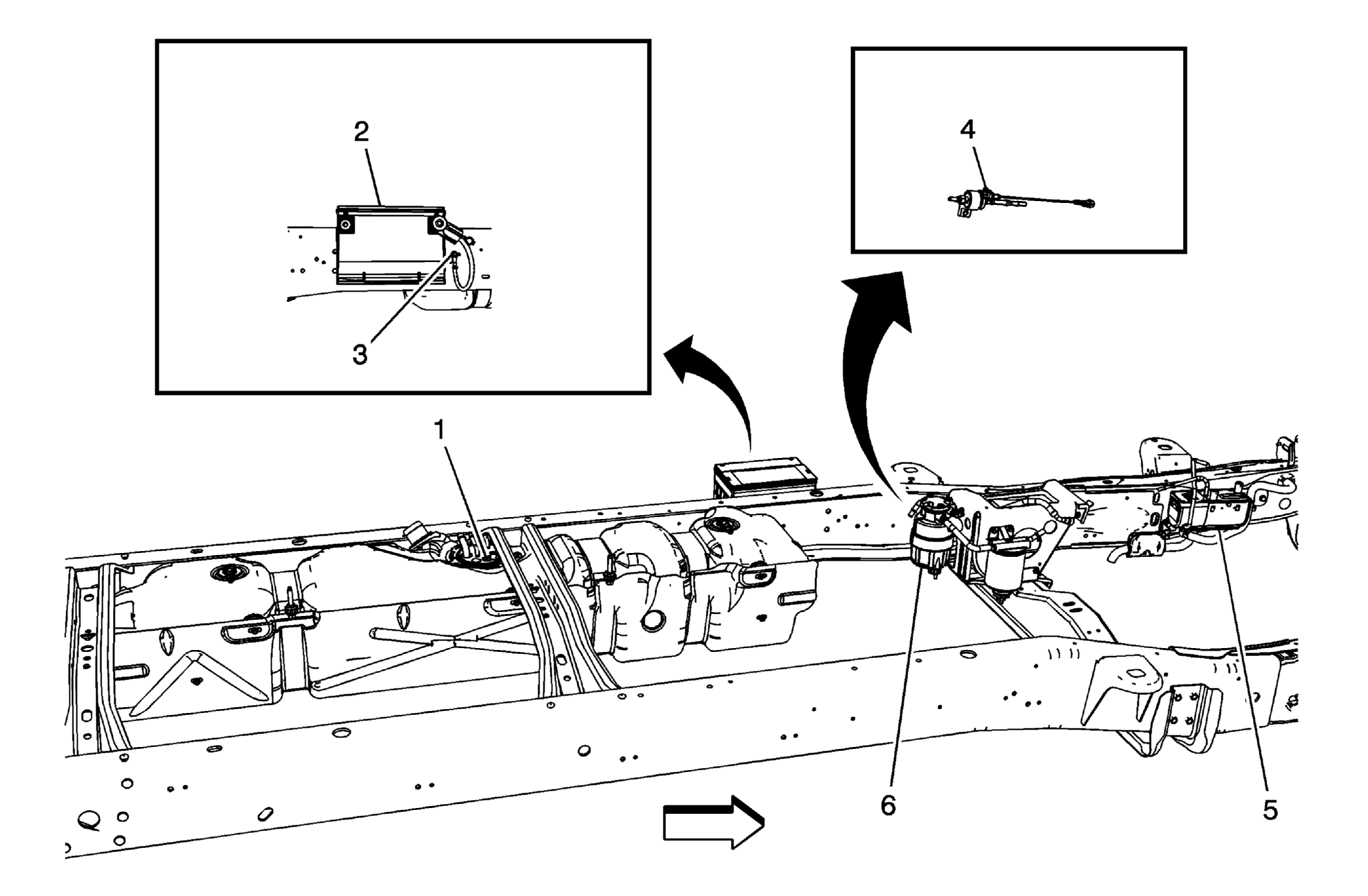

Fig 10: Left Side Frame (6.6L)

Courtesy of GENERAL MOTORS CORP.

Fig 11: Component View - Fuel Tank (w/o NE7)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fuel Pump and Sender Assembly (Gas)/Fuel Level Sensor (Diesel) Connector
2	Fuel Tank Pressure (FTP) Sensor Connector (Gas)

Fig 12: Component View - Fuel Tank (NE7)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fuel Tank Pressure (FTP) Sensor Connector
2	Fuel Pump and Sender Assembly Connector
