Cruise Control Schematics

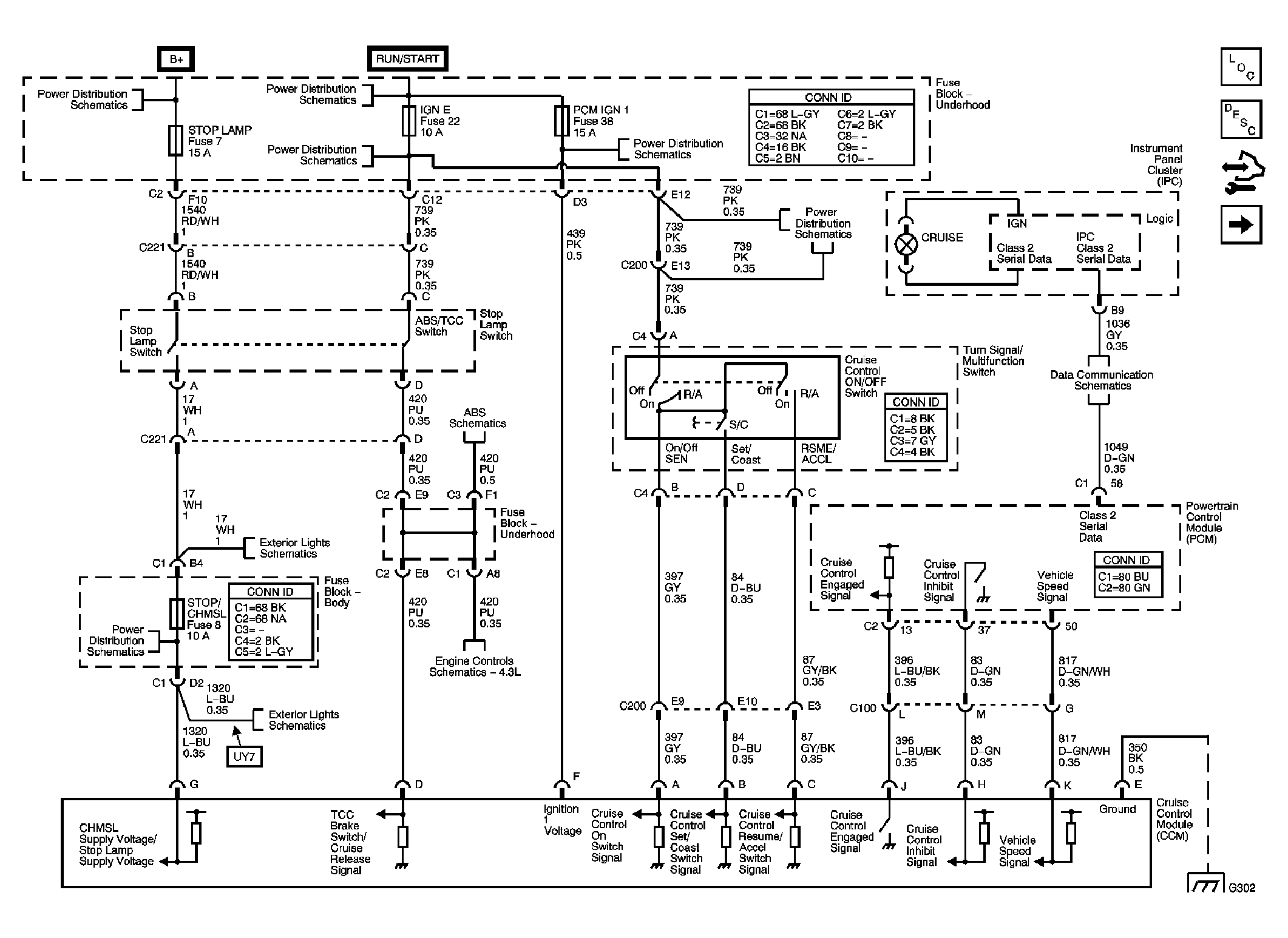

Fig 1: 4.3L Schematics
GM1753666Courtesy of GENERAL MOTORS CORP.

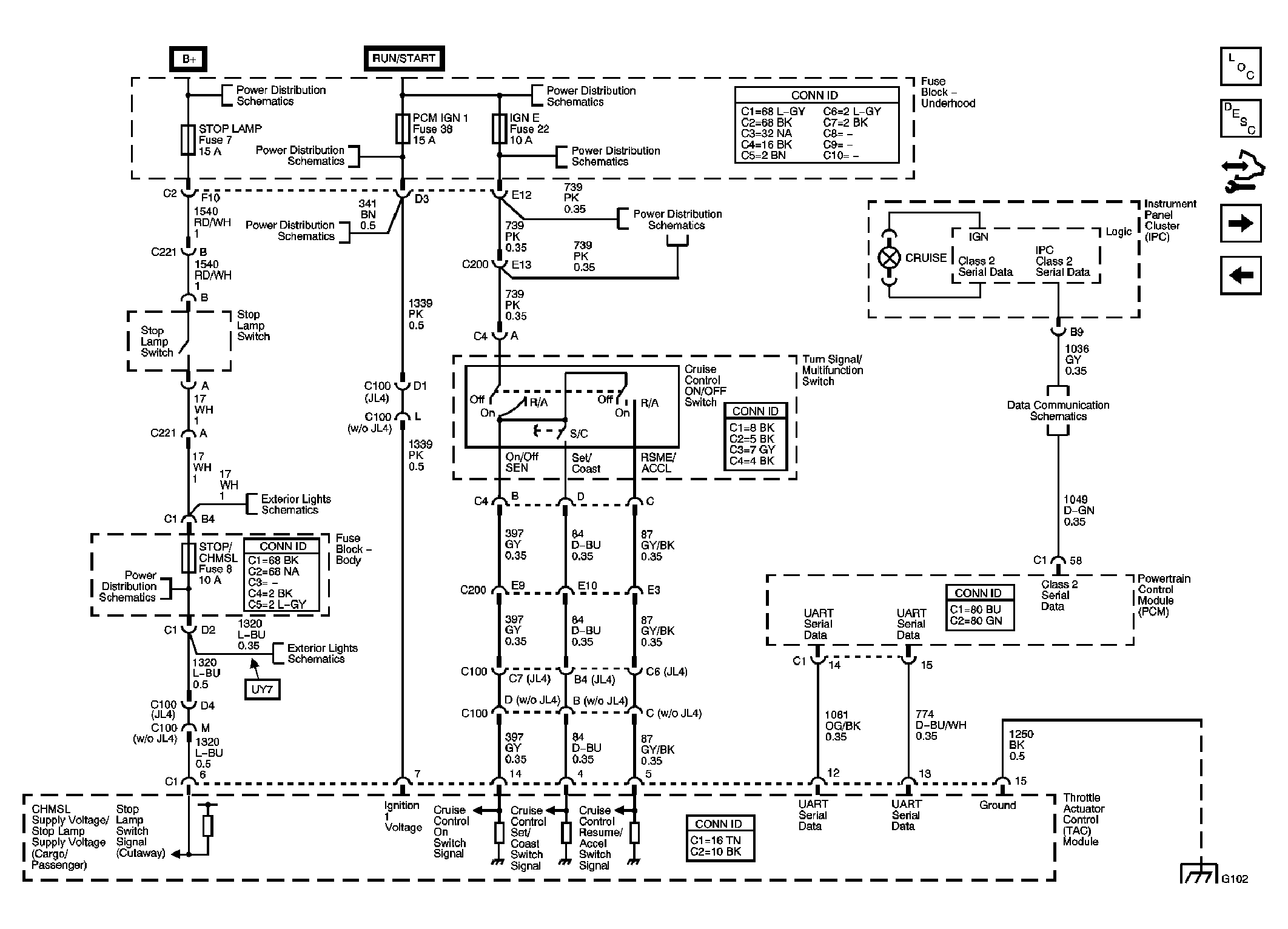

Fig 2: 4.8L, 5.3L and 6.0L Schematics
GM1753670Courtesy of GENERAL MOTORS CORP.

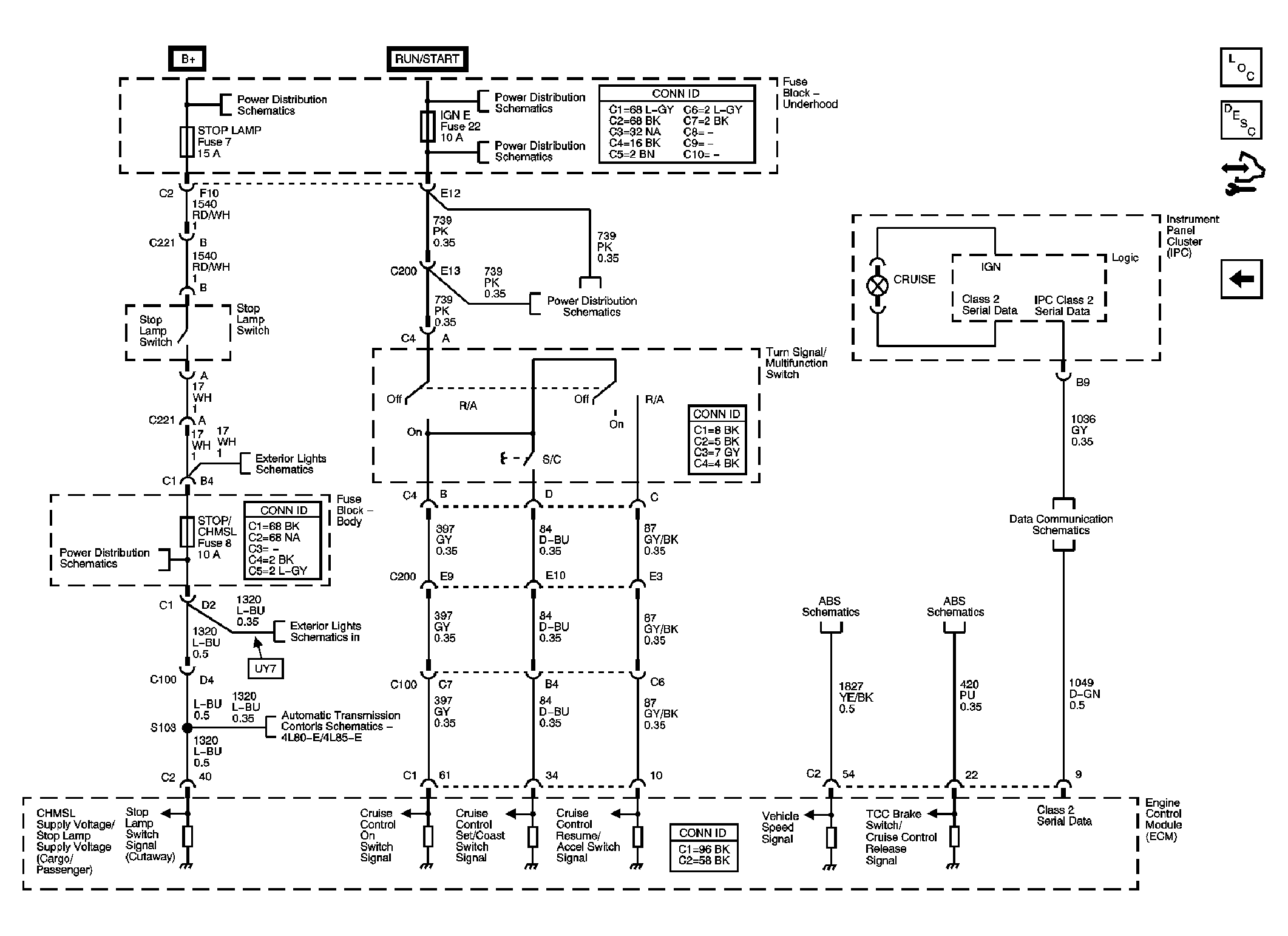

Fig 3: 6.6L Schematics
GM1753671Courtesy of GENERAL MOTORS CORP.
