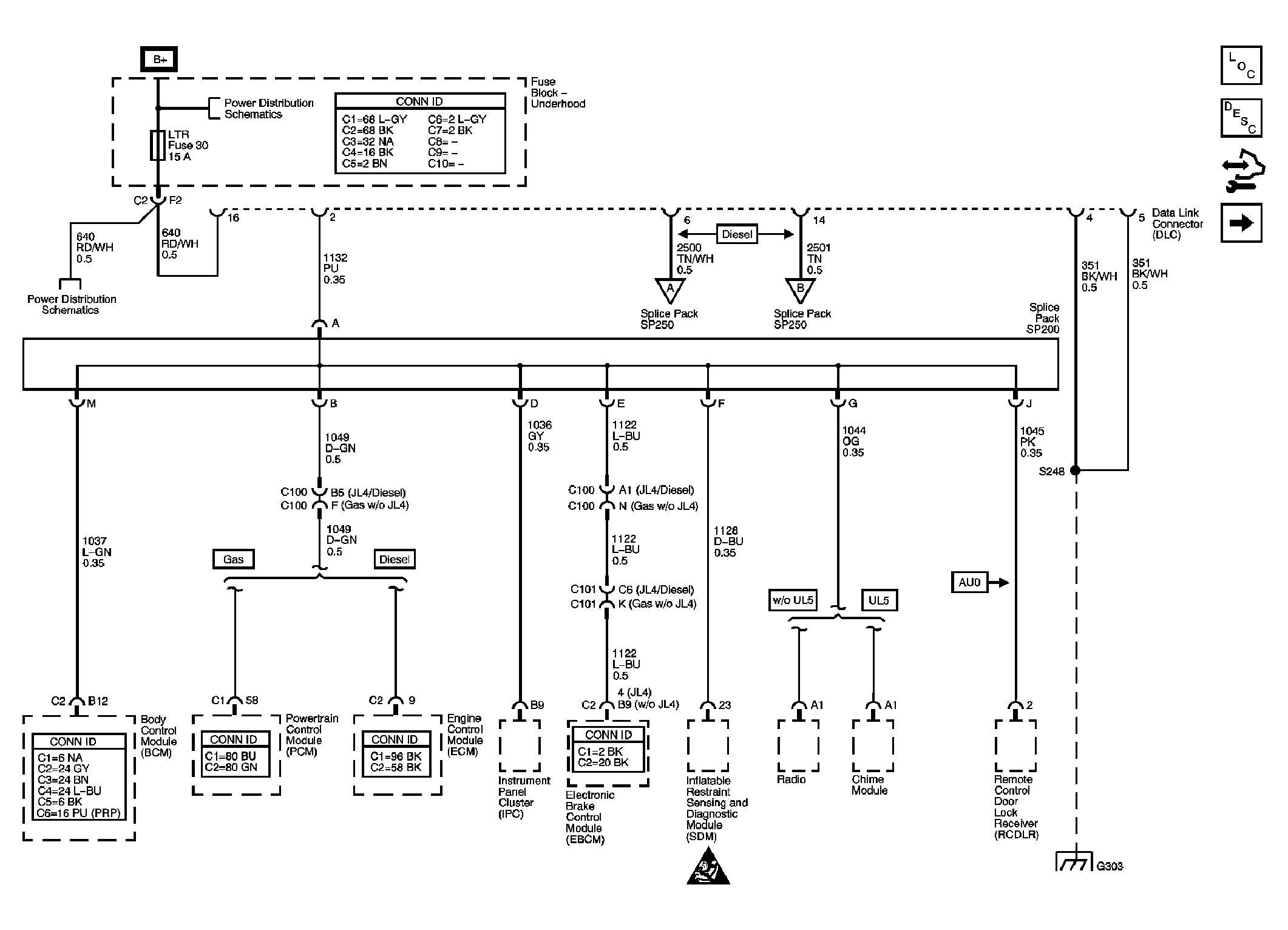

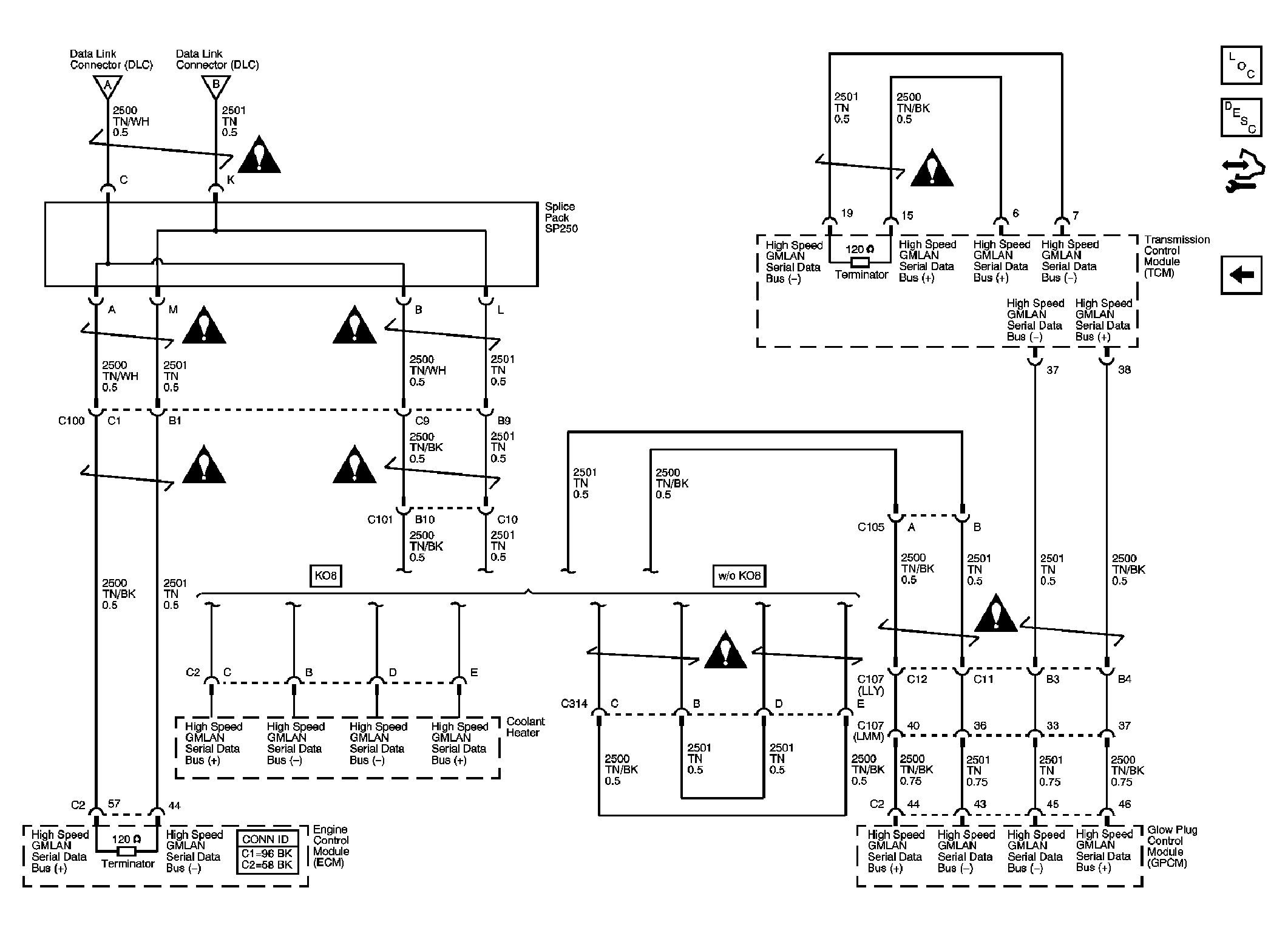

Home >> Chevrolet >> 2007 >> Chevy Express G2500, Van Cargo, 6.6 6 >> Repair and Diagnosis >> Accessories & Equipment >> Communication Devices >> Data Communication System >> Schematic and Routing Diagrams >> Data Communication Schematics
