Body Control System Schematics

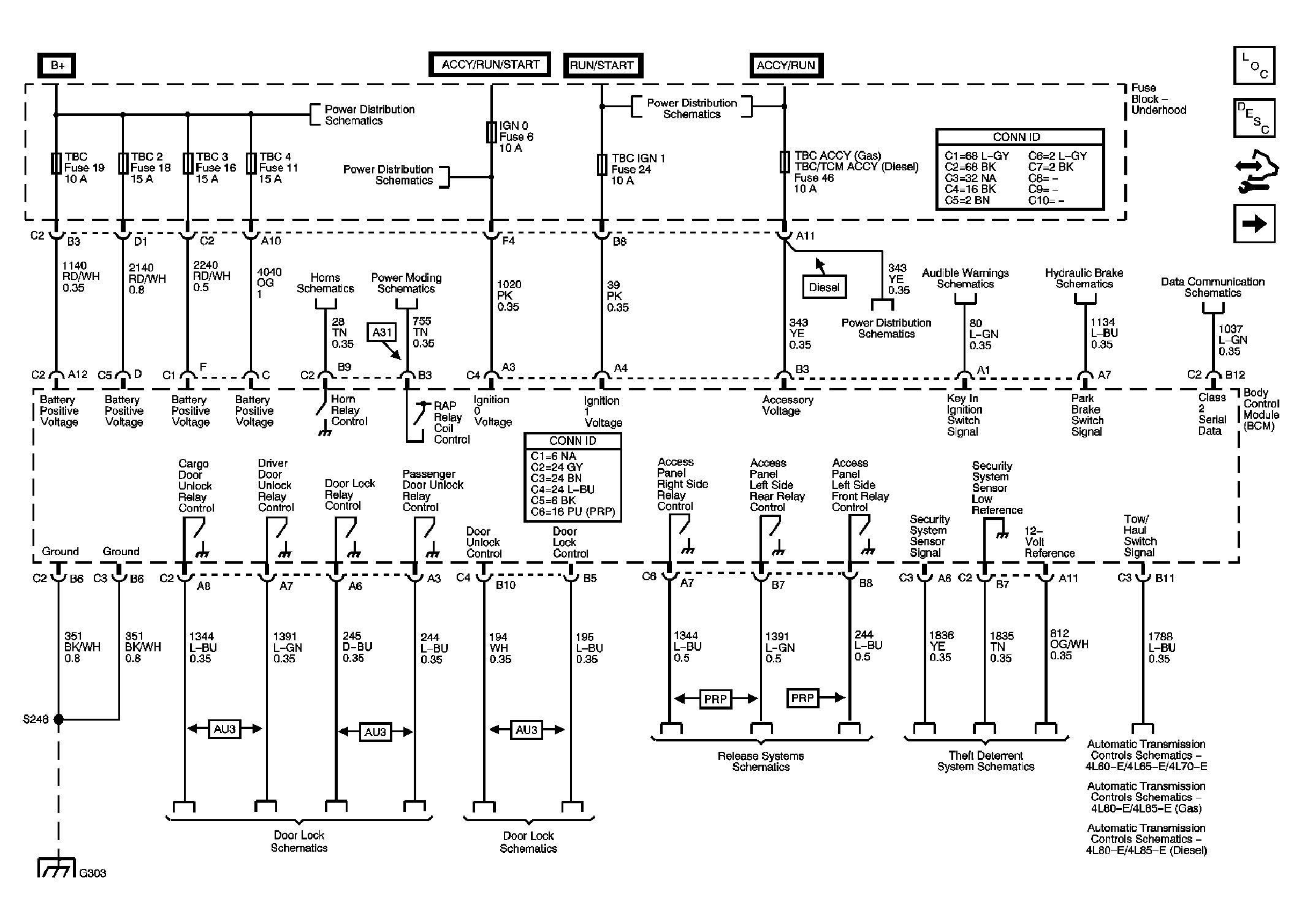

Fig 1: Power, Ground, Serial Data, and Controlled/Monitored Subsystem References
GM1752529Courtesy of GENERAL MOTORS CORP.

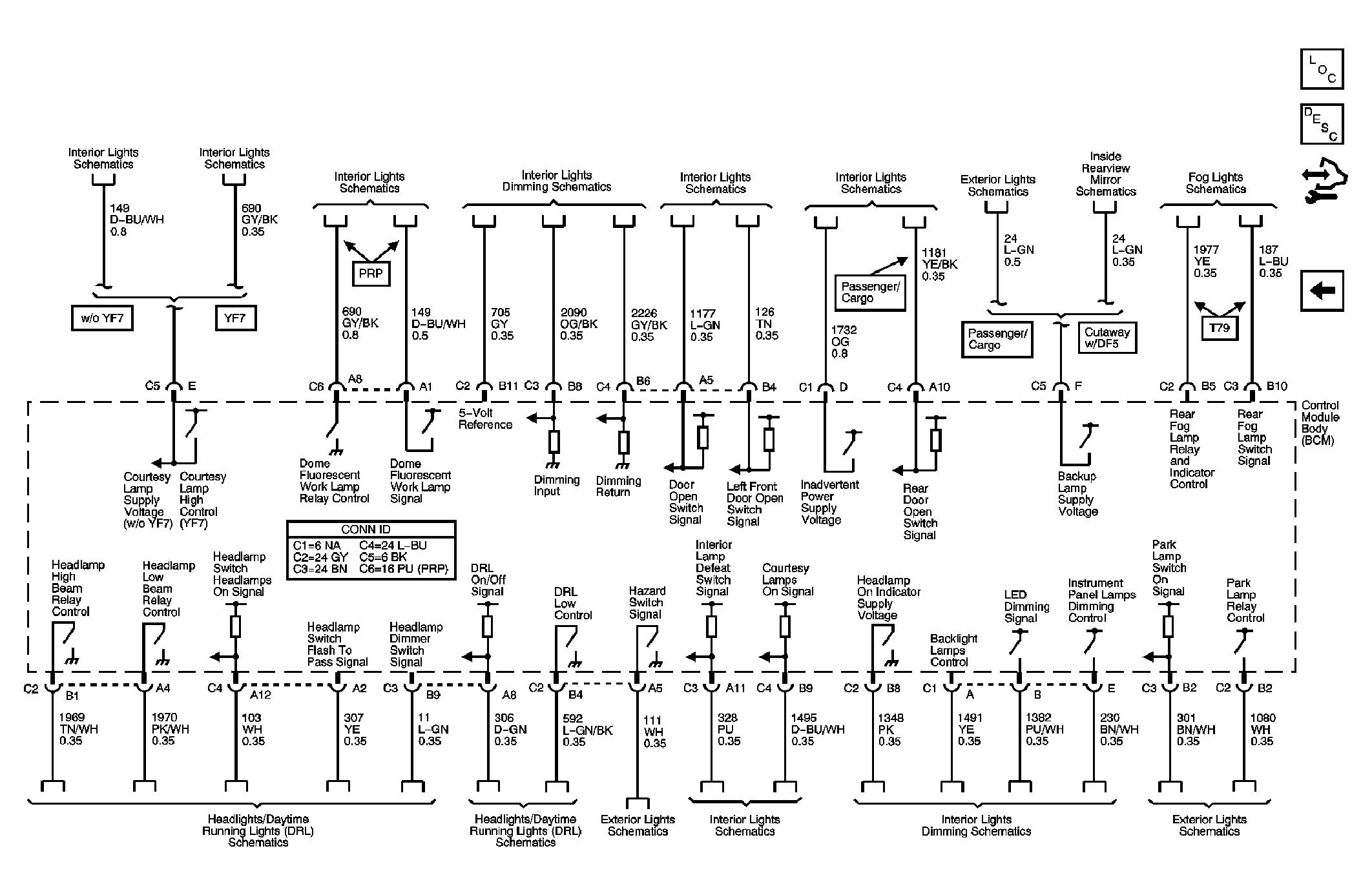

Fig 2: Lighting Subsystem References
GM1752532Courtesy of GENERAL MOTORS CORP.
