Overdrive Range, 3-2 Downshift - A/T System Hydraulic Diagram

WARNING: This page is about a different car, the 2007 GMC Yukon XL and 2007 Chevrolet Suburban. However, it is still accessible from the selected car via links, so may be relevant.

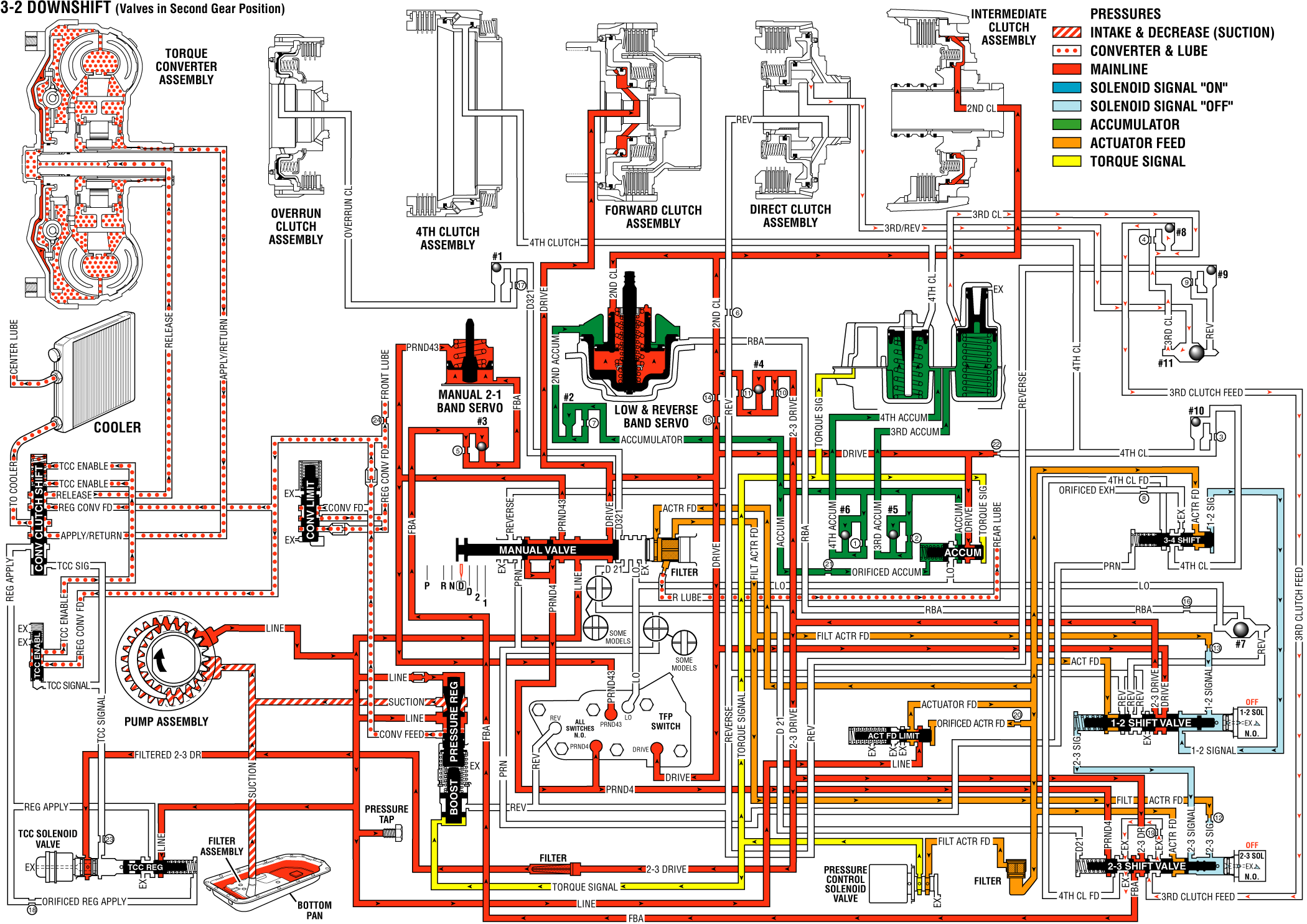

Fig 1: Overdrive Range, 3-2 Downshift Schematic
GM362688Courtesy of GENERAL MOTORS CORP.
