Rear Oil Seal Installation (2WD)

WARNING: This page is about a different car, the 2010 GMC Sierra, 2010 GMC Cab & Chassis Sierra, 2010 Chevrolet Silverado, and 2010 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Tools Required

J 43782 Rear Seal Installer. See Special Tools .

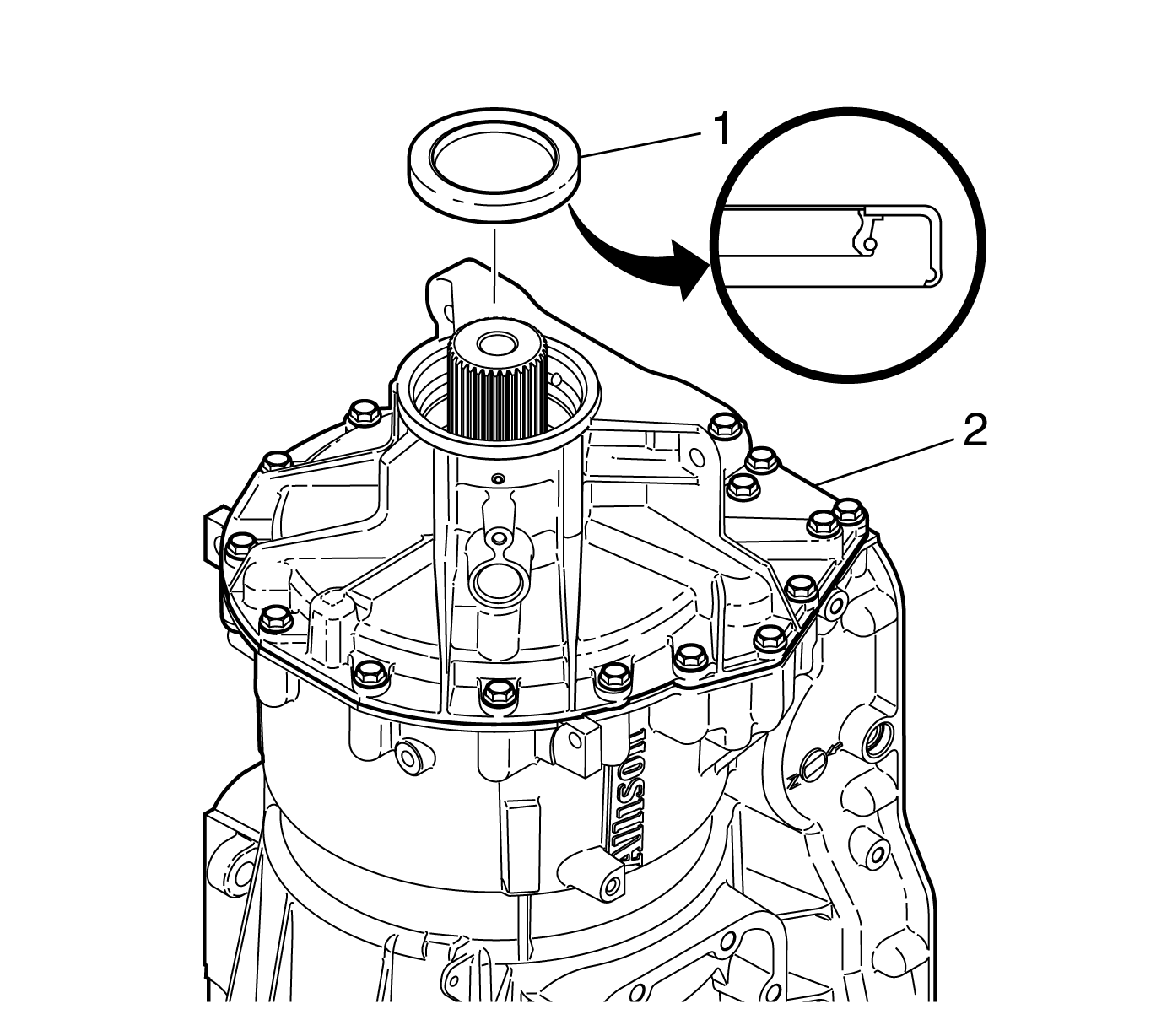

Fig 1: View Of Prop Shaft Front Slip Yoke Oil Seal

Courtesy of GENERAL MOTORS CORP.

Using J 43782 install the prop shaft front slip yoke oil seal (1). See Special Tools .
Make sure the oil seal is installed to the correct depth below the rear face of the low and reverse clutch housing, 2WD (2).
Specification: The rear seal installed depth is 4.55-5.35 mm (0.179-0.211 in) below the rear face of the low and reverse clutch housing, 2WD.
