Low and Reverse Clutch Housing Retaining Ring Replacement

WARNING: This page is about a different car, the 2010 GMC Sierra, 2010 GMC Cab & Chassis Sierra, 2010 Chevrolet Silverado, and 2010 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

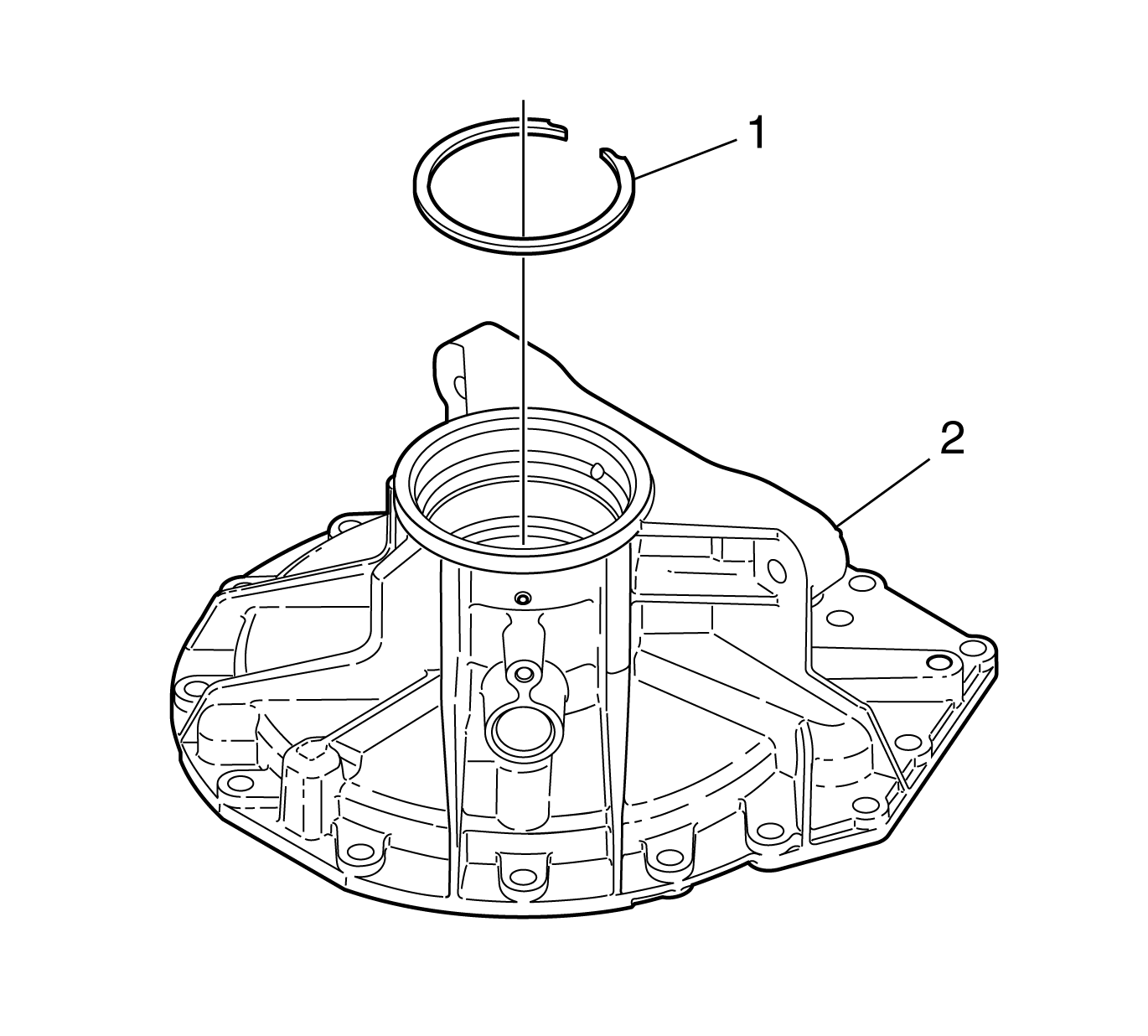

    Fig 1: View Of Low & Reverse Clutch Housing Retaining Ring
    GM2088922Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: DO NOT replace the retaining ring in the low and reverse clutch housing unless:
    • The retaining ring is damaged.
    • The low and reverse clutch housing is to be replaced.
  1. Position the low and reverse clutch housing (2) on the worktable so that the inside of the cover is facing down.
  2. Remove retaining ring (1).
  3. Install a new retaining ring (1).
  4. Make sure the retaining ring is seated.
