Installation Procedure

WARNING: This page is about a different car, the 2010 GMC Sierra, 2010 GMC Cab & Chassis Sierra, 2010 Chevrolet Silverado, and 2010 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

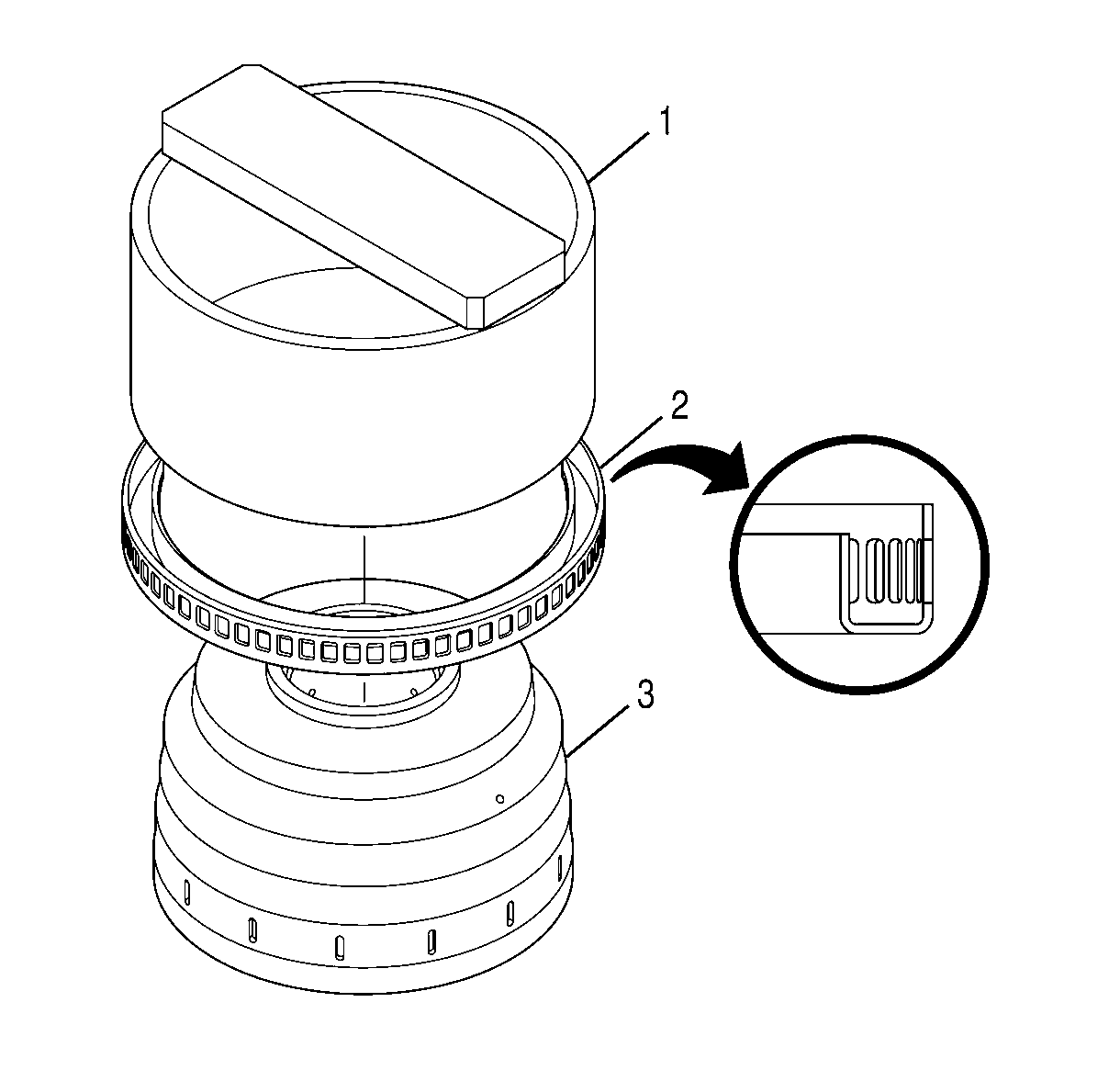

    Fig 1: Installing Tone Wheel Onto The 1-2-3-4, 4-5 Clutch Housing
    GM1217089Courtesy of GENERAL MOTORS CORP.
  1. Position the 1-2-3-4, 4-5-6 clutch housing (3) on a press so that the front of the housing is facing up.
  2. Align the tone wheel (2) so that the outside edge is facing up.
  3. Install the tone wheel (2) onto the 1-2-3-4, 4-5-6 clutch housing.
  4. Install J 43768:  driver (1) onto the tone wheel.
  5. Using J 43768:  driver (1), press the tone wheel onto the 1-2-3-4, 4-5-6 clutch housing.

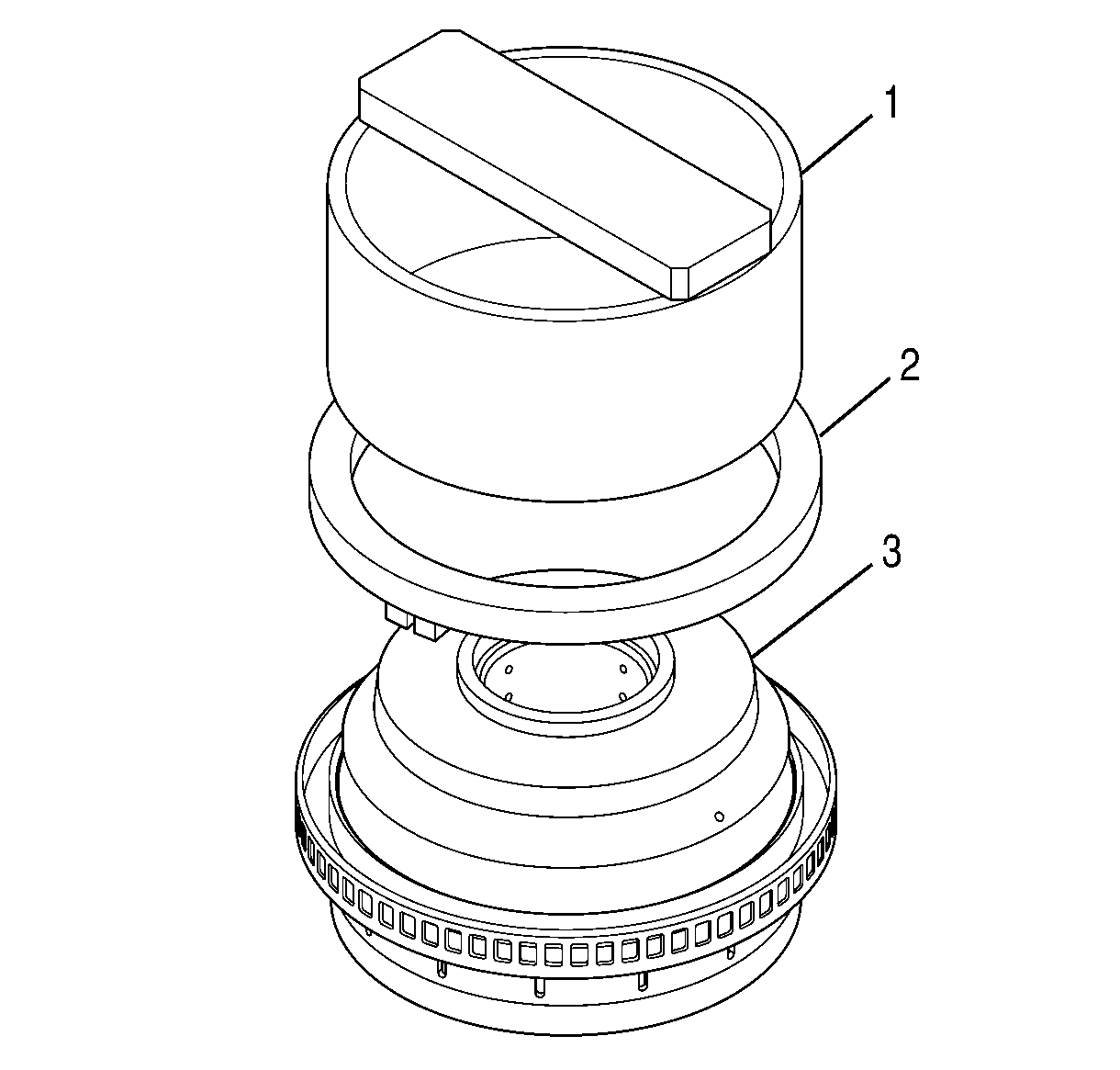

    6. Fig 2: Staking 1-2-3-4, 4-5 Clutch Housing
    GM1217090Courtesy of GENERAL MOTORS CORP.
  6. Locate 4 positions on the 1-2-3-4, 4-5-6 clutch housing (3), 90 degrees apart from each other, that have not been previously staked.
  7. Install J 43767:  staker onto the 1-2-3-4, 4-5-6 clutch housing with the 2 staking prongs at 2 of the 4 staking positions.
  8. Install J 43768:  driver (1) onto J 43767:  staker (2).
    9. CAUTION: Stake the tone wheel to 9 tons. The accuracy of the pressure gauges on presses varies. Start at a lower pressure and increase to 9 tons. Too great a pressure will distort the tone wheel. Too little pressure will result in stakes that will not hold.
  9. Stake the tone wheel to the 1-2-3-4, 4-5-6 clutch housing.
    10. NOTE: If necessary, tap J 43768:  driver and J 43767:  staker to remove the tools from the 1-2-3-4, 4-5-6 clutch housing.
  10. Remove the J tools and repeat steps 7-9 at the remaining 2 staking positions.
  11. Remove the J tools.
